The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4 to 20 mA control loop powered by a 10 to 35 VDC supply.
Made in USA. brand DWYER, model Magnehelic 605
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $451
Available
Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
PRODUCT APPLICATIONS
FEATURES
GAGE SPECIFICATIONS
TRANSMITTER SPECIFICATIONS
| Photo | Model | Description |
|---|---|---|
|

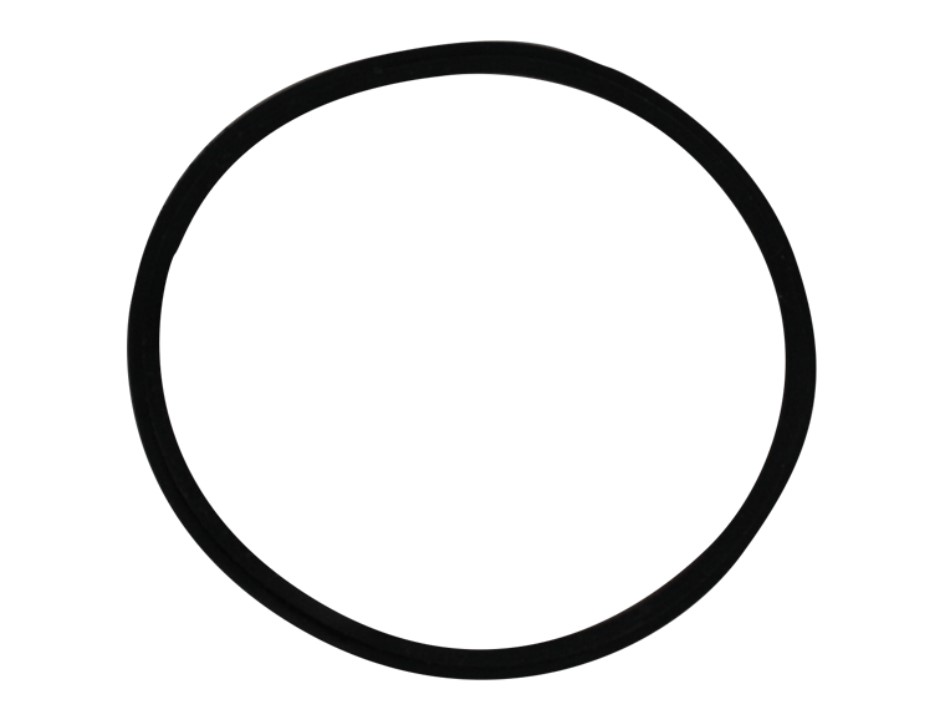

A-135 | Silicone rubber gasket for panel mounting (Series 2000, DM-2000, DM-1000, 605) |
|

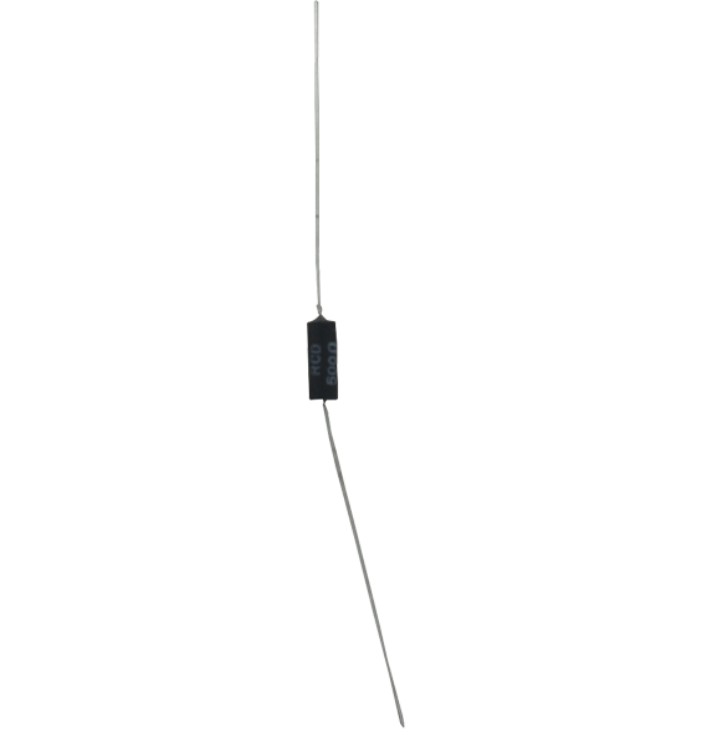

A-276 | Precision resistor, 500 ohm. |
|

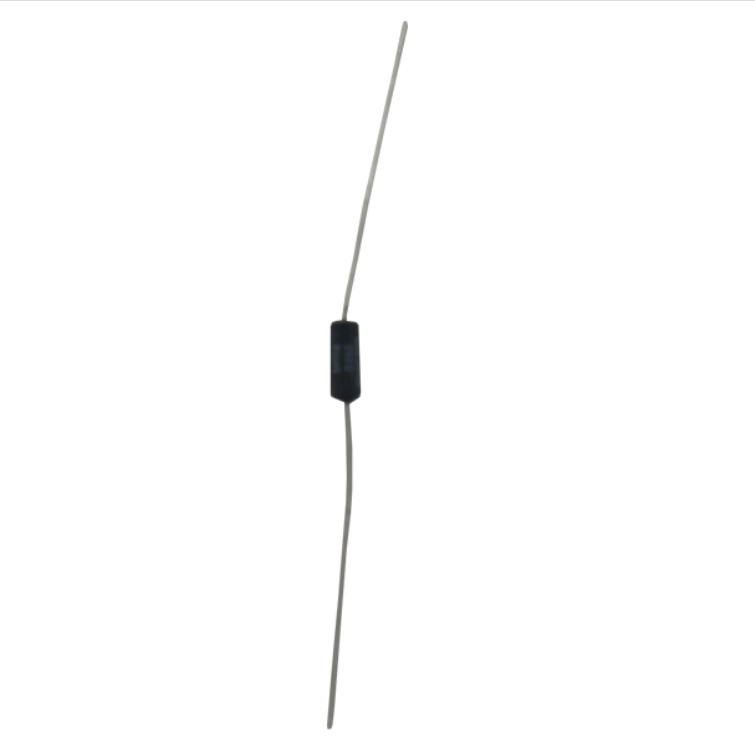

A-277 | Precision resistor, 250 ohm |
|

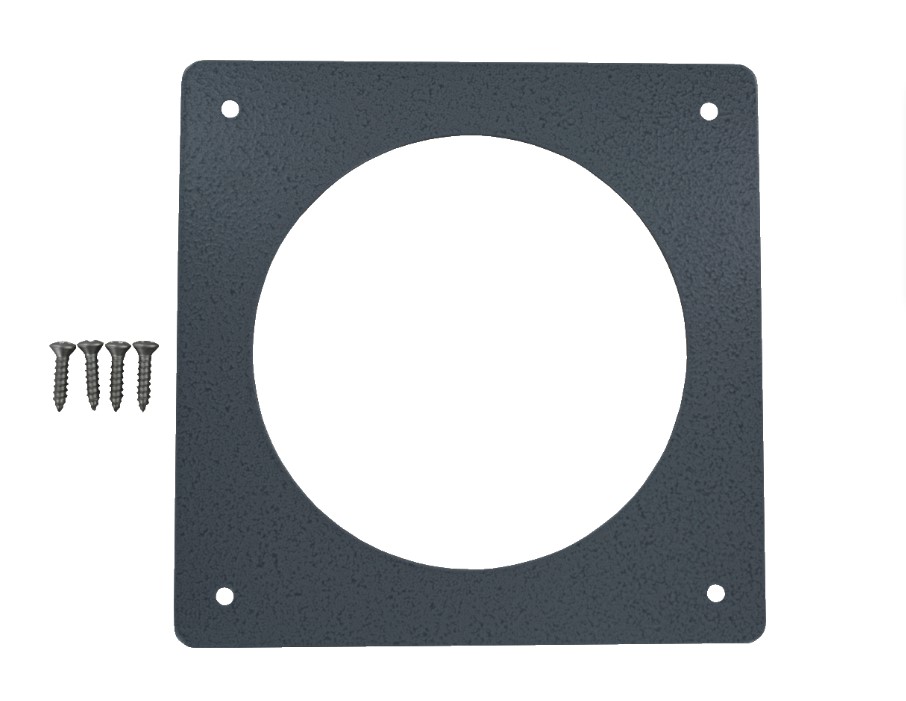

A-298 | Flat aluminum bracket for flush mounting (for Series A3000 Photohelic®, Series 4000 Capsuhelic®, Series 605, and Series 3000MR) |
|
A-320-B1 | Weatherproof enclosure, ABS, compatible with Series 3000MR/MRS Photohelic®, Series 605 Magnehelic®, Series DH3 Digihelic® (to fit, the casing on the electrical plug must be removed), Series 2000 Magnehelic® with medium and high pressure options |
|
|
A-320-BC | Weatherproof enclosure, ABS, compatible with Series 2000 Magnehelic®, DM-1000 DigiMag®, DM-2000, Series 605 (with -SS option), instruments with backwards compatible bezel option |
| A-489 | 4" 303 SS straight static pressure tip with flange, 1/4" hose barb. |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| 605-0 | Differential pressure indicating transmitter, range 0-.50" w.c., max. pressure 10 psi (1.7 bar), ±2% electrical accuracy, ±3% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-00N | Differential pressure indicating transmitter, range .05-0-0.2" w.c., max. pressure 10 psi (1.7 bar), ±2% electrical accuracy, ±4% mechanical accuracy. | Delivery time from 12 weeks | from 550$ |
-
+
|
|
| 605-1 | Differential pressure indicating transmitter, range 0-1.0" w.c., max. pressure 10 psi (1.7 bar), ±2% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-10 | Differential pressure indicating transmitter, range 0-10" w.c., max. pressure 2 psi (13.79 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-11 | Differential pressure indicating transmitter, range .25-0-.25" w.c., max. pressure 10 psi (1.7 bar), ±2% electrical accuracy, ±3% mechanical accuracy. | Delivery time from 12 weeks | from 550$ |
-
+
|
|
| 605-125PA | Differential pressure indicating transmitter, range 0-125 Pa, max. pressure 10 psi (68.95 kPa), ±2% electrical accuracy, ±3% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-1.5KPA | Differential pressure indicating transmitter, range 0-1.5 kPa | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-2 | Differential pressure indicating transmitter, range 0-2.0" w.c., max. pressure 2 psi (13.79 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-20 | Differential pressure indicating transmitter, range 0-20" w.c., max. pressure 11 psi (75.8 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-250PA | Differential pressure indicating transmitter, range 0-250 Pa, max. pressure 10 psi (68.95 kPa), ±2% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-3 | Differential pressure indicating transmitter, range 0-3.0" w.c., max. pressure 2 psi (13.79 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-30 | Differential pressure indicating transmitter, range 0-30" w.c., max. pressure 11 psi (75.8 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-50 | Differential pressure indicating transmitter, range 0-50" w.c., max. pressure 11 psi (75.8 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-500PA | Differential pressure indicating transmitter, range 0-500 Pa, max. pressure 2 psi (13.79 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-60PA | Differential pressure indicating transmitter, range 0-60 Pa, max. pressure 10 psi (68.95 kPa), ±2% electrical accuracy, ±4% mechanical accuracy. | Delivery time from 12 weeks | from 550$ |
-
+
|
|
| 605-6 | Differential pressure indicating transmitter, range 0-6.0" w.c., max. pressure 2 psi (13.79 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy. | Delivery time from 12 weeks | from 481$ |
-
+
|
|
| 605-1-WP | Differential pressure indicating transmitter, range 0-1.0" w.c. with weatherproof housing | Delivery time from 12 weeks | from 1 616$ |
-
+
|
|
| 605-2-WP | Differential pressure indicating transmitter, range 0-2.0" w.c. with weatherproof housing | Delivery time from 12 weeks | from 1 616$ |
-
+
|
|
| 605-3-WP | Differential pressure indicating transmitter, range 0-3.0" w.c. with weatherproof housing | Delivery time from 12 weeks | from 1 615$ |
-
+
|
|
| A-135 | Silicone rubber gasket for panel mounting (Series 2000, DM-2000, DM-1000, 605) | Delivery time from 12 weeks | from 6$ |
-
+
|
|
| A-276 | Precision resistor, 500 ohm. | Delivery time from 12 weeks | from 14$ |
-
+
|
|
| A-277 | Precision resistor, 250 ohm | Delivery time from 12 weeks | from 14$ |
-
+
|
|
| A-298 | Flat aluminum bracket for flush mounting (for Series A3000 Photohelic®, Series 4000 Capsuhelic®, Series 605, and Series 3000MR) | Delivery time from 12 weeks | from 41$ |
-
+
|
|
| A-320-B1 | Weatherproof enclosure, ABS, compatible with Series 3000MR/MRS Photohelic®, Series 605 Magnehelic®, Series DH3 Digihelic® (to fit, the casing on the electrical plug must be removed), Series 2000 Magnehelic® with medium and high pressure options | Delivery time from 12 weeks | from 347$ |
-
+
|
|
| A-320-BC | Weatherproof enclosure, ABS, compatible with Series 2000 Magnehelic®, DM-1000 DigiMag®, DM-2000, Series 605 (with -SS option), instruments with backwards compatible bezel option | Delivery time from 12 weeks | from 347$ |
-
+
|
|
| A-489 | 4" 303 SS straight static pressure tip with flange, 1/4" hose barb. | Delivery time from 12 weeks | from 10$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for DWYER Magnehelic 605 using the special form.
You can buy DWYER Magnehelic 605 in UAE at a price starting from 451 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. DWYER Magnehelic 605 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
