DWYER MBLT miniature submersible level transmitter

The MBLT Miniature Submersible Level Transmitter is only 0.63″ in diameter making it ideal for level monitoring in well and borehole applications. Constructed for years of trouble free service, the MBLT has a welded 316 SS body and 316 SS nose cap. Body top is also 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation. Featured in the MBLT is a precision ±0.10% or ±0.25% of full scale accuracy output, better than BFSL or BSL rated outputs used by most competitors. Lightning and surge protection (not guaranteed or covered by standard warranty) is included standard to stand up in harsh applications. MBLT comes with a choice of polyether polyurethane or ETFE cable materials and all are vented for barometric pressure compensation. Vent is covered with a maintenance-free filter preventing particulate or water droplets from entering the transmitter.

			int(1894)
NULL

Made in USA. brand DWYER, model MBLT

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.

Retail price from $742,05

Available

Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DWYER MBLT

PRODUCT APPLICATIONS

Ballast tanks
Ground water monitoring
Surface water monitoring
Dewatering
Down hole
Remote telemetry applications
Remediation and other environmental monitoring applications
Remote flood monitoring
Narrow conduit or pipe installations

FEATURES

Fits narrow installation openings with slender 0.63″ (16 mm) diameter design
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Prevents damage or snares when removing the unit from the installation with tapered 316 SS body top
More precise than BFSL or BSL rated output with ±0.10% or ±0.25% FS accuracy output
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Excellent chemical compatibility with choice of polyether polyurethane or ETFE cable materials
Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection, (surge protection is not guaranteed and is not covered by warranty)

OPTIONS

Custom ranges, cable lengths, or ETFE cable . . .Contact the factory for pricing.

Technical specifications of DWYER MBLT

Service: Compatible liquids.
Wetted Materials: Body and nose: 316 SS; Cable: Polyether polyurethane or ETFE; Seals: Fluoroelastomer; Label: Polyolefin.
Accuracy: ±0.25% or ±0.10% FS. 4.3 to 4.9 psi (10 to 11.54″ w.c.) configured ranges are ±0.30% FS accuracy.
Temperature Limits: -4 to 176°F (-20 to 80°C).
Compensated Temperature Limits: 0.25%: (0 to 70°C); 0.10%: (0 to 60°C).
Thermal Effect: 0.25%: ±0.45% FS TEB; 0.10%: ±0.30% FS TEB.
Pressure Limit: 2x FS.
Power Requirements: Current Output: 10 to 33 VDC; Voltage Output: 8 to 33 VDC; 5 mA max (no load).
Output Signal: 4 to 20 mA DC 2-wire or 0 to 5V* (model depending). *Consult factory for additional outputs.
Response Time: < 50 ms.
Max Loop Resistance: 1000Ω @ 30 VDC (current output).
Voltage Output Impedence: 10Ω + 4.4Ω / 100′ cable (voltage output).
Electrical Connections: Wire pigtail.
Mounting Connection: Suspended below point being monitored.
Electrical Protection: Surge/lightning protected per EN61000-4-5, Class 5.
Weight: Body: 0.235 lb (0.107 kg); Cable: 0.037 lb (0.009 kg) per foot.
Compliance: CE.

How to buy DWYER MBLT

Model	Description	Price
MBLT-2SB-IVPF-100-120	Mini submersible level transmitter, .10% accuracy, surge protection, 100′ range, 4-20mA output, 120′ of vented polyurethane cable.	$1,226.25
MBLT-2SB-IVPF-150-170	Mini submersible level transmitter, .10% accuracy, surge protection, 150′ range, 4-20mA output, 170′ of vented polyurethane cable.	$1,398.75
MBLT-2SB-IVPF-20-40	Mini submersible level transmitter, .10% accuracy, surge protection, 20′ range, 4-20mA output, 40′ of vented polyurethane cable.	$950.25
MBLT-2SB-IVPF-200-220	Mini submersible level transmitter, .10% accuracy, surge protection, 200′ range, 4-20mA output, 220′ of vented polyurethane cable.	$1,571.25
MBLT-2SB-IVPF-30-50	Mini submersible level transmitter, .10% accuracy, surge protection, 30′ range, 4-20mA output, 50′ of vented polyurethane cable.	$984.75
MBLT-2SB-IVPF-350-370	Mini submersible level transmitter, .10% accuracy, surge protection, 350′ range, 4-20mA output, 370′ of vented polyurethane cable.	$2,088.75
MBLT-2SB-IVPF-50-70	Mini submersible level transmitter, .10% accuracy, surge protection, 50′ range, 4-20mA output, 70′ of vented polyurethane cable.	$1,053.75
MBLT-2SB-IVPF-690-710	Mini submersible level transmitter, .10% accuracy, surge protection, 690′ range, 4-20mA output, 710′ of vented polyurethane cable.	$3,261.75
MBLT-2SB-IVPM-10-15.2	Mini submersible level transmitter, .10% accuracy, surge protection, 10 meter range, 4-20mA output, 15.2 meter of vented polyurethane cable.	$984.75
MBLT-2SB-IVPM-100-106	Mini submersible level transmitter, .10% accuracy, surge protection, 100 meter range, 4-20mA output, 106 meter of vented polyurethane cable.	$2,012.85
MBLT-2SB-IVPM-20-26	Mini submersible level transmitter, .10% accuracy, surge protection, 20 meter range, 4-20mA output, 26 meter of vented polyurethane cable.	$1,108.95
MBLT-2SB-IVPM-200-206	Mini submersible level transmitter, .10% accuracy, surge protection, 200 meter range, 4-20mA output, 206 meter of vented polyurethane cable.	$3,144.45
MBLT-2SB-IVPM-30-36	Mini submersible level transmitter, .10% accuracy, surge protection, 30 meter range, 4-20mA output, 36 meter of vented polyurethane cable.	$1,222.80
MBLT-2SB-IVPM-40-46	Mini submersible level transmitter, .10% accuracy, surge protection, 40 meter range, 4-20mA output, 46 meter of vented polyurethane cable.	$1,333.20
MBLT-2SB-IVPM-60-66	Mini submersible level transmitter, .10% accuracy, surge protection, 60 meter range, 4-20mA output, 66 meter of vented polyurethane cable.	$1,560.90
MBLT-2SC-IVPF-100-120	Mini submersible level transmitter, .25% accuracy, surge protection, 100′ range, 4 to 20 mA output, 120′ of vented polyurethane cable	$1,052.55
MBLT-2SC-IVPF-15-40	Mini submersible level transmitter, .25% accuracy, surge protection, 15′ range, 4 to 20 mA output, 40′ of vented polyurethane cable	$776.55
MBLT-2SC-IVPF-150-170	Mini submersible level transmitter, .25% accuracy, surge protection, 150′ range, 4 to 20 mA output, 170′ of vented polyurethane cable	$1,225.05
MBLT-2SC-IVPF-20-40	Mini submersible level transmitter, .25% accuracy, surge protection, 20′ range, 4 to 20 mA output, 40′ of vented polyurethane cable	$776.55
MBLT-2SC-IVPF-200-220	Mini submersible level transmitter, .25% accuracy, surge protection, 200′ range, 4 to 20 mA output, 220′ of vented polyurethane cable	$1,397.55
MBLT-2SC-IVPF-30-50	Mini submersible level transmitter, .25% accuracy, surge protection, 30′ range, 4 to 20 mA output, 50′ of vented polyurethane cable	$811.05
MBLT-2SC-IVPF-350-370	Mini submersible level transmitter, .25% accuracy, surge protection, 350′ range, 4 to 20 mA output, 370′ of vented polyurethane cable	$1,915.05
MBLT-2SC-IVPF-50-70	Mini submersible level transmitter, .25% accuracy, surge protection, 50′ range, 4 to 20 mA output, 70′ of vented polyurethane cable	$880.05
MBLT-2SC-IVPF-690-710	Mini submersible level transmitter, .25% accuracy, surge protection, 690′ range, 4 to 20 mA output, 710′ of vented polyurethane cable	$3,088.05
MBLT-2SC-IVPM-10-15.2	Mini submersible level transmitter, .25% accuracy, surge protection, 10 meter range, 4 to 20 mA output, 15.2 meter of vented polyurethane cable	$811.05
MBLT-2SC-IVPM-100-106	Mini submersible level transmitter, .25% accuracy, surge protection, 100 meter range, 4 to 20 mA output, 106 meter of vented polyurethane cable	$1,839.15
MBLT-2SC-IVPM-20-26	Mini submersible level transmitter, .25% accuracy, surge protection, 20 meter range, 4 to 20 mA output, 26 meter of vented polyurethane cable	$935.25
MBLT-2SC-IVPM-200-206	Mini submersible level transmitter, .25% accuracy, surge protection, 200 meter range, 4 to 20 mA output, 206 meter of vented polyurethane cable	$2,970.75
MBLT-2SC-IVPM-30-36	Mini submersible level transmitter, .25% accuracy, surge protection, 30 meter range, 4 to 20 mA output, 36 meter of vented polyurethane cable	$1,049.10
MBLT-2SC-IVPM-40-46	Mini submersible level transmitter, .25% accuracy, surge protection, 40 meter range, 4 to 20 mA output, 46 meter of vented polyurethane cable	$1,159.50
MBLT-2SC-IVPM-5-12.2	Mini submersible level transmitter, .25% accuracy, surge protection, 5 meter range, 4 to 20 mA output, 12.2 meter of vented polyurethane cable	$780.00
MBLT-2SC-IVPM-60-66	Mini submersible level transmitter, .25% accuracy, surge protection, 60 meter range, 4 to 20 mA output, 66 meter of vented polyurethane cable	$1,387.20
MBLT-2SC-IVPP-5-40	Mini submersible level transmitter, .25% accuracy, surge protection, 5 psi range, 4 to 20 mA output, 40′ of vented polyurethane cable	$776.55
MBLT-2SC-VVEP-10-40	Mini submersible level transmitter, .25% accuracy, surge protection, 10 psi range, 0 to 5 V, 40′ of ETFE cable (8 V power requirement)	$996.55
MBLT-2SC-VVEP-15-50	Mini submersible level transmitter, .25% accuracy, surge protection, 15 psi range, 0 to 5 V, 50′ of ETFE cable (8 V power requirement)	$1,086.05
MBLT-2SC-VVEP-20-60	Mini submersible level transmitter, .25% accuracy, surge protection, 20 psi range, 0 to 5 V, 60′ of ETFE cable (8 V power requirement)	$1,175.55
MBLT-2SC-VVEP-5-30	Mini submersible level transmitter, .25% accuracy, surge protection, 5 psi range, 0 to 5 V, 30′ of ETFE cable (8 V power requirement)	$907.05
MBLT-2SC-VVPP-10-40	Mini submersible level transmitter, .25% accuracy, surge protection, 10 psi range, 0 to 5 V, 40′ of vented polyurethane cable (8 V power requirement)	$776.55
MBLT-2SC-VVPP-15-50	Mini submersible level transmitter, .25% accuracy, surge protection, 15 psi range, 0 to 5 V, 50′ of vented polyurethane cable (8 V power requirement)	$811.05
MBLT-2SC-VVPP-20-60	Mini submersible level transmitter, .25% accuracy, surge protection, 20 psi range, 0 to 5 V, 60′ of vented polyurethane cable (8 V power requirement)	$845.55
MBLT-2SC-VVPP-5-30	Mini submersible level transmitter, .25% accuracy, surge protection, 5 psi range, 0 to 5 V, 30′ of vented polyurethane cable (8 V power requirement)	$742.05

Load More Items

Accessories for DWYER MBLT

Model	Description	Price
A-297	Desiccant filter for vent tube. Removes humidity for protection of the sensor. Changes color to show saturation.	$30.20

Load More Items

Model Chart DWYER MBLT

EXAMPLE

MBLT

Series MBLT-2SB-IVEF-X-X-FC Lightning and Surge Protected Miniature Submersible Level Transmitter, 316 Stainless Steel, 0.1% Accuracy, 4-20 mA, vented, ETFE cable with Factory Calibration

SERIES

MBLT

Miniature Submersible Level Transmitter

CIRCUIT

2
X
A

Lightning & Surge Protected
Intrinsically Safe
IS (UL/ATEX/IECEX)

BODY MATERIAL

316 Stainless Steel

ACCURACY

B
C

0.1%
0.25%

OUTPUT

I
L
H
T
F
V
O

4-20 mA
0-2V
0-2.5V
0-3V
0-4V
0-5V
1-5V

REFERENCE

Vented

CABLE MATERIAL

E
P

ETFE
Polyurethane

RANGE UNITS

F
M
P

Feet of water column
Meter of water column
PSI

RANGE VALUE

4.5-300 psi
12-690 feet wc
3.2-211 meters

CABLE LENGTH

10-2000 feet
3-650 meters

OPTIONS

Factory Calibration

Load More Items

User Guide and Instruction manual for DWYER MBLT

You can request the necessary certificates, documentation, instructions and user guide for DWYER MBLT using the special form.

Similar instruments and devices to DWYER MBLT

DDTOP UTK Displacer Level Controller (High Pressure)

DDTOP UFZ Buoy Level Gauge

OMEGA LVU2700-Series Two-Wire Ultrasonic Level Transmitter

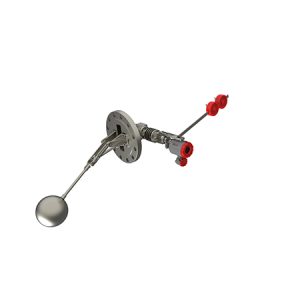

DDTOP UQD Ball Float Level Transmitter
