DWYER PLS paddle level switch

The Series PLS Paddle Level Switch uses a 1 rpm synchronous motor to rotate a paddle and sense the presence of dry powder or bulk materials. Movement is impeded when product comes into contact with the paddle and the resulting motor torque activates the output switches and stops the motor. The PLS is designed with the industry standard 1-1/4″ male NPT connection and mounting flanges.

			int(1703)
NULL

Made in USA. brand DWYER, model PLS

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.

Retail price from $50,45

Available

Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DWYER PLS

PRODUCT APPLICATIONS

Mining
Food and beverage
Silos
Hoppers

FEATURES

Magnetic drive that isolates and completely seals the control head from the process and environment preventing material or dust from entering the control head.
Motor shuts-off when paddle stalls increasing motor life, preventing motor burnout, and decreasing power usage.
Slip clutch design enabled by the magnetic drive that prevents damage to motor and drive mechanism from sudden or excessive loading on the paddle.
Status indication light on weatherproof models.
Screw cover on the enclosure for easy access with no worries about losing bolts or screws.
Modular design to allow field installation of any paddle, flanges, shaft extensions, or shaft guards.
Flexible coupling available for protection of the paddle and drive from side loads, surges or impacts. Recommended for top mount applications with shaft extension and applications with large or heavy materials.

OPTIONS

Contact the factory for pricing of shaft extensions, protective shields, and other options. More detailed information available in our Measurement & Control for Powder, Dust, and Bulk Materials Catalog.

Technical specifications of DWYER PLS

Service: Dry powder or bulk materials compatible with wetted materials.
Sensitivity: Minimum material density of 5 lb/ft³ (80 kg/m³), maximum of 200 lb/ft³ (3200 kg/m³).
Wetted Materials: Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS.
Temperature Limits: Standard Construction: Process: -40 to 300°F (-40 to 148.9°C), Ambient: -40 to 185°F (-40 to 85°C); High Temperature: Process: -40 to 500°F (-40 to 260°C), Ambient: -40 to 185°F (-40 to 85°C).
Pressure Limit: 30 psig (2.07 bar) maximum for .5 micron or larger material.
Power Requirement: Select by part number: 110-120 VAC, 230 VAC, 24 VAC, 48 VAC, or 12 VDC.
Power Consumption: Weatherproof models: 5 watts, Explosion-proof models: 3 watts.
Enclosure: Aluminum, powder coated.
Enclosure Rating: Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G.
Switch Type: SPDT or optional DPDT snap switch.
Electrical Rating: 15 A @ 120.
Electric Connections: Screw terminals.
Conduit Connection: 3/4″ female NPT.
Process Connection: 1-1/4″ male NPT. Optional flange.
Indication Light: Red LED that activates when switch is made or when switch is not made with RL option (not available on Explosion-proof models).
Time Delay Relay Option: Five field adjustable ranges from 0-1 to 0-31 minutes. (RL option not available, DPDT option not available with 230 VAC time delay).
Weight: Control head only: 4 lb (1.81 kg).
Compliance: cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations.

How to buy DWYER PLS

Model	Description	Price

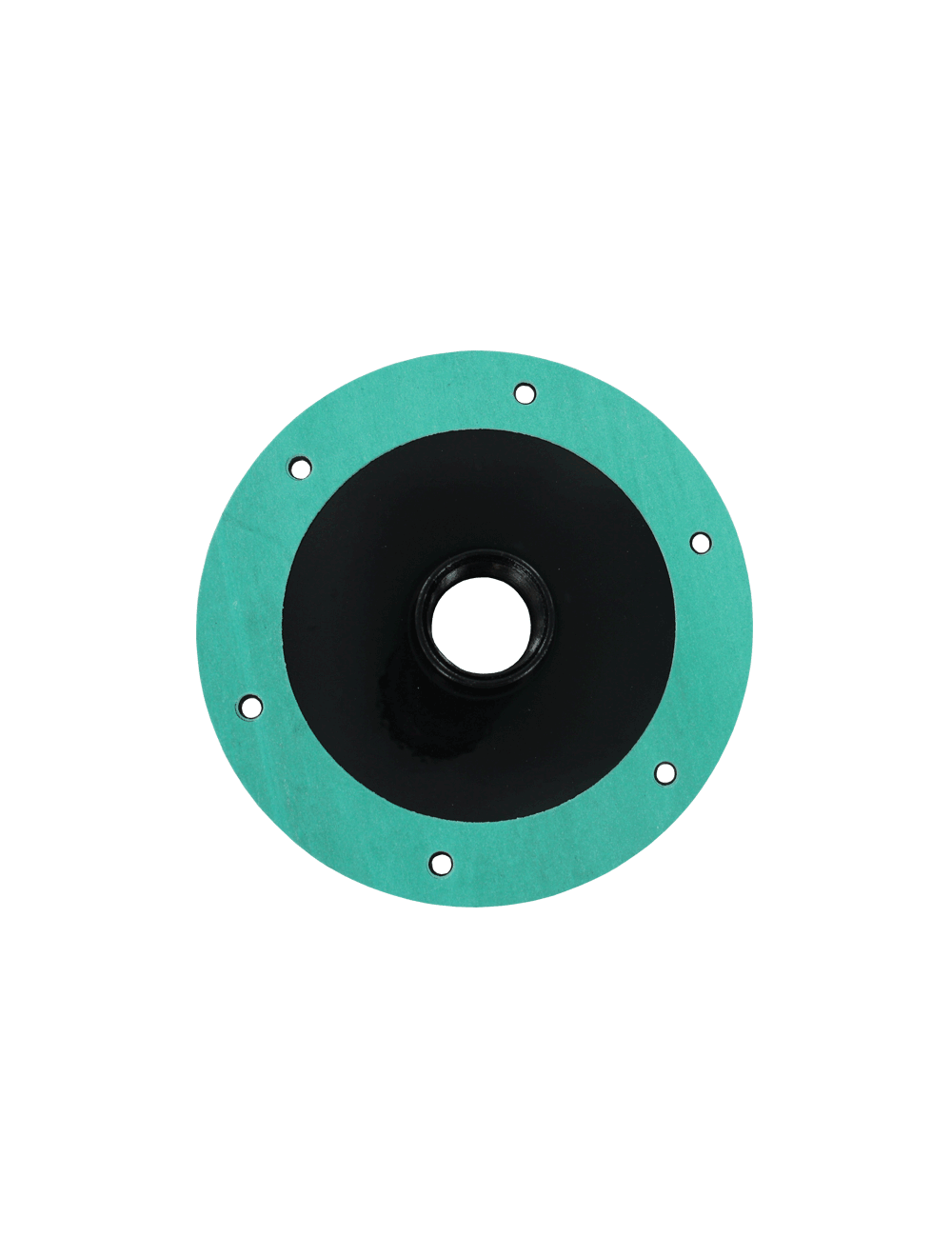

FLG-CSF	Carbon steel mounting flange with full coupling.	$56.75

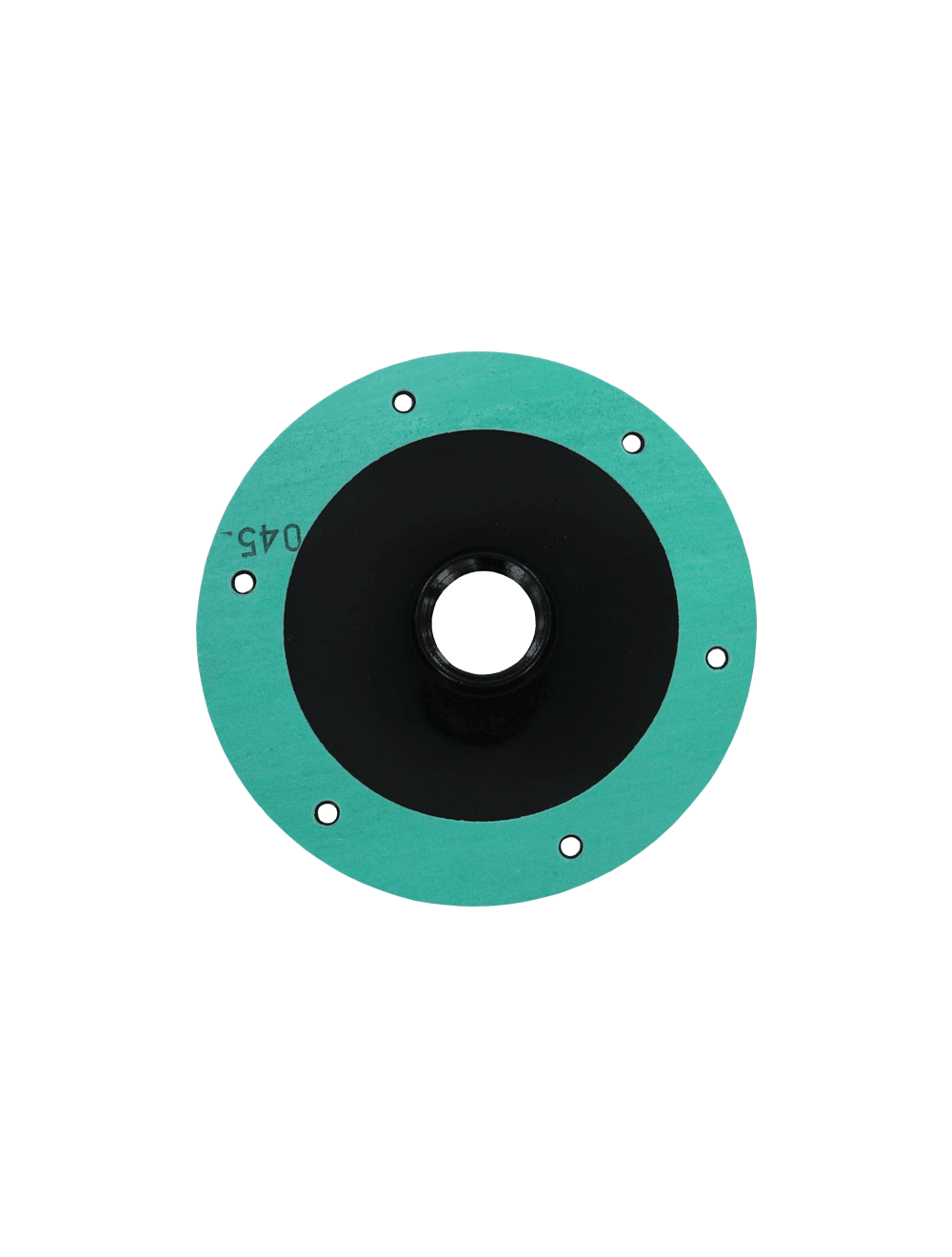

FLG-CSH	Carbon steel mounting flange with half coupling.	$50.45
FLG-SSF	316 SS mounting flange with full coupling.	$160.15
FLG-SSH	316 SS mounting flange with half coupling.	$131.05
PDL-1	Carbon steel paddle with half coupling. Minimum bulk density of 5 lb/ft³ (80 kg/m³).	$55.10
PDL-2	Carbon steel paddle with full coupling. Minimum bulk density of 30 lb/ft³ (481kg/m³).	$52.50
PDL-3	316 SS paddle with half coupling. Minimum bulk density of 30 lb/ft³ (481 kg/m³). Fits through a 1-1/4″ coupling eliminating the need for a mounting flange.	$55.10
PDL-4	316 SS paddle with full coupling. Minimum bulk density of 70 lb/ft³ (1122 kg/m³). Fits through 1-1/4″ coupling eliminating the need for a mounting flange.	$52.50
PLS-W-S-1-0-0-0-0	Paddle level switch, SPDT, weatherproof, 120 VAC power supply.	$443.05
PLS-W-S-1-2-CSH-0-0	Paddle level switch, SPDT, weatherproof, 120 VAC power supply, includes PDL-1 paddle and FLG-CSH flange.	$544.45
PLS-W-S-1-3-0-0-0	Paddle level switch, SPDT, weatherproof, 120 VAC power supply, includes PDL-3 paddle.	$498.15

Load More Items

Accessories for DWYER PLS

Model	Description	Price
FLG-CSF	Carbon steel mounting flange with full coupling.	$56.75
FLG-CSH	Carbon steel mounting flange with half coupling.	$50.45
FLG-SSF	316 SS mounting flange with full coupling.	$160.15
FLG-SSH	316 SS mounting flange with half coupling.	$131.05
PDL-1	Carbon steel paddle with half coupling. Minimum bulk density of 5 lb/ft³ (80 kg/m³).	$55.10
PDL-2	Carbon steel paddle with full coupling. Minimum bulk density of 30 lb/ft³ (481kg/m³).	$52.50
PLS-EXT-SS-006	6″ stainless extension	$60.55
PLS-EXT-SS-012	12″ stainless extension	$79.75
PDL-3	316 SS paddle with half coupling. Minimum bulk density of 30 lb/ft³ (481 kg/m³). Fits through a 1-1/4″ coupling eliminating the need for a mounting flange.	$55.10
PLS-EXT-SS-018	18″ stainless extension	$98.95
PLS-EXT-SS-024	24″ stainless extension	$118.15
PDL-4	316 SS paddle with full coupling. Minimum bulk density of 70 lb/ft³ (1122 kg/m³). Fits through 1-1/4″ coupling eliminating the need for a mounting flange.	$52.50
PLS-EXT-SS-030	30″ stainless extension	$137.35
PLS-EXT-SS-036	36″ stainless extension	$156.55
PLS-EXT-SS-042	42″ stainless extension	$175.75
PLS-EXT-SS-048	48″ stainless extension	$194.95
PLS-EXT-GS-006	6″ galvanized extension	$44.35
PLS-EXT-GS-012	12″ galvanized extension	$61.15
PLS-EXT-GS-018	18″ galvanized extension	$77.95
PLS-EXT-GS-024	24″ galvanized extension	$94.75
PLS-EXT-GS-036	36″ galvanized extension	$128.35
PLS-EXT-GS-048	48″ galvanized extension	$161.95

Load More Items

Model Chart DWYER PLS

EXAMPLE	PLS	W	S	1	1	CSF	GS	GS	012	FC	Series PLS-W-S-1-1-CSF-GS-GS-012-FC Paddle Level Switch, weatherproof enclosure, SPDT, 110-120 VAC, low density paddle, carbon steel with full coupling, 12″ 1/4 NPS galvanized steel shaft extension and protective shield, with flexible coupling.
SERIES	PLS										Paddle Level Switch
ENCLOSURE DESIGN		W E WH EH									Weatherproof Explosion-proof Weatherproof High Temperature Explosion-proof High Temperature
SWITCH TYPE			S D TD1 TD2								SPDT DPDT (dual SPDT switches) DPDT Time Delay, 120 VAC SPDT Time Delay, 230 VAC
POWER SUPPLY				1 2 3 4 5 6 7							110-120 VAC 230 VAC 24 VAC 48 VAC 12 VDC 24 VDC 230 VAC with CE approval (Not valid with E, EH, TD1, TD2)
PADDLE					0 1 2 3 4						No Paddle Low Density Paddle (PDL-1) Medium Density Paddle (PDL-2) Banana Paddle (PDL-3) High Density Paddle (PDL-4)
FLANGE						0 CSH CSF SSH SSF					No Mounting Flange Carbon Steel with Half Coupling (FLG-CSH) Carbon Steel with Full Coupling (FLG-CSF) 316SS with Half Coupling (FLG-SSH) 316SS with Full Coupling (FLG-SSF)
SHAFT EXTENSION MATERIAL							0 GS SS				None 1/4 NPS Galvanized Steel 1/4 NPS 316SS
PROTECTIVE SHIELD MATERIAL								0 GS SS			None 1/4 NPS Galvanized Steel 1/4 NPS 316SS
SHAFT EXTENSION AND SHIELD LENGTH									006 012 018 024 030 036 042 048		None 6 Inch 12 Inch 18 Inch 24 Inch 30 Inch 36 Inch 42 Inch 48 Inch
OPTIONS										FC NL RL SS	Flexible Coupling (CPL-FLX) No Indicator Lights Reversed Light – Light Indication when Paddle Freely Rotates 316SS Housing, Cover, Mounting Boss

Load More Items
