DWYER SGZ

Photo DWYER SGZ Description DWYER SGZ Specifications DWYER SGZ Ordering DWYER SGZ Accessories for DWYER SGZ User Manual for DWYER SGZ Related instruments to DWYER SGZ

DWYER SGZ 2.5″ industrial pressure gage

DWYER SGZ 2.5″ industrial pressure gage
DWYER SGZ 2.5″ industrial pressure gage
DWYER SGZ 2.5″ industrial pressure gage
DWYER SGZ 2.5″ industrial pressure gage
DWYER SGZ 2.5″ industrial pressure gage
DWYER SGZ 2.5″ industrial pressure gage

The Series SGZ Industrial Pressure Gages have dual psi and bar (x100 kPa) scales with ±1.5% full-scale accuracy. The Series SGZ gages are designed with 304 SS housings and 316 SS wetted parts for excellent chemical compatibility. These gages cover a wide variety of ranges in either bottom or back connection configurations. Series SGZ gages employ an easy-open breather plug on top, which allows liquid filled units to breathe, relieving any built up internal pressures. Plug easily pops open and does not need to be entirely removed or cut like a typical gages’ rubber plug grommet.

			int(2948)
NULL

Made in USA. brand DWYER, model SGZ

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.

Retail price from $51,25

Available

Available

Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DWYER SGZ

Calibration Option available under Accessories.

PRODUCT APPLICATIONS

  • Vacuums in pneumatic conveying lines
  • Positive pressure in compressed air headers
  • Corrosive ambient environments

FEATURES

  • Stainless steel housing and wetted parts to resist ambient corrosion for longer service life in harsh environments
  • Higher accuracy gage for value-sensitive applications requiring more precise measurement and where vibration is a concern
  • Optional sliding pointer clearly mark to make visible critical ranges and high and low points
  • Liquid fillable gage with easy open breather plug provides smoother damped movement of pointer
  • Back or bottom mounting and compact size provides for mounting with dimensional limitations

Technical specifications of DWYER SGZ

  • Service: Compatible gases and liquids.
  • Wetted Materials: 316 L SS Tube, 316 SS connector.
  • Housing: 304 SS.
  • Lens: Polycarbonate.
  • Accuracy: ±1.5% FS.
  • Pressure Limit: FS range.
  • Temperature Limits: -4 to 140°F (-20 to 60°C).
  • Size: 2.5″ (63 mm).
  • Process Connections: 1/4″ male NPT.
  • Weight: 4.9 oz (141 g) bottom, 5.8 oz (164 g) back. Add 3.7 oz (104 g) for glycerin fill.

How to buy DWYER SGZ

Model Description Price
SGZ-D10122N 2.5″ SS Gage, 1/4″ npt bottom connection, range 30″ Hg to 0.
$51.25
SGZ-D10122N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 30″ Hg, glycerin filled
$58.50
SGZ-D10142N 2.5″ SS Gage, 1/4″ npt back connection, range 30″ Hg
$56.70
SGZ-D10142N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 30″ Hg, glycerin filled
$58.50
SGZ-D10322N 2.5″ SS Gage, 1/4″ npt bottom connection, range 30 psi
$51.25
SGZ-D10322N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 30 psi, glycerin filled
$58.50
SGZ-D10342N 2.5″ SS Gage, 1/4″ npt back connection, range 30 psi
$56.70
SGZ-D10342N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 30 psi, glycerin filled
$58.50
SGZ-D10422N 2.5″ SS Gage, 1/4″ npt bottom connection, range 60 psi
$51.25
SGZ-D10422N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 60 psi, glycerin filled
$58.50
SGZ-D10442N 2.5″ SS Gage, 1/4″ npt back connection, range 60 psi
$56.70
SGZ-D10442N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 60 psi, glycerin filled
$58.50
SGZ-D10522N 2.5″ SS Gage, 1/4″ npt bottom connection, range 100 psi
$51.25
SGZ-D10522N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 100 psi, glycerin filled
$58.50
SGZ-D10542N 2.5″ SS Gage, 1/4″ npt back connection, range 100 psi
$56.70
SGZ-D10542N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 100 psi, glycerin filled
$58.50
SGZ-D10622N 2.5″ SS Gage, 1/4″ npt bottom connection, range 160 psi
$51.25
SGZ-D10622N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 160 psi, glycerin filled
$58.50
SGZ-D10642N 2.5″ SS Gage, 1/4″ npt back connection, range 160 psi
$56.70
SGZ-D10642N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 160 psi, glycerin filled
$58.50
SGZ-D10722N 2.5″ SS Gage, 1/4″ npt bottom connection, range 200 psi
$51.25
SGZ-D10722N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 200 psi, glycerin filled
$58.50
SGZ-D10742N 2.5″ SS Gage, 1/4″ npt back connection, range 200 psi
$56.70
SGZ-D10742N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 200 psi, glycerin filled
$58.50
SGZ-D11022N 2.5″ SS Gage, 1/4″ npt bottom connection, range 300 psi
$51.25
SGZ-D11022N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 300 psi, glycerin filled
$58.50
SGZ-D11042N 2.5″ SS Gage, 1/4″ npt back connection, range 300 psi
$56.70
SGZ-D11042N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 300 psi, glycerin filled
$58.50
SGZ-D11122N 2.5″ SS Gage, 1/4″ npt bottom connection, range 500 psi
$51.25
SGZ-D11122N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 500 psi, glycerin filled
$58.50
SGZ-D11142N 2.5″ SS Gage, 1/4″ npt back connection, range 500 psi
$56.70
SGZ-D11142N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 500 psi, glycerin filled
$58.50
SGZ-D11222N 2.5″ SS Gage, 1/4″ npt bottom connection, range 1000 psi
$51.25
SGZ-D11222N-GF 2.5″ SS Gage, 1/4″ npt bottom connection, range 1000 psi, glycerin filled
$58.50
SGZ-D11242N 2.5″ SS Gage, 1/4″ npt back connection, range 1000 psi
$56.70
SGZ-D11242N-GF 2.5″ SS Gage, 1/4″ npt back connection, range 1000 psi, glycerin filled
$58.50
Load More Items

Accessories for DWYER SGZ

Model Description Price

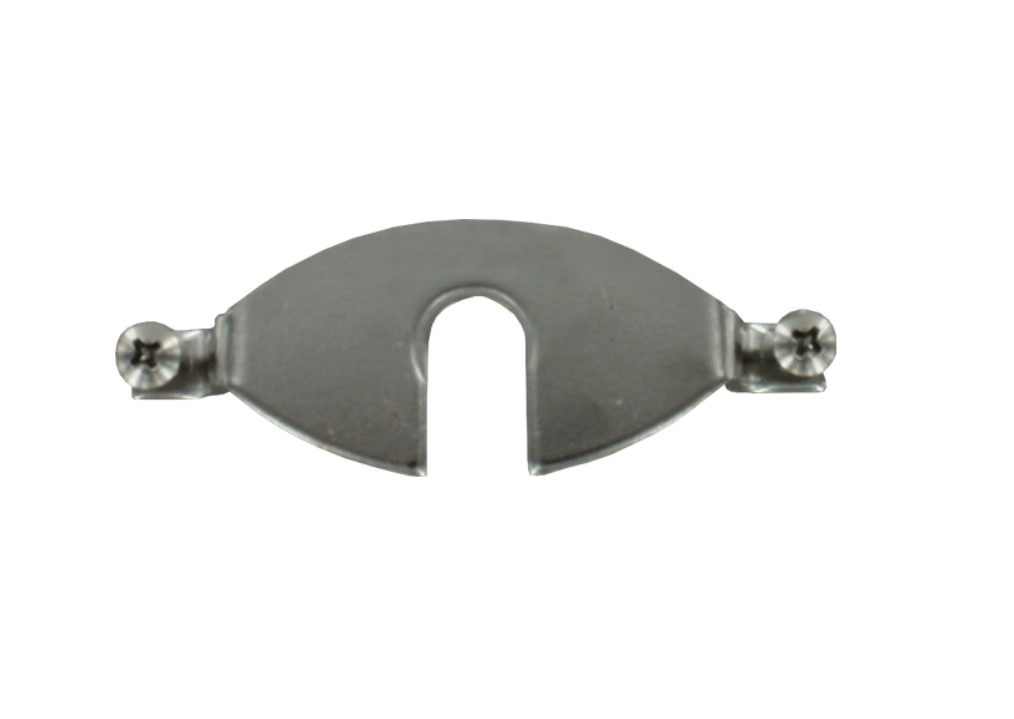

A-445D U-bracket mounting kit for 2.5″ gage
$4.95

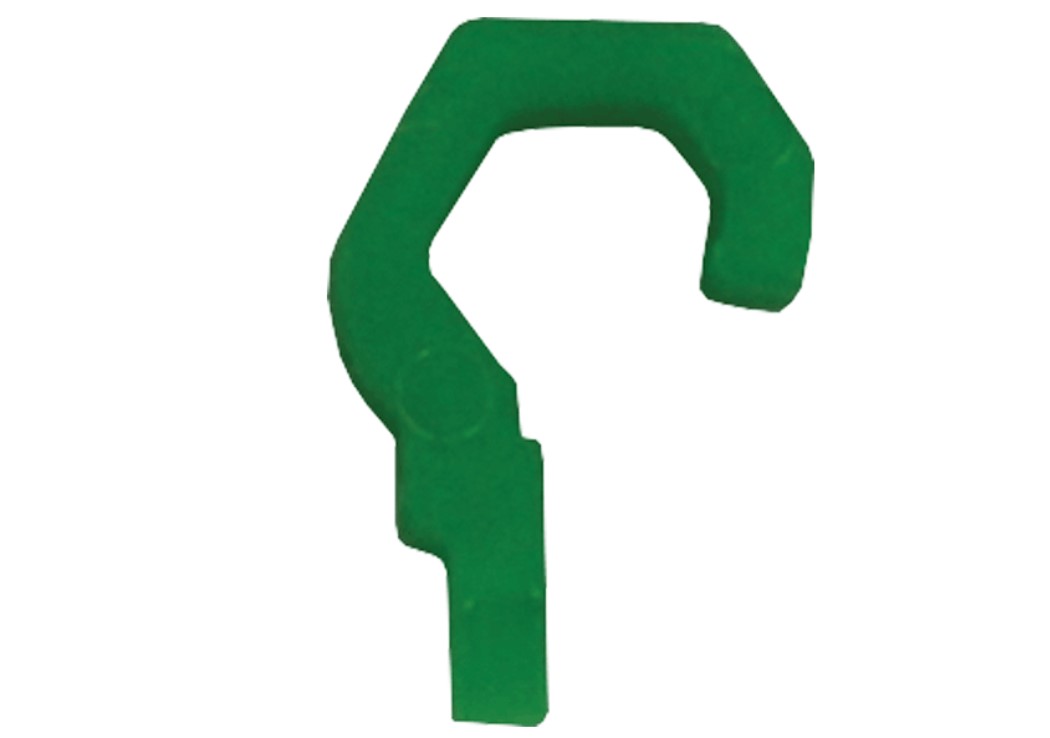

A-499G Green Sliding Color Pointer
$1.05

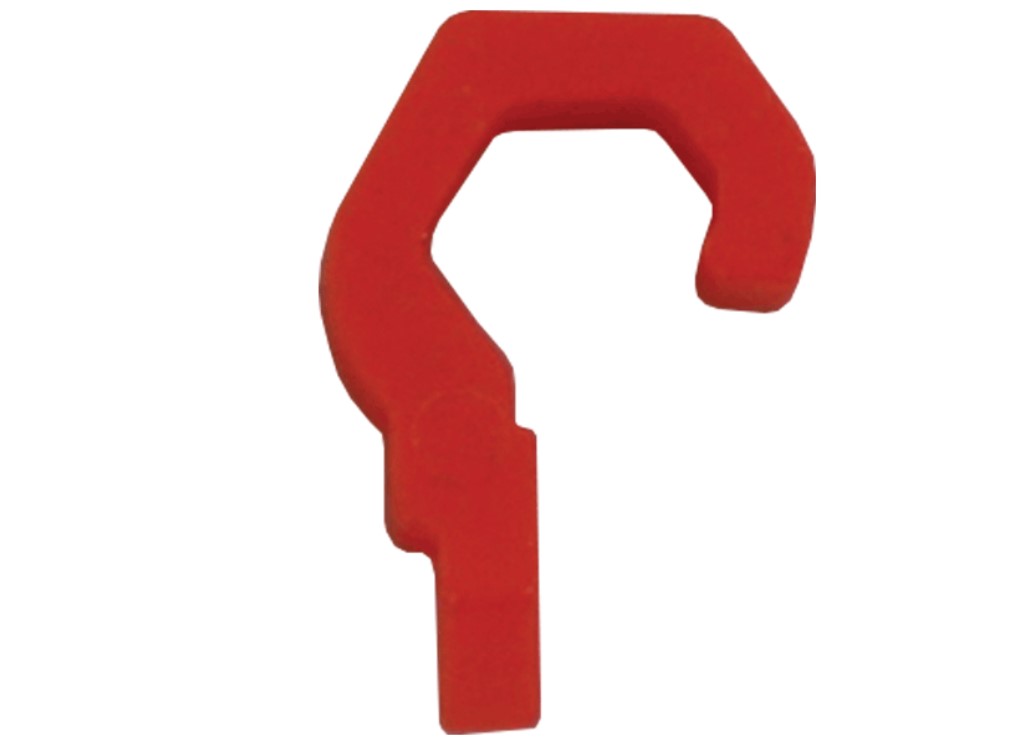

A-499R Red Sliding Color Pointer
$1.05

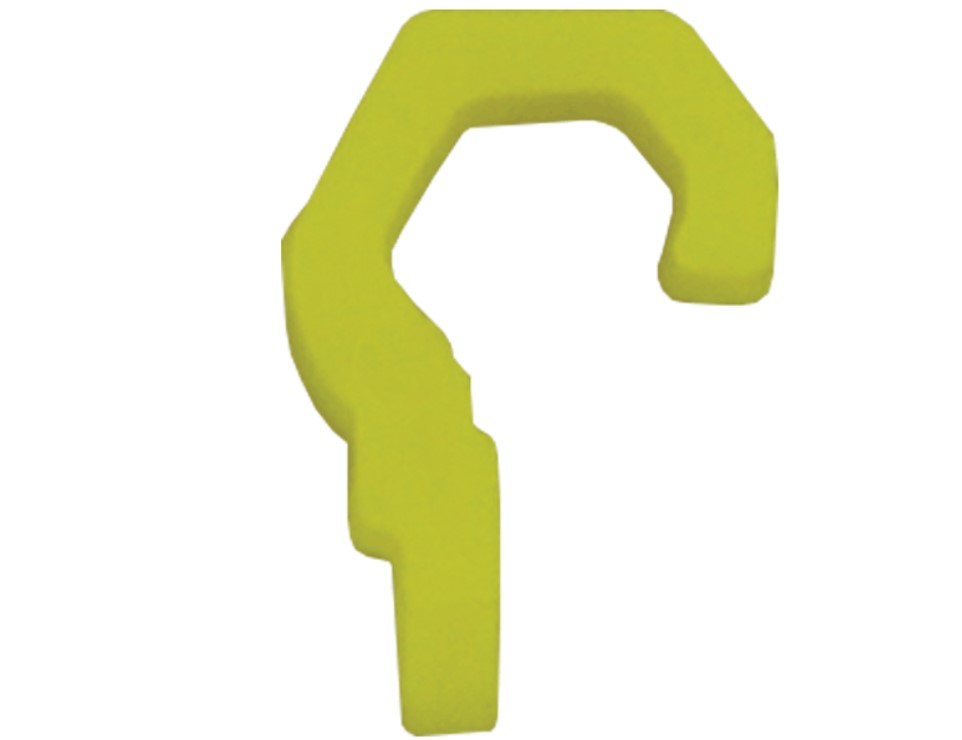

A-499Y Yellow Sliding Color Pointer
$1.05
NISTCAL-PG1 NIST traceable pressure calibration certificate for pressure gages over 1% accuracy. NOTE: EQUAL CERTS WILL BE CHARGED PER UNITS PURCHASED.
$135.00
Load More Items

User Guide and Instruction manual for DWYER SGZ

You can request the necessary certificates, documentation, instructions and user guide for DWYER SGZ using the special form.

You can buy DWYER SGZ in UAE at a price starting from 51,25 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . DWYER SGZ price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
