The CD-6G is a low-voltage monitor providing automatic fan control to help maintain acceptable levels of Carbon Dioxide (CO2) in greenhouses, the beverage and food industry, refrigeration, welding, pharmaceutical, and other chemical processing or other commercial applications. It can be used as a stand-alone detector and controller and as an analog/digital transducer for use with the DVP-120 and DVP-1200 series and other systems. The monitor has a high range of 0-5% by vol. (0-50,000PPM) with a recommended coverage area of 900 – 5000 sq. ft.

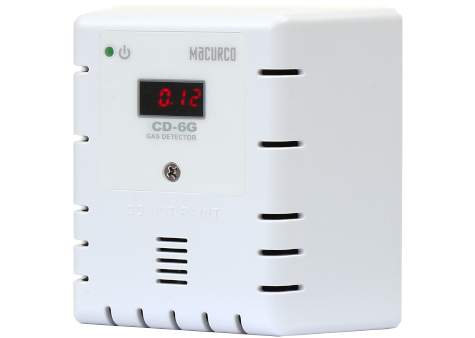

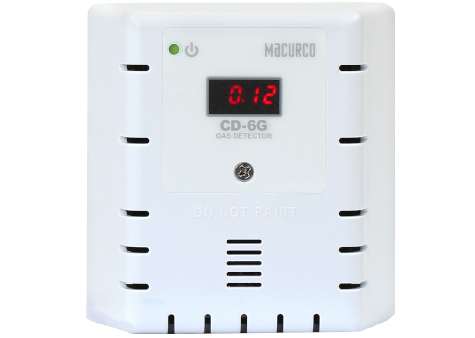

Made in USA. brand MACURCO, model CD-6G
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Key features
Applications
| Shipping Weight | 1 pound (0 45 kg) |
| Size | 4 1/2 x 4 x 2 1/8 in (11 4 X 11 4 X 5 3 cm) |
| Color | White or Dark Gray |
| Connections | plugs/terminals |
| Mounting box | (not included) 4×4 electric |
| Fan relay | 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching |
| Fan relay actuation | selectable at “dIS” (disabled), 0 09, 0 1, 0 11, 0 12, …0 2(default), … 3 50, 4 0 |
| Fan Delay Settings | 0, 1, 3 (default), 5 and 10 minutes |
| Fan Relay Minimum Runtime settings | 0 (default), 3, 5, 10 or 15 minutes |
| Fan relay latching or non-latching | (default) selectable |
| Alarm relay | 0 5A 120 V, 60 VA |
| Alarm relay actuation | selectable N O (default) or N C |
| Alarm relay settings | “dIS” (disabled), 0 09, 0 1, 0 11, 0 12, …0 5(default), … 3 50, 4 0 |
| Current Loop | 4-20 mA for 0-5 0% vol COP 2P, selectable to off or on (default) |
| Buzzer | 85 dBA at 10cm settable to off or on (default) |
| Digital display | 4-digit LED selectable to off or on (default) |
| Operating Environment | 32°F to 122° F (0°C to 50°C), 10 to 90% RH non-condensing |
| Operating altitude | Up to 16,404ft (5,000m) |
| Model Number | Gas Type | Range (Units) | Low Level Alarm Adjustable (Default) | High Level Alarm Adjustable (Default) | Expected Sensor Life | Recommended Coverage Area |
| CD-6G (24V Only) | Carbon Dioxide (CO₂) | 0-5% V/V | OFF: 0,09,0,1…0,2…0,25,0,50,1,00,1,50,2,00,2,50,3,50,4,00 | OFF: 0,09,0,1…0,2…0,25,0,50,1,00,1,50,2,00,2,50,3,50,4,00 | 15 Years | Up to 5000 sq. ft.* |
| Photo | Model | Description |
|---|---|---|
| DVP-120, DVP-120M, DVP-120B, DVP-1200 | Control Panels | |
| PS-24, PS-24-H | Step-down Transformers | |
| DMK-1 | Duct Mount Kit | |
|
HS-A, HS-B, HS-R, HS-C | Horn and Strobe (4 color options) |
|
MRS-485, BRS-485 | Adapter Options |
|
Calibration Kits | Based on Gas Type |
|
WHK-1 | Weatherproof Housing Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO CD-6G using the special form.
