Key Components:
- Two TestPro CV100 platforms with capacitive touch display;
- AD-SM-01 Singlemode and AD-MM-01 Multimode fiber adapter kits (VFL, voltmeter, 1310/1550nm and 850/1300nm);
- PROBE-FIBER-INSP inspection scope;
- Complete set of LC and SC reference cords, connectors, couplers, cleaning kits;
- TestDataPro software (PC + Cloud) on USB flash drive.
Purpose: A complete, field-ready Tier 1 fiber certification solution for Singlemode and Multimode (including OM5) networks. Performs 4-second bi-directional Autotests with built-in Encircled Flux compliance, eliminating the need for external conditioning adapters. Uniquely supports Hybrid Powered Fiber validation and includes native 1 GbE network discovery, providing end-to-end physical and logical link verification for fiber contractors.
Retail price from $12 500
Available
Key Components:
- 2 TestPro CV100 platforms with 5″ capacitive touchscreen;
- AD-MM-01 Multimode fiber adapter kit (850/1300nm, VFL, voltmeter);
- PROBE-FIBER-INSP inspection scope;
- Complete set of LC and SC reference cords, connectors, couplers, cleaning kits;
- TestDataPro software (PC + Cloud) on USB flash drive;
Purpose: A complete, field-ready Tier 1 fiber certification solution optimized for Multimode networks in LAN and data center environments. Performs a rapid 4-second dual-ended bi-directional Autotest with built-in Encircled Flux compliance, eliminating the need for external mode conditioning adapters. Supports Hybrid Powered Fiber Resistance & Voltage Test and includes native 100/1000BASE‑T SNR Testing and BASE‑T Network Connectivity, providing end-to-end physical and logical link verification for fiber contractors. Singlemode capability can be added later with the optional AD-SM-K01E adapter kit.
Retail price from $7 100
Available
Key Components:
- 2 TestPro CV100 platforms with 5″ capacitive touchscreen;
- AD-SM-01 Singlemode fiber adapter kit (1310/1550nm Fabry-Perot laser, VFL, voltmeter);
- PROBE-FIBER-INSP inspection scope;
- Complete set of LC and SC reference cords, connectors, couplers, cleaning kits;
- TestDataPro software (PC + Cloud) on USB flash drive;
Purpose: Field-ready Tier 1 Singlemode certification kit with a 4-second bi-directional Autotest (1310/1550nm, up to 20 km), Hybrid Powered Fiber validation, and native 1G network/SNR testing. Validates 100GBASE-LR4, 40GBASE-LR4, and Fibre Channel compliance.
Retail price from $8 300
Available

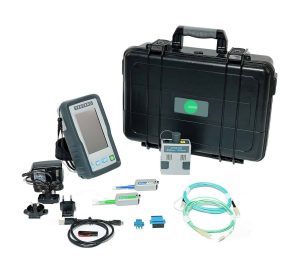

Key Components:
- 1 TestPro CV100 platform with 5″ touchscreen;
- AD-OTDR-MM Multimode OTDR adapter;
- MM SC-SC / SC-LC 2m connector savers and LC/SC click-cleaners;
- TestDataPro PC + Cloud software;
- NIST-traceable calibration certificate;
- Small hard carry case.
Purpose: Field‑ready OTDR troubleshooting kit optimized for Multimode fiber in LAN and data center environments. Pinpoints broken fibers and loss‑inducing events via distance‑to‑fault diagnostics (measurement up to 35 km at 1300 nm). Includes native 1 Gbps SNR testing and network discovery.
Retail price from $3 500
Available

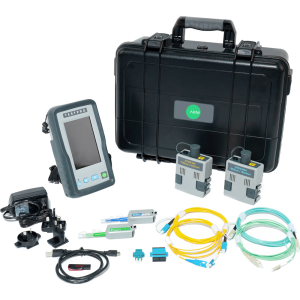

Key Components:
- 1 TestPro CV100 platform with 5″ touchscreen;
- AD-OTDR-SM (1310/1550nm, up to 130 km) and AD-OTDR-MM (850/1300nm, up to 40 km) OTDR adapters;
- SM and MM SC-SC / SC-LC 2m connector savers and LC/SC click-cleaners;
- TestDataPro PC + Cloud software;
- NIST-traceable calibration certificate;
- Small hard carry case.
Purpose: Field‑ready OTDR troubleshooting kit with dual SM/MM adapters for pinpointing broken fibers and loss‑inducing events via distance‑to‑fault diagnostics (SM up to 130 km, MM up to 35 km). Includes native 1 Gbps SNR testing and network discovery. OTDR launch cords are not included and are available as optional accessories.
Retail price from $4 900
Available
Key Components:
- 1 TestPro CV100 platform with 5″ touchscreen;
- AD-OTDR-SM Singlemode OTDR adapter (1310/1550nm, up to 130 km);
- SM SC-SC / SC-LC 2m connector savers and LC/SC click-cleaners;
- TestDataPro PC + Cloud software;
- NIST-traceable calibration certificate;
- Small hard carry case.
Purpose: Field-ready OTDR troubleshooting kit optimized for Singlemode fiber, pinpointing broken fibers and loss-inducing events via distance-to-fault diagnostics (up to 130 km at 1550 nm). Includes native 1 Gbps SNR testing and network discovery. OTDR launch cords are not included and are available as optional accessories. When combined with a Tier 1 loss test kit (e.g., TESTPRO-K11E-SM), enables full Tier 2 fiber certification.
Retail price from $3 900
Available
Key Components:
- 2 TestPro CV100 platforms with 5″ capacitive touchscreen;
- 4 fiber adapters: AD-SM-01 & AD-MM-01 (Tier 1, 1310/1550nm + 850/1300nm) + AD-OTDR-SM & AD-OTDR-MM (Tier 2, up to 130 km SM / 40 km MM);
- PROBE-FIBER-INSP inspection scope with LC/SC click-cleaners;
- Full set of SM and MM reference cords + 150m OTDR Launch Cords (SC-LC, included);
- TestDataPro PC + Cloud software with NIST-traceable calibration certificates;
- Soft carry cases
Purpose: The ultimate all-in-one Tier 1 + Tier 2 fiber certification kit, combining 4-second bi-directional insertion loss testing (SM/MM) with OTDR troubleshooting up to 130 km (SM) / 40 km (MM) in a single field-ready solution. Ships with 150m OTDR Launch Cords — enabling immediate Tier 2 testing out of the box, unlike basic OTDR kits. Includes Encircled Flux compliant OM5 multimode source, Hybrid Powered Fiber validation, and native 1G SNR testing for end-to-end physical and logical link verification.
Retail price from $14 300
Available

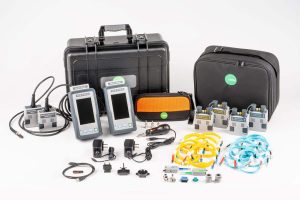

Key Components:
- 2 TestPro CV100 platforms with 5″ capacitive touchscreen;
- Copper adapters: AD-CAT8.1-CH & AD-CAT8.1-PLE for Channel and Permanent Link certification (CAT3–CAT8.1 / Class I);
- Fiber Tier 1 adapters: AD-SM-01 (1310/1550nm Fabry-Perot laser, up to 20 km) & AD-MM-01 (850/1300nm EF-compliant LED, up to 2 km);
- PROBE-FIBER-INSP inspection scope with connector cleaning kits for 1.25mm and 2.5mm;
- Complete set of LC & SC reference cords, interchangeable connectors, and couplers;
- TestDataPro PC + Cloud software; NIST-traceable calibration certificates for platforms and standard certificates for fiber adapters;
- Hard carry case for platforms + soft cases for fiber adapters.
Purpose: All-in-one Tier 1 certification for hybrid copper + fiber deployments: CAT8.1 copper and SM/MM fiber in a single platform. The cost-effective choice when Tier 2 (OTDR), PoE, and Multi-Gig are not required — with optional adapters available to expand functionality later.
Retail price from $16 500
Available

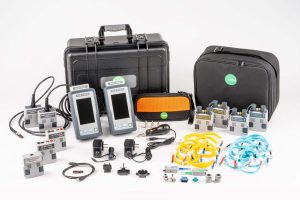

Key Components:
- 2 TestPro CV100 platforms with 5″ capacitive touchscreen;
- Copper adapters: AD-CAT8.1-CH & AD-CAT8.1-PLE for Channel and Permanent Link certification (CAT3–CAT8.1 / Class I);
- Fiber Tier 1 adapters: AD-SM-01 (1310/1550nm) & AD-MM-01 (850/1300nm) with integrated VFL & voltmeter;
- Network & PoE adapters: AD-NET-CABLE pair (up to 90W PoE, 2.5/5/10G SNR) + CAT6A MPTL adapter;
- PROBE-FIBER-INSP inspection scope with MM/SM SC interface kits and cleaning kits;
- Full set of LC & SC reference cords, interchangeable connectors, and couplers;
- TestDataPro PC + Cloud software with NIST-traceable calibration certificates;
- Hard carry case for platforms + soft cases for fiber adapters.
Purpose: The ultimate Smart Building solution for converged infrastructure, designed for teams that need to validate both the physical layer (Tier 1 copper and fiber) and active network services (PoE, Multi-Gig, MPTL). Eliminates the need to invest in separate copper certifiers, fiber loss testers, and network analyzers. Ideal for Wi-Fi 6/6E, IP camera, and Multi-Gig switch deployments
Retail price from $17 995
Available
Key Components:
- NSA Test Platform with 5″ capacitive touchscreen;
- AD-NSA Test Adapter + NSA Remote #1 (smart, Certi‑Lite capable remote ID);
- AD-NSA-SM-01 (SM) & AD-NSA-MM-01 (MM) loopback fiber test kits with integrated VFL;
- PROBE-FIBER-INSP inspection scope;
- SC interface kits (NSA-MM-SC-K01 / NSA-SM-SC-K01) + MM/SM SC loopbacks – SC & LC testing out of the box;
- LINK IDENTIFIER KIT: NSA Remote Pack #2–#8 + Tempo Communications Noise Filtering Tone Probe (50Hz);
- TestDataPro PC + Cloud software, large carry case, power supply, USB cable, CAT6A RJ‑45 coupler.
Purpose:
All‑in‑one Smart Building test kit combining Certi‑Lite copper qualification (CAT3–6A), SM/MM loopback fiber validation with inspection, and professional link identification – all in a single portable tester. Delivers PoE load testing (up to 90W) and Multi‑Gig SNR qualification (2.5/5/10G) under real traffic and power conditions. This version is designed for 50Hz power grids.
Retail price from $7 805
Available
Key Components:
- NSA Test Platform with 5″ capacitive touchscreen;
- AD-NSA Test Adapter + NSA Remote #1 (smart, Certi‑Lite capable remote ID);
- AD-NSA-SM-01 (SM) & AD-NSA-MM-01 (MM) loopback fiber test kits with integrated VFL;
- PROBE-FIBER-INSP inspection scope;
- SC interface kits (NSA-MM-SC-K01 / NSA-SM-SC-K01) + MM/SM SC loopbacks – SC & LC testing out of the box;
- LINK IDENTIFIER KIT: NSA Remote Pack #2–#8 + Tempo Communications Noise Filtering Tone Probe (60Hz);
- TestDataPro PC + Cloud software, large carry case, power supply, USB cable, CAT6A RJ‑45 coupler.
Purpose:
All‑in‑one Smart Building test kit combining Certi‑Lite copper qualification (CAT3–6A), SM/MM loopback fiber validation with inspection, and professional link identification – all in a single portable tester. Delivers PoE load testing (up to 90W) and Multi‑Gig SNR qualification (2.5/5/10G) under real traffic and power conditions. This version is designed for 60Hz power grids.
Retail price from $7 805
Available
Key Components:
- 2 TestPro CV100 platforms with 5″ touchscreen;
- Copper adapters: AD‑CAT8.1‑CH & AD‑CAT8.1‑PLE (Channel & Permanent Link);
- Fiber adapters: AD‑SM‑01 (SM) & AD‑MM‑01 (MM) with VFL & voltmeter;
- SM & MM OTDR adapters (AD‑OTDR‑SM, AD‑OTDR‑MM) with 150m launch cords;
- AD‑NET‑CABLE pair (PoE up to 90W, 2.5/5/10G SNR) + CAT6A MPTL adapter;
- PROBE‑FIBER‑INSP inspection scope, SC kits, reference cords, cleaning kits;
- TestDataPro PC + Cloud on USB flash drive;
- Hard carry case + soft cases for fiber adapters.
Purpose: All‑in‑one Smart Building PRO kit covering copper certification, Tier 1/2 fiber (OTDR), PoE load testing, Multi‑Gig SNR, and MPTL. Eliminates separate testers for network validation and OTDR troubleshooting.
Retail price from $19 900
Available
The award winning TestPro CV100 Multifunction Cable Certifier is purpose-built for today’s modern Smart Building network infrastructure. It offers the most feature rich test platform available today, and the modular based platform allows for customization of the exact test suite needed.
Smart Building Test Kits are pre-packaged to meet all your testing needs. (K60E, K61E, K71E)
price by request
Available
The award winning Network Service Assistant (NSA) Multifunction Qualification+ Tester, is a hybrid solution, that features Certi-Lite technology. Certi-Lite follows the ANSI/TIA 1152-A single-ended testing for many of the same parameters used in bi-directional certification, but offered at a fraction of the price of a traditional certifier. Single-ended testing does not qualify for cable manufacturer warranty approval, but for those that do not require the warranty, and simply desire a deeper level of cable testing beyond just a simple wiremap, NSA is the first test solution to offer CertiLite. NSA is used by System Integrators, Cable Contractors and IT departments who need a deeper level of cable testing along with wired and wireless network connectivity testing.
price by request
Available
Key Components:
- NSA Test Platform with 5″ capacitive touchscreen, AD-NSA adapter & NSA Remote #1;
- AD-NSA-SM-01 (1310/1550nm) & AD-NSA-MM-01 (850/1300nm) loopback fiber test kits with integrated VFL;
- PROBE-FIBER-INSP inspection scope;
- SC interface kits (NSA-MM-SC-K01 / NSA-SM-SC-K01) + MM/SM SC loopbacks – SC & LC testing out of the box;
- TestDataPro PC + Cloud software, large carry case, and standard accessories.
Purpose: Designed for system integrators, cable contractors, and IT departments that need copper qualification and fiber validation in a single portable kit. Combines Certi-Lite testing (CAT3–CAT6A) with SM/MM loopback fiber loss testing, hybrid powered fiber voltage measurement, PoE load validation, and Multi-Gig SNR up to 10GigE – at a fraction of the cost of a traditional certifier.
Retail price from $7 145
Available
