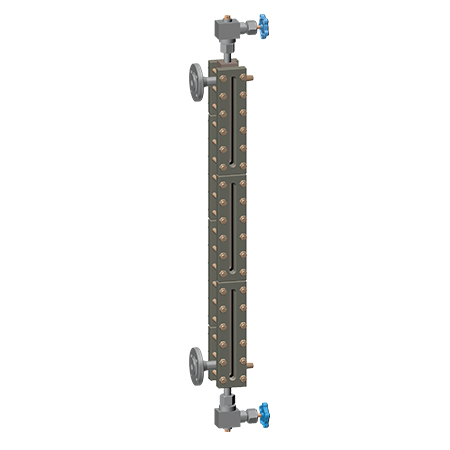

ULB Type glass level gauge is a local indicating instrument produced according to the principle of connector. The medium in the container was led to the glass level gauge, and the actual height of level can be read from the transparent glass. Cylinder type glass level gauge is a large-diameter glass level gauge, which is suitable for medium with high viscosity or strong bubbles. For low-temperature medium, glass level gauge can use anti-frost fins. Using the temperature gradient principle, add anti-frost fins on both sides of the window, and observe the liquid level through the anti-frost fins.
Made in China. brand DDTOP, model ULB
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The glass level gauge is a local indicating instrument produced according to the principle of the connector, which leads the medium in the container to the external glass level gauge, and reads the actual height of the liquid level from the transparent glass.
The cylinder type glass level gauge belongs to large diameter glass level gauge, which is suitable for the medium with high viscosity or strong air bubbles.
Anti-frost fins are used for low-temperature medium. Using the principle of temperature gradient, anti-frost fins are added on both sides of the window, and the liquid level is observed through the anti-frost fins.
The upper and lower process connection flanges of no blind zone glass level gauge are all within visible range
1.Glass level gauge are all installed with safety steel balls. If the glass level gauge breaks accidentally, under the effect of the pressure difference, the steel ball seals the valve port, blocking the passage of the medium into the glass level gauge
2.The glass level gauge can realize the measurement of high temperature, high pressure, high temperature and high pressure working conditions.
3.When the medium is vapor, alkali liquor, and PH>7, add mica pads between the glass plate and the sealing pad to protect the glass plate from corrosion by the medium.
Refining: Catalytic cracking, acid-containing precipitation tank, hydrocracking, hydrodesulfurization, coking unit, crude oil desalination, sulfur recovery, catalytic reforming
Natural gas: Light hydrocarbon recovery
Main Technical Data
| Glass Type | Borosilicate Glass | Aluminoborosilicate Glass | Aluminosilicate Glass | Alkali-resistant Glass |
| Medium Temperature ℃ | -160≤t<250 | -160≤t<320 | -160≤t<450 | -160≤t<450 |
| Pressure Rating MPA | PN≤6.3 | PN≤6.3 | PN≤26 | PN≤32 |
Comparison table of low temperature frost resistance temperature and fin height
| Medium temperature ℃ | Fin height mm | Fin coloring |
| -20≤t＜0 | 50 | Grey |
| -40≤t＜-20 | 100 | Purple |
| -70≤t＜-40 | 150 | Deep blue |
| -160≤t＜-70 | 200 | Light blue |
| Model | Code | Content | |||||||
| ULB- | Glass level gauge | ||||||||
| 03 | Standard type | ||||||||
| M | No blind zone type (side view; pressure rating PN≤11Mpa) | ||||||||
| 03T | Standard cylinder type (pressure rating PN≤6.3Mpa) | ||||||||
| MT | No blind zone cylinder type (pressure rating PN≤6.3Mpa) | ||||||||
| MP | No blind zone type (front view; pressure rating PN≤11Mpa) | ||||||||
| A | Transparent type | ||||||||
| C | Reflex type(pressure rating PN≤6.3Mpa) | ||||||||
| R | Transparent double color type (pressure rating PN≤6.3Mpa) | ||||||||
| U | Reflex double color type (pressure rating PN≤6.3Mpa) | ||||||||
| B | With self-sealing steel ball | ||||||||
| D | Without self-sealing steel ball | ||||||||
| 0 | Without heating | ||||||||
| 1 | Steam tracing | ||||||||
| -* | Measuring range | ||||||||
| F1 | With frost-resistant fins，Medium temperature -20≤t＜0℃(Pressure rating PN≤6.3Mpa) | ||||||||
| F2 | With frost-resistant fins，Medium temperature -40≤t＜-20℃(Pressure rating PN≤6.3Mpa) | ||||||||
| F3 | With frost-resistant fins，Medium temperature -70≤t＜-40℃(Pressure rating PN≤6.3Mpa) | ||||||||
| F4 | With frost-resistant fins, Medium temperature -160≤t＜-70℃(Pressure rating PN≤6.3Mpa) | ||||||||
| W5 | Medium temperature t≤180℃ | ||||||||
| W6 | Medium temperature t≤250℃ | ||||||||
| W7 | Medium temperature t≤380℃ | ||||||||
| W8 | Medium temperature t≤450℃ | ||||||||
| Y2 | Pressure rating PN10 | ||||||||
| Y3 | Pressure rating PN16 | ||||||||
| Y4 | Pressure rating PN20(Class150) | ||||||||
| Y5 | Pressure rating PN25
|
||||||||
| Y6 | Pressure rating PN40 | ||||||||
| Y7 | Pressure rating PN50(Class300) | ||||||||
| Y8 | Pressure rating PN63 | ||||||||
| Y9 | Pressure rating PN100 | ||||||||
| Y10 | Pressure rating PN110(Class600) | ||||||||
| Y11 | Pressure rating PN150(Class900) | ||||||||
| Y12 | Pressure rating PN160 | ||||||||
| Y13 | Pressure rating PN250 | ||||||||
| Y14 | Pressure rating PN260(Class1500) | ||||||||
| (1) | Alkaline medium: Alkali-resistant glass (non-alkaline medium does not need to be marked) | ||||||||
| (2) | Alkaline medium: mica pad (non-alkaline medium does not need to be marked, only for single color transparent type) | ||||||||
| ULB- | □ | □ | □ | □ | -□ | □ | □ | □ | |
Example of Model Selection
ULB-MRB1-1100W6Y7(1) is a no blind zone transparent two-color type glass level gauge, with self-sealing steel ball, with steam heat tracing, measuring range 1100mm, temperature less than 250 ℃, pressure rating CL300, with alkali-resistant glass.
