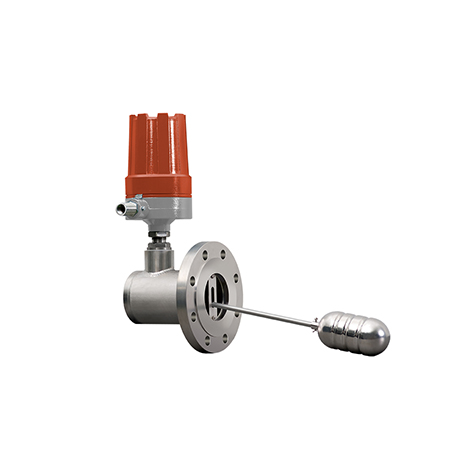

DDTOP UQK-400 Float Level Controller

UQK400 float level controller is composed of float, connecting rod, magnetic sensor and magnetic switch and signal conversion mechanism. The change of the medium level in the container causes the relative displacement of the float, which drives the connecting rod and the iron core to move up and down to change the relative position of the magnetic sensor. Through the magnetic coupling, the micro switch or the reed switch is operated to achieve l

			int(9732)
NULL


Made in China. brand DDTOP, model UQK-400

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.

price by request

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DDTOP UQK-400

The UQK-400 float level controller consists of float, connecting rod, iron core unit, and magnetic switches / signal conversion device. The float moves with level changes in the vessel and makes connecting rod and iron core unit move. Through the magnetic coupling effect, the position change of magnetic steel in the iron core makes micro switch or reed switch acting to realize the functions of level controlling and alarming.

Features

1.The float is made of 304, 316, TA2 material. A heat insulation mechanism is designed between the wetted part and the output part, which can be used for a long time under 450 ℃ working conditions.

2.The wetted part is completely isolated from the magnetic coupling system. Compared with other mechanical seal types, the product has higher safety and durability.

3.The product has passed SIL2 functional safety certification and explosion-proof certification, and can be used in a variety of working conditions to effectively avoid the occurrence of accidents.

4.The product has bi-stable memory function and it can continue to maintain the alarm signal when the liquid level is ultra-high or ultra-low.

Applications

  • Refining: Diesel storage tank
  • Chemical: Desalination tank
  • Natural gas: Vapor dehydration, vapor recovery
  • Electricity: Cooling tower pool, fuel storage, lubricating oil tank, flash tank

Technical specifications of DDTOP UQK-400

  • Mounting type: Side-mounted
  • Control length: 60mm~120mm
  • Accuracy:Level controlling: ±4mm
  • Interface controlling: ±6mm
  • Nominal pressure: ≤6.3MPa
  • Wetted material:304、316L or on request
  • Nominal diameter: DN80
  • Flange standard: HG/T20592-2009,HG/T20615-2009 or on request
  • Ambient temperature:-40℃~+80℃
  • Medium temperature:-40℃~+150℃
  • Service life:≥5×105
  • Medium density:For level controlling: ρ≥0.6g/cm3
    For interface controlling: ρ1-ρ2 ≥ 0.16g/cm3
  • Medium viscosity:≤1St (10-4
    m2/S)
  • Power supply inlet: G1/2″(female thread) or on request
  • Explosion-proof:Explosion isolation type ExdⅡCT1~CT5/T6 Gb
    Intrinsic safe type ExiaⅡCT1~CT5/T6 Ga
  • IP Rating: IP66
  • Safety barrier (see safety barrier recommendation sheet)

How to buy DDTOP UQK-400

Model Code Content
UQK-400 Float level controller
1 Reed switch
3 Micro switch
x Upper or lower limit
* Medium density (g/cm³)
i Intrinsically safe type
d Explosion isolating type
UQK-400
