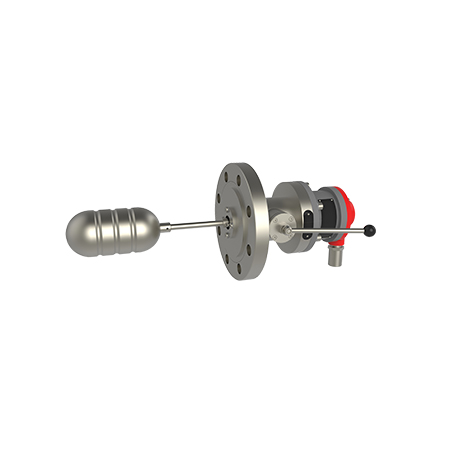

The UQK(S)-100 float level controller is connected to the storage tank or container through threads or flanges. When the liquid level changes, the float move with it, so that the magnetic steel at the other end of the rod swings up and down. The structure can be divided into normal (UQK) and self-checking (UQKS) type. The self-checking float level controller can monitor the movement of the inner float through the external handle, which brings great convenience to adjustment and maintenance.
Made in China. brand DDTOP, model UQK(S)-100
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
UQK(S)-100 series Float Level Switch is suitable for petroleum, chemical, electric power, papermaking and food industries, etc,
to control and alarm the fluid level or interface in various open or pressurized containers in the production process.
Operating Principle
UQK(S)-100 Float Level Switch belongs to two position level instruments. It consists of float and contact part. When the level
changes, the float position changes correspondingly and makes the magnetic steel at the end of the ball rod to float up and
down. According to magnetic repulsion principle, the magnetic steel mounted in contact part goes up and down at reverse
direction. Moving contact switches on or off with the fixed contacts 1-1 and 2-2 to make alarm system alarm or pump start and
stop. According to different structure, it can be divided into common type (UQK) and self-test type (UQKS). UQKS Float Level
Switch can detect whether the internal float is moving or not through the external handle, which is very convenient for
adjustment and maintenance. UQK（S）-105 Float Level Switch can move in the tank pilot pipe and adapt to the internal
floating top tank
Features
1.The float is made of 304, 316, TA2 material, and a heat insulation mechanism is designed between the wetted part and the output part, which can be used for a long time under 450 ℃ working conditions.
2.The pressure-bearing part is completely isolated from the electronic components through a magnetic coupling system, which make the product higher safety and durability than other mechanical seal types.
3.The product has passed SIL2 function safety certification and explosion proof certification. It can be used in a variety of working conditions and can effectively avoid the occurrence of accidents.
Applications
Technical parameter table for different models
| Model | Nominal diameter (DN) | Nominal pressure (MPa) | Action range (mm) | Adjustment mode | Mounted type |
| UQK(S)-101 | DN80、DN100 | ≤5.0MPa | 10 | Non-adjustable | Horizontal |
| UQK(S)-1011 | 60 | ||||
| UQK(S)-1012 | 40 | Vertical | |||
| UQK(S)-102 | 45～550 | Step adjustable | Horizontal | ||
| UQK(S)-103 | 10～1000 | Stepless adjustable | Vertical | ||
| UQK(S)-104 | DN20~DN50 | 10 | Non-adjustable | Outside horizontal | |
| UQK(S)-105 | DN100 | 10 | Non-adjustable | Horizontal |
Model Selection Table
| Model | Code | Content | |||||
| UQK- | Normall Type Float Level Switch | ||||||
| UQKS- | Self-checking Float Level Switch | ||||||
| 1 | 101type | ||||||
| 2 | 102 type (neck length is no more than 70mm for self-checking) | ||||||
| 3 | 103 type (neck length is no more than 70mm for self-checking) | ||||||
| 4 | 104type | ||||||
| 5 | 1011type | ||||||
| 6 | 1012type | ||||||
| F | 105type | ||||||
| A | 1.0MPa | ||||||
| B | 4.0MPa | ||||||
| C | Other pressure rating | ||||||
| * | Neck length 70≤L≤200mm(L=70mm, no need to mark) | ||||||
| – | |||||||
| * | Fluid density (g/cm3) | ||||||
| d | Explosion-proof | ||||||
| i | Intrinsically safe | ||||||
| UQK- | □ | □ | □ | – | □ | □ | |
| UQKS- | □ | □ | □ | – | □ | □ |
Example
UQK-1B150-0.8d is UQK-101 Normall Type Float Level Switch, nominal pressure 4.0MPa, neck length 150mm, fluid density 0.8g/cm³, explosion-proof.
UQKS-1B150-0.8d is UQKS-101 Self-checking Float Level Switch, nominal pressure 4.0MPa, neck length 150mm, fluid density 0.8g/cm³, explosion-proof.
