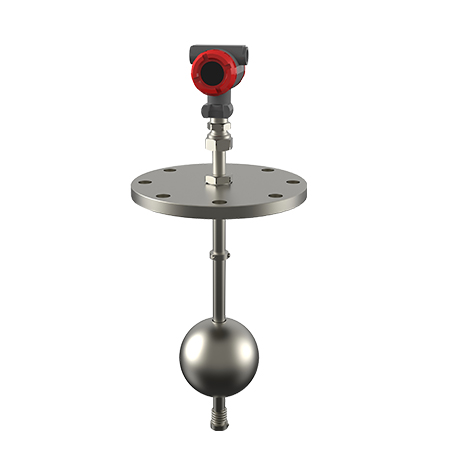

DDTOP UQZ Magnetic Float Level Transmitter

UQZ type magnetic float level transmitter is based on magnetic float as measuring element. The float moves up and down with level change, and at the same time, the magnetic field is coupled to the inductive switch in the sensor. The change in the switch causes the output signal to change, which finally to know change of level.
The instrument is suitable for sewage treatment in the petroleum, chemical, electric power, light industry and pharmaceutical industries, as well as the measurement of the medium level in various atmospheric and pressure vessels, especially for the measurement of the level of underground storage tanks and storage tanks. According to the different installation methods, it can be divided into top-mounted and side-mounted.

			int(9622)
NULL


Made in China. brand DDTOP, model UQZ

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.

price by request

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DDTOP UQZ

UQZ series magnetic float level transmitter uses the magnetic ball float as its measuring element.
Through the magnetic coupling principle, the resistance in the sensor is linearly changed, and the
change of resistance is converted into 4-20mA standard current signal output by the converter. It
can realize the automatic level check, control and record. The instrument is suitable for petroleum,
chemical, electric power, light industry and pharmaceutical industries such as sewage treatment
and various types of atmospheric and pressurized containers in the medium level measurement,
especially for underground storage tanks. It has side-mounted and top-mounted according to the
different installation types.

Working Principle
UQZ series Magnetic Float Level Transmitter is composed of two parts: level sensor and current converter.
The float synchronously changes with the liquid level, controls the Hall switch suction or disconnection
so that the resistance of the sensor changes linearly, and then the transformation of resistance is converted
to 4-20mA standard current signal output by converter

Features

1.Simple structure, convenient installation and convenient maintenance

2.A variety of material selection can be applied to a variety of working conditions. It can be widely used for viscous, dirty medium and flammable, explosive and corrosive medium. It is also applying to dam water level, reservoir water level monitoring and sewage treatment, etc.

3.The indicator mechanism is completely isolated from the measured medium, with good sealing, safe use, stable performance and high reliability.

Applications

  • Refining: catalytic cracking, catalytic strippers, catalytic reformers, hydrocracking, coking unit, alkylation storage tank, isomerization, crude oil desalination, distillation tower.
  • Chemical: Demineralized water tank, buffer tank, liquid ammonia storage
  • Natural Gas: light hydrocarbon recovery, acid gas recovery, natural gas separator, vapor recovery.
  • Electricity: feed water heater, condensate storage, condenser hot well, lubricating tanks
  • Sewage Treatment: water storage tank
  • Crude Oil Treatment: crude oil dehydration

Technical specifications of DDTOP UQZ

  • Measuring range:100~6000mm(Can be made beyond the range)
  • Flange standard:HG/T20592-2009, HG/T20615-2009 or on request
  • Power supply:24 VDC
  • Output signal: 4~20mA (with HART Protocol)
  • Accuracy:±10mm
  • Ambient temperature:-40℃~+80℃
  • Fluid temperature:-20℃ ~+120℃
  • Nominal pressure:≤2.5MPa
  • Fluid density:≥0.65g/cm 3
  • Fluid viscosity:≤1.25St
  • Wetted material:304, 316L or on request
  • Explosion-proof :Ex dⅡCT1-T5/T6 Gb, Ex iaⅡCT1-T5/T6 Ga
  • Ingress protection:IP66
  • EMC:EN 61326-1
  • Nominal diameter:DN150, DN100
  • Electrical connection:M20 × 1.5 (female thread) or on reques

How to buy DDTOP UQZ

Model Code Contents
UQZ Magnetic Float Level Transmitter
01 Top mounting
02 Side mounting
* Measuring range (please mention the neck length when select 01)
d Explosion-proof
i Intrinsic safety
UQZ-
