DWYER Digimag DM-1000 digital differential pressure and flow gage

Name: DWYER Digimag DM-1000 digital differential pressure and flow gage
Brand: DWYER
Price: 223 USD
Availability: PreOrder

The DigiMag® Series DM-1000 Digital Differential Pressure and Flow Gages monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic® Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.

			int(2166)
NULL

Made in USA. brand DWYER, model Digimag DM-1000

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $223

Available

Download the questionnaire

Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DWYER Digimag DM-1000

Battery Power or 24 Volt
Low Cost
Used in Isolation/ Hospital Environments & Temporary (Pop-Up) Rooms

NIST CALIBRATION available in Product Configurator.

PRODUCT APPLICATIONS

Filter monitoring
Air velocity or flow
Blower vacuum monitoring
Fan pressure indication
Duct, room or building pressures
Clean room positive pressure indication

FEATURES

Field programmed reduces installation time
User selectable parameters for pressure, air velocity or flow permits same device for multiple applications
Specialized filter set point for alerts when maintenance is due
Security levels permit matches the correct access to right skill
Power versatility works with 9-24 VDC or 9 V battery allows deployment in a variety of spaces wired or not

Technical specifications of DWYER Digimag DM-1000

Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Housing Materials: Glass filled plastic.
Accuracy: ±1% FS including linearity, hysteresis and repeatability; ±2% FS for ranges 1″ w.c. and below.
Temperature Limits: 0 to 140°F (-18 to 60°C).
Compensated Temperature Limits: 32 to 122°F (0 to 50°C).
Long Term Stability: ±1% FS per year.
Thermal Effect: ±0.05% FS/°F typ.; ±0.10% FS/°F typ. for ranges 1″ w.c. and below.
Display: 4-digit LCD (Digits: 0.60″H x 0.33″W).
Display Update: Selectable for 1 second, 10 minutes or update only from button push.Pressure Limits: Normal and bi-directional ranges 5 in w.c. and lower = 2 psi (13.7 kPa); Normal and bi-directional ranges 10 in w.c. and higher = 11 psi (75 kPa)/
Selectable Engineering Units: in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm Hg, FS (0-100% FS).
Power Requirements: 9V battery, included, user replaceable or external power supply 9-24 VDC.
Battery Service Life: Battery life depending on the Display Update setting: 150 hours (typical) if Display Update = 1 second; 9 months (typical) if Display
Update = 10 minutes; 1.5 years (typical) if Display Update is disabled. Battery may last up to four times longer when using lithium-based battery ULTRALIFE U9VL-J.
Current Consumption: 5 mA maximum.
Electrical Connections: Removable terminal block for 16 to 26 AWG.
Electrical Entry: Cable gland for 0.114 to 0.250″ (2.9 to 6.4 mm) diameter cable.
Process Connections: 1/8″ (3 mm) ID tubing.
Enclosure Rating: NEMA 4X (IP66).
Weight: 1.18 lb (535 g).
Size: 5″ (127 mm) OD front face.
Compliance: CE.

Model Chart DWYER Digimag DM-1000

EXAMPLE	DM	11	04	AT	Series DM-1104-AT Differential Pressure Gage, range 0-1.0″ w.c., with aluminum tag.
SERIES	DM				Differential Pressure Gage
GAGE TYPE		11 12			Pressure Air Flow
RANGE			02 03 04 05 07 08 09 10 11 12 22 23 24 25 27 28		0-0.25″ w.c. 0-0.50″ w.c. 0-1″ w.c. 0-2″ w.c. 0-5″ w.c. 0-10″ w.c. 0-15″ w.c. 0-25″ w.c. 0-50″ w.c. 0-100″ w.c. 0.25-0-0.25″ w.c. 0.50-0-0.50″ w.c. 1-0-1″ w.c. 2-0-2″ w.c. 5-0-5″ w.c. 10-0-10″ w.c.
OPTIONS				AT NIST	Aluminum Tag NIST Certificate of Calibration

Expand Table

Accessories for

Photo	Model	Description

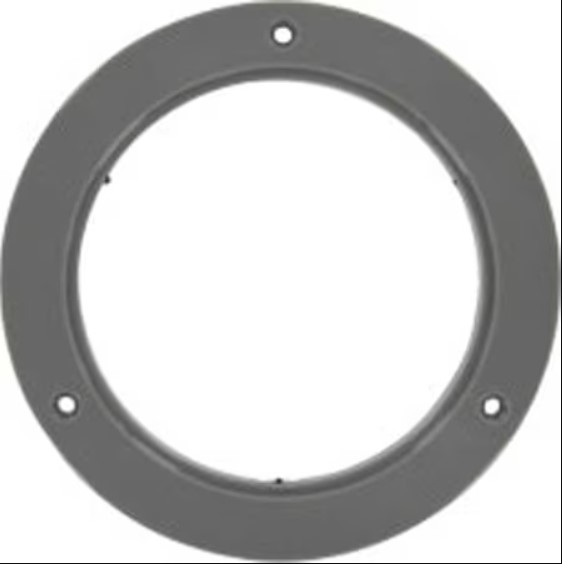

	A-286	4-1/2˝ gage panel mounting flange
	A-300	Flat flush mounting bracket
	A-480	Plastic static pressure tip
	A-489	4˝ straight static pressure tip with flange

Prices for

Model	Description	Availability	Price	Qty
DM-1102	DigiMag® differential digital pressure gage, range 0-0.25" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1103	DigiMag® differential digital pressure gage, range 0-0.5" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1104	DigiMag® differential digital pressure gage, range 0-1" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1105	DigiMag® differential digital pressure gage, range 0-2" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1107	DigiMag® differential digital pressure gage, range 0-5" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1108	DigiMag® differential digital pressure gage, range 0-10" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1109	DigiMag® differential digital pressure gage, range 0-15" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1110	DigiMag® differential digital pressure gage, range 0-25" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1111	DigiMag® differential digital pressure gage, range 0-50" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1112	DigiMag® differential digital pressure gage, range 0-100" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1122	DigiMag® differential digital pressure gage, range 0.25-0-0.25" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1123	DigiMag® differential digital pressure gage, range 0.5-0-0.5" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1124	DigiMag® differential digital pressure gage, range 1-0-1" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1125	DigiMag® differential digital pressure gage, range 2-0-2" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1127	DigiMag® differential digital pressure gage, range 5-0-5" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1128	DigiMag® differential digital pressure gage, range 10-0-10" w.c.	Delivery time from 12 weeks	from 223$	- +
DM-1202	DigiMag® differential digital flow gage, range 0-0.25" w.c.	Delivery time from 12 weeks	from 337$	- +
DM-1203	DigiMag® differential digital flow gage, range 0-0.5" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1204	DigiMag® differential digital flow gage, range 0-1" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1205	DigiMag® differential digital flow gage, range 0-2" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1207	DigiMag® differential digital flow gage, range 0-5" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1208	DigiMag® differential digital flow gage, range 0-10" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1209	DigiMag® differential digital flow gage, range 0-15" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1210	DigiMag® differential digital flow gage, range 0-25" w.c.	Delivery time from 12 weeks	from 280$	- +
DM-1211	DigiMag® differential digital flow gage, range 0-50" w.c.	Delivery time from 12 weeks	from 280$	- +
A-286	4-1/2" Gage panel mounting flange	Delivery time from 12 weeks	from 16$	- +
A-310A	3-way vent valve, plastic, 1/8" NPT to 1/4" metal tubing, 80 psi rating, replaces former Model A-310 (brass). 2.3" x .8" x .1", .10 lb.	Delivery time from 12 weeks	from 24$	- +
A-320-BC	Weatherproof enclosure, ABS, compatible with Series 2000 Magnehelic®, DM-1000 DigiMag®, DM-2000, Series 605 (with -SS option), instruments with backwards compatible bezel option	Delivery time from 12 weeks	from 326$	- +
A-480	Plastic static pressure tip	Delivery time from 12 weeks	from 2$	- +
A-481	Installer kit, (includes 2 static pressure tips and PVC tubing).	Delivery time from 12 weeks	from 7$	- +
A-489	4" 303 SS straight static pressure tip with flange, 1/4" hose barb.	Delivery time from 12 weeks	from 10$	- +

Expand Table

User Guide and Instruction manual for DWYER Digimag DM-1000

You can request the necessary certificates, documentation, instructions and user guide for DWYER Digimag DM-1000 using the special form.
