DWYER EDA

Photo DWYER EDA Description DWYER EDA Specifications DWYER EDA Ordering DWYER EDA Accessories for DWYER EDA Model Chart DWYER EDA User Manual for DWYER EDA Related instruments to DWYER EDA

DWYER EDA electronic pressure controller

DWYER EDA electronic pressure controller
DWYER EDA electronic pressure controller
DWYER EDA electronic pressure controller
DWYER EDA electronic pressure controller
DWYER EDA electronic pressure controller

Series EDA Electronic Pressure Control is an extremely versatile compact package that can replace a separate gage, two switches, and a transmitter in a system saving money, installation time, and panel space. The EDA incorporates two SPDT relays that have the on and off points fully adjustable over the range for control or alarm use. Front face has LED indicators for switch status and a large backlight two-line display showing process value and indication units. Programming is easy with simple menu structure, two-line display, and external programming buttons. Weatherproof housing is ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability. Features include zero set, adjustable dampening, menu lock out, peak and valley indication, removable terminal blocks, adjustable time delay, and scalable transmitter output.

			int(3215)
NULL

Made in USA. brand DWYER, model EDA

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.

Retail price from $508,55

Available

Available

Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DWYER EDA

NIST CALIBRATION available in Product Configurator.

PRODUCT APPLICATIONS

  • Process control
  • Compressor control
  • Filter status
  • Duct or building static pressure
  • Damper and fan control

FEATURES

  • Display Units: psi, kg/cm², bar, in Hg, ft w.c., kPa, MPa, %FS, in w.c., mbar, cm w.c., mm Hg, or oz/in² (choices depend on range).
  • Test Mode: Simulates input over the range without pressuring to easily test switches and transmitter output feature.
  • Fail-safe: For sensor failure, over pressure, high temperature limit, low temperature limit, or keypad short. User chooses if relay is de-energized, energized, or no action. With transmitter option, user chooses an output of 3.6 mA 22 mA, or no action.
  • Alternation: Selectable alternation of set points between the relays for even wear on duplex pump applications.
  • Versatile Compact Package: Can replace a separate gage, two switches, and a transmitter in a system saving, money, installation time, and panel space.
  • Fully Programmable: To meet simple or complex application needs.
  • Weatherproof Housing: Ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability.

Technical specifications of DWYER EDA

  • Service: Compatible liquids and gases.
  • Wetted Materials: 316L SS.
  • Housing: Polycarbonate.
  • Accuracy: ±1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter)
  • Stability: < ±2% of FS per year.
  • Pressure Limits: 1.5 x range.
  • Temperature Limits: Ambient: 20 to 140°F (-6.6 to 60°C); Process: 0 to 176°F (-18 to 80°C).
  • Compensated Temperature Limits: 32 to 122°F (0 to 50°C).
  • Thermal Effect: ±0.05% of F.S./°F.
  • Display: 4-digit backlit LCD (Digits: 0.60″H x 0.33″W).
  • Power Requirements: 12-28 VDC/AC 50/60 Hz. (Can work at 8 VDC for 45 s). For T5 option: 14-30 VDC/AC 50/60 Hz. For -HV option: 120-240 VAC.
  • Power Consumption: 12-28 VDC/VAC: 2.5 watts; 120-240 VAC: 4.5 watts.
  • Electrical Connections: Removable terminal blocks with two 1/2″ female NPT conduit connections.
  • Enclosure Rating: Meets NEMA 4X (IP65).
  • Warm Up Time: <10 seconds.
  • Mounting Orientation: Any position.
  • Weight: 1.18 lbs (535 g).
  • Agency Approvals: CE, UL.

SWITCH SPECIFICATIONS:

  • Switch Type: 2 SPDT relays.
  • Electrical Rating: 5 A @ 120/240VAC, 1 A @ 30 VDC.
  • Repeatability: ±1% of FS (switching only).
  • Set Points: Adjustable 0-100% of FS.
  • Switch Indication: External LED for each relay on the front panel.
  • Switch Reset: Manual or Automatic.

TRANSMITTER SPECIFICATIONS:

  • Output Signal: 4-20 mA, 1-6 VDC, 1-5 VDC, 0-5 VDC, or 0-10 VDC (direct or reverse output selection).
  • Minimum Excitation: 14 VDC.
  • Zero and Span Adjustments: Menu scalable within the range.

How to buy DWYER EDA

Model Description Price
EDAW-N1E1-02T0 Electronic pressure switch, range 0-20 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$508.55
EDAW-N1E1-02T1 Electronic pressure switch, range 0-20 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$560.30
EDAW-N1E1-03T0 Electronic pressure switch, range 0-60 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$508.55
EDAW-N1E1-03T1 Electronic pressure switch, range 0-60 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$560.30
EDAW-N1E1-04T0 Electronic pressure switch, range 0-100 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$508.55
EDAW-N1E1-04T1 Electronic pressure switch, range 0-100 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$560.30
EDAW-N1E1-05T0 Electronic pressure switch, range 0-150 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$508.55
EDAW-N1E1-05T1 Electronic pressure switch, range 0-150 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$560.30
EDAW-N1E1-06T0 Electronic pressure switch, range 0-300 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$508.55
EDAW-N1E1-06T1 Electronic pressure switch, range 0-300 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$560.30
EDAW-N1E1-07T0 Electronic pressure switch, range 0-600 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$508.55
EDAW-N1E1-07T1 Electronic pressure switch, range 0-600 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$560.30
EDAW-N1E1-08T0 Electronic pressure switch, range 0-1000 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$560.30
EDAW-N1E1-08T1 Electronic pressure switch, range 0-1000 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$612.05
EDAW-N1E1-09T0 Electronic pressure switch, range 0-1500 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$560.30
EDAW-N1E1-09T1 Electronic pressure switch, range 0-1500 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$612.05
EDAW-N1E1-10T0 Electronic pressure switch, range 0-3000 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays.
$560.30
EDAW-N1E1-10T1 Electronic pressure switch, range 0-3000 psi, 1/4″ male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.
$612.05
EDAW-N1E1-02T0-HV Electronic pressure switch, range 0-20 psi, 1/4″ male NPT, bottom connection, 316L SS, 2 SPDT relays, 120/240 VAC voltage option
$671.85
EDAW-N1E1-02T1-HV Electronic pressure switch, range 0-20 psi, 1/4″ male NPT, bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output, 120/240 VAC voltage option
$723.60
EDAW-N1E1-04T0-HV Electronic pressure switch, range 0-100 psi, 1/4″ male NPT, bottom connection, 316L SS, 2 SPDT relays, 120/240 VAC voltage option
$671.85
EDAW-N1E1-04T1-HV Electronic pressure switch, range 0-100 psi, 1/4″ male NPT, bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output, 120/240 VAC voltage option
$723.60
EDAW-N1E1-05T0-HV Electronic pressure switch, range 0-150 psi, 1/4″ male NPT, bottom connection, 316L SS, 2 SPDT relays, 120/240 VAC voltage option
$671.85
EDAW-N1E1-07T1-HV Electronic pressure switch, range 0-600 psi, 1/4″ male NPT, bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output, 120/240 VAC voltage option
$723.60
Load More Items

Accessories for DWYER EDA

Model Description Price

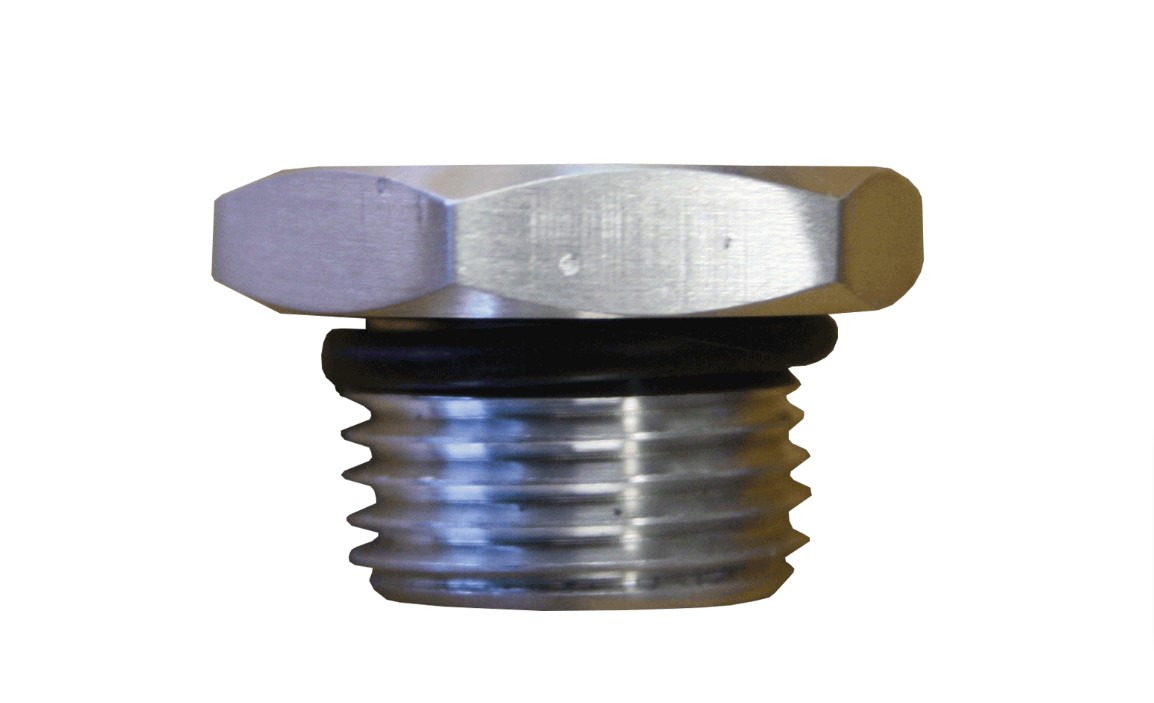

A-590 1/2″ conduit plug, watertight.
$44.20

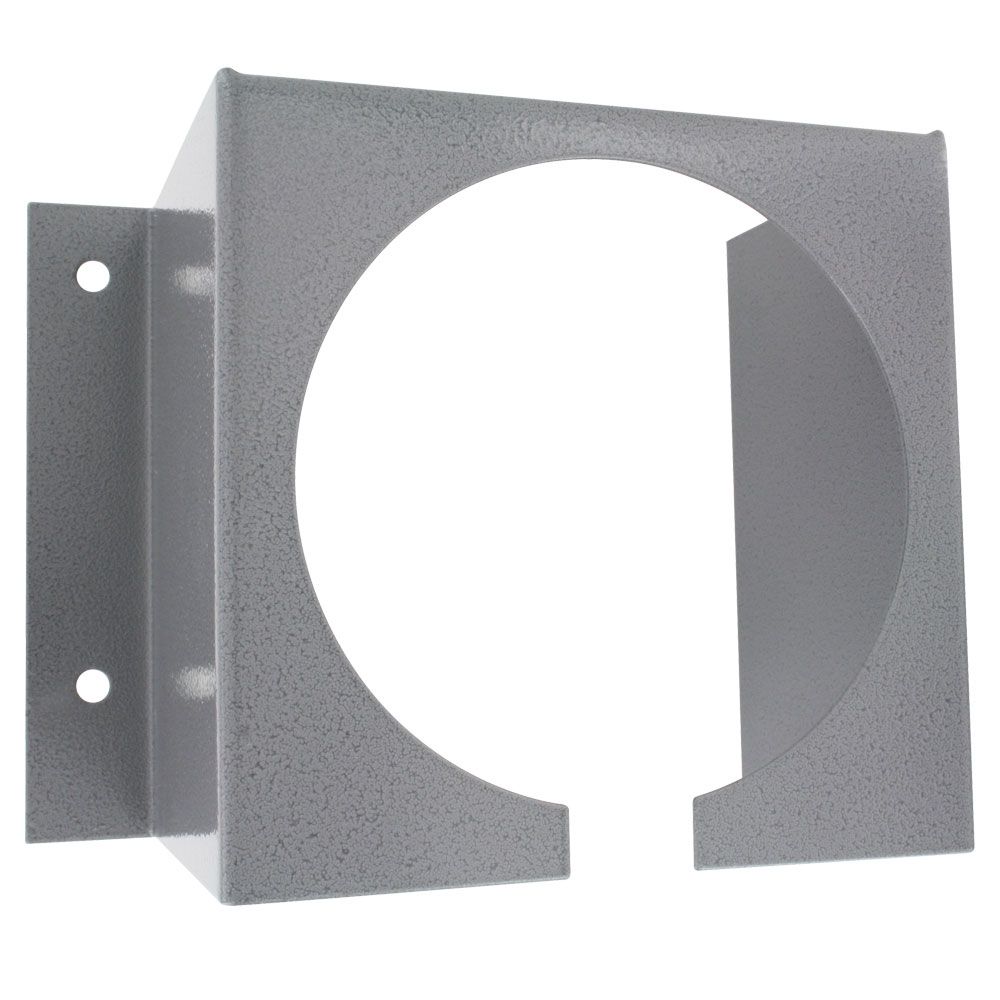

A-EDA-BRK Mounting bracket.
$76.90
Load More Items

Model Chart DWYER EDA

EXAMPLE EDA W N1 E1 02 T0 NIST Series EDAW-N1E1-02T0-NIST Electronic Pressure Controller, weatherproof housing, 1/4″ male NPT process connection, (2) 1/2″ conduit connections, range 0-20 psig, with NIST certificate.
SERIES EDA Electronic Pressure Controller
HOUSING W Weatherproof
PROCESS CONNECTION N1 1/4″ Male NPT
CONDUIT CONNECTION E1 Two 1/2″ NPT
RANGE 02
03
04
05
06
07
08
09
10		 0-20 psig
0-60 psig
0-100 psig
0-150 psig
0-300 psig
0-600 psig
0-1000 psig
0-1500 psig
0-3000 psig
TRANSMITTER OUTPUT T0
T1
T2
T3
T4
T5		 None
4 to 20 mA
1 to 5 VDC
0 to 5 VDC
1 to 6 VDC
0 to 10 VDC
OPTIONS AT
NIST
P
23444
HV		 Aluminum Adhesive Tag
NIST Certificate
1/2 NPSM Conduit Plug
Special Cleaning
120 to 240 VAC Input Power
Load More Items

User Guide and Instruction manual for DWYER EDA

You can request the necessary certificates, documentation, instructions and user guide for DWYER EDA using the special form.
