DWYER MARK II molded plastic manometer

Name: DWYER MARK II molded plastic manometer
Brand: DWYER
Price: 58 USD
Availability: PreOrder

Series Mark II Molded Manometers are of the inclined and inclined-vertical types. The curved inclined-vertical tube of the Model 25 gage provides higher ranges with more easily read increments at low readings. The Model 25 is excellent for general purpose work. The Model 40 inclined gage provides linear calibration and excellent resolution throughout its range. The Model 40 is ideally suited for air velocity and air filter gage applications. Both gage types are capable of pressure measurements above and below atmospheric as well as differential pressure measurements. Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.

			int(2895)
NULL

Made in USA. brand DWYER, model MARK II

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $58

Available

Download the questionnaire

Founded in 1931, DWYER manufactures equipment for measurement, conversion and control – pressure, temperature, level, flow.

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DWYER MARK II

The Model 25 also includes 8′ of flexible double column plastic tubing. Portable operation of the Model 25 is made possible by the use of the optional A-612 portable stand. A short piece of tubing can be slipped over the Model 25 pressure connections to contain the gage fluid in transit.
The Model 40 contains two 4-1/2′ lengths of clear plastic tubing, a plastic swing-out stand and leveling screw for portable operation. It also features convenient rapid shutoff pressure connections and integral overpressure safety traps. See the Support Library tab for Safety Data Sheets.

PRODUCT APPLICATIONS

Paint booths
Air velocity measurement
Air filter gage

FEATURES

Broad ranging in easy to read calibrated increments
Gages ideally suited for general measurements and specific air applications
Compact, stationary or portable device, make it a simple to use tool for pressure measurement in OEM or user applications

OPTIONS

OEM Specials – All Dwyer® Mark II Molded Plastic Manometers can be supplied in OEM quantities with your name and special graphics and scale

Technical specifications of DWYER MARK II

INCLINED/VERTICAL

Accuracy: ±3% FS.
Temperature Limits: 140°F (60°C).
Pressure Limits: 10 psi (70 kPa).
Weight: 1.04 lb (472 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).

INCLINED

Accuracy: ±3% FS.
Temperature Limits: 150°F (65°C).Pressure Limits: 15 psi (100 kPa).
Scale Length: Approx. 8-1/4″ (21 cm).
Weight: 1.23 lb (558 g).
Compliance: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).

Accessories for

Photo	Model	Description
	A-101	1 oz dispenser bottle of red gage fluid, .826 sp. gr.
	A-102	4 oz bottle of red gage fluid, .826 sp. gr.
	A-103	1 pt bottle of red gage fluid, .826 sp. gr.
	A-104	1 qt bottle of red gage fluid, .826 sp. gr.
	A-110	1 oz dispenser bottle of blue gage fluid, 1.910 sp. gr.
	A-220	Clear flexible vinyl tubing, 3/16" ID x 5/16" OD, lengths to 500'; 45 psi maximum pressure @ 73°F.
	A-225	Flexible double column plastic tubing, lt. grey, with red color code stripe, 1/8" ID, lengths to 750 ft, per ft.
	A-315	Gage connector, shutoff type, for 3/16" rubber tubing.
	A-480	Plastic static pressure tip

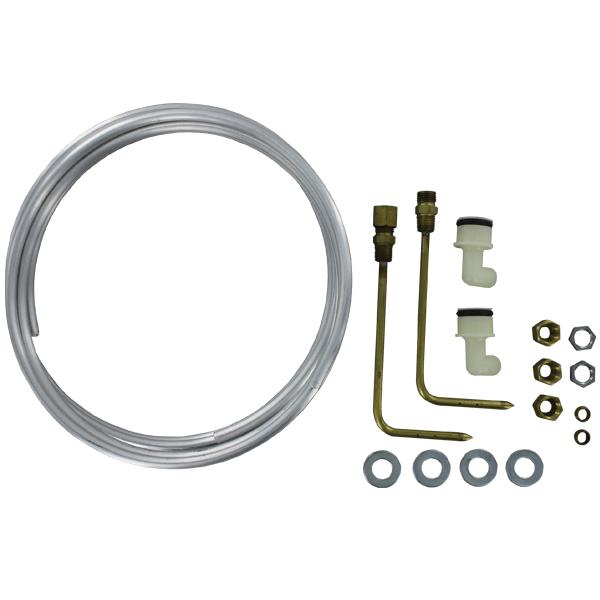

	A-606	Air filter kit for Series Mark II
	A-489	4" 303 SS straight static pressure tip with flange, 1/4" hose barb.
	A-612	Portable stand
	420706-00	Red pointer indicator.
	420706-01	Green pointer indicator.

Prices for

Model	Description	Availability	Price	Qty
MARK II 25	Molded plastic manometer, range 0-3" w.c., red fluid, .826 sp. gr.	Delivery time from 12 weeks	from 58$	- +
MARK II 25-NIST	Molded plastic manometer, range 0-3" w.c., red fluid, .826 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 238$	- +
MARK II 26	Molded plastic manometer, range 0-7" w.c., blue fluid, 1.91 sp. gr.	Delivery time from 12 weeks	from 306$	- +
MARK II 26-NIST	Molded plastic manometer, range 0-7" w.c., blue fluid, 1.91 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 478$	- +
MARK II 27	Molded plastic manometer, range 0-7000 fpm, red fluid, .826 sp. gr., requires Pitot tube *sold separately.	Delivery time from 12 weeks	from 85$	- +
MARK II 27-NIST	Molded plastic manometer, range 0-7000 fpm, red fluid, .826 sp. gr., requires Pitot tube (*sold separately), with NIST Calibration certificate.	Delivery time from 12 weeks	from 262$	- +
MARK II 28	Molded plastic manometer, range 0-10,500 fpm, blue fluid, 1.91 sp. gr., requires Pitot tube *sold separately.	Delivery time from 12 weeks	from 310$	- +
MARK II 40-1	Molded plastic manometer, range .1-0-1.0" w.c., red fluid, .826 sp. gr.	Delivery time from 12 weeks	from 251$	- +
MARK II 40-1-AV	Molded plastic manometer, range 0-1.1" w.c. & 0-4200 fpm, red fluid, .826 sp. gr., requires Pitot tube sold separately.	Delivery time from 12 weeks	from 255$	- +
MARK II 40-1-AV-NIST	Molded plastic manometer, range 0-1.1" w.c. & 0-4200 fpm, red fluid, .826 sp. gr., requires Pitot tube (*sold separately), with NIST Calibration certificate.	Delivery time from 12 weeks	from 541$	- +
MARK II 40-1-NIST	Molded plastic manometer, range .1-0-1.0" w.c., red fluid, .826 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 541$	- +
MARK II 40-250PA	Molded plastic manometer, range 10-0-250 Pa, red fluid, .826 sp. gr.	Delivery time from 12 weeks	from 253$	- +
MARK II 40-250PA-AV	Molded plastic manometer, range 0-260 Pa & 0-21 mps, red fluid, .826 sp. gr., requires Pitot tube sold separately.	Delivery time from 12 weeks	from 253$	- +
MARK II 40-250PA-NIST	Molded plastic manometer, range 0-260 Pa & 0-21 mps, red fluid, .826 sp. gr., requires Pitot tube (*sold separately), with NIST Calibration certificate.	Delivery time from 12 weeks	from 541$	- +
MARK II 40-25MM	Molded plastic manometer, range 0-26 mm w.c., red fluid, .826 sp. gr.	Delivery time from 12 weeks	from 251$	- +
MARK II 40-25MM-NIST	Molded plastic manometer, range 0-26 mm w.c., red fluid, .826 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 513$	- +
MARK II 41-2	Molded plastic manometer, range .2-0-2.4" w.c., blue fluid, 1.91 sp. gr.	Delivery time from 12 weeks	from 645$	- +
MARK II 41-2-AV	Molded plastic manometer, range 0-2.5" w.c. & 0-6300 fpm, blue fluid, 1.91 sp. gr., requires Pitot tube sold separately.	Delivery time from 12 weeks	from 645$	- +
MARK II 41-2-NIST	Molded plastic manometer, range .2-0-2.4" w.c., blue fluid, 1.91 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 956$	- +
MARK II 41-2-AV-NIST	Molded plastic manometer, range 0-260 Pa & 0-21 mps, red fluid, .826 sp. gr., requires Pitot tube (*sold separately), with NIST Calibration certificate.	Delivery time from 12 weeks	from 956$	- +
MARK II 41-600PA	Molded plastic manometer, range 20-0-600 Pa, blue fluid, 1.91 sp. gr.	Delivery time from 12 weeks	from 645$	- +
MARK II 41-600PA-NIST	Molded plastic manometer, range 20-0-600 Pa, blue fluid, 1.91 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 956$	- +
MARK II 41-60MM	Molded plastic manometer, range 0-60 mm w.c., blue fluid, 1.91 sp. gr.	Delivery time from 12 weeks	from 645$	- +
MARK II 41-60MM-NIST	Molded plastic manometer, range 0-60 mm w.c., blue fluid, 1.91 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 956$	- +
MARK II M-700PA	Molded plastic manometer, range 10-0-700 Pa, red fluid, .826 sp. gr.	Delivery time from 12 weeks	from 58$	- +
MARK II M-700PA-NIST	Molded plastic manometer, range 10-0-700 Pa, red fluid, .826 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 235$	- +
MARK II MM-180	Molded plastic manometer, range 0-180 mm w.c., blue fluid, 1.91 sp. gr.	Delivery time from 12 weeks	from 303$	- +
MARK II MM-180-NIST	Molded plastic manometer, range 0-180 mm w.c., blue fluid, 1.91 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 478$	- +
MARK II MM-80	Molded plastic manometer, range 0-80 mm w.c., red fluid, .826 sp. gr.	Delivery time from 12 weeks	from 78$	- +
MARK II MM-80-NIST	Molded plastic manometer, range 0-80 mm w.c., red fluid, .826 sp. gr., with NIST Calibration certificate.	Delivery time from 12 weeks	from 254$	- +
MKII 40-250PA-AV-NIST	Molded plastic manometer, range 0-2.5" w.c. & 0-6300 fpm, blue fluid, 1.91 sp. gr., requires Pitot tube (*sold separately), with NIST Calibration certificate.	Delivery time from 12 weeks	from 541$	- +
A-101	1 oz dispenser bottle of red gage fluid, .826 sp. gr.	Delivery time from 12 weeks	from 11$	- +
A-102	4 oz bottle of red gage fluid, .826 sp. gr.	Delivery time from 12 weeks	from 21$	- +
A-103	1 pt bottle of red gage fluid, .826 sp. gr.	Delivery time from 12 weeks	from 47$	- +
A-104	1 qt bottle of red gage fluid, .826 sp. gr.	Delivery time from 12 weeks	from 88$	- +
A-110	1 oz dispenser bottle of blue gage fluid, 1.910 sp. gr.	Delivery time from 12 weeks	from 204$	- +
A-220	Clear flexible vinyl tubing, 3/16" ID x 5/16" OD, lengths to 500'; 45 psi maximum pressure @ 73°F.	Delivery time from 12 weeks	from 1$	- +
A-225	Flexible double column plastic tubing, lt. grey, with red color code stripe, 1/8" ID, lengths to 750 ft, per ft.	Delivery time from 12 weeks	from 4$	- +
A-315	Gage connector, shutoff type, for 3/16" rubber tubing.	Delivery time from 12 weeks	from 19$	- +
A-480	Plastic static pressure tip	Delivery time from 12 weeks	from 2$	- +
A-489	4" 303 SS straight static pressure tip with flange, 1/4" hose barb.	Delivery time from 12 weeks	from 10$	- +
A-606	Air filter kit for Series Mark II	Delivery time from 12 weeks	from 45$	- +
A-612	Portable stand	Delivery time from 12 weeks	from 51$	- +
420706-00	Red pointer indicator.	Delivery time from 12 weeks	from 2$	- +
420706-01	Green pointer indicator.	Delivery time from 12 weeks	from 2$	- +

Expand Table

User Guide and Instruction manual for DWYER MARK II

You can request the necessary certificates, documentation, instructions and user guide for DWYER MARK II using the special form.
