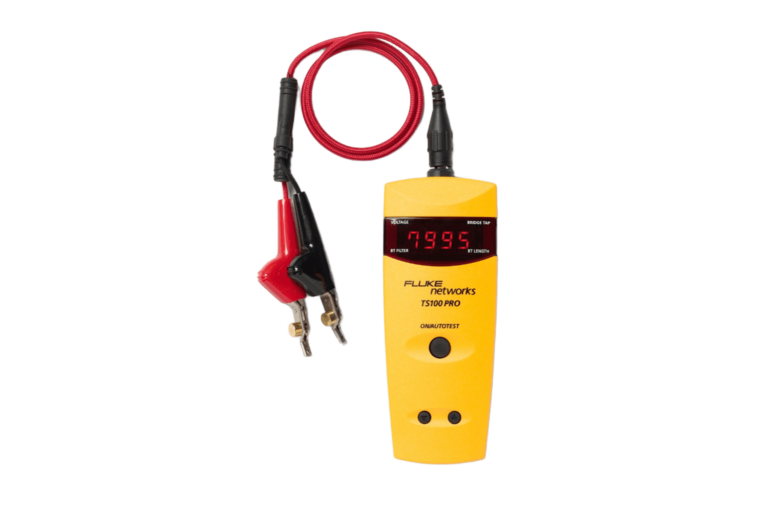

Fluke Networks Cable fault finder with PowerBT Bridge Tap Detect provides open/short circuit detection—to 8,000 feet (2.4 km) and locates multiple bridge taps up to 3,200 feet (975 m) of cable, built-in toner has five tones, reports AC/DC voltage on any two conductor, telephone, security wires, or coax cables.
Made in USA. brand FLUKE, model TS100-PRO-BT-TDR
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Maximum Length | 8,000 feet (2,438 meters) on certain cable types, 4,000 feet (1,220 meters) on most cable types, and 500 feet (152 meters) on cables with high loss. The tester shows -Err if the cable is too long to be correctly measured. |
| Representative Maximum Cable Length | 8,000 feet (2,438 meters): CAT-3 Twisted Pair 8,000 feet (2,438 meters): CAT-5 Twisted Pair 6,000 feet (1,830 meters): 12/2 AC Wire 3,000 feet (900 meters): RG-6/U TV Coax 1,500 feet (457 meters): RG-174/U Coax |
| Minimum Length | No minimum length (can read a bridge tap at 0 feet/meters). Minimum non-zero reading is 2 feet or 1 meter. |
| Length Accuracy | “±2 feet (±0.6 m) for cables less than 10 feet (3 m) ±5 feet (±2 m) for cables longer than 10 feet (3 m) and shorter than 200 feet (60 m) +/-3%+/-5 feet (±2 m) for cables longer than 200 feet (60 m)” |
| Distance to Bridge Tap | 0 feet to 3,200 feet (975 meters) |
| Minimum Length of Bridge Tap | 10% of the distance to the bridge tap. Dependent on the cable characteristics. |
| Measurement Rate | Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity. |
| VOP | Adjustable from 20 to 99, saved in flash memory. |
| Test Technology | Time Domain Reflectometry (TDR) with 100 Ω drive impedance, 6v maximum pulse height. |
| Cable Type | Virtually all two or more conductor cables. |
| Power | 4 AA alkaline batteries. |
| Reverse Battery Protection | No damage to the tester will occur if the batteries are installed backwards. |
| Battery Life | 35 hours (typical) |
| Low Battery Indication | LED display alternates between LO and bAtt when the battery voltage falls below 4.5v. |
| Maximum Output Voltage | 4 voltage peak |
| Maximum Isolation Voltage | 250 volts RMS |
| Voltage Measurements | Range: 0 volts AC to 115 volts AC; 0 volts DC to ±150 volts DC Accuracy: AC: +/-1%+/-2 volts (45 Hz to 65 Hz); DC: +/-1%+/-2 volts DC |
| High Voltage Detection | AC voltage detected to 115 volts; DC voltage detected to ±150 volts. AC voltage ≥90 volts or DC voltage ≥100 volts causes high voltage warnings to show on the display |
| SmartTone® (5-tones) Range | 7,000 feet (2,134 meters) |
| Toner Range | 52,800 feet (16,093 meters) |
| Tone Injection | Approximately 1 kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to “normal-open” from any other condition. |
| Impedance Range | 35 Ω to 330 Ω with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings. |
| Temperature Range | Operating: 32°F to 104°F (0°C to 40°C) Storage: 32°F to 131°F (0°C to 55°C) |
| Humidity | Operating: 20% to 80% relative humidity Storage: 0% to 100% relative humidity |
| Operating Humidity | 80% maximum at 86°F (30°C ) 50% maximum at 104°F (40°C ) |
| Operating Altitude | 9,843 ft max (3,000 m max) |
| Weight | 1 lb (454 grams) |
| Dimensions | 7.4 in x 2.7 in x 1.4 in (18.8 cm x 6.9 cm x 3.6 cm) |
| Safety | IEC 61010-1:2010; N10140 EMC: IEC/EN61326-1:2006 |
| Certifications and Compliance | Conforms to relevant European Union directives Conforms to relevant Australian standards IEC/EN61010-1 CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1 Notes: Patents 6160405, 6285195, 6323654, and 6509740. Specifications subject to change without notice. |
Features
You can request the necessary certificates, documentation, instructions and user guide for FLUKE TS100-PRO-BT-TDR using the special form.
