Made in China. brand HIKMICRO, model B1L
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $350
Discontinued
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The B1L thermal imager has been replaced by the new B21L model with improved performance.

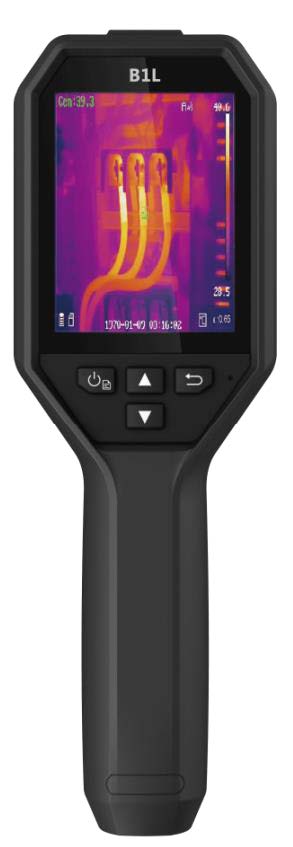

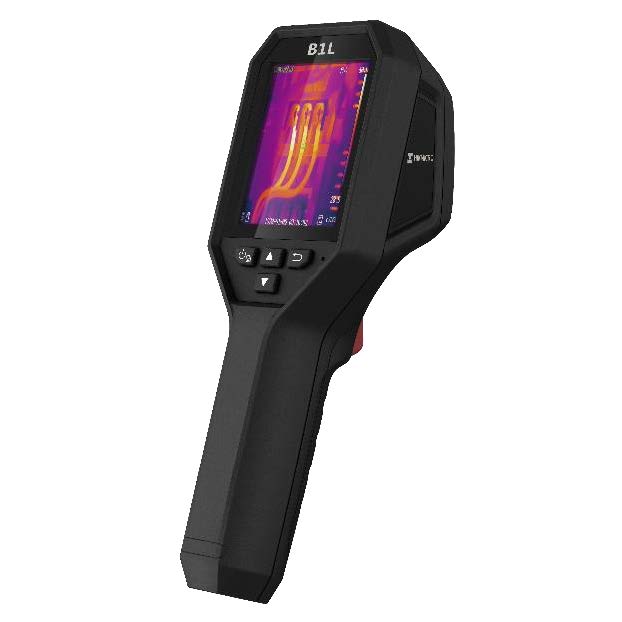

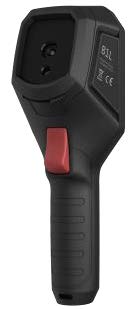

HIKMICRO B1L is designed for temperature measurement to find invisible faults. It’s equipped with a 160 × 120 resolution HIKMICRO thermal detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situation. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry.
Features
Enhanced Thermal Clarity with SuperIR – HIKIMICRO B series features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
High Image Quality – Features a highly sensitive (NETD < 40 mK) VOx detector, along with optimized image enhancement algorithms to provide clear thermal images.
4 Images Modes – Thermal, Fusion, PIP, and Optical modes to suit your preferred view. (B11 and B20 only)
Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C ( -4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity – Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share images
Innovative Macro Mode – Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm – Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency – 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
3.2″ Color LCD – 3.2″ LCD provides a 75% larger screen than other products in the category.
HIKMICRO Analyzer Software – Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Applications
Introduction video
How to video
Unboxing HIKMICRO B series
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| IR Resolution | 160×120 (19,200 pixels) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 to 14 μm |
| NETD | < 40 mK (@25°C), F# = 1.0 |
| Focal Length | 3.5 mm |
| FOV (Field of View) | 32.9° × 44.4° |
| Image Frequency | 25 Hz |
| Focus | Fixed |
| IFOV (Spatial Resolution) | 4.85 mrad |
| Aperture | F1.1 |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Image Display | |
| Display | 320×240 Resolution, 3.2″ LCD Screen |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, Point Presets, Off |
| High Temperature Alarm | Audible Warning |
| Storage | |
| Storage Media | EMMC (4 GB) |
| Image Storage Capacity | 30,000 Images |
| Image File Format | JEPG with Measurement Data Included |
| Functions | |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| UVC Cast Screen | Yes |
| Level/Span | Auto/Manual |
| Power System | |
| Power Supply | 3.7 VDC/0.4 A |
| Power Consumption | 1.5 W |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Operating Time | 8 Hours Continuous Running |
| General | |
| Menu Language | 21 Languages:
English, German, French, Spanish (Spain), Portuguese (Portugal), Italian, Czech, Slovak, Polish, Hungarian, Romanian, Dutch, Danish, Norwegian, Finnish, Swedish, Russian, Turkish, Japanese, Korean, Chinese (Traditional) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Interface | USB Type-C |
| Weight | Approx. 360 g (0.79 lb) |

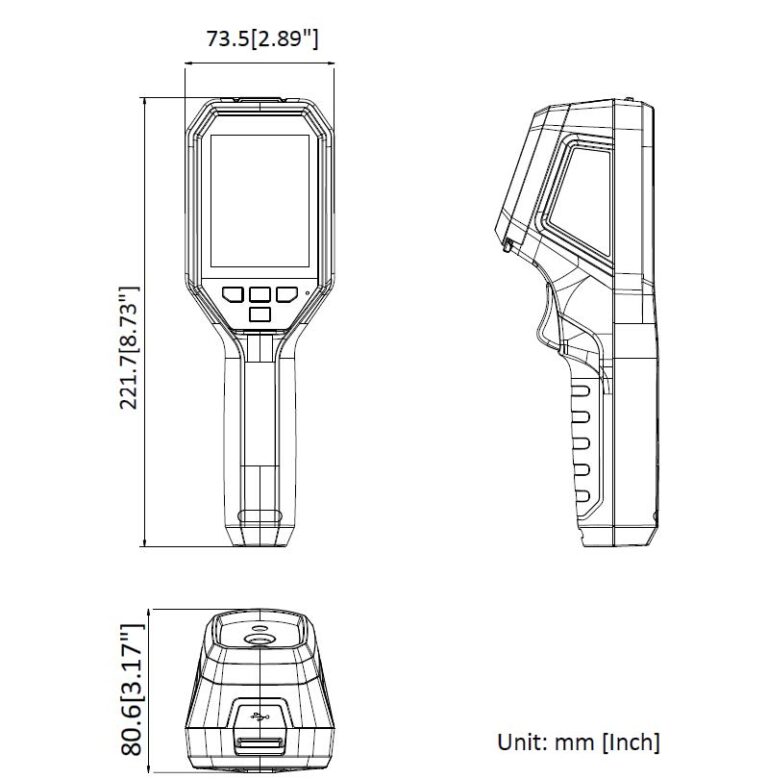

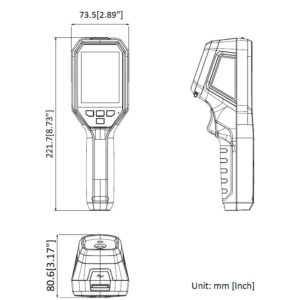

| Dimension | 221.7 mm × 73.5 mm × 80.6 mm (8.73″ × 2.89″ × 3.17″) |
| Tripod Mounting | UNC ¼”-20 |
Model Number: HM-TP51-3AXF-B1L
The warranty for the HIKMICRO B1L thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO B1L thermal imager is $265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO B1L using the special form.
You can buy HIKMICRO B1L in UAE at a price starting from 350 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO B1L price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
