Made in China. brand HIKMICRO, model B20S
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $550
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

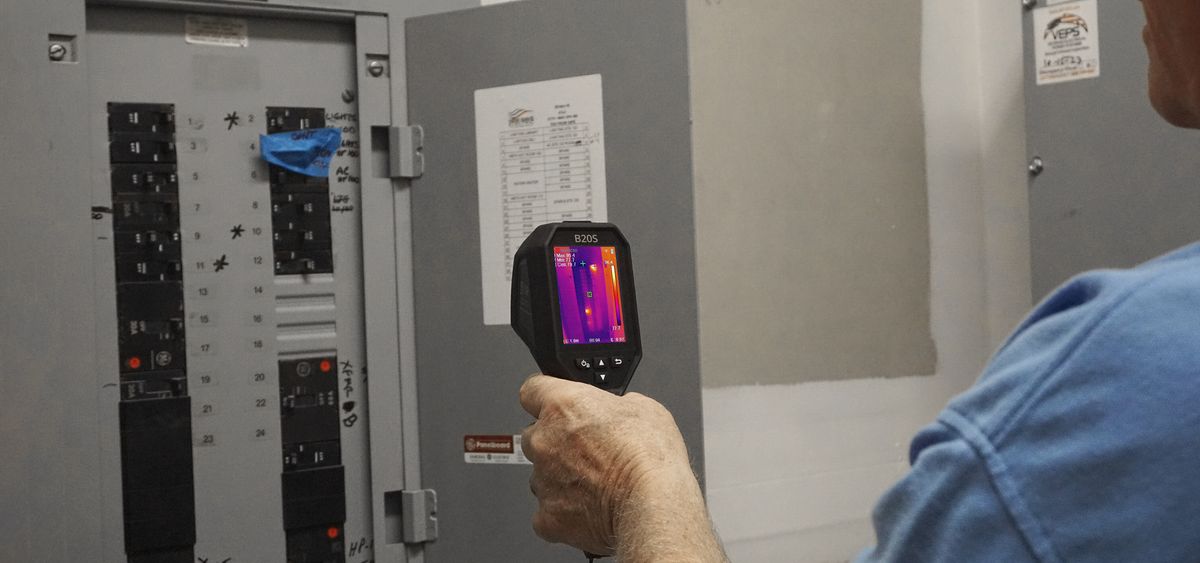

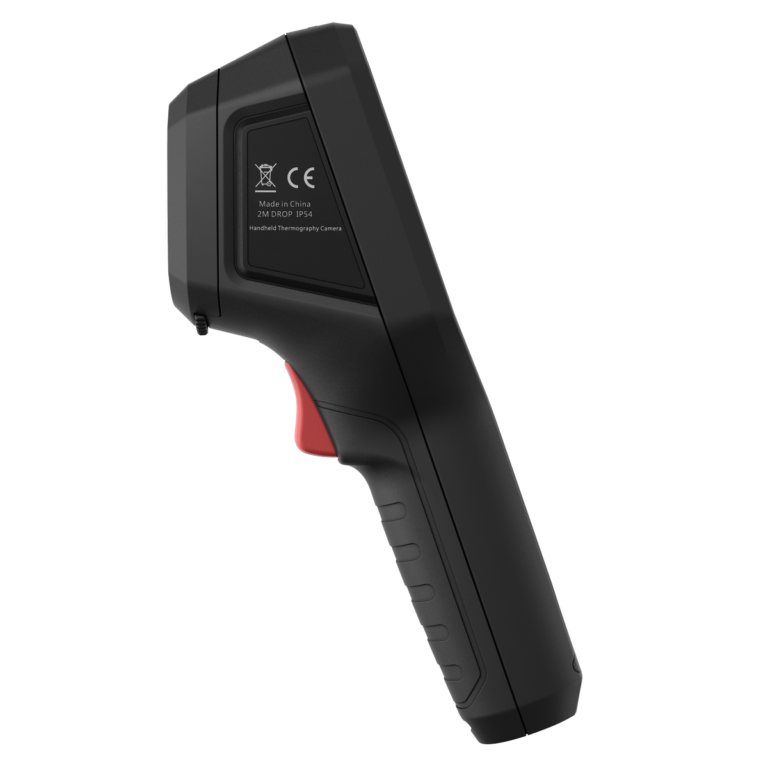

HIKMICRO B20S is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.
High Image Quality – Get unmatched clarity with HIKMICRO B20S, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2″ LCD screen with a crisp 640×480 resolution, capturing every detail with its 256×192 thermal resolution.

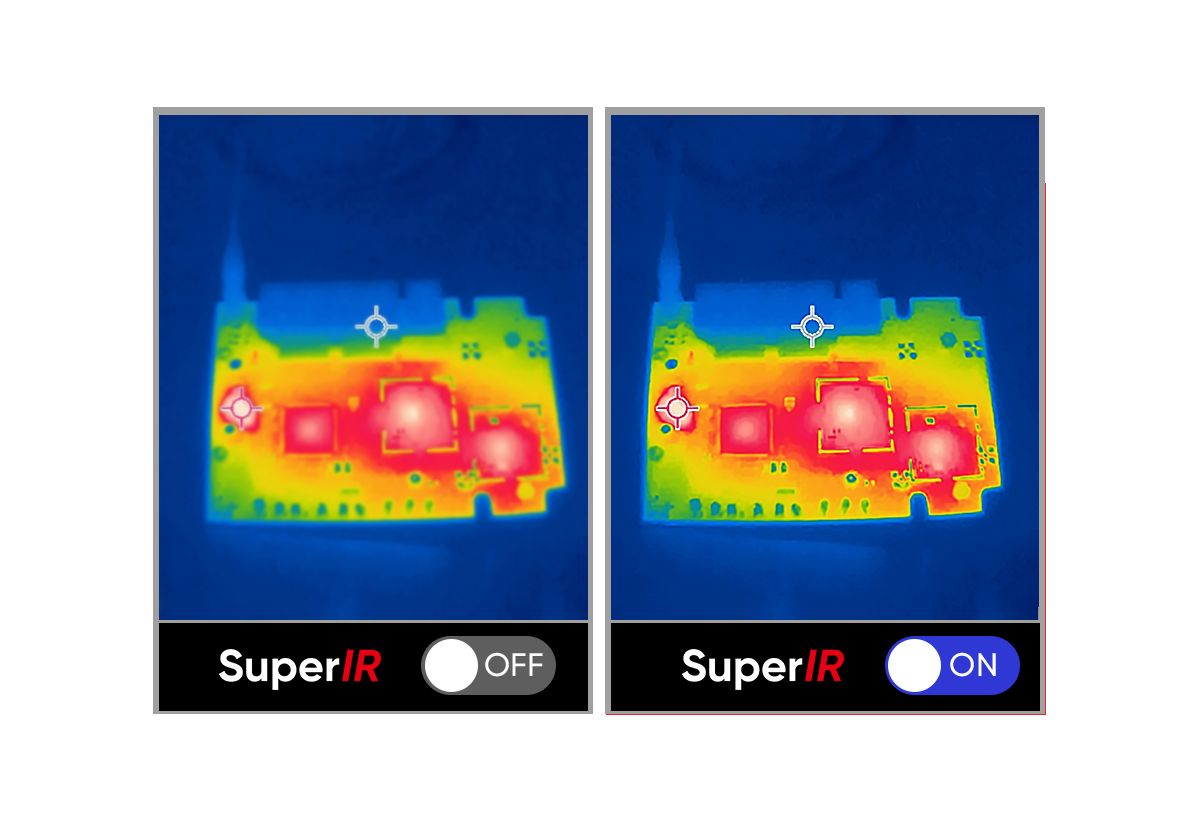

Enhanced Thermal Clarity with SuperIR – HIKMICRO’s SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.
* Real-time SuperIR is only available in thermal mode.

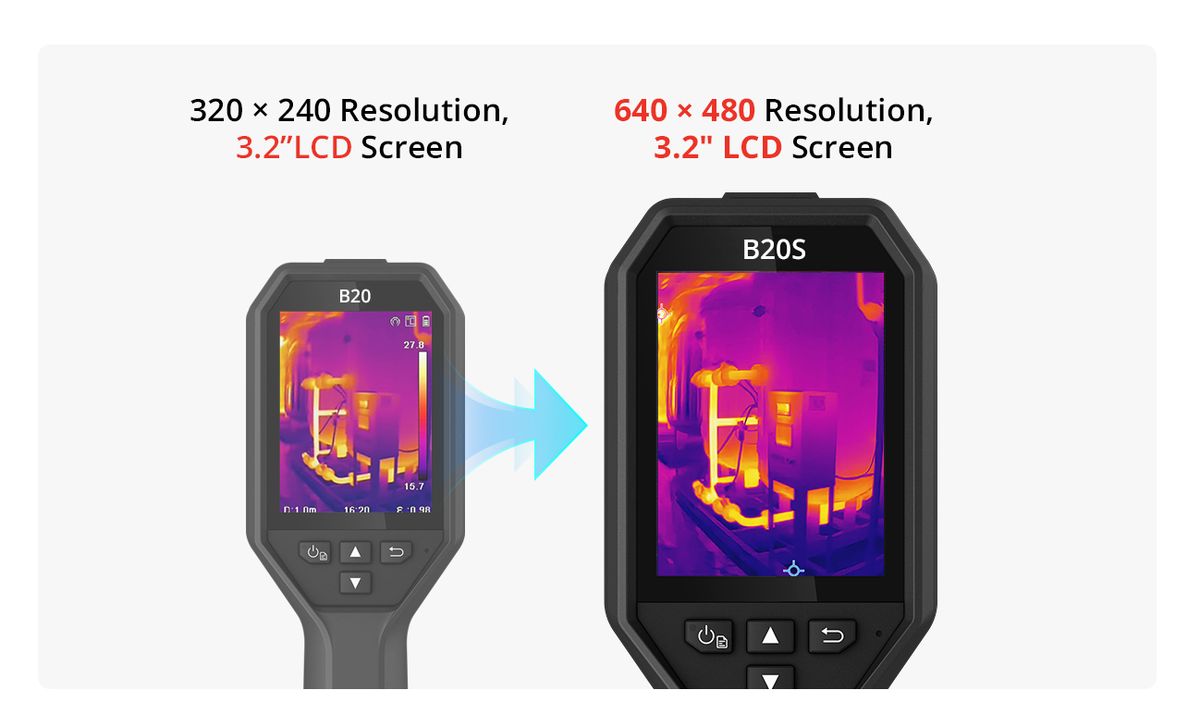

Experience the New and Improved Display – The B20S features a high-resolution display of 640×480. With the SuperIR , you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.

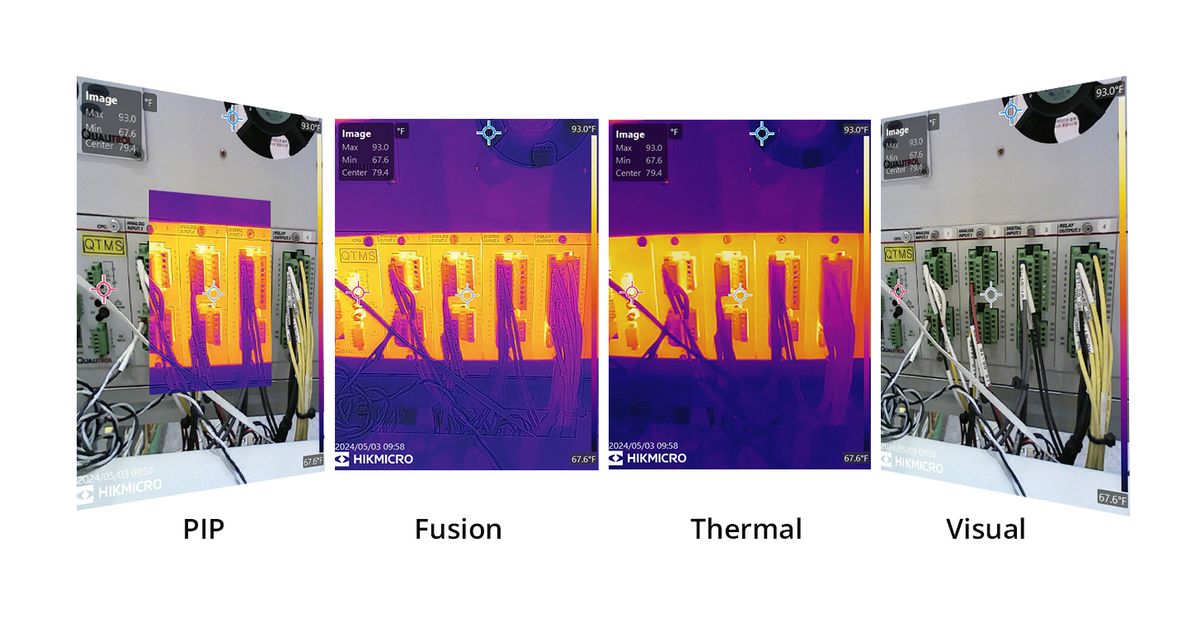

4 Images Modes – Thermal, Fusion, PIP, and Optical modes to suit your preferred view.

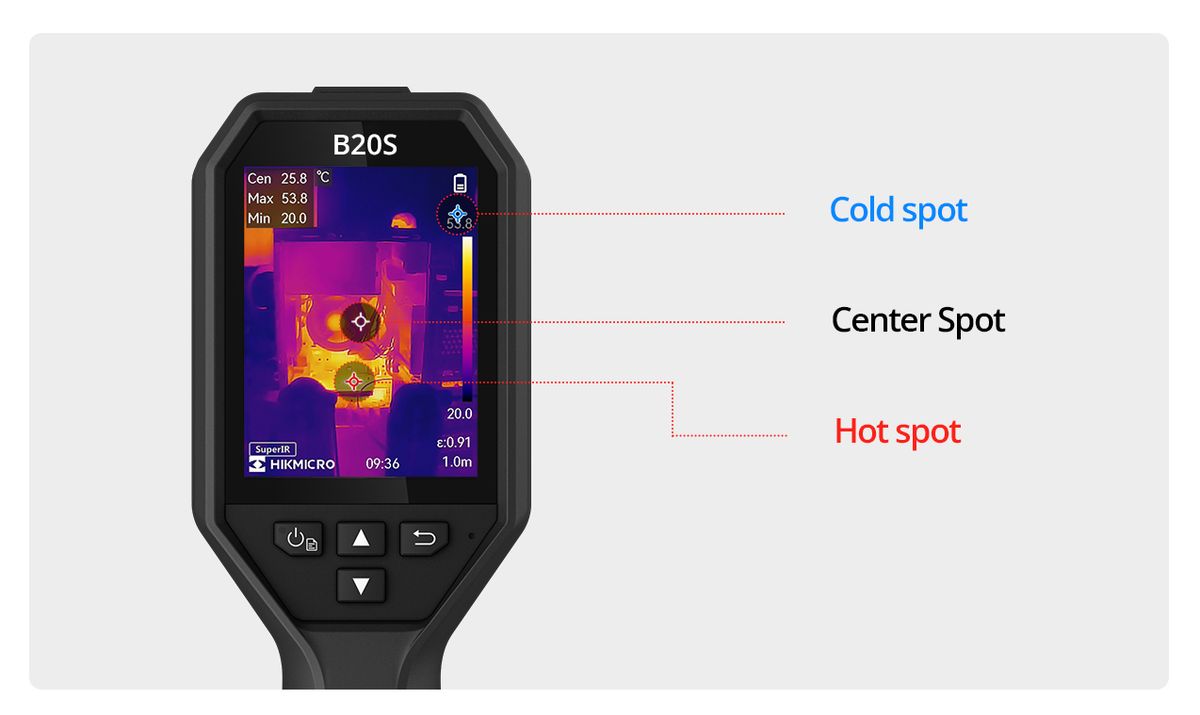

Full-screen Precise and Wide Temperature Measurement – The thermal imaging camera B20 supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

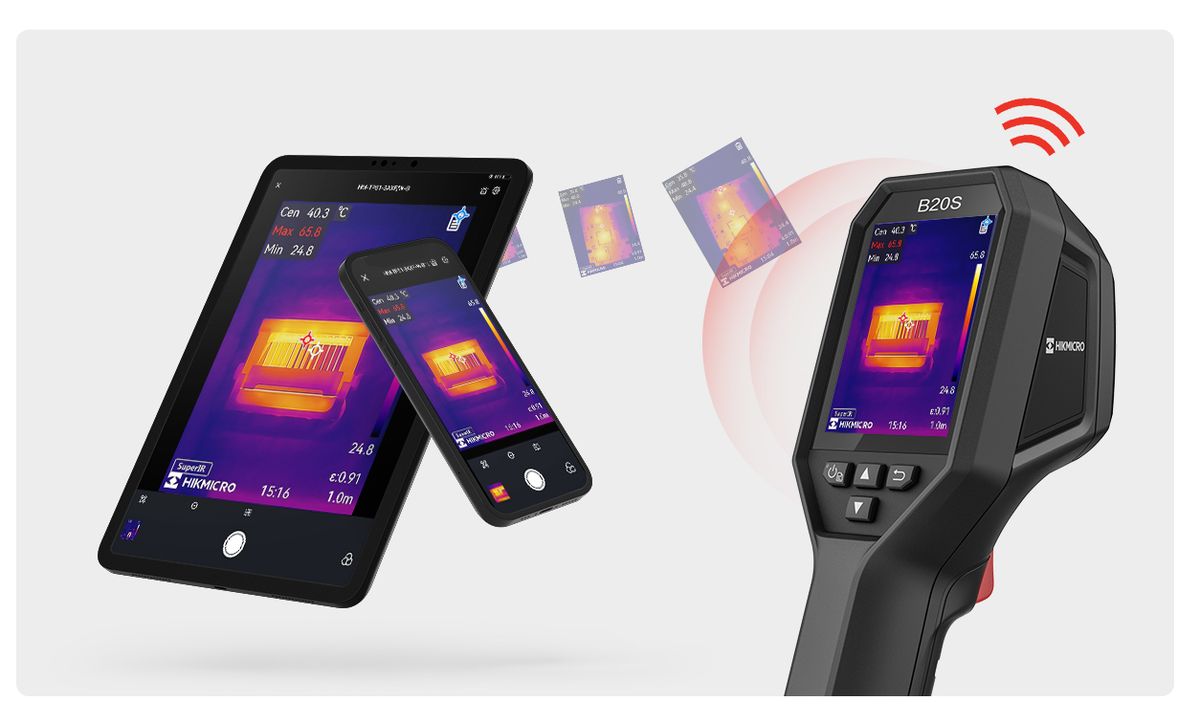

Wi-Fi Connectivity – Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.

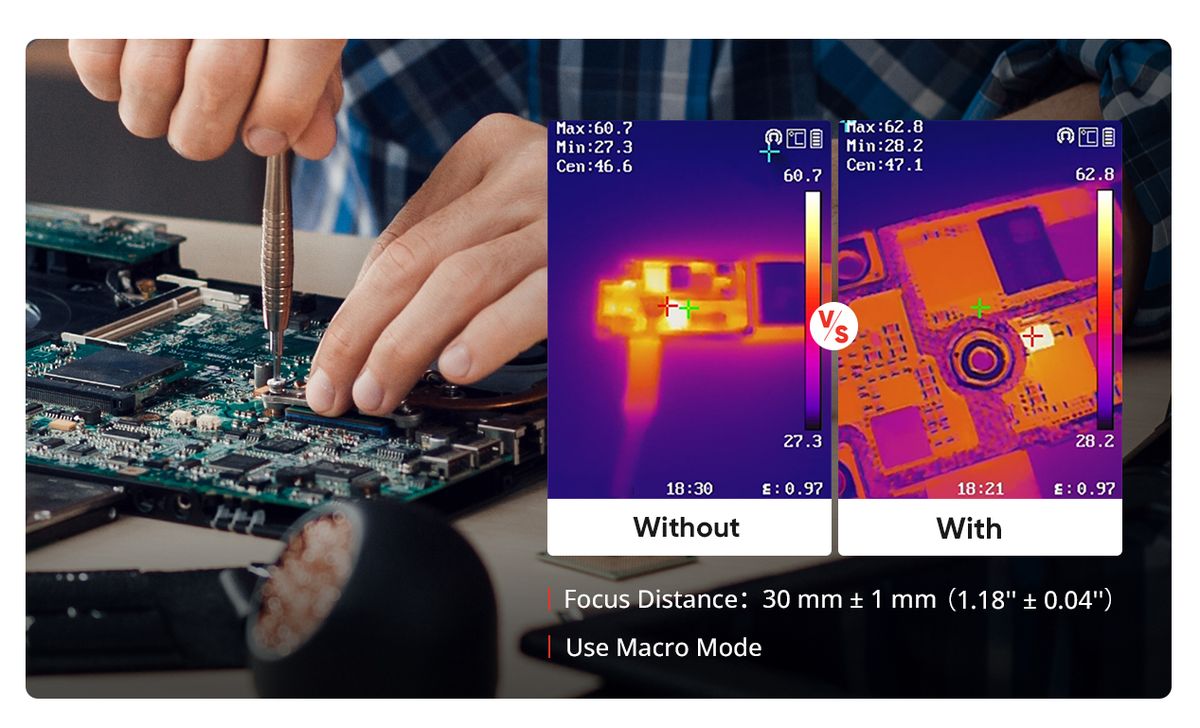

Optional innovative macro mode – Using a clip-on macro lens, the B20S cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

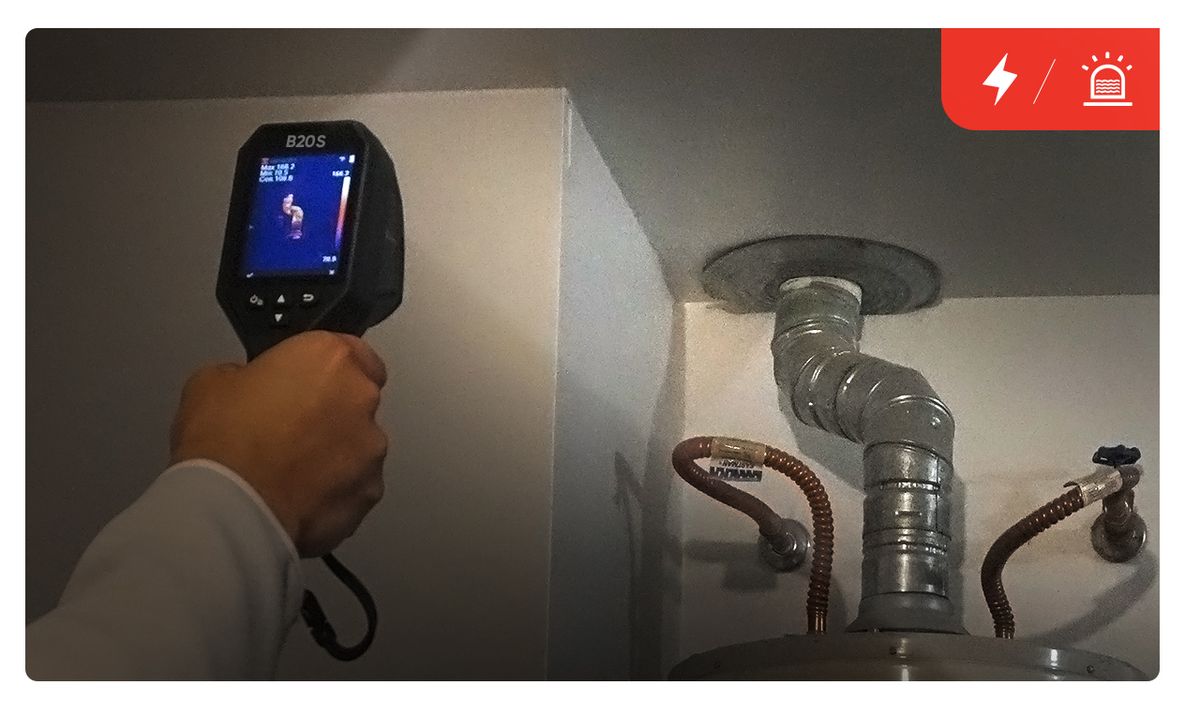

High Temperature Alarm – Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

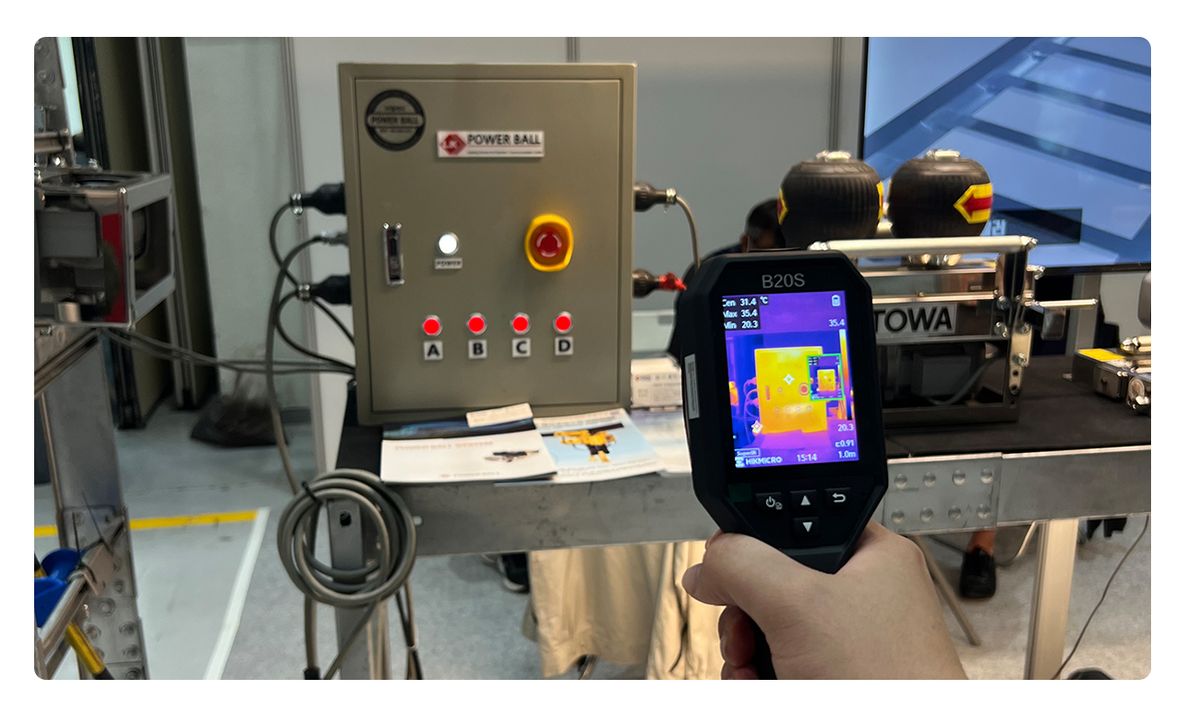

Fast Image Frequency – Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B20S provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
HIKMICRO Analyzer Software – Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Applications
Introduction video
How to video
Unboxing HIKMICRO B series
| Infrared Image | |
| IR Resolution | 256×192 (49,152 pixels) |
| SuperIR | 480×640 (307 200 pixels) Yes, on captured images and live view |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 µm |
| Spectral Range | 7.5 to 14 µm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 3.3 mrad |
| Focus Mode | Focus Free |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Image Display | |
| Visual Camera | 1600 × 1200 (2 MP) |
| Display | 480 × 640 Resolution, 3.2″ LCD Screen |
| Image Modes | Thermal/Visual/Fusion/PIP |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Color Alarm | Above alarm |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C to 150°C (-4°F to 302°F) Range 100°C to 550°C (212°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
| Level and Span Mode | Auto/Manual |
| SuperScene | Water Leak, Insulation |
| Scene Mode | Insulation Pro, Condensation |
| Data Storage and Communication | |
| Storage Media | Built-in 16G eMMC (user available storage space is less than the nominal capacity) |
| Image Storage Capacity | Approx. 35,000 Images |
| Image File Format | Radiometric JPEG |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| USB Interface | USB Type-C |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time | Approx. 3 hours fully charged |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 380 g (0.84 lb) |

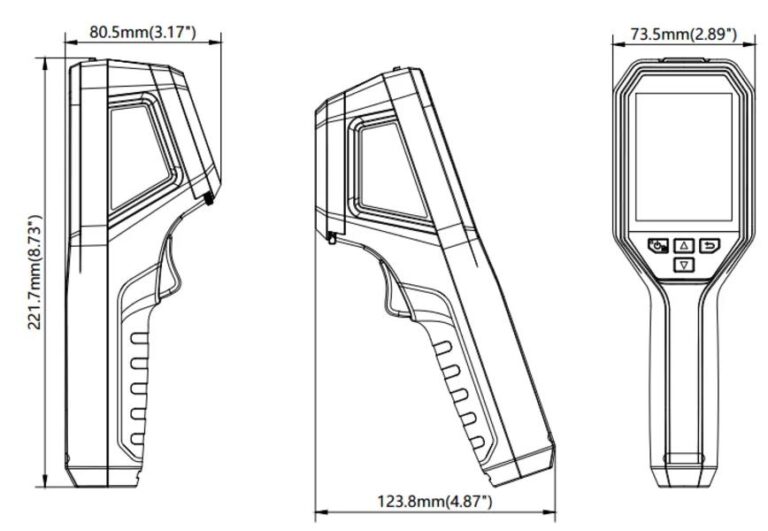

| Dimension | 221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in) |
| Tripod Mounting | UNC ¥”-20 |
| Power Supply | USB-C (5V/2A) |
| LED Light | Yes |
Model Number:
The warranty for the HIKMICRO B20S thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO B20S thermal imager is $265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
| Photo | Model | Description |
|---|---|---|
|
HM-2925ZJ-TM01-BRACKET | Tripod Mounting Bracket |
|
HM-B201-MACRO | Macro lens for B series cameras, 0.12x, 30 mm working distance, 100 µm spot size, 500 µm min. measurement size, -20~150℃, ±3℃/±3% |
|
HM-B01-POUCH | Soft pouch with adjustable shoulder strap, for E and B series cameras |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TP52+-3AQF/W-B20S | 256×192, 37.2°×50°, 2MP visible camera, NETD<40mk, 25 Hz, -20~550℃, ±2℃/±2%, 16GB, 3.2 inch 480×640 LCD Screen, Wi-Fi, SuperIR | Delivery time from 12 weeks | from 550$ |
-
+
|
|
| HM-B201-MACRO | Macro lens for B series cameras, 0.12x, 30 mm working distance, 100 µm spot size, 500 µm min. measurement size, -20~150℃, ±3℃/±3% | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| HM-B01-POUCH | Soft pouch with adjustable shoulder strap, for E and B series cameras | Delivery time from 12 weeks | from 16$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO B20S using the special form.
You can buy HIKMICRO B20S in UAE at a price starting from 550 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO B20S price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
