HIKMICRO B21L
Photo HIKMICRO B21L Description of HIKMICRO B21L Video HIKMICRO B21L Specifications HIKMICRO B21L Package Contents HIKMICRO B21L Warranty for HIKMICRO B21L Calibration of HIKMICRO B21L Accessories for HIKMICRO B21LPrices for HIKMICRO B21L User Manual for HIKMICRO B21L Related instruments to HIKMICRO B21L
Made in China. brand HIKMICRO, model B21L
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $380
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

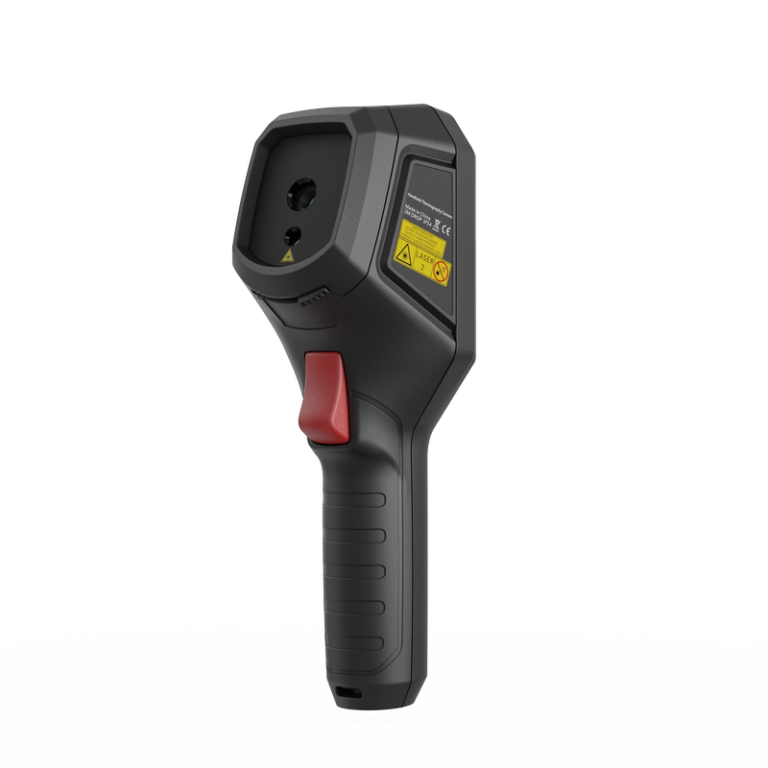

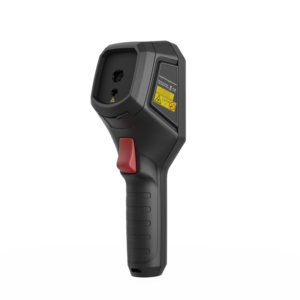

HIKMICRO B21L is designed for temperature measurement to find invisible faults. It’s equipped with a 256×192 high-resolution thermal detector, giving you enhanced details for your inspection. The thermography ranges from -20°C to 550°C (-4°F to 1022°F), which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
Enhanced Thermal Clarity with SuperIR – HIKIMICRO B series features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
High Image Quality – Features a highly sensitive (NETD < 40 mK) VOx detector, along with optimized image enhancement algorithms to provide clear thermal images.
4 Images Modes – Thermal, Fusion, PIP, and Optical modes to suit your preferred view. (B11 and B20 only)
Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C ( -4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity – Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share images
Innovative Macro Mode – Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm – Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency – 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

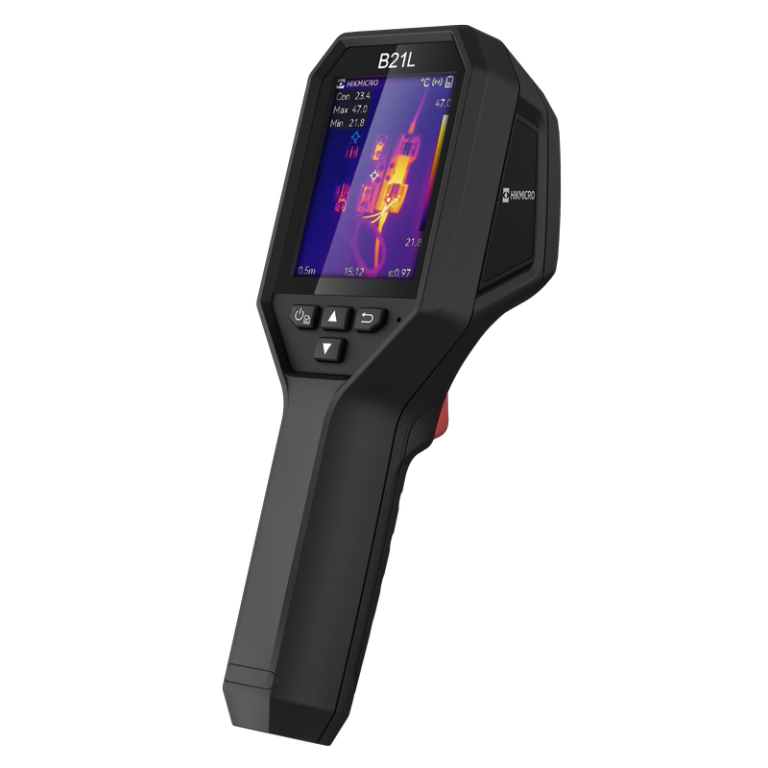

3.2″ Color LCD – 3.2″ LCD provides a 75% larger screen than other products in the category.
HIKMICRO Analyzer Software – Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.

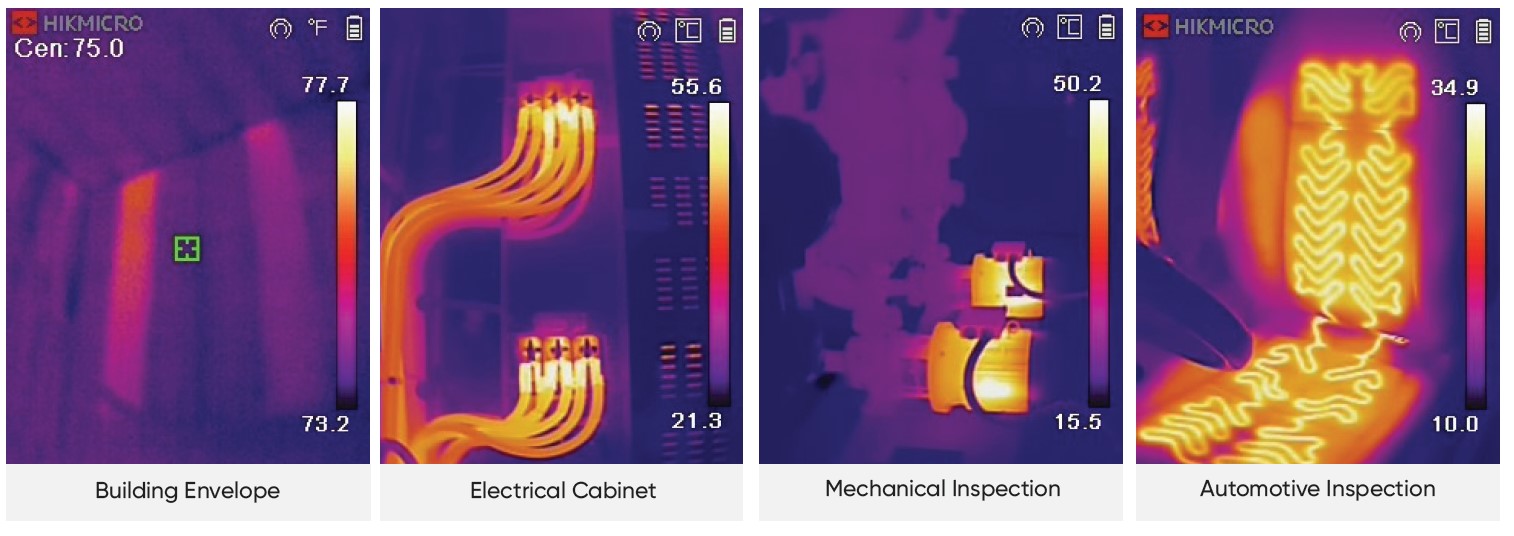

Applications
Introduction video
How to video
Unboxing HIKMICRO B series
| Infrared Image | |
| IR Resolution | 256×192 (49,152 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50.0° × 37.2° |
| Spatial Resolution (IFOV) | 3.33 mrad |
| Focus Mode | Focus Free |
| SuperIR | Yes, on captured thermal images |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Image Display | |
| Display | 240×320 Resolution, 3.2″ LCD Screen |
| Image Modes | Thermal |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Color Alarm | Above alarm |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Storage Media | Built-in 4 GB flash memory (user available storage space is less than the nominal capacity) |
| Image Storage Capacity | Approx. 30,000 Images |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| USB Interface | USB Type-C |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time | Approx. 3 hours fully charged |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 380 g (0.84 lb) |

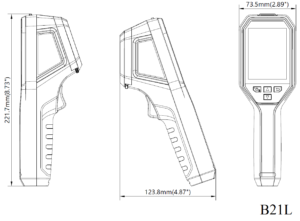

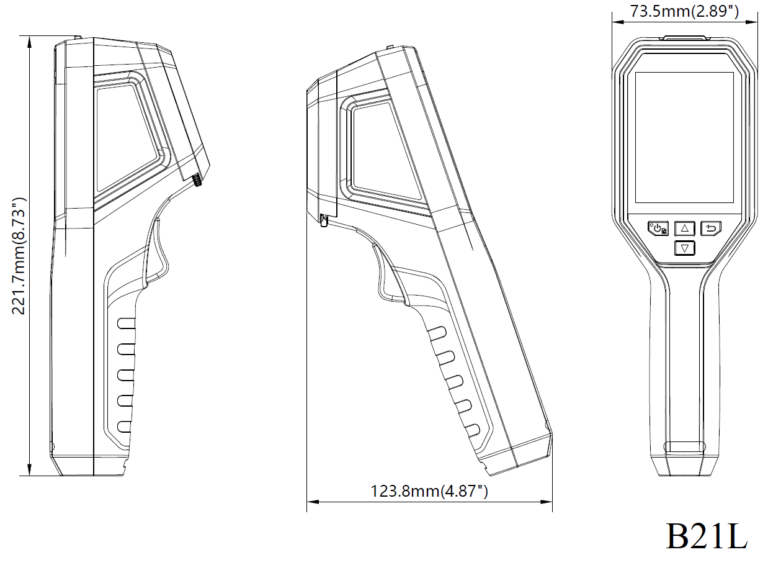

| Dimension | 221.7 × 73.5 × 123.8 mm (8.73 × 2.89 × 4.87 in) |
| Tripod Mounting | UNC W-20 |
| Laser | Yes, Class II |
Model Number: HM-TP52-3AQF/W-B21L
The warranty for the HIKMICRO B21L thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
The cost of calibrating the HIKMICRO B21L thermal imager is $265 for the General Lens. The lead time is 2 to 4 weeks. A calibration certificate with test results is included in the price.
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
| Photo | Model | Description |
|---|---|---|
|
HM-2925ZJ-TM01-BRACKET | Tripod Mounting Bracket |
|
HM-B201-MACRO | Macro lens for B series cameras, 0.12x, 30 mm working distance, 100 µm spot size, 500 µm min. measurement size, -20~150℃, ±3℃/±3% |
|
HM-B01-POUCH | Soft pouch with adjustable shoulder strap, for E and B series cameras |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-B201-MACRO | Macro lens for B series cameras, 0.12x, 30 mm working distance, 100 µm spot size, 500 µm min. measurement size, -20~150℃, ±3℃/±3% | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| HM-B01-POUCH | Soft pouch with adjustable shoulder strap, for E and B series cameras | Delivery time from 12 weeks | from 16$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO B21L using the special form.
You can buy HIKMICRO B21L in UAE at a price starting from 380 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO B21L price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
