Made in China. brand HIKMICRO, model HF610
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $5 400
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

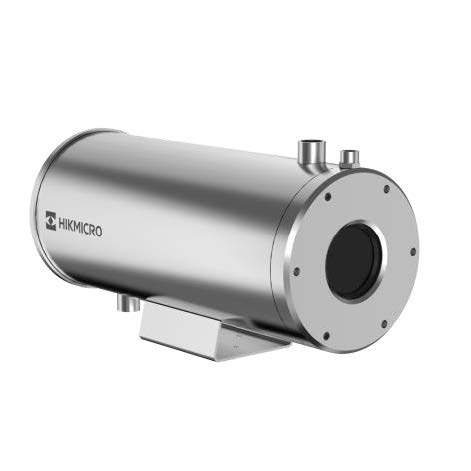

HIKMICRO HF610 Heat Resistant Bullet Cameras is able to measure object’s temperature at a high temperature of environment in real time. With the advantage of standing high temperature, low power consumption, it can independently be used for failure detection, and industrial process control. The industries can be applied to devices for molten steel/molten iron detection, cement rotary kiln, glass processing, automobile lab, temperature measurement of conveyor belt for transferring billet, rail rolling temperature measurement, etc.
Model Number:
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640×512 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 30 mk(@25 °C,F#=1.0) |
| Focal Length | 5mm 10mm 18mm |
| IFOV | 5mm : 2.40mrad 10mm: 1.20mrad 18mm: 0.67mrad |
| Field of View | 5mm : 90.0°(H)x70.1°(V) 10mm: 45.2°(H)x36.1°(V) 18mm: 24.2°(H)x19.4°(V) |
| Min. Focusing Distance | 5mm : 0.35 m 10mm: 1.30 m 18mm: 4.00 m |
| Aperture | 5mm : F1.0 10mm: F1.0 18mm: F1.1 |
| Measurement and Analysis | |
| Object Temperature Range | -20 °C to 150 °C 0°C to 650 °C |
| Temperature Accuracy | Max (± 2 °C, ± 2%) |
| Measurement Presets | 3 temperature measurement rule types, 21 rules (max. 21 points, max. 21 regions, and max. 1 line).
*The total No. of rules enabled at the same time can’t exceed 21. |
| Video and Image | |
| Main Stream | 50 fps (640 x 512) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 18 options:
White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Winter, Summer, Blue Red |
| Digital Zoom | x2, x4, x8 |
| Radiometric Capture | Yes |
| Radiometric Infrared-Video Streaming (Compressed) | Over RJ45, 640 x 512@50 fps |
| Network | |
| Protocols | IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, ISUP, GB28181, ONVIF, modbusTCP, WebSocket, PPPoE, SRTP, OTAP |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 V DC) |
| Alarm Output | 1, alarm output; NO, Built-in relay (max. DC 60V 1.3A) |
| Analog Output | 1, CVBS output |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (HIKVISION, PELCO-P, PELCO-D, modbusRTU, modbusASCII) |
| General | |
| Menu Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Power Supply | 12 V DC, Max. 3.5 W |
| Material | SUS304 |
| Working Temperature/Humidity | 0 °C to 200 °C; 95% or less with air cooling and liquid cooling ; -20 °C to 60 °C; 95% or less without air cooling or liquid cooling |
| Protection Level | IP67 |
| Weight | Approx. 6520 g |

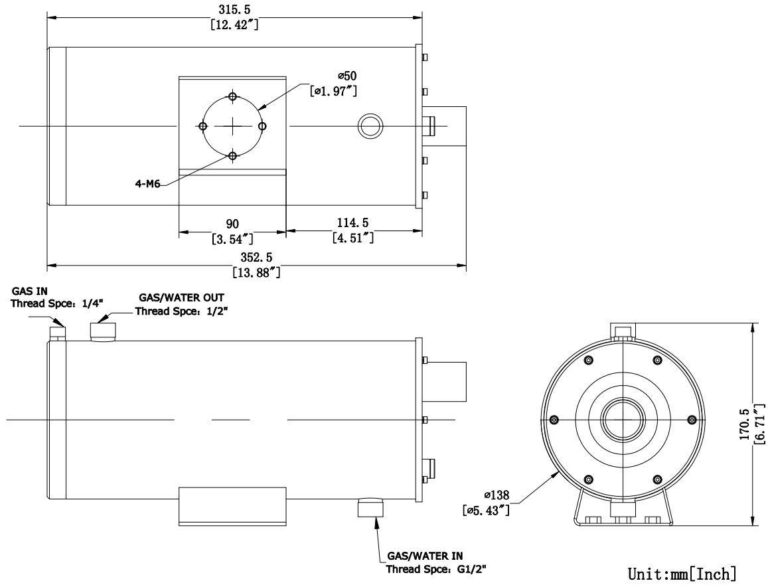

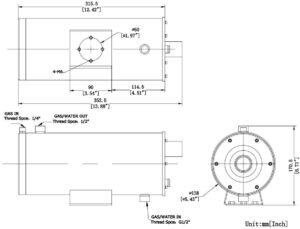

| Dimensions | 352.5 mm x 170.5 mm x 138 mm |
| High-temperature Resistance | |
| Cooling Liquid | (application example with incoming water at 20 °C temperature): Ambient Temperature 80 °C , Flow Rate above 0.65 L/min ； Ambient Temperature 100 °C , Flow Rate above 1.22 L/min ； Ambient Temperature 150 °C , Flow Rate above 1.76 L/min ； Ambient Temperature 200 °C , Flow Rate above 3.3 L/min |
| Cooling Air | (application example with incoming air at 20 °C temperature and with pressure 7 bar): Ambient Temperature 70 °C , Flow Rate above 15.34 m³/h ； Ambient Temperature 85 °C , Flow Rate above 32.54 m³/h ； Ambient Temperature 100 °C , Flow Rate above 37.82 m³/h ； Ambient Temperature 120 °C , Flow Rate above 53.97 m³/h |
| Photo | Model | Description |
|---|---|---|
|
DS-1707ZJ-E | Handheld Thermography Accessory |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TD2H68T-5/Q | 640x512, 5 mm, 90°x70.1°, -20~650℃, ±2℃/±2%, Alarm I/O, DC 12V, Working temperature range from 0 °C to 200 °C with additional air or liquid cooling system | В наличии | from 5 400$ |
-
+
|
|
| HM-TD2H68T-10/Q | 640x512, 10 mm, 45.2°x36.1°, -20~650℃, ±2℃/±2%, Alarm I/O, DC 12V, Working temperature range from 0 °C to 200 °C with additional air or liquid cooling system | В наличии | from 5 400$ |
-
+
|
|
| DS-1707ZJ-E | Wall mount bracket for Heat Resistant Box camera with Housing | Delivery time from 12 weeks | from 140$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HF610 using the special form.
You can buy HIKMICRO HF610 in UAE at a price starting from 5400 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO HF610 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
