HIKMICRO HM-TD2C68E-25/Q
Photo HIKMICRO HM-TD2C68E-25/Q Description of HIKMICRO HM-TD2C68E-25/Q Specifications HIKMICRO HM-TD2C68E-25/Q Accessories for HIKMICRO HM-TD2C68E-25/QPrices for HIKMICRO HM-TD2C68E-25/Q User Manual for HIKMICRO HM-TD2C68E-25/Q Related instruments to HIKMICRO HM-TD2C68E-25/Q
Made in China. brand HIKMICRO, model HM-TD2C68E-25/Q
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $17 400
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

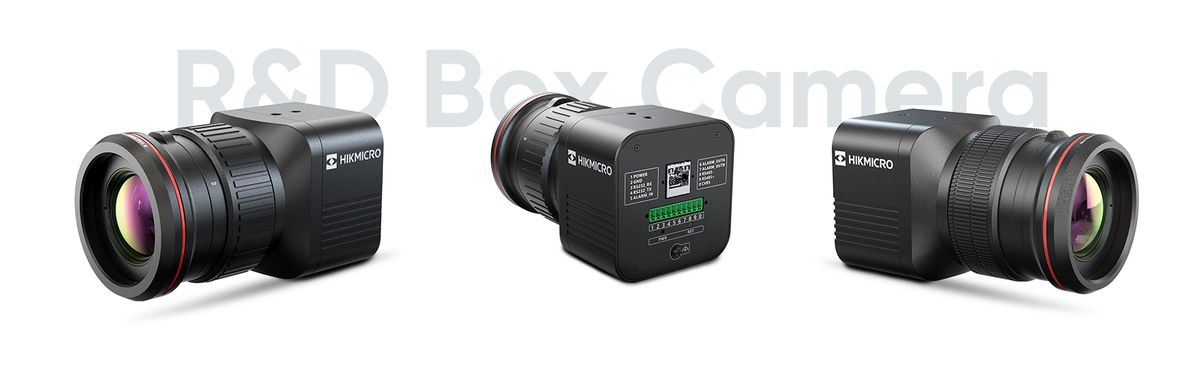

The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.

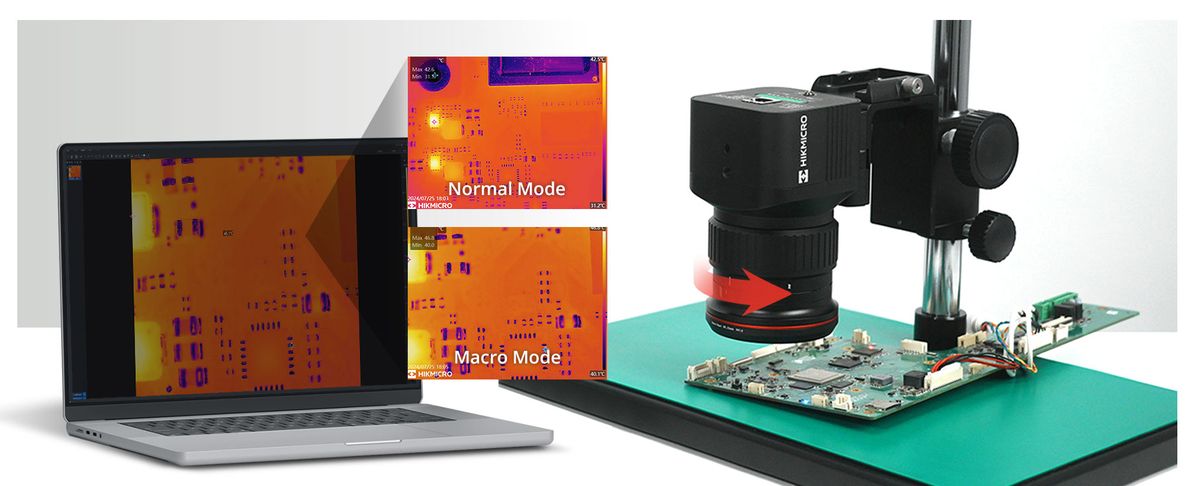

Quick Mode Switch, Improve Observation Efficiency – Equipped with a dual-mode lens, only one single twist to switch between macro mode and normal mode

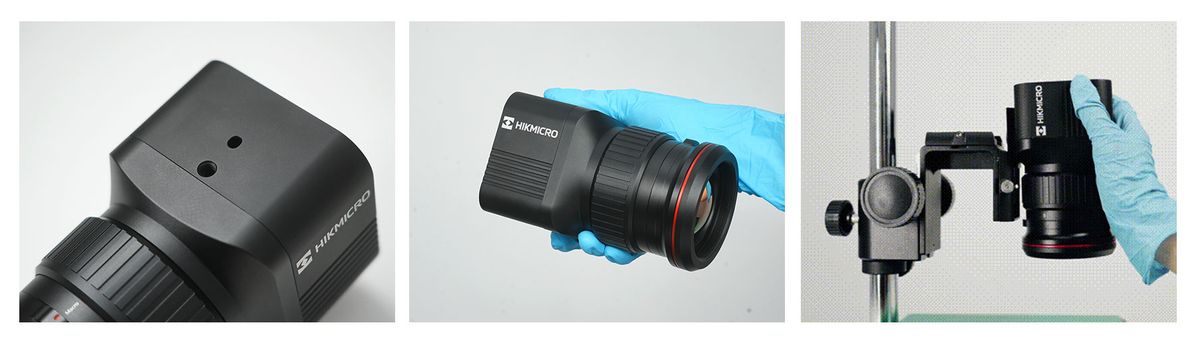

Quick Installation & Simple Integration – Designed with standard 1/4 threaded hole, HIKMICRO R&D box camera can easily cope with various installation scenarios (tripod, etc.). It is small in size and light in weight, can be held in one hand, and is super easy to install.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640×512 |
| Pixel Pitch | 12 μm |
| NETD | <35 mK (25 °C, F# = 1.0) |
| Focal Length | 25 mm |
| Focus Mode | Athermalized |
| IFOV | 0.48 mrad |
| Field of View | 15cm: 17.5°(H) x 14°(V) x 22.3°(D) 4.3cm: 17.9°(H) x 14.3°(V) x 23.0°(D) |
| Min. Focusing Distance | 0.15 m |
| Aperture | F 1.0 |
| Spot Size | 35μm |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C~150°C Range 0°C~650 °C |
| Temperature Accuracy | Range -20~150℃： -20~100℃:±1℃ 100~150℃:±1% Range 0~650℃ 0~100℃:±2℃ 100~650℃:±2% |
| Measurement Presets | Hot spot, cold spot in real time |
| Point | 10 User Presets |
| Line | 1 User Presets |
| Area | 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Video and Image | |
| Main Stream | 50 fps (640 x 512) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Digital Zoom | x2, x4, x8 |
| Radiometric Capture | Yes |
| Radiometric Infrared-Video Streaming (Compressed) | Over RJ45, 640 x 512@50 fps |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP |
| Network Storage | NAS (NFS, SMB/CIFS) |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address Binding, HTTPS Encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), Access Control, IP Address Filtering, Illegal Login, HDD Full, HDD Error, Network Disconnected |
| Client | HIKMICRO Analyzer |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NO, Built-in relay (max. DC 60V 1.3A) |
| Alarm Action | Preset/patrol scan/alarm record/relay output/smart capture/FTP upload/email linkage |
| Analog Output | 1, CVBS output |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| General | |
| Menu Language | English |
| Power Supply | 10-30 VDC |
| Power Consumption | 3W Max |
| Working Temperature/Humidity | -20 °C to 50 °C (-4 °F to 122 °F) 90% or less |
| Protection Level | IP40 |
| Mount | M3 |
| Weight | Approx. 1000g (2.2 lb.) |

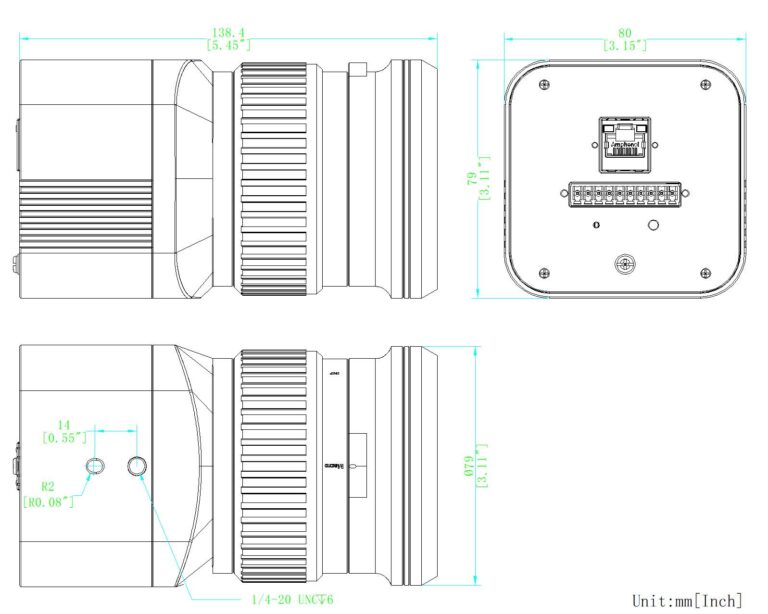

| Dimensions | 138.4 mm x 79 mm x 80 mm ( 5.44″ x 3.11″ x 3.15″) |
| Material | Aluminum alloy |
| Photo | Model | Description |
|---|---|---|
|
HM-AFBR07 | Bracket for R&D Box Camera |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TD2C68E-25/Q | 640x512, 25 mm, 17°×14°, support manual switch between standard and marco lens, 50fps, -20~650℃, ±1℃/±1% for 0-150℃, Modbus TCP/RS485, Alarm I/O, Power in DC 10-30V | В наличии | from 17 400$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD2C68E-25/Q using the special form.
You can buy HIKMICRO HM-TD2C68E-25/Q in UAE at a price starting from 17400 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO HM-TD2C68E-25/Q price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
