Made in China. brand HIKMICRO, model PocketE
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $280
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

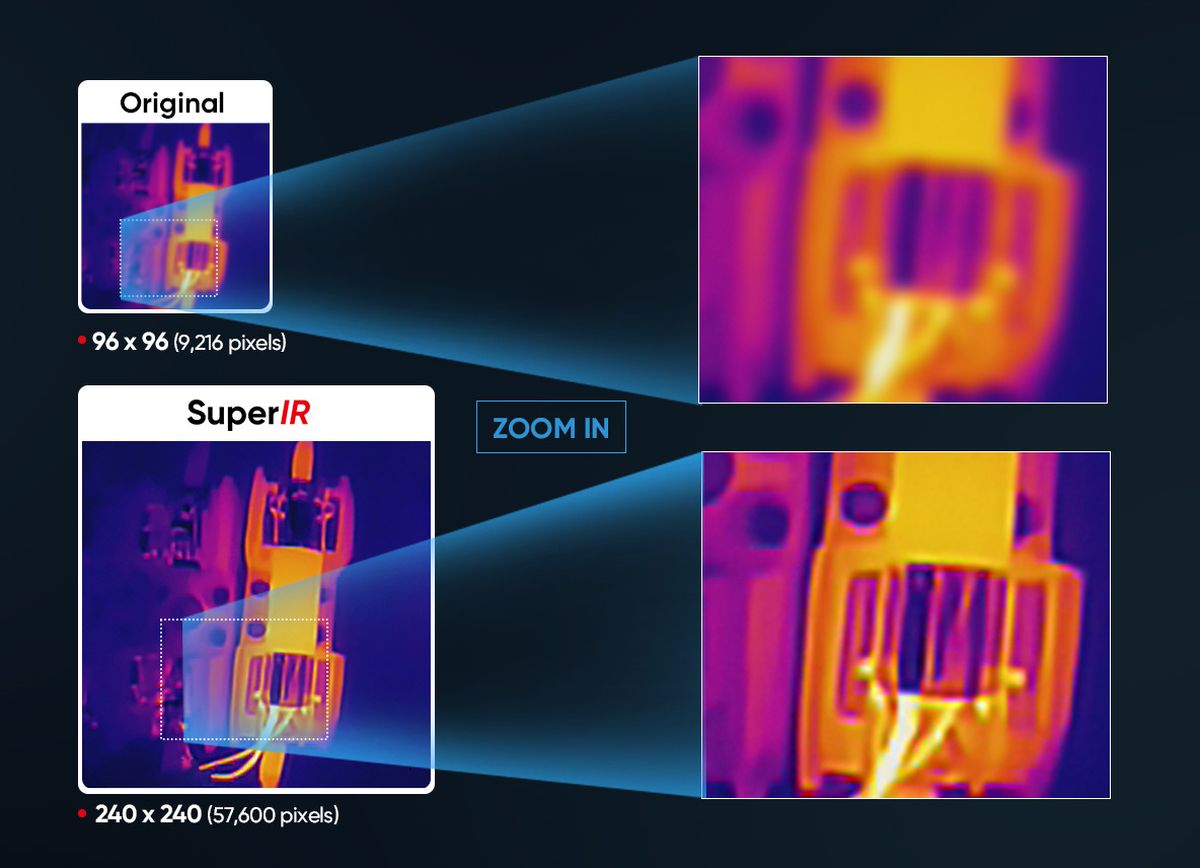

Enhanced Thermal Clarity with SuperIR – Powered by HIKMICRO SuperIR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos.

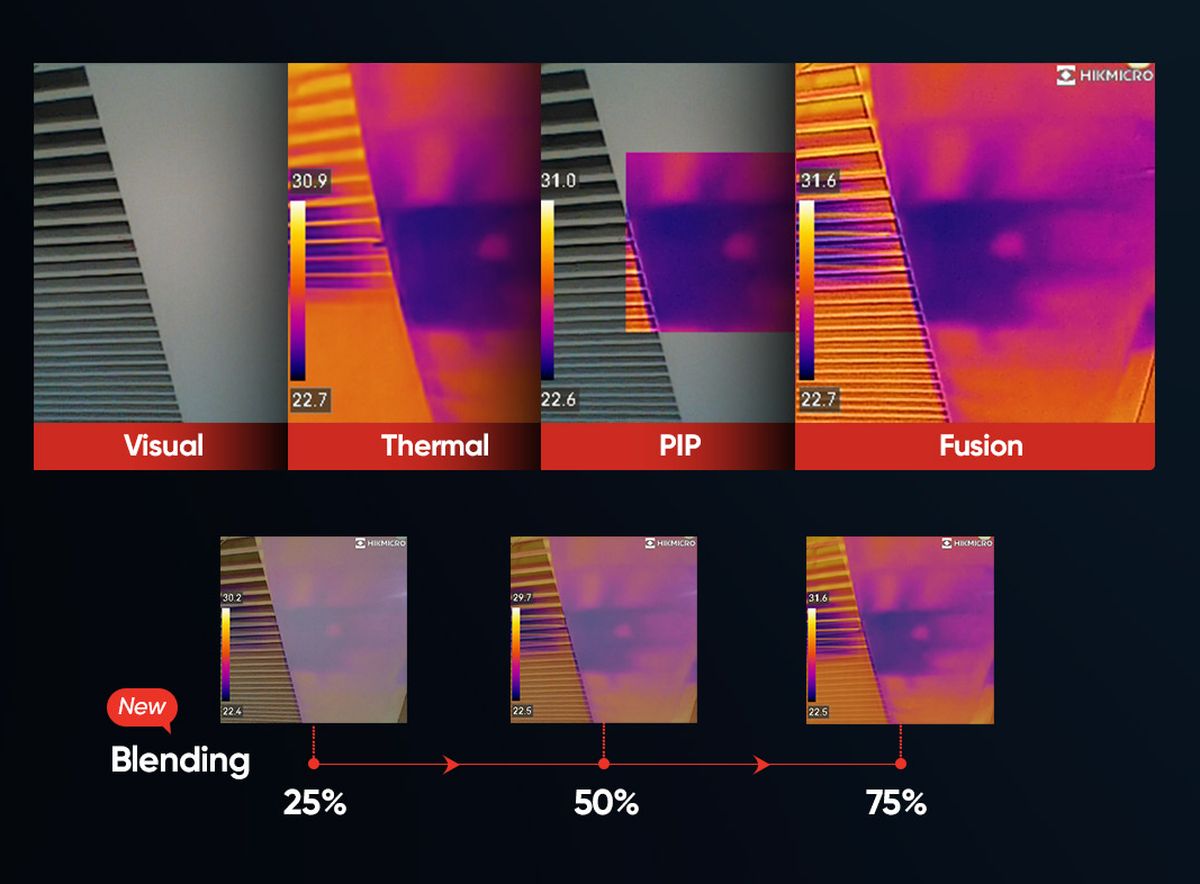

Dual-camera Thermal Imager – Built-in IR camera and visible camera, allow you to switch 5 image modes (Thermal, Visual, PIP, Fusion, and Blending). “Fusion” blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity. “Blending” blends partially transparent infrared and visible images into a single view and allows you to adjust the transparency. “PIP” overlays a fixed section of a thermal image onto a digital photo to clarify anomaly locations.
Portable Pocket-sized with Touch Screen – Easy to carry and hold. Perfectly fit in pockets and any toolboxes. View the details of your images on the large, intuitive LCD 3.5″ touch screen.

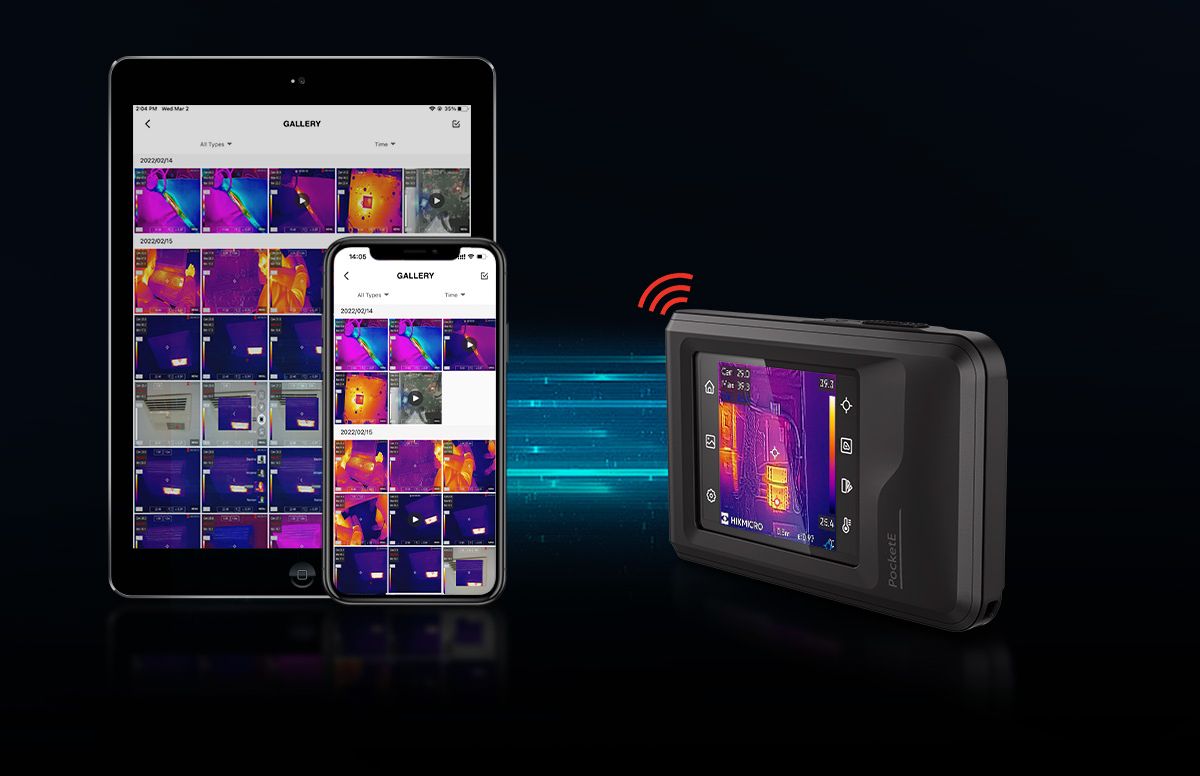

Wireless Connectivity – Screen stream and download on-device images with Wi-Fi to your smartphone or tablet with HIKMICRO Viewer.
Thoughtful Functions for Efficient Workflow

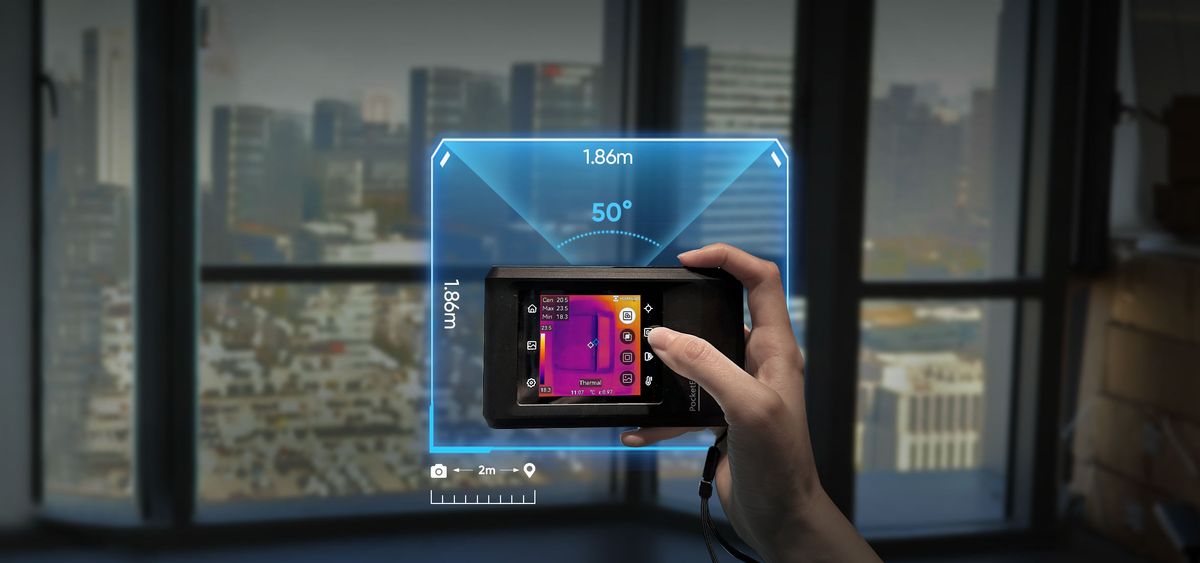

50° Wide Angle Lens – Scan large areas quickly with the 50° wide angle lens to find issues like water leaks, insulation issues, and air infiltration.

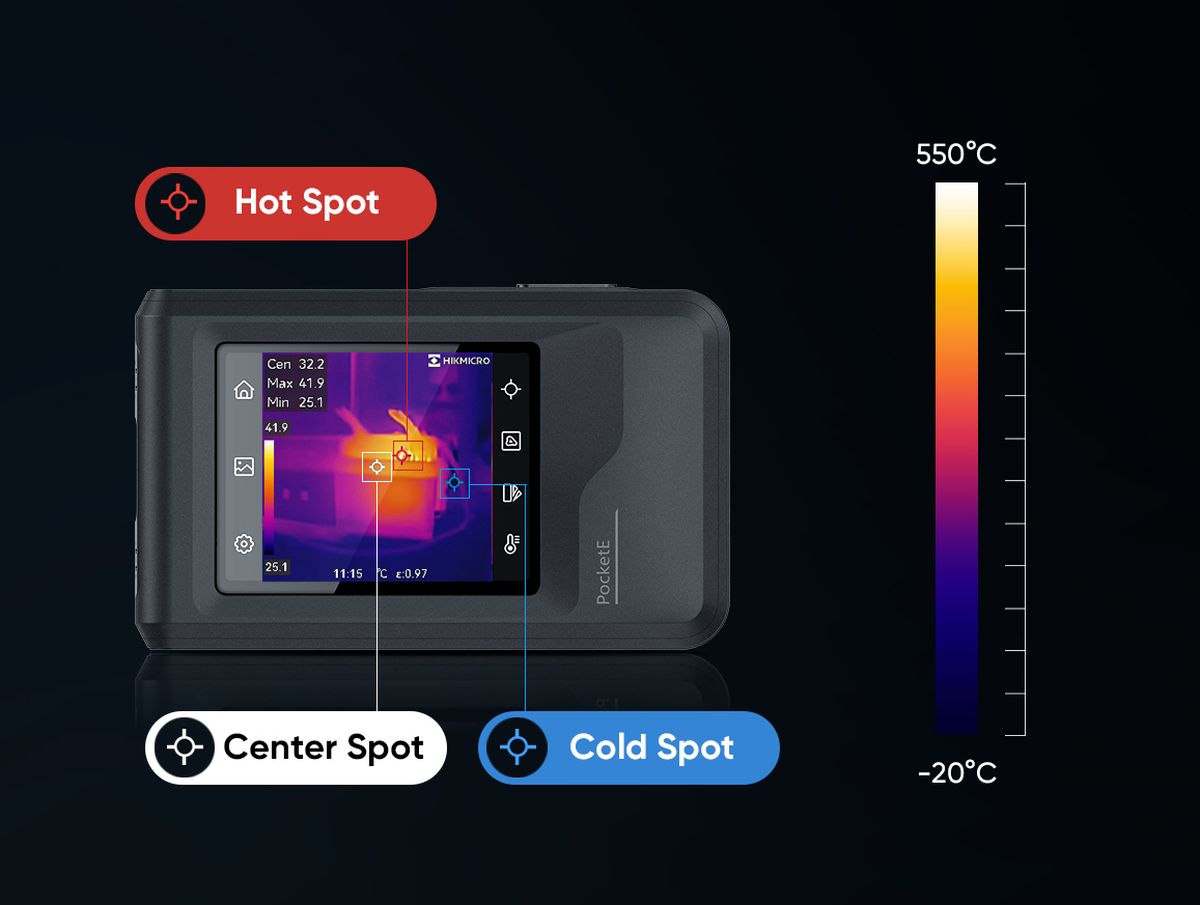

Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 350°C ( -4°F to 752°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

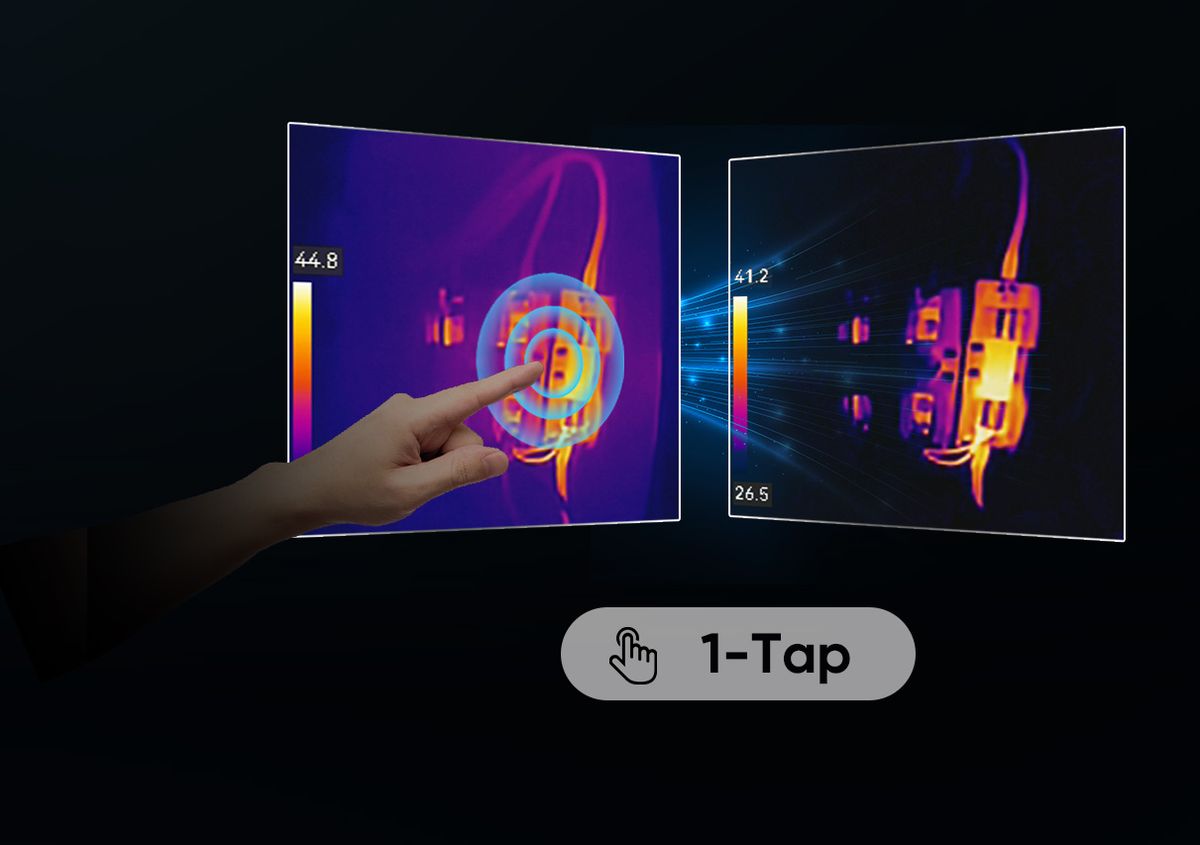

1-Tap Level & Span – Just tap an area of interest on the screen and it instantly increases image contrast and highlights potential problems.
1-Click IR and Visual Image Storage – Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report.

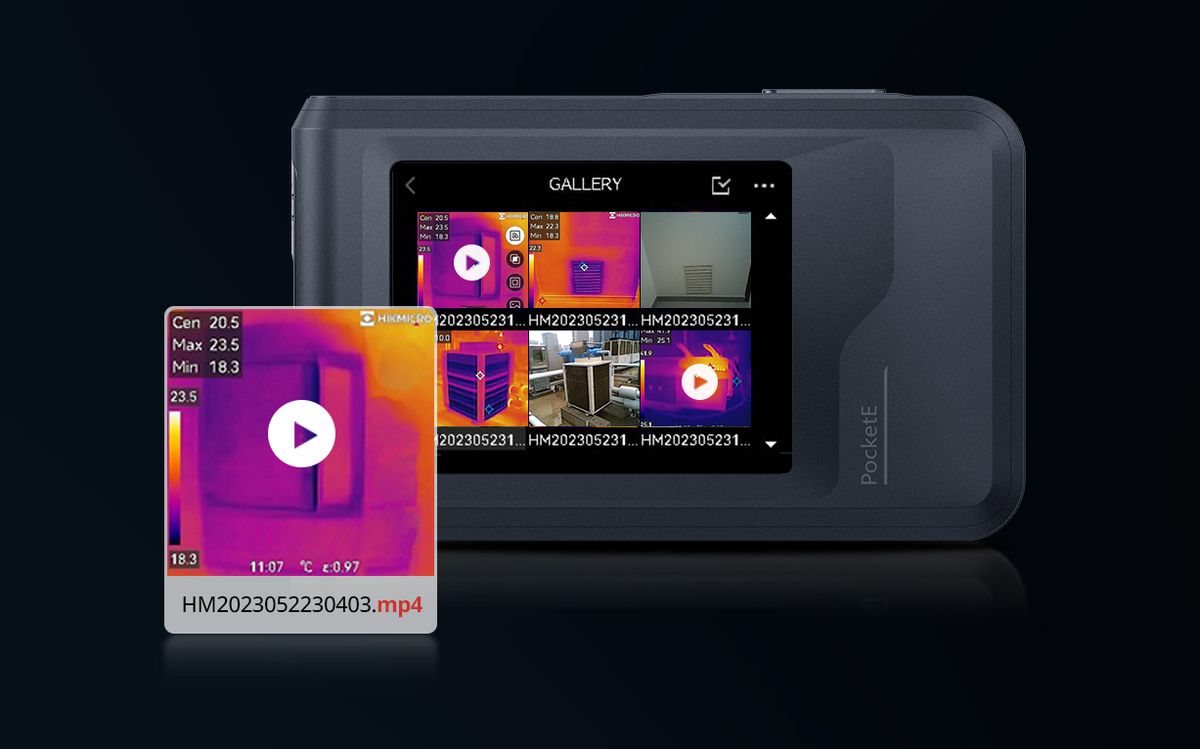

On-camera Recording – The built-in 4GB eMMC flash storage can store approx 30,000 standard thermal/visual images or 20 hours of MP4 video. And, it allows onboard recording and playback.

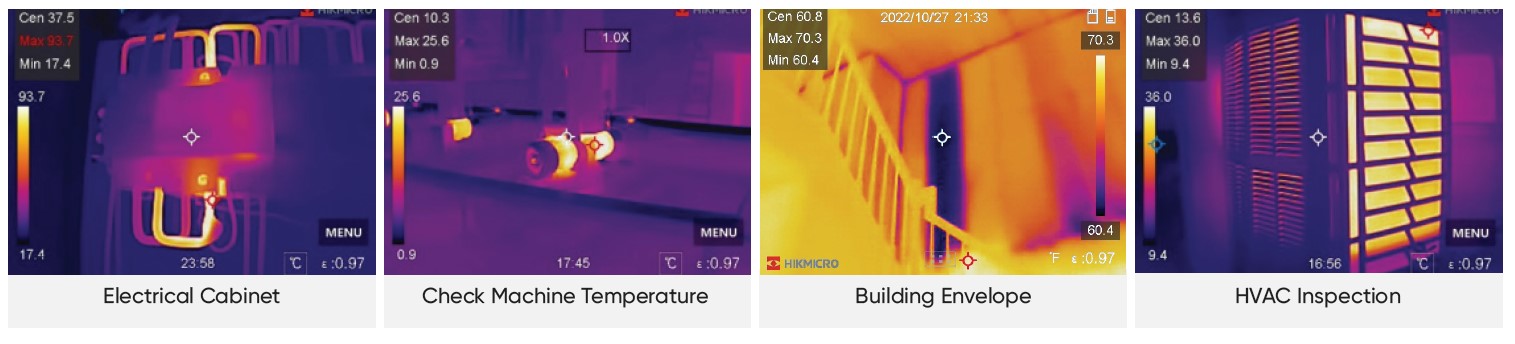

Applications
| Infrared Image | |
| IR Resolution | 96×96 (9,216 pixels) |
| NETD | < 50 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Focus Mode | Focus Free |
| SuperIR | Yes, on captured images and live view |
| Distance to Spot Ratio (D:S) | 112:1 |
| Min. Focus Distance | 0.1 m (0.33 ft) |
| Image Display | |
| Visual Camera | 640×480 (0.3 MP) |
| Display | 320 × 240 Resolution, 3.5″ LCD Touch Screen |
| Screen Brightness | Manual |
| Digital Zoom | 1.0x to 4.0x continuous |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 150°C (-4°F to 302°F) 100°C to 350°C (212°F to 662°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual/I-Tap Touch-screen |
| SuperScene | Water Leak, Insulation |
| Data Storage and Communication | |
| Storage Media | Built-in 4 GB flash memory (user available storage space is less than the nominal capacity) |
| Image Storage Capacity | Approx. 30,000 Images |
| Annotations | Text note: max. 255 characters |
| Video Storage Capacity | Approx. 20 hours |
| Video File Format | MP4 video |
| Image File Format | Radiometric JPEG |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| USB Interface | USB Type-C |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Power Saving Mode | Auto Power-off and manual sleep |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 218 g (0.481 lb) |
| Dimension | 138.45 × 85.2 × 23.6 mm (5.45 × 3.35 × 0.93 in) |
| Tripod Mounting | UNC ‘4’-20 |
| Power Supply | USB-C (5V/2A) |
Model Number:
The warranty for the HIKMICRO PocketE thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TP40-1AQF/W-PocketE | 96×96, 50° × 50°, 640×480 visible camera, NETD<50mk, 25 Hz, -20~350℃, ±2℃/±2%, 4GB, 2.4 inch 320×240 LCD touch screen, LED light, Wi-Fi, SuperIR | В наличии | from 280$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO PocketE using the special form.
You can buy HIKMICRO PocketE in UAE at a price starting from 280 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO PocketE price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
