Measuring Range : 15m; Sensor Material : PVDF; Frequency : 60GHz; Output(communication) : 4-20mA/RS-485 (Optional); Protection class : IP67; Certification : KC, FCC, CE
Made in South Korea. brand ISTEC, model RM150
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

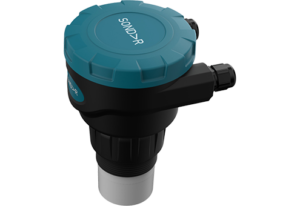

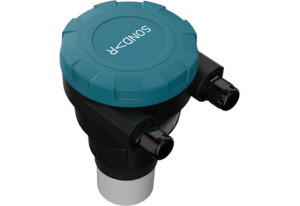

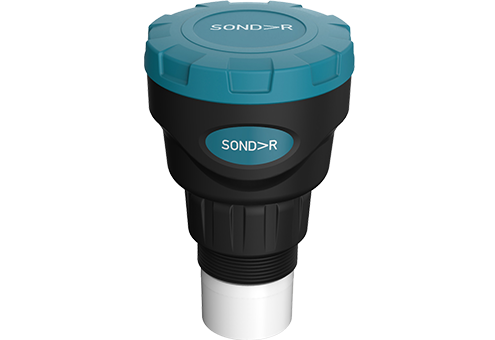

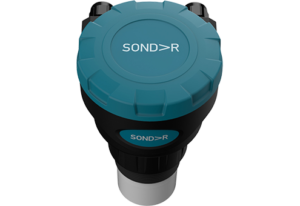

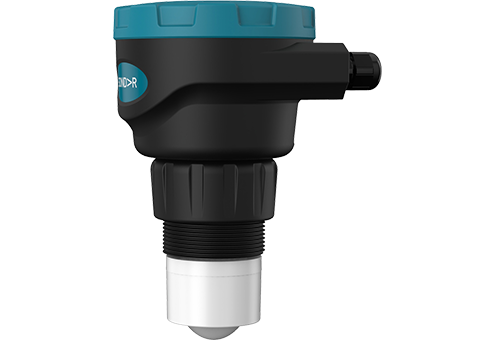

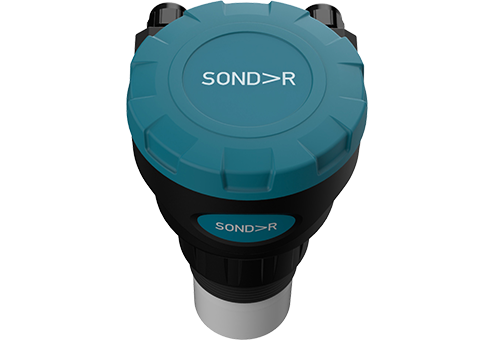

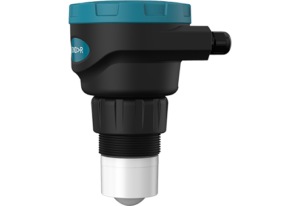

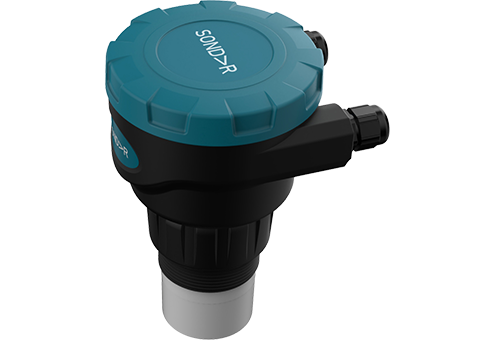

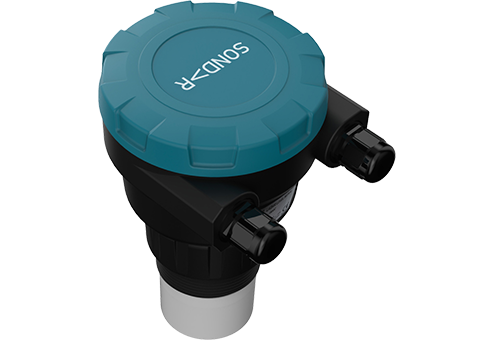

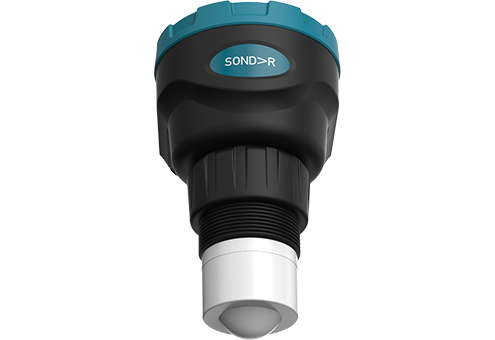

The RM 150 is а non-contact radar level meter with an integrated sensor and controller design.
The measurement distance is 15М and it is а 2-wire DC24 loop method.
The RM150 is designed with а user-centric design, making it easy to operate and requiring less installation time. lt is also easy to maintain, so it can reduce management costs. The quality of the product, which is optimized for application in various fields, is suitaЫe for efficient operation of water level information and smooth operation of processes in the field.
| Model | RM150 |
| Type | Radar Level Meter |
| Measuring range | 15m |
| Non-detectable range | 0.2m |
| Beam angle | 8° |
| Sensor material | PVDF |
| Operating temperature | -30°C ~ 70°C |
| Frequency | 60GHz |
| Output | 4-20mA |
| IP rating | IP67 |
| Certification | KC, FCC, CE |
| RM150 Ordering Code | ||
|---|---|---|
| Measuring Distance | ||
| 1 | 15 meters | |
| Power Supply | ||
| B | DC 20 to 30V (Standard) | |
| Communication Type | ||
| N | None (Standard) | |
| 1 | RS-485 (Planned) | |
| Flange | ||
| 0 | None | |
| 1 | 80A | |
| 2 | 100A | |
| 3 | 150A | |
| 4 | 200A | |
| T* | Custom value | |
| Flange Standard | ||
| D | DIN | |
| A | ANSI | |
| J | JIS | |
| PVC Nut | ||
| 2 | 2-1/2″ PVC Nut | |
You can request the necessary certificates, documentation, instructions and user guide for ISTEC RM150 using the special form.
You can buy ISTEC RM150 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ISTEC RM150 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
