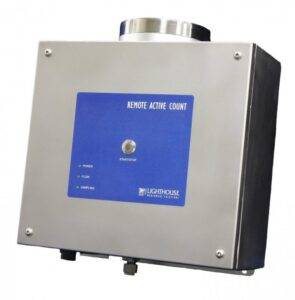

LIGHTHOUSE ActiveCountR Microbial Sampler

Designed to meet the industry need for continuous trouble-free operation and flexible running parameters, the ActiveCountR is the right choice to meet your viable sampling needs.

The ActiveCountR can be operated via the local start/stop button or remotely via a software interface.

			int(7420)
NULL


Made in USA. brand LIGHTHOUSE, model ActiveCountR

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price По запросу

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of LIGHTHOUSE ActiveCountR

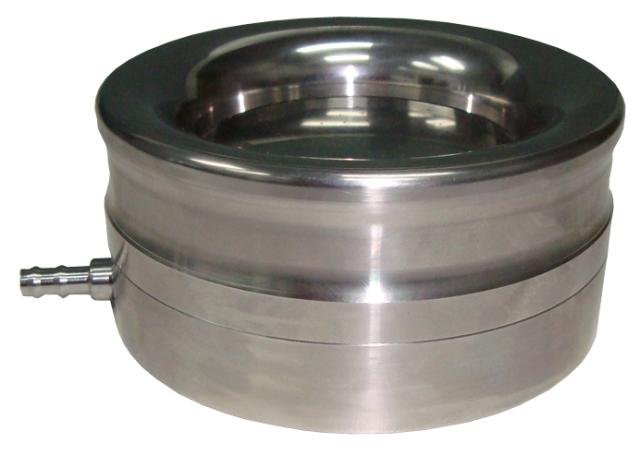

Utilizing either a side mount or bottom mount 316L stainless steel impactor, the ActiveCountR offers superior sampling flexibility to meet all of your viable sampling needs.

The compact size provides true “plug and play” functionality in an easy-to-use package that quickly integrates into the LMS Express real-time monitoring systems from Lighthouse.  Whether you are sampling within a cleanroom or inside of a Biosafety Cabinet or Laminar Flow Bench, the ActiveCountR will meet your cGMP compliant monitoring needs.

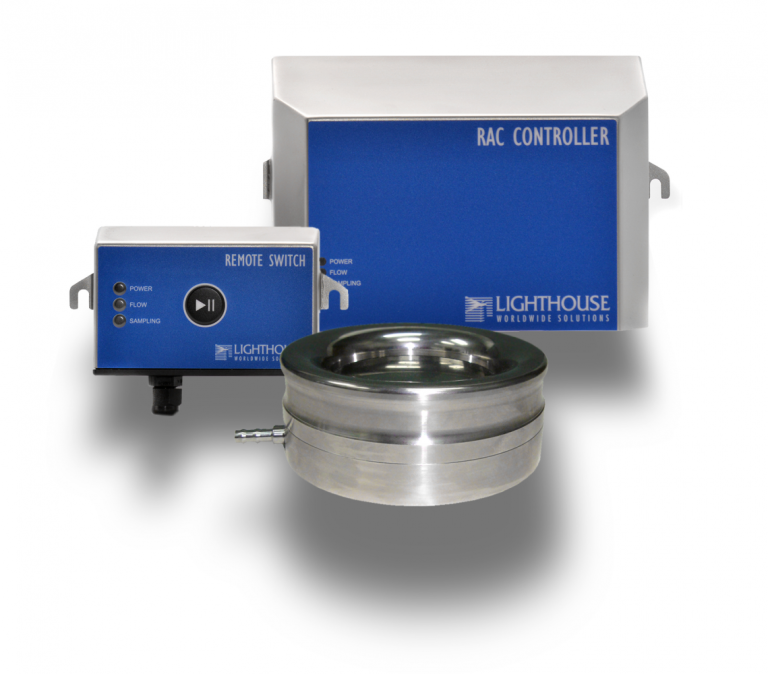

LIGHTHOUSE designed the ActiveCountR system to meet the industry need for continuous trouble-free operation and flexible running parameters. The ActiveCountR utilizes an external vacuum source which can be an independent pump system, house vacuum or a shared vacuum source with non-viable particle counters. The sampling head is designed to be remote mounted within the critical sampling environment. The sampling head comes in a bottom mount and side mount design. The remote sampling switch allows the operator to start, stop or pause sampling without having to intervene into the critical area being sampled. Sampling can also be controlled via software.

F E A T U R E S

  • Meets EN 17141 impaction efficiency
  • 1 CFM flow rate
  • Local or remote start/stop control via software
  • External vacuum source for clean operation
  • Stainless steel enclosure
  • LED status indicators for power, flow and sampling
  • Auto power fail recovery
  • 316L stainless steel sampling head
  • Designed for reliability
  • 2 year warranty

Designed to align with ISO EN17141 and EU GMP Annex 1:2022 standards, the ActiveCountRp by LWS is an exemplary solution for industries seeking continuous, trouble-free operation with adaptable parameters for viable sampling.
This system offers operational versatility, allowing users to initiate sampling either through a local
start/stop button or remotely via a software interface. Its innovative design includes a choice of either a top mount or remote mount 316L stainless steel impactor, ensuring superior sampling flexibility for a variety of viable sampling requirements

E A T U R E S

  • Meets EN 17141 impaction efficiency
  • 1 CFM flow rate
  • Local or remote start/stop control via software
  • Internal vacuum source for quick installation
  • Stainless steel enclosure
  • LED status indicators for power, flow and sampling
  • Auto power fail recovery
  • 316L stainless steel sampling head
  • Designed for reliability
  • 2 year warranty

Technical specifications of LIGHTHOUSE ActiveCountR

ActiveCountR

Flow Rate 1 CFM
Sampling Methodology Impaction Principle
Impactor Head 316L SS with 113 holes, 19m/s, d50: 1.2µm
Communication Protocol RS-485 Modbus
LED Indicators Power, Flow, Sampling
User Interface Manual Start/Stop; Control Software (LMS Express)
Communication Connectors Switch: Liquid-tite cord grip; Controller: RJ45
Enclosure Stainless Steel
Sample Outlet Connection 1/4 “ Barb
Vacuum Requirements 16 in HG
Power 24 VDC
Dimensions Impactor Diameter: 4.41”(11.20 cm), height 2.1“ (5.33 cm)
Dimensions Switch 5.8” (w) x 2.7 (h) x 1.0” (d) [15 x 6.9 x 2.5 cm]
Dimensions Controller W 8.0“ (w) x 5.0 (h) (20.32 cm), H 5.0” (12.7 cm), D 3.0“ (7.62 cm)
Weight Impactor Impactor: 4.4 lbs (2.00 kg)
Weight Switch Switch 0.59 lbs (0.27 kg)
Weight Controller Controller: 2.6 lbs (1.18 kg)
Operating Operating 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing
Storage Storage 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing
Expand Table

ActiveCountRp

Flow rate 1 CFM
Sampling Methodology Impaction Principle.
Communication Protocol RS-485 or 232 Modbus. LED Indicators
LED Indicators Power, Flow, Sampling.
User Interface Manual Start/Stop; Control Software (LMS Express)
Communication Connectors Sealed Industrial RJ45 Connector
Enclosure Stainless Steel
Sample Outlet Connection 3/8 “ Compression Fitting
Vacuum Requirements Internal
Power 100-240 VAC, 50-60 Hz, external AC/DC adapter
Dimensions 11.0” (w) x 11.0(h) x 5.0” (d) [27.94 x 27.94 x 12.7 cm]
Weight Impactor  15.1 lbs (6.8 kg)
Operating 50° F to 104° F (10° C to 40° C) / 20% to 95% non-condensing
Storage 14° F to 122° F (-10° C to 50° C) / Up to 98% non-condensing
Expand Table

User Guide and Instruction manual for LIGHTHOUSE ActiveCountR

You can request the necessary certificates, documentation, instructions and user guide for LIGHTHOUSE ActiveCountR using the special form.

You can buy LIGHTHOUSE ActiveCountR in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . LIGHTHOUSE ActiveCountR price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
