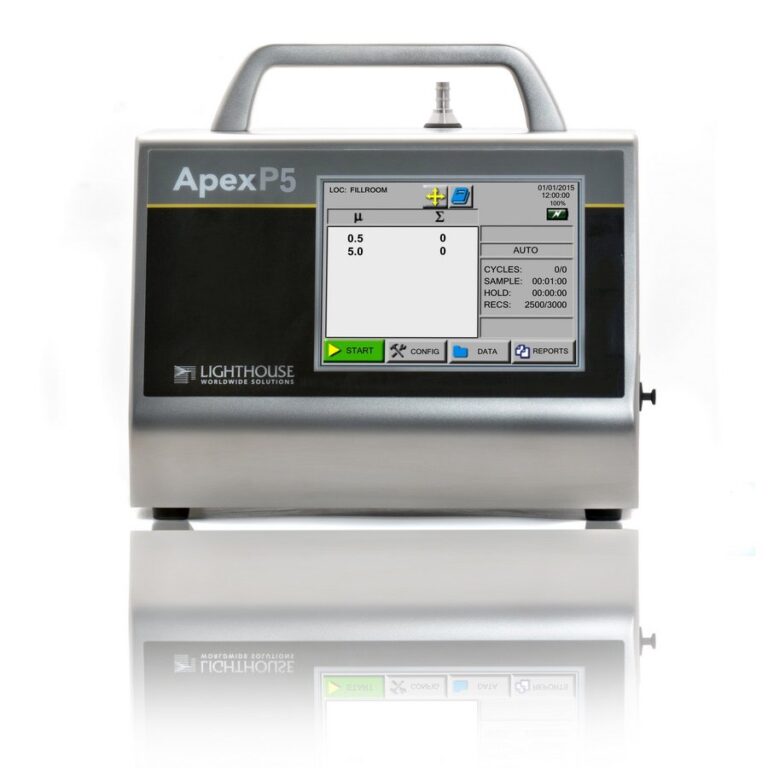

The ApexP is our lightest, smallest portable particle counter. Designed with Self Diagnostics, VHP Compatibility, and Remote Access via the internal web server. When you absolutely need the best in Data Integrity, in the smallest package possible look to the Apex line of Particle Counters.
The ApexP Portable Particle Counter can store up to 3,000 records of particle count data from up to 4 particle channels and the configurable database can store up to 50 recipes for sampling and reports.
Made in USA. brand LIGHTHOUSE, model ApexP
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Apex Portable family of 1.0 CFM portable particle counters delivers buffered and real-time measurements to meet your unique application requirements. The stainless steel enclosure is easy to wipe down, static dissipative, and resistant to
harsh cleaning agents. As with all Apex particle counters, you have the industry’s most advanced self-diagnostics. This
intelligent sensor monitors all performance metrics to ensure accurate and consistent data every time.
FEATURES
| Features / Models | ApexP3 | ApexP5 |
| Minimum Size Detection | 0.3 μm | 0.5 μm |
| Standard channel sizes | 0.3, 0.5, 1.0, 5.0 μm | 0.5, 5.0 μm |
| Optional channel sizes | 0.3, 0.5, 5.0, 10.0 μm | 0.5, 1.0, 5.0, 10.0 μm |
| Additional Available sizes | 0.7, 3.0 μm | 0.7, 3.0 μm |
| Flow Rate | 1 CFM (28.3 LPM), 1/4” fittings | |
| Weight | 10.9 lbs (4.76 kg) | |
| Concentration Limits | 1,000,000 Particles/ft3@10% coincidence loss Suitable for ISO classes 1-8 cleanrooms | |
| Communication | Ethernet or Serial. | |
| Modbus Protocols | TCP or RTU or ASCII | |
| Location Labels | 200 Location Labels | |
| Data Storage Records | 3 | |
| Reports | FED 209E, ISO 14644-1:1999, ISO 14644-1:2015, & EU GMP regulatory pass/fail reports on screen or printer | |
| Secure Data Transfer | Designed for 21 CFR part 11 Compliance | |
| Languages | English, Spanish, German, French, Italian, Russian, Simplified Chinese, Japanese, Korean | |
| Self Diagnostics | Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health. | |
| Web Server | Remote access via web browser | |
| Ports | Ethernet, RS485 (RJ-45), USB | |
| Audible Alarm | Yes | |
| Battery | 4 hours Nominal, 3 hours continuous use | |
| Enclosure | 304 Stainless Steel | |
| Power | 24 VDC, 5 A Max Draw | |
| Vacuum Source | PID Controlled Vacuum Pump | |
| Air Sample Output | Internally Filtered To HEPA Standard (>99.97% @ 0.3µm) | |
| Sample Count Modes | Automatic, Manual, Beep, Concentration | |
| Light Source | Extreme Life Laser Diode | |
| Calibration | ISO 21501-4 Compliant and Accredited ISO 17025 | |
| Zero Count Level | < 1 Count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C) | |
| Dimensions | 9.00” x 6.69“ x 8.46” (22.86 x 16.99 x 21.48 cm) | |
| Software | LMS Pro or LMS Xchange | |
You can request the necessary certificates, documentation, instructions and user guide for LIGHTHOUSE ApexP using the special form.
You can buy LIGHTHOUSE ApexP in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. LIGHTHOUSE ApexP price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
