Where Gamma Immunity and Sensitivity Meet

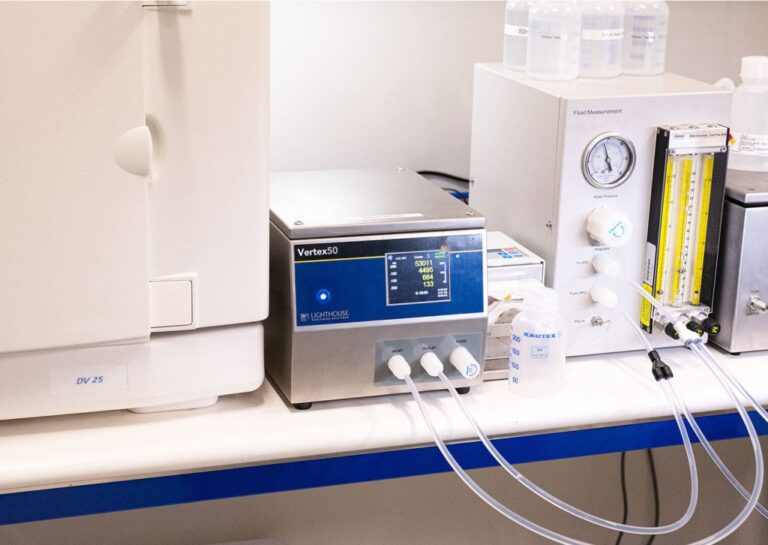

The Vertex50 is the smallest and lightest 50nm liquid particle counter on the market. The Vertex50 has the lowest zero count levels, has integrated manual flow control and incorporates TFT Touch Screen to simplify the user interface and offer an improved local user experience. Based on state-of-the-art technology, it is backed by a two-year warranty and international support.
Made in USA. brand LIGHTHOUSE, model Vertex50
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Gamma immunity
Lighthouse Worldwide Solutions advanced photodetector technology allowed us to improve the optical signal to noise and lower gamma-ray interference 20 times. This means if your particle counter is reporting counts there are detectable particle counts in your ultra-pure water system.
Count subtraction is not used since we have the lowest false count rate in the industry. The Vertex50 reports the counts as soon as they come in, without waiting for an arbitrary value to be reached before the counter recognizes the particle counts.
Early Detection
With early detection comes the Vertex50s proven clean-up time after an event; the Vertex50 returns to baseline counts within 120 seconds after a particle event.
The Vertex50 is the smallest 50-nanometer liquid particle counter on the market and incorporates a 3.5” TFT touch screen to simplify the user interface. Based on state-of-the-art technology and built by Lighthouse Worldwide Solutions, Vertex50 is backed by a two-year warranty and international support. The Vertex50 industry-standard RS-485 MODBUS and 4-20mA communication protocols provide seamless integration into facility monitoring systems or can be used as a stand-alone device. Using its integrated ethernet TCP/IP interface allows the Vertex50 to connect to standard corporate Ethernet LAN’s as easily as it connects to facility monitoring systems.
FEATURES
| Size Range | 50 – 200 nm |
| Channels | 4 |
| Standard Channel Sizes | 50 nm, 100 nm, 150 nm, 200 nm |
| Flow Rate | 100 mL/min |
| Sample Volume | 5.0 mL/min |
| Zero Count Level | ≤ 20 count/L |
| Laser Source | Solid state laser |
| Calibration | NIST traceable |
| Communication Modes | Ethernet, Serial RS-485, 4-20mA |
| Display | TFT color touch screen |
| Concentration Limit | 10,000 counts/mL @ 10% coincidence loss |
| Enclosure | 316L stainless steel |
| Sample Inlet/Outlet Connection | 1/4” FlaretekTM |
| Environmental Conditions Operating | 50°F to 104°F (10°C to 40°C), 20% to 95% non-condensing |
| Environmental Conditions Storage | 14°F to 122°F (-10°C to 50°C), up to 98% non-condensing |
| Sample Temperature | 50°F to 122°F (10°C to 50°C) |
| Sample Pressure | 20 PSI to 72 PSI (138 kPa to 496 kPa) |
| Wetted Surface Materials | Quartz, PFA, Kalrez, PTFE, PCTFE (Kel-F) |
| Communication Protocol | MODBUS TCP, MODBUS Serial, 4-20mA |
| Power | External Supply: Rated input 120-240V AC 50/60Hz, 0.7A – 1.4A. Rated Output: 24V DC, 5A |
| Dimensions | 9.0”(w) x 13.4”(d) x 8.4”(h) [22.9 x 34.0 x 21.3 cm] |
| Weight | 13.5 lbs (6.1 kg) |
You can request the necessary certificates, documentation, instructions and user guide for LIGHTHOUSE Vertex50 using the special form.
You can buy LIGHTHOUSE Vertex50 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. LIGHTHOUSE Vertex50 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
