Leitenberger BT400-OX + BT800-OX
Photo Leitenberger BT400-OX + BT800-OX Description of LR-Cal BT400-OX + BT800-OX Specifications LR-Cal BT400-OX + BT800-OX Accessories for Leitenberger BT400-OX + BT800-OXPrices for Leitenberger BT400-OX + BT800-OX User Manual for Leitenberger BT400-OX + BT800-OX Related instruments to Leitenberger BT400-OX + BT800-OX
Made in Germany. brand Leitenberger, model BT400-OX + BT800-OX
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2 360
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

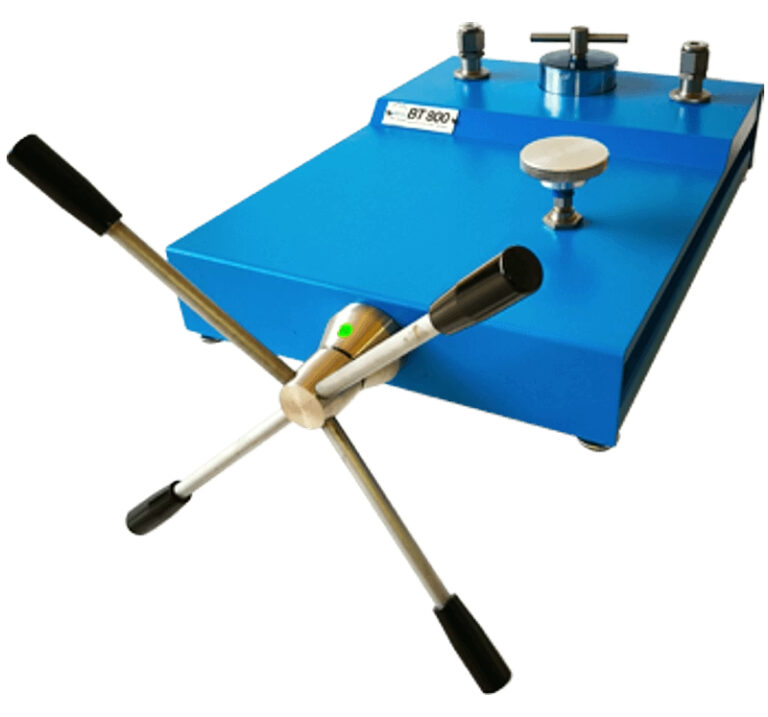

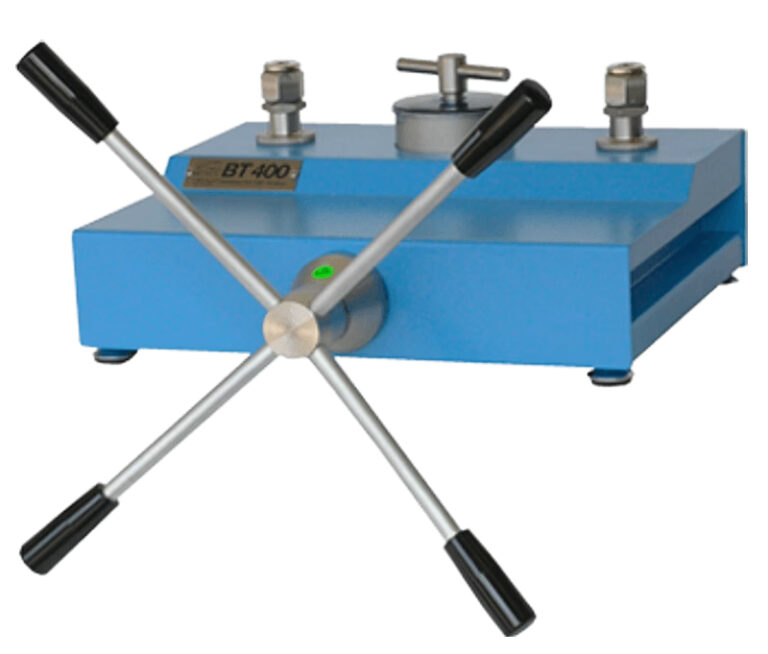

The LR-Cal BT400-OX and LR-Cal BT800-OX pressure comparison test pumps are used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments (for oxygen applications) of all types by means of comparison measurements. These pressure tests can take place stationary in the laboratory or workshop, but also on site at the measuring point.
If the pressure gauge to be tested and a sufficiently accurate reference pressure gauge are connected to the LR-Cal BT400-OX or LR-Cal BT800-OX pressure comparison test pump, the same pressure acts on both gauges when the pump is actuated. By comparing the two measured values at any pressure values, the measuring accuracy can be checked or the pressure gauge to be tested can be adjusted.
The LR-Cal BT400-OX and LR-Cal BT800-OX pressure comparison testers (spindle pumps) are equipped with a finely actuated spindle wheel for exact approaching of the measuring points. The LR-Cal BT400-OX and LR-Cal BT800-OX pressure comparison test devices require only a fairly small amount of force.
Both pressure comparison test pumps are to be operated with distilled water. They are cleaned, free of oil and grease, and therefore ideal for testing pressure gauges for oxygen applications.
| Type | LR-Cal BT400-OX | |
| Generation of pressure | [bar] | up to 400 |
| System is tested at | [bar] | 600 |
| Volume | [cm³] | 76 |
| Volume changement per spindle turn | [cm³] | approx. 2 |
| Thread length of spindle | [mm] | approx. 160 |
| Needed force | [Nm] | at 50 bar approx. 9.8 |
| Dimension | [mm] | 450 x 360 x 300 (without star handle) |
| Weight | [kg] | 14 |
| Order-Code | BT400-OX |
| Photo | Model | Description |
|---|---|---|
|
HAP-02 | Hand suction pump, significantly facilitates the removal of the operating liquid from the pressure comparison test pump. NOT cleaned free of oil and grease. |
|
BLINDSTOPFEN-G12-VA | Blind plug 1/2" BSP made of stainless steel for shutting off a pressure port. |
|
LSP-ADAPTER-SET | Stainless steel thread adapter set for pressure connection 1/2" BSP m x 1/4" BSP female 1/2" BSP m x 1/4" NPT female 1/2" BSP m x 1/2" NPT female 1/2" BSP m x M20 x 1.5 female |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| BT400-V | Hydraulic operated bench type pressure comparator (spindle pump) PN 400 bar, for aggressive media (SKYDROL, brake fluid, etc.) | Delivery time from 12 weeks | from 2 360$ |
-
+
|
|
| BT400-OX | Hydraulic operated bench type pressure comparator (spindle pump), free of oil, suitable for Oxygen | Delivery time from 12 weeks | from 2 360$ |
-
+
|
|
| BT800-OX | Hydraulic operated bench type pressure comparator (spindle pump),free of oil, suitable for Oxygen, pressure up to 800 bar | Delivery time from 12 weeks | from 3 170$ |
-
+
|
|
| HAP-02 | Hand pump for simultaneous suction and filling of fluids Volume 125 ml, with 2 hoses each 0.5 m | Delivery time from 12 weeks | from 183$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger BT400-OX + BT800-OX using the special form.
You can buy Leitenberger BT400-OX + BT800-OX in UAE at a price starting from 2360 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger BT400-OX + BT800-OX price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
