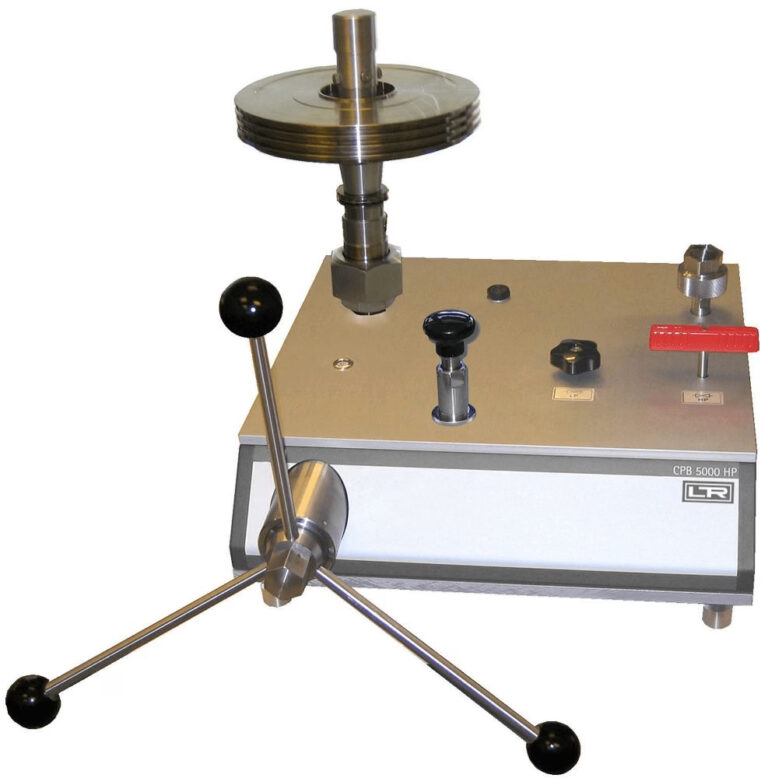

Made in Germany. brand Leitenberger, model CPB5000-HP
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $32 500
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Proven primary standard
Deadweight tester are the most accurate devices available on the market for the calibration of electronic or mechanical pressure measuring instruments. The direct measurement of the pressure (p = F/A), as well as the use of high quality materials allow a very small measurement uncertainty in combination with an excellent long-term stability of 5 years (recommendation according to the German Calibration Service (DAkkS). Pressure balances / piston manometers have been used for years in factory and calibration laboratories of industry, national institutes and research institutes.
Autarkic operation
Due to the integrated pressure generation (for measuring ranges up to 10 bar) as well as the purely mechanical measuring principle, the LR-Cal CPB5000-HP pressure balance is also ideally suited for on-site use, maintenance and service.
Basic principle
Pressure is defined as the quotient of force and area. Accordingly, the heart of the LR-Cal CPB5000-HP pressure balance (deadweight tester) is a very precisely manufactured piston/cylinder system that is loaded with mass supports to generate the individual test points.
The mass support is proportional to the target pressure and is achieved by optimally graduated disc weights. These disc weights are manufactured as standard to the standard acceleration of gravity of 9.80665 m/s², but can also be optionally adapted to their specific location of use and also DAkkS-calibrated.
Simple mode of operation
The pressure is adjusted via an integrated pump. For fine adjustment, a very precisely adjustable spindle pump with an internally running precision spindle is installed. As soon as the measuring system is then in the hovering state, there is a balance of forces between the pressure and the mass supports. Due to the excellent workmanship of the system, this pressure remains stable for several minutes, so that the pressure values for comparative measurement can be read off without any problems, or even longer adjustment work can be carried out on the test specimen.
Stable instrument design
With the maximum pressure model, calibrations up to a maximum pressure of 5,000 bar are possible.
It is built in a stable basement and offers exceptional ease of operation. With the integrated pre-pressure pump and 250 ml tank, even large test volumes can be easily filled and pre-compressed.
The two test ports are equipped with knurled nuts and interchangeable thread adapters with sealing cones. The following thread adapters with external threads are included in the scope of delivery:
Special features:
Applications:
| Measuring range 1) | bar | 25…4,000 | 25…5,000 |
|---|---|---|---|
| Required masses | kg | 80 | 100 |
| Smallest step (standard mass set) 2) | bar | 2,5 | 2,5 |
| Nominal cross-sectional area of the piston | cm² | 0.02 | 0.02 |
| Measuring range 1) | psi | 350…60,000 | 350…70,000 |
| Required masses | kg | 83 | 97 |
| Smallest step (standard mass set) 2) | psi | 50 | 50 |
| Nominal cross-sectional area of the piston | cm² | 0.02 | 0.02 |
| Accuracy 3) 4) | % of measured value |
0.025 / optional 0.02 | |
| Pressure transmission medium | up to 4,000 bar / 60,000 psi: hydraulic fluid based on VG22 mineral oil (1 litre included in scope of delivery) 5,000 bar / 70,000 psi: Sebacate oil (0.5 litre included in scope of delivery) |
||
| Fluid reservoir | cm² | 250 | |
| Test item connection | rotatable, including three male adapters M16 x 1.5 / M20 x 1.5 and 9/16-18 UNF |
||
| Material | |||
| Piston | hardened steel | ||
| Cylinder | Tungsten carbide | ||
| Set of masses | Stainless steel 1.4305, non-magnetic | ||
| Piping in instrument base | Stainless steel 1.4404, 6 x 2 mm | ||
| Permissible ambient conditions | |||
| Operating temperature | °C | 18…28 | |
| Weights | |||
| High pressure basement | kg | 32.5 | |
| Piston-cylinder system | kg | 2.7 (5.0 incl. storage case) | |
| BAR basic set of masses, case 1 | kg | 34.0 | 34.0 |
| BAR basic set of masses, case 2 | kg | 27.5 | 27.5 |
| BAR basic set of masses, case 3 | kg | — | — |
| BAR basic set of masses, case 4 | kg | — | — |
| BAR extension set of masses, case 1 | kg | 33.5 | 33.5 |
| BAR extension set of masses, case 2 | kg | — | 23.5 |
| PSI basic set of masses, case 1 | kg | 51.0 | 51.0 |
| PSI basic set of masses, case 2 | kg | 15.0 | 15.0 |
| PSI basic set of masses, case 3 | kg | — | — |
| PSI basic set of masses, case 4 | kg | — | — |
| PSI extension set of masses, case 1 | kg | 31.8 | 31.8 |
| PSI extension set of masses, case 2 | kg | — | 17.8 |
| Dimensions | |||
| Base | mm | W 460 x D 445 x H 265 | |
| Carrying case 1 for basic set of masses | mm | W 400 x D 310 x H 310 | |
| Carrying case 2-4 for basic set of masses | mm | W 215 x D 310 x H 310 | |
| Carrying case for extension set of masses | mm | W 215 x D 310 x H 310 | |
| Storage case for piston-cylinder system | mm | W 370 x D 150 x H 150 | |
| Approvals and certificates | |||
| CE conformity | Pressure equipment directive 97/23/EC (module A) | ||
| Calibration | Inspection certificate 3.1 according to DIN EN 10204 Optional DAkkS certificate, traceable and accredited according to ISO 17025 |
||
| Photo | Model | Description |
|---|---|---|
|
LDW-FMS-F1 | Fine incremental weight set class F1 1 mg to 50 g |
|
|
LDW-FMS-M1 | Fine incremental weight set class M1 1 mg to 50 g |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| CPB5000-HH-4000 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.025% of measured value. Range: 25 ... 4000 bar | Delivery time from 12 weeks | from 32 500$ |
-
+
|
|
| CPB5000-HH-5000 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.025% of measured value. Range: 25 ... 5000 bar | Delivery time from 12 weeks | from 37 000$ |
-
+
|
|
| CPB5000-HH-6000 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.025% of measured value. Range: 25 ... 6000 bar | Delivery time from 12 weeks | from 48 200$ |
-
+
|
|
| CPB5000-HH-P60000 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.025% of measured value. Range: 365 ... 60000 psi | Delivery time from 12 weeks | from 32 500$ |
-
+
|
|
| CPB5000-HH-P70000 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.025% of measured value. Range: 365 ... 70000 psi | Delivery time from 12 weeks | from 37 000$ |
-
+
|
|
| CPB5000-HH-P90000 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.025% of measured value. Range: 365 ... 90000 psi | Delivery time from 12 weeks | from 48 200$ |
-
+
|
|
| CPB5000-HH-4000-G2 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.020% measured value. Range: 25 ... 4000 bar | Delivery time from 12 weeks | from 39 000$ |
-
+
|
|
| CPB5000-HH-5000-G2 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.020% measured value. Range: 25 ... 5000 bar | Delivery time from 12 weeks | from 43 000$ |
-
+
|
|
| CPB5000-HH-6000-G2 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.020% measured value. Range: 25 ... 6000 bar | Delivery time from 12 weeks | from 54 000$ |
-
+
|
|
| CPB5000-HH-P60000-G2 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.020% measured value. Range: 365 ... 60000 psi | Delivery time from 12 weeks | from 39 000$ |
-
+
|
|
| CPB5000-HH-P70000-G2 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.020% measured value. Range: 365 ... 70000 psi | Delivery time from 12 weeks | from 43 000$ |
-
+
|
|
| CPB5000-HH-P90000-G2 | LR-Cal CPB5000-HP - hydraulic for high pressure, with integrated priming pump and high performance spindle. Uncertainty ±0.020% measured value. Range: 365 ... 90000 psi | Delivery time from 12 weeks | from 54 000$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger CPB5000-HP using the special form.
You can buy Leitenberger CPB5000-HP in UAE at a price starting from 32500 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger CPB5000-HP price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Deadweight testers
