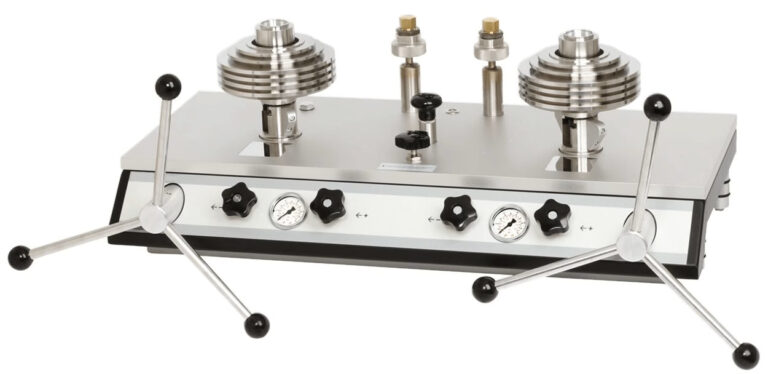

LR-Cal CPB5600-DP deadweight tester/pressure balance

Differential pressure with real static pressure
Pressure ranges (= static pressure + differential pressure):
Pneumatic: 2 to 100 bar / 30 to 1,500 psi (up to max. 400 bar pneumatic with integrated air to oil separator)
Hydraulic: 60 to 1.000 bar / 1,000 to 14,500 psi
Accuracy ±0.08% or ±0.015% of measured value

			int(26231)
NULL

Made in Germany. brand Leitenberger, model CPB5600-DP

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $36 000

Available

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of LR-Cal CPB5600-DP

Proven primary standard

Deadweight tester are the most accurate devices available on the market for the calibration of electronic or mechanical pressure measuring instruments. The direct measurement of the pressure (p = F/A), as well as the use of high quality materials allow a very small measurement uncertainty in combination with an excellent long-term stability of 5 years (recommendation according to the German Calibration Service (DAkkS). Pressure balances / deadweight tester have been used for years in factory and calibration laboratories of industry, national institutes and research institutes.

Autarkic operation

Due to the integrated pressure generation as well as the purely mechanical measuring principle, the LR-Cal CPB5600-DP differential pressure deadweight tester is also ideally suited for on-site use, maintenance and service.

Simple mode of operation

Depending on the unit design, the pressure is set either via an integrated pump or via an external pressure supply by means of metering valves. For fine adjustment, two very precisely adjustable spindle pumps with internally running precision spindles are installed.

As soon as the measuring system is in the hovering state, there is a balance of forces between pressure and mass supports. Due to the excellent workmanship of the system, this pressure remains stable for several minutes, so that pressure values for comparative measurement or more extensive adjustment work on the test specimen can be carried out without any problems.

As standard, the basic units are equipped with two connections for the piston-cylinder systems.

The test specimen is connected without tools to two quick-connection systems. A threaded insert with a G 1/2 female thread is included as standard. Further threaded inserts are optionally available, with which all common pressure gauges can be connected.

Special features:

Measuring ranges (= static pressure + differential pressure)
up to 400 bar pneumatic
up to 1000 bar hydraulic
Total measurement uncertainty up to ±0.08% of reading plus 0.0001% (1 ppm) of static pressure
With traceable factory calibration certificate as standard (option: DAkkS calibration certificate)
Very high long-term stability, recommended recalibration only every 5 years
Mass disks made of stainless steel, adaptation to local gravitational acceleration of the place of use possible without extra charge

Applications:

Primary standard for calibration of differential pressure gauges under static pressure
Reference instrument for factory and calibration laboratories for testing, adjusting and calibrating pressure measuring instruments of all types
Self-sufficient complete system, also suitable for on-site use.

Technical specifications of LR-Cal CPB5600-DP

PNEUMATIC Range 1) 2) 6)	bar	0.03…2	0.2…10	0.4…50	0.4…100
Required masses	kg	10	10	10	20
Smallest Step 3)	bar	0.01	0.05	0.25	0.25
Sensitivity 4)	mbar	0.002	0.01	0.05	0.05
Nominal cross-sectional area of the piston	mm²	5	1	0.2	0.2
PNEUMATISC Range 1) 2) 6)	psi	0.435…30	2.9…150	5.8…500	5.8…1,000	5.8…1,500
Required masses	kg	10	10	7	13	20
Smallest step 3)	psi	0.2	1	5	5	5
Sensitivity 4)	psi	0.00003	0.00015	0.00075	0.00075	0.00075
Nominal cross-sectional area of the piston	cm²	5	1	0.2	0.2	0.2
HYDRAULIC Range 1) 2) 6)	bar	0.2…60	0.2…100	1…250	1…400	2…600	2…1,000
Required masses	kg	30	50	25	40	30	50
Smallest step 3)	bar	0.1	0.1	0.5	0.5	1	1
Sensitivity 4)	mbar	0.04	0.04	0.2	0.2	0.4	0.4
Nominal cross-sectional area of the piston	cm²	0.5	0.5	0.1	0.1	0.05	0.05
HYDRAULIC Range 1) 2) 6)	psi	2.9…1,000	14.5…5,000	29…10,000	29…14,500
Required masses	kg	34	34	34	50
Smallest step 3)	psi	2	10	20	20
Sensitivity 4)	psi	0.006	0.003	0.006	0.006
Effective area	cm²	0.5	0.1	0.05	0.05
Accuracy 7)	% of measured value	proportion of static pressure: 0.0001 proportion of differential pressure: 0.015 / optional: 0.008 (high-pressure hydraulic version: 0.025 / optional: 0.020)
Lower limiting value of measurement uncertainty		depends on range; corresponds to sensitivity of piston
Basement versions
Pneumatic		up to 100 bar / 1,500 psi; with priming pump, spindle pump and port for external pressure supply
Pneumatic with separator		up to 400 bar / 5,000 psi; for external pressure supply, with integrared separator air on oil
Hydraulic		up to 1,000 bar / 14,500 psi; with internal pressure supply (on request version up to 1,600 bar / 23,200 psi available)
Pressure ports
Piston-cylinder-unit		Quick-fit connection for basement versions pneumatic and hydraulic; M30 x 2 male thread for basement version pneumatic with separator
Test item		2 pcs. quick-fit connections 1/2″ BSP female rotating, other threads see accessories
Pressure medium
Pneumatic		clean and dry non-corrosive gases (e.g. air or nitrogen)
Hydraulic		special oil (1 l included in supply)
Oil reservoir	cm²	250
External pressure supply		6 mm SWAGELOK (R) tube fitting; max. 110% of used pressure range (only for basement version pneumatic or version pneumatic with separator)
Materials
Piston		Tungsten Carbid
Cylinder		Tungsten Carbid
Set of masses		Stainless steel 1.4305 and aluminium, non-magnetic
Tubes / pipes in basement
Pneumatic		Stainless steel 1.4571, 3 x 1 mm
Hydraulic		Stainless steel 1.4404, 6 x 2 mm
Operating conditions
Operating temperature	°C	18…28
Weight
Basement pneumatic	kg	34.0
Basement pneumatic with separator	kg	32.0
Basement hydraulic	kg	38.5
Piston-cylinder-unit	kg	1.5 (5.7 incl. bell jar and base weight, in optional carrying case (2 units required)
BAR weight set, pneumatic	kg	32.4 (incl. 2 wooden cases)
BAR extension weight set, pneumatic	kg	28.0 (incl. 2 wooden cases)
BAR weight set, hydraulic	kg	72.0 (incl. 2 wooden cases)
BAR extension weight set, hydraulic	kg	48.0 (incl. 2 wooden cases)
PSI weight set, pneumatic	kg	25.0 (incl. 2 wooden cases)
PSI extension weight set 1, pneumatic	kg	22.0 (incl. 2 wooden cases)
PSI extension weight set 2, pneumatic	kg	37,0 (incl. 2 wooden cases) only for range 1,500 psi
PSI weight set, hydraulic	kg	84,0 (incl. 2 wooden cases)
PSI extension weight set, hydraulic	kg	43,0 (incl. 2 wooden cases)
Dimensions
Basement	mm	W 800 x D 375 x H 265
Wooden case for weight set	mm	W 400 x D 310 x H 310
Wooden case for extension weight set	mm	W 215 x D 310 x H 310
Optional case for piston-cylinder-unit	mm	W 300 x D 265 x H 205
Certificates
CE-Conformity		97/23 EG (module A), only for versions above 1,000 bar
Calibration		Inspection certificate 3.1 according to DIN EN 10204 Optional DAkkS certificate, traceable and accredited according to ISO 17025

Expand Table

Accessories for

Photo	Model	Description
	LDW-FMS-F1	Fine incremental weight set class F1 1 mg to 50 g
	LDW-FMS-M1	Fine incremental weight set class M1 1 mg to 50 g
	CPB5600-DP-KOFFER	Case for piston cylinder systems

Prices for

Model	Description	Availability	Price	Qty
CPB5600-DP-0002	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 0,03 ... 2 bar	Delivery time from 12 weeks	from 38 000$	- +
CPB5600-DP-0010	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 0,2 ... 10 bar	Delivery time from 12 weeks	from 39 000$	- +
CPB5600-DP-0050	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 0,4 ... 50 bar	Delivery time from 12 weeks	from 41 000$	- +
CPB5600-DP-0100	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 0,4 ... 100 bar	Delivery time from 12 weeks	from 50 000$	- +
CPB5600-DP-P00030	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 0.435 ... 30 psi	Delivery time from 12 weeks	from 40 000$	- +
CPB5600-DP-P00150	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 2.9 ... 150 psi	Delivery time from 12 weeks	from 40 500$	- +
CPB5600-DP-P00500	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 5.8 ... 500 psi	Delivery time from 12 weeks	from 40 000$	- +
CPB5600-DP-P01000	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 5.8 ...1000 psi	Delivery time from 12 weeks	from 44 000$	- +
CPB5600-DP-P01500	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.015% of measured value. Range: 5.8 ... 1500 psi	Delivery time from 12 weeks	from 51 000$	- +
CPB5600-DP-0002-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 0,03 ... 2 bar	Delivery time from 12 weeks	from 43 000$	- +
CPB5600-DP-0010-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 0,2 ... 10 bar	Delivery time from 12 weeks	from 44 000$	- +
CPB5600-DP-0050-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 0,4 ... 50 bar	Delivery time from 12 weeks	from 45 500$	- +
CPB5600-DP-0100-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 0,4 ... 100 bar	Delivery time from 12 weeks	from 54 500$	- +
CPB5600-DP-P00030-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 0.435 ... 30 psi	Delivery time from 12 weeks	from 44 000$	- +
CPB5600-DP-P00150-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 2.9 ... 150 psi	Delivery time from 12 weeks	from 45 000$	- +
CPB5600-DP-P00500-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 5.8 ... 500 psi	Delivery time from 12 weeks	from 44 500$	- +
CPB5600-DP-P01000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 5.8 ...1000 psi	Delivery time from 12 weeks	from 49 000$	- +
CPB5600-DP-P01500-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC. Uncertainty ±0.008% measured value. Range: 5.8 ... 1500 psi	Delivery time from 12 weeks	from 56 000$	- +
CPB5600-DT-0060	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.015% of measured value. Range: 0,2 ... 60 bar	Delivery time from 12 weeks	from 44 000$	- +
CPB5600-DT-0100	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.015% of measured value. Range: 0,2 ... 100 bar	Delivery time from 12 weeks	from 47 000$	- +
CPB5600-DT-0250	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.015% of measured value. Range: 1 ... 250 bar	Delivery time from 12 weeks	from 44 000$	- +
CPB5600-DT-0400	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.015% of measured value. Range: 1 ... 400 bar	Delivery time from 12 weeks	from 48 000$	- +
CPB5600-DT-P01000	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.015% of measured value. Range: 2.9 ... 1000 psi	Delivery time from 12 weeks	from 45 000$	- +
CPB5600-DT-P05000	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.015% of measured value. Range: 14.5 ... 5000 psi	Delivery time from 12 weeks	from 47 000$	- +
CPB5600-DT-0060-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.008% measured value. Range: 0,2 ... 60 bar	Delivery time from 12 weeks	from 48 000$	- +
CPB5600-DT-0100-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.008% measured value. Range: 0,2 ... 100 bar	Delivery time from 12 weeks	from 52 000$	- +
CPB5600-DT-0250-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.008% measured value. Range: 1 ... 250 bar	Delivery time from 12 weeks	from 49 000$	- +
CPB5600-DT-0400-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.008% measured value. Range: 1 ... 400 bar	Delivery time from 12 weeks	from 53 000$	- +
CPB5600-DT-P01000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.008% measured value. Range: 2.9 ... 1000 psi	Delivery time from 12 weeks	from 50 000$	- +
CPB5600-DT-P05000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - PNEUMATIC with integr. seperator air on oil . Uncertainty ±0.008% measured value. Range: 14.5 ... 5000 psi	Delivery time from 12 weeks	from 51 000$	- +
CPB5600-DH-0060	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 0,2 ... 60 bar	Delivery time from 12 weeks	from 34 000$	- +
CPB5600-DH-0100	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 0,2 ... 100 bar	Delivery time from 12 weeks	from 38 000$	- +
CPB5600-DH-0250	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 1 ... 250 bar	Delivery time from 12 weeks	from 35 000$	- +
CPB5600-DH-0400	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 1 ... 400 bar	Delivery time from 12 weeks	from 39 000$	- +
CPB5600-DH-0600	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 2 ... 600 bar	Delivery time from 12 weeks	from 36 000$	- +
CPB5600-DH-1000	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 2 ... 1000 bar	Delivery time from 12 weeks	from 40 500$	- +
CPB5600-DH-P01000	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 2.9 ... 1000 psi	Delivery time from 12 weeks	from 36 000$	- +
CPB5600-DH-P05000	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 14.5 ... 5000 psi	Delivery time from 12 weeks	from 37 000$	- +
CPB5600-DH-P10000	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 29 ... 10000 psi	Delivery time from 12 weeks	from 38 000$	- +
CPB5600-DH-P15000	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.015% of measured value. Range: 29 ... 14500 psi	Delivery time from 12 weeks	from 42 000$	- +
CPB5600-DH-0060-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 0,2 ... 60 bar	Delivery time from 12 weeks	from 39 000$	- +
CPB5600-DH-0100-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 0,2 ... 100 bar	Delivery time from 12 weeks	from 42 000$	- +
CPB5600-DH-0250-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 1 ... 250 bar	Delivery time from 12 weeks	from 40 000$	- +
CPB5600-DH-0400-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 1 ... 400 bar	Delivery time from 12 weeks	from 43 000$	- +
CPB5600-DH-0600-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 2 ... 600 bar	Delivery time from 12 weeks	from 41 000$	- +
CPB5600-DH-1000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 2 ... 1000 bar	Delivery time from 12 weeks	from 45 000$	- +
CPB5600-DH-P01000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 2.9 ... 1000 psi	Delivery time from 12 weeks	from 41 001$	- +
CPB5600-DH-P05000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 14.5 ... 5000 psi	Delivery time from 12 weeks	from 42 000$	- +
CPB5600-DH-P10000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 29 ... 10000 psi	Delivery time from 12 weeks	from 43 000$	- +
CPB5600-DH-P15000-G1	LR-Cal CPB5600-DP differential pressure deadweight tester - HYDRAULIC. Uncertainty ±0.008% measured value. Range: 29 ... 14500 psi	Delivery time from 12 weeks	from 47 000$	- +
CPB5600-DP-KOFFER	Carrying case for 2 piston-cylinder systems	Delivery time from 12 weeks	from 440$	- +
