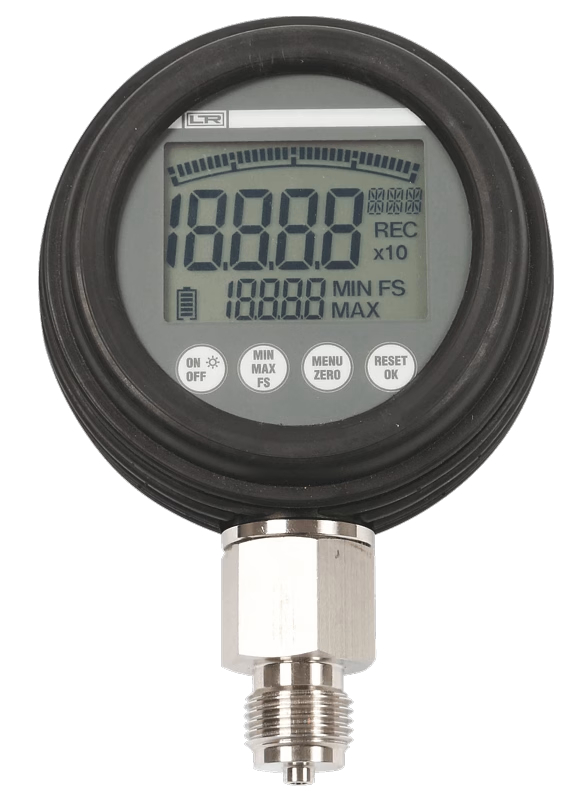

The digital pressure gauge DM 80 is very well suited for test and inspection tasks as well as for industrial applications.

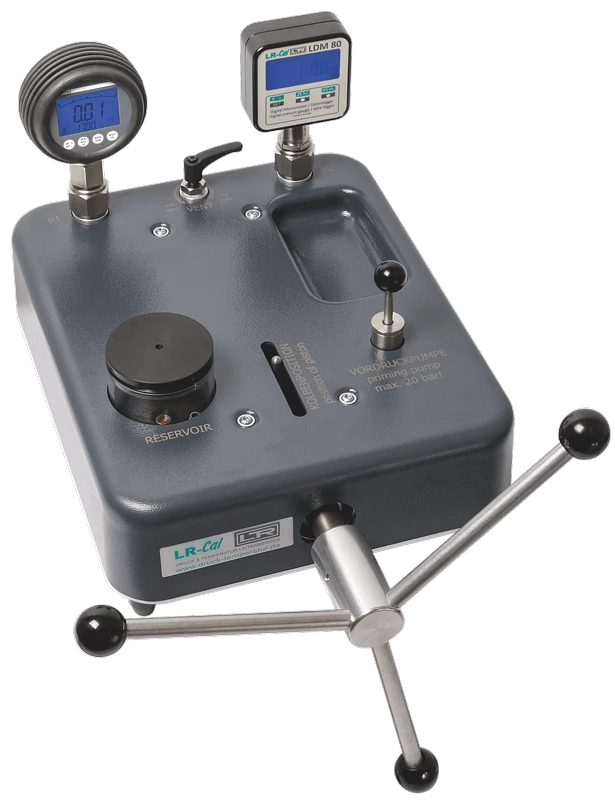

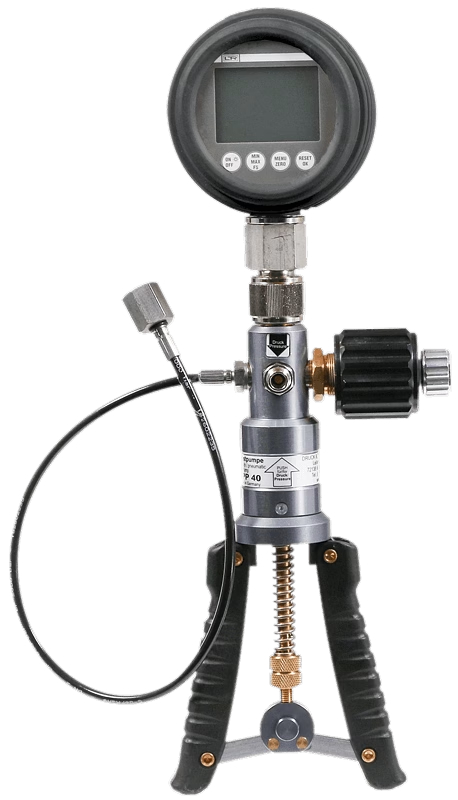

The DM 80 digital pressure gauge, together with our LR-Cal pressure test pumps, is ideally suited for on-site use. In conjunction with our LR-Cal pressure comparison test pumps (spindle pumps), it is also very well suited for operation in the laboratory and in the workshop.
| Accuracy | ±0.25% BFSL *) |
| Ambient temperature | -10…+50°C |
| Storage temperature | -20…+60°C |
| Medium temperature | Ranges -50…+50 mbar and -200…+200 mbar: -10…+50°C Range 0…4 bar absolute: -20…+80°C All other ranges: -40…+125°C |
| Max. relative humidity | 85% r.h. |
| Material pressure connection | Ranges -50…+50 mbar and -200…+200 mbar: CuZn39Pb3 Range 0…4 bar absolute: stainless steel 1.4402 All other ranges: stainless steel 1.4301 |
| Material membrane | Ranges -50…+50 mbar to 0…4 bar absolute: Ceramics All other ranges: stainless steel 1.4548 |
| Material case | Metal (die-cast zinc) |
| Temperature compensated range | 0…50°C |
| Error in temperatur compensated range | Ranges -50…+50 mbar and -200…+200 mbar: <±0.03% FS / °C Range 0…4 bar absolute: ≤±0.005% FS / °C All other ranges: ≤0.035% FS / °C |
| Minimum load cycles | Ranges -50…+50 mbar to 0…4 bar absolute: 10 x 1206 All other ranges: 100 x 106 |
| Supply | 2 x 1.5 VDC LR6-AA (not included in standard supply) |
| Max. battery life | 1.500 h continuous operation |
| Pressure units | switchable: mbar, bar, PSI, kPa, MPa (depending on measuring range) |
| Pressure connection | Ranges -50…+50 mbar, -200…+200 mbar and 0…4 bar absolute: 1/4″ BSP male according to EN 837 All other ranges: 1/2″ BSP male according to EN 837 |
| Display | LCD incl. bargraph |
| PEAK function | Min + Max |
| Weight | approx. 600 g |
| Case diameter without rubber protection cap | approx. 80 mm |
| Case diameter with obligatory rubber protection cap | approx. 95-100 mm |
*) ±0.25% BFSL (maximum nonlinearity according to best fit straight line method) corresponds to ±0.5% FS according to IEC 60770 (limit point setting (nonlinearity, hysteresis and repeatability)).
| Photo | Model | Description |
|---|---|---|
|
DM80-GSK-S | Black rubber protection cap |
|

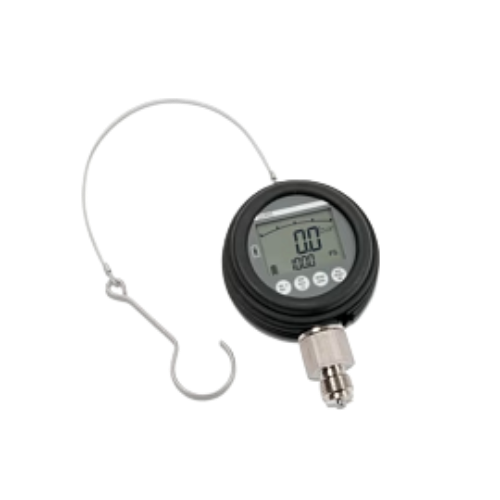

DM80-GSK-S-HAKEN | Black rubber protection cap with hook for hanging and wire rope 340 mm long |
|
DM80-AD-M16-I-G12 | Thread adapter 1/2" BSP female x M 16 x 2 female (max. 700 bar!) |
|
DM80-AD-M16-A-G12 | Thread adapter 1/2" BSP female x M 16 x 2 male (max. 700 bar!) |
|
DM80-KOFFER | Storage and transport case with molded foam insert |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger DM 80 using the special form.
