Made in Germany. brand Leitenberger, model LAP-P
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2 750
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

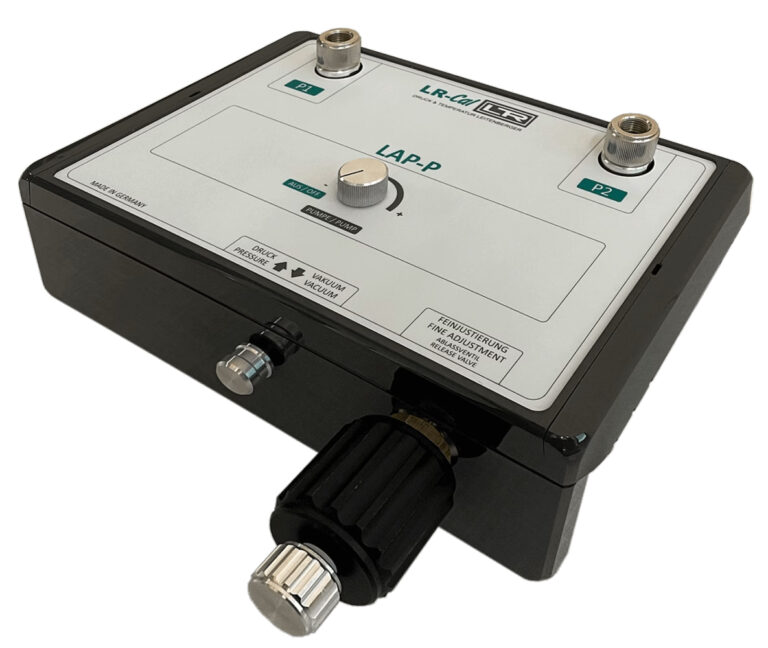

The LR-Cal LAP-P electrical pressure test pump is used to generate electrical pressure (without manual effort) for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LAP-P electrical pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the accuracy or adjust the pressure gauge to be tested.
Due to the integrated electric pump, the LR-Cal LAP-P enables automatic and exact test pressure generation with the option of switching to vacuum generation. For precise adjustment for accurate comparison testing, the LR-Cal LAP-P electric pressure test pump is equipped with a fine adjustment valve.

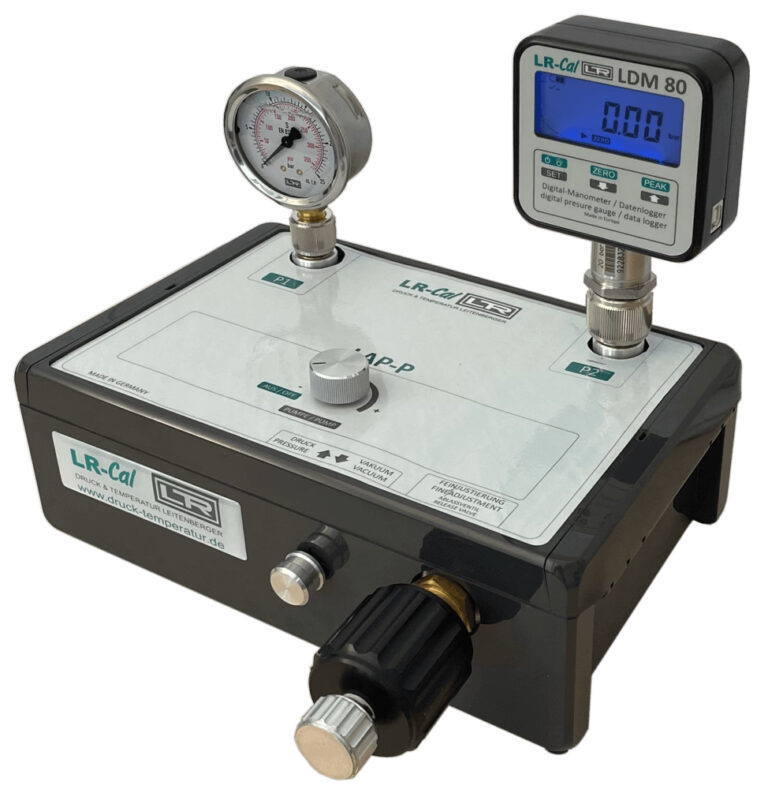

Both the test item and the reference pressure gauge (pressure calibrator) are mounted on top of the electrical calibration test pump, using suitable thread adapters if necessary (see Accessories).
No tools are needed to connect the measuring instruments to the pump; hand-tightening and tightening the instruments is quite sufficient.
| Generation of pressure: | 0 to 25 bar (363 psi), switchable to |
| Generation of vacuum: | 0 to -0,9 bar = 0 to -26.6 inHg |

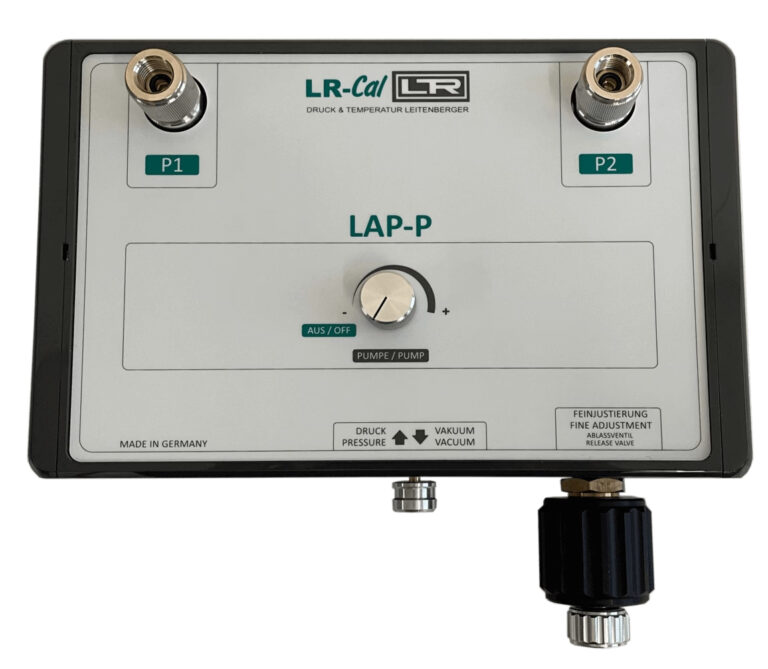

| Pressure ports: | 2 connections with free-running union nut and with dirt separator strainer and sealing ring. Left pressure port P1 for unit under test and right pressure port P2 for reference instrument. Part-No. LAP-P-G14-G12: P1 = 1/4″ BSP F + P2 = 1/2″ BSP F Part-No. LAP-P-G14-G14: P1 = 1/4″ BSP F + P2 = 1/4″ BSP F Part-No. LAP-P-G12-G14: P1 = 1/2″ BSP F + P2 = 1/4″ BSP F Part-No. LAP-P-G12-G12: P1 = 1/2″ BSP F + P2 = 1/2″ BSP F |
| Material wetted parts: | Stainless steel, nickel-plated brass, brass, FKM |
| Test pressure setting: | Fine adjustment valve (large volume variator, sensitivity better than ±1 mbar) |
| Temperatures: | Operation 0…50°C (+32…+122°F); Storage -20…+60°C (-4…+140°F) |
| Power supply: | 100…230 VAC (incl. power supply unit to 24 VDC / 1.5 ADC) |
| Motor specification: | 24 VDC, 220 Ncm, 0.88 A |
| Dimensions: | approx. 271 x 228 x 116 mm (without power supply unit) |
| Housing material: | ABS |
| Weight: | approx. 2.9 kg (without power supply unit) |
| Photo | Model | Description |
|---|---|---|
|
LPP-ADAPTER-BSP | Set of BSP thread adapter for 1/4" BSP port 1/4" BSP m x 1/8" BSP female 1/4" BSP m x 3/8" BSP female 1/4" BSP m x 1/2" BSP female 1/4" BSP m x 1/2" BSP male |
|

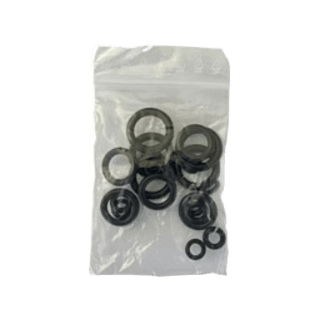

LPP-O-RING-BSP | Spare part for thread adapter set code LPP-ADAPTER-BSP: |
|

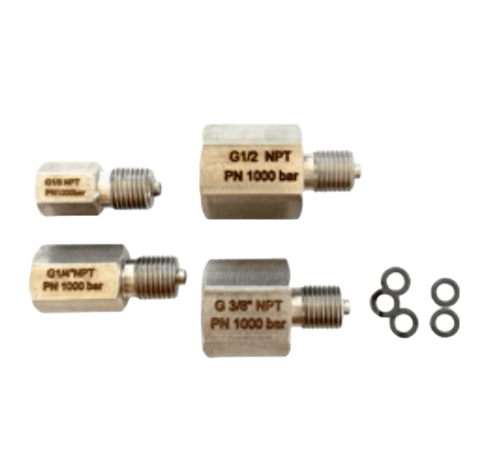

LPP-ADAPTER-NPT | Set of BSP thread adapter for 1/4" BSP port 1/4" BSP m x 1/8" NPT female 1/4" BSP m x 1/4" NPT female 1/4" BSP m x 3/8" NPT female 1/4" BSP m x 1/2" NPT female |
|

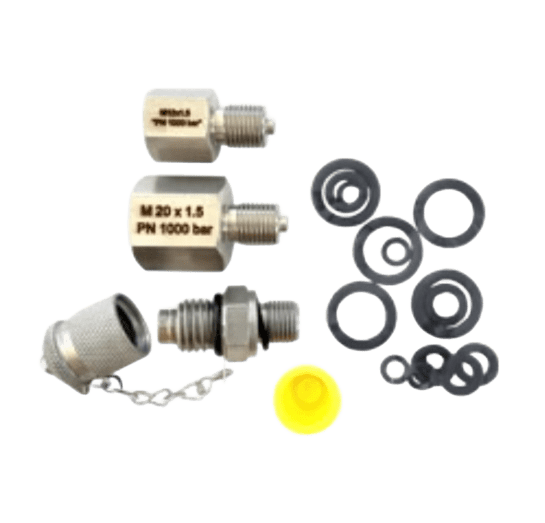

LPP-ADAPTER-M | Set of BSP thread adapter for 1/4" BSP port 1/4" BSP m x M 12 x 1,5 female 1/4" BSP m x M 20 x 1,5 female 1/4" BSP m x Minimess® 1620 female |
|
LSP-ADAPTER-SET | Set of thread adapter for 1/2" BSP port 1/2" BSP m x 1/4" BSP female 1/2" BSP m x 1/4" NPT female 1/2" BSP m x 1/2" NPT female 1/2" BSP m x M20 x 1,5 female |
|
VRS-G12 | Volume reducer, to be used with reference devices (pressure calibrators) LR-Cal TLDMM-2.0 and LR-Cal LDM 80 |
|

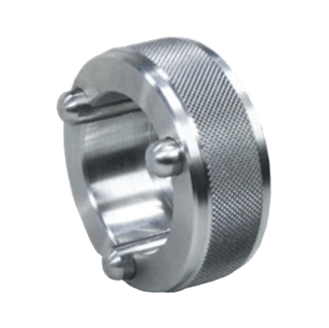

LPP-VOLUMEN-TOOL | Tool (made of aluminum) for attaching to the fine adjustment valve. It enlarges the diameter and makes fine pressure adjustment even easier. |
|
LAP-P-NT | Power supply unit Input 100...230 VAC Output 24 VDC 1.5 A |
|
LAP-P-SICH | Glass fuse 5 x 2mm medium time-lag, 1A, 250 V |
|

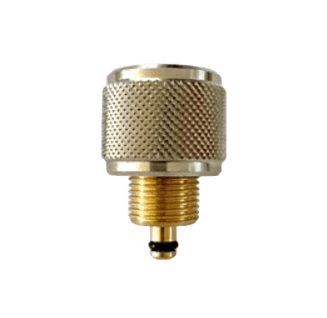

LPP30-ASS-G12 | Reference device connection with 1/2" BSP free-running female thread |
|

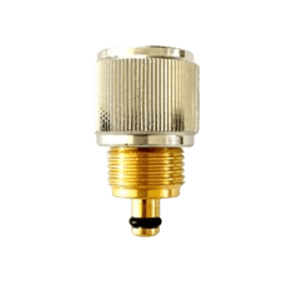

LPP30-ASS-G14 | Reference device connection with 1/4" BSP free-running female thread |
|
LAP-P-SIEB-G14 | Dirt separator strainer, set with 10 pieces, for pressure connection 1/4" BSP. |
|
|
LAP-P-SIEB-G12 | Dirt separator strainer, set with 10 pieces, for pressure connection 1/2" BSP. |
|
LPP-VENTIL | Assembly Fine adjustment and drain valve |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| LAP-P-G14-G12 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/4" BSP female rotating union-nut/1/2" BSP female rotating union-nut | Delivery time from 12 weeks | from 2 750$ |
-
+
|
|
| LAP-P-G14-G14 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/4" BSP female rotating union-nut / 1/4" BSP female rotating union-nut | Delivery time from 12 weeks | from 2 750$ |
-
+
|
|
| LAP-P-G12-G14 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/2" BSP female rotating union-nut/ 1/4" BSP female rotating union-nut | Delivery time from 12 weeks | from 2 750$ |
-
+
|
|
| LAP-P-G12-G12 | Electrical calibration pressure test pump LR-Cal LAP-P, pneumatic. 1/2" BSP female rotating union-nut / 1/2" BSP female rotating union-nut | Delivery time from 12 weeks | from 2 750$ |
-
+
|
|
| LAP-P-NT | Power supply unit (input 110...230 VAC; output 24 VDC 1.5 A) | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| LAP-P-SICH | Spare glass fuse (5 x 20 mm, medium order, 1A/250V) | Delivery time from 12 weeks | from 13$ |
-
+
|
|
| LPP30-ASS-G12 | Pressure connector with 1/2" BSP female rotating union-nut (assembly) | Delivery time from 12 weeks | from 34$ |
-
+
|
|
| LPP30-ASS-G14 | Pressure connector with 1/4" BSP female rotating union-nut (assembly) | Delivery time from 12 weeks | from 34$ |
-
+
|
|
| LAP-P-SIEB-G12 | 10 pcs. of dirt separator slieves for pressure connector 1/2" BSP | Delivery time from 12 weeks | from 27$ |
-
+
|
|
| LAP-P-SIEB-G14 | 10 pcs. of dirt separator slieves for pressure connector 1/4" BSP | Delivery time from 12 weeks | from 27$ |
-
+
|
|
| LPP-VENTIL | Assembly volume variator and pressure release valve | Delivery time from 12 weeks | from 167$ |
-
+
|
|
| LPP-VENTIL-DICHT | Kit of 3 gaskets for LPP-VENTIL volume variator and release valve | Delivery time from 12 weeks | from 26$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LAP-P using the special form.
You can buy Leitenberger LAP-P in UAE at a price starting from 2750 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LAP-P price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
