Made in Germany. brand Leitenberger, model LCC 100
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $7 555
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Pressure controllers are calibration pressure source and high-precision reference in one device. Pressures are automatically generated and controlled according to specification.
Automatic generation of test pressures (positive and negative overpressure
(pressure + vacuum)
The pressure controllers have an integrated pressure generation system. The desired test pressures are automatically approached at the push of a button and adjusted with high precision.
An integrated precision reference sensor enables comparative calibrations and adjustments to the test specimens. Even more complex calibration sequences can be predefined and then automatically processed.

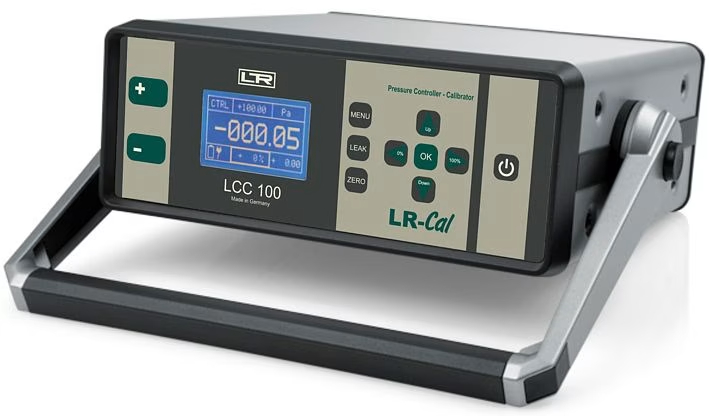

The LR-Cal LCC 100 pressure controller measures and generates pressure and negative pressure (vacuum) and can thus be used both as a reference pressure gauge and as a calibration device for pressure sensors, pressure switches and pressure gauges. Due to the internal pressure generation, no further accessories are required for operation. For mobile use, the LR-Cal LCC 100 is equipped with an internal lithium-ion battery. Parallel operation of mains and battery supply is possible without any problems and ensures the highest possible flexibility.
Typical applications:
| Type | LCC 100-1 | LCC 100-10 | LCC 100-100 | LCC 100-1000 | |
| Order-Code | LCC-100-1 | LCC-100-10 | LCC-100-100 | LCC-100-1000 | |
| Pressure range | 1 mbar | 10 mbar | 100 mbar | 1000 mbar | |
| Overpressure | 5-fold | 5-fold | 5-fold | 2-fold | |
| Measurement Uncertainty (+1 digit) | ±0.3% FS | ±0.1% FS | ±0.1% FS | ±0.1% FS | |
| Linearity ±1digit | ±0.2% FS | ±0.1% FS | ±0.1% FS | ±0.1% FS | |
| Hysteresis | max. 0.1% FS | ||||
| Measurement principle | inductive | ||||
| Temperature drift of the internal reference sensor |
Zero: 0.003% FS / K (0% via zero balance) Span: 0.03% FS / K |
||||
| Zero balance | • automatic (in settable time spans, possible to swith of), or • manuel (by pressing the ZERO button) |
||||
| Long-term stability of the internal reference sensor |
0.1% FS per year (typical) | ||||
| Temperature ranges | Working range +10…+40°C; Storage -10…+70°C | ||||
| Usable pressure measuring range | -10…+110% | ||||
| Adjustment accuracy | 0.01% FS | ||||
| Adjustment time | depending on volume, <5 sec | ||||
| Measurement media | Air, non-aggressive and corrosion-free dry gases | ||||
| Operation modes | • CTRL (controlling pressure) • MESS (measuring pressure) • AUTO (individually definable pressure profile) • Remote-controlled operation (via USB or RS232 interface) |
||||
| Display | Graphic display (white on dark blackground) | ||||

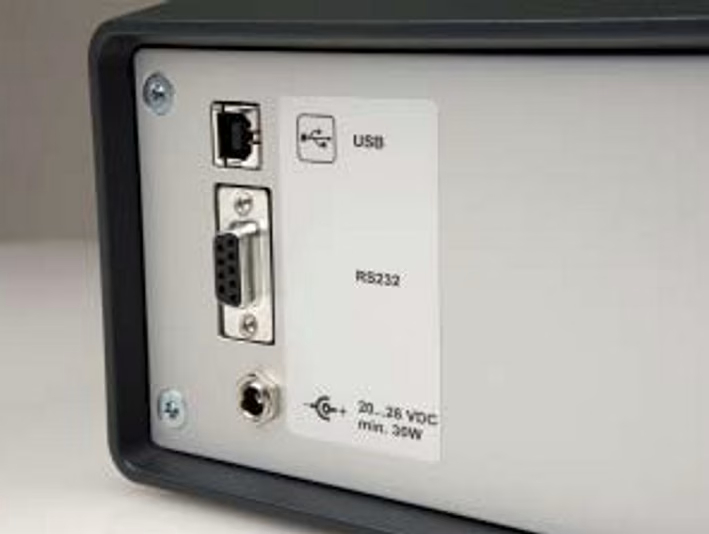

| Interfaces | USB and RS232 | ||||
| Supply | 24 VDC / 1 A, build-in Li-Ion battery (8h typical) and mains charger 90…264 VAC | ||||
| Pressure ports | 6.6 x 11 mm (for flexible hose with 6 mm inner diameter) | ||||
| Dimension | H 102,6 x W 257 x D 271 mm (without handel) | ||||
| Photo | Model | Description |
|---|---|---|
|

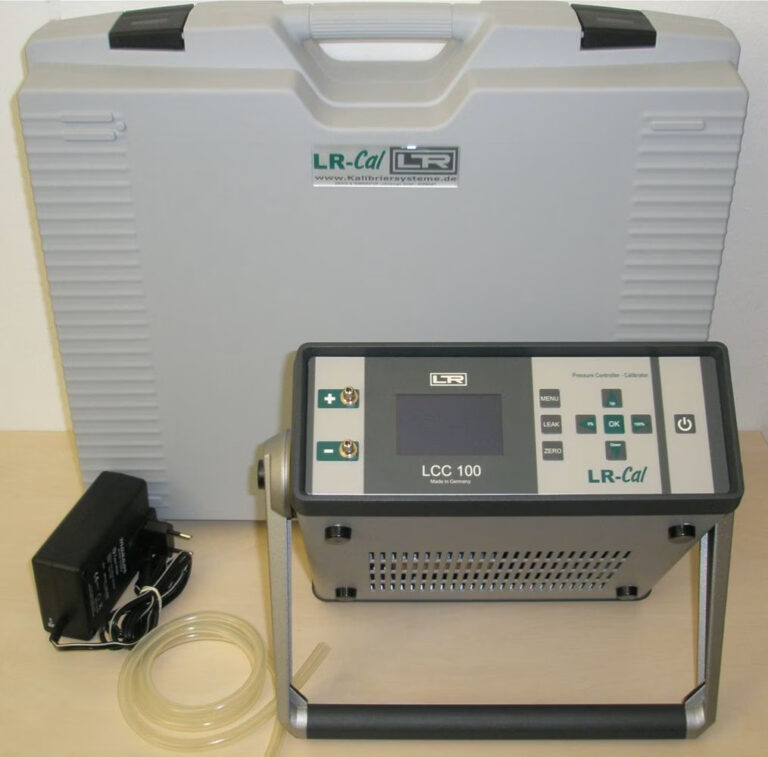

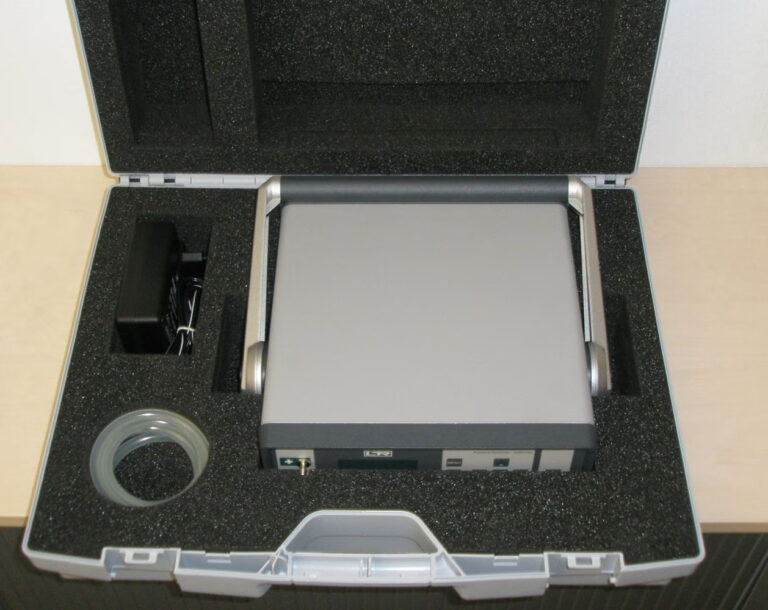

LCC-100-KOFFER | Sturdy storage and transport case with molded foam insert |
|
LCC-100-NT | Plug-in charger 90...265 VAC |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| LCC-100-1 | Electronic Pressure- and Vacuum Controller and Calibrator LR-Cal LCC 100 for low pressures. Range: 1 mbar | Delivery time from 12 weeks | from 7 555$ |
-
+
|
|
| LCC-100-10 | Electronic Pressure- and Vacuum Controller and Calibrator LR-Cal LCC 100 for low pressures. Range: 10 mbar | Delivery time from 12 weeks | from 7 555$ |
-
+
|
|
| LCC-100-100 | Electronic Pressure- and Vacuum Controller and Calibrator LR-Cal LCC 100 for low pressures. Range: 100 mbar | Delivery time from 12 weeks | from 7 555$ |
-
+
|
|
| LCC-100-1000 | Electronic Pressure- and Vacuum Controller and Calibrator LR-Cal LCC 100 for low pressures. Range: 1000 mbar | Delivery time from 12 weeks | from 7 555$ |
-
+
|
|
| LCC-100-KOFFER | Carrying case | Delivery time from 12 weeks | from 158$ |
-
+
|
|
| LCC-100-NT | Spare: power supply 90...264 VAC | Delivery time from 12 weeks | from 188$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LCC 100 using the special form.
You can buy Leitenberger LCC 100 in UAE at a price starting from 7555 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LCC 100 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
