Leitenberger LDM 70-E25

Photo Leitenberger LDM 70-E25 Description of LR-Cal LDM 70-E25 Specifications LR-Cal LDM 70-E25 Prices for Leitenberger LDM 70-E25 User Manual for Leitenberger LDM 70-E25 Related instruments to Leitenberger LDM 70-E25

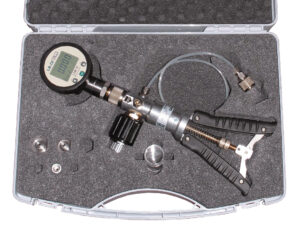

LR-Cal LDM 70-E25 Reference digital pressure gauge

LR-Cal LDM 70-E25 Reference digital pressure gauge
LR-Cal LDM 70-E25 Reference digital pressure gauge
  • Digital pressure gauge
  • Accuracy ±0.125% BFSL
  • 0…100 mbar to 0…600 bar
  • Display rotatable
  • Battery operated (2 x ½-AA)
			int(26278)
NULL

Made in Germany. brand Leitenberger, model LDM 70-E25

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $368

Available

Available

Download the questionnaire
Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of LR-Cal LDM 70-E25

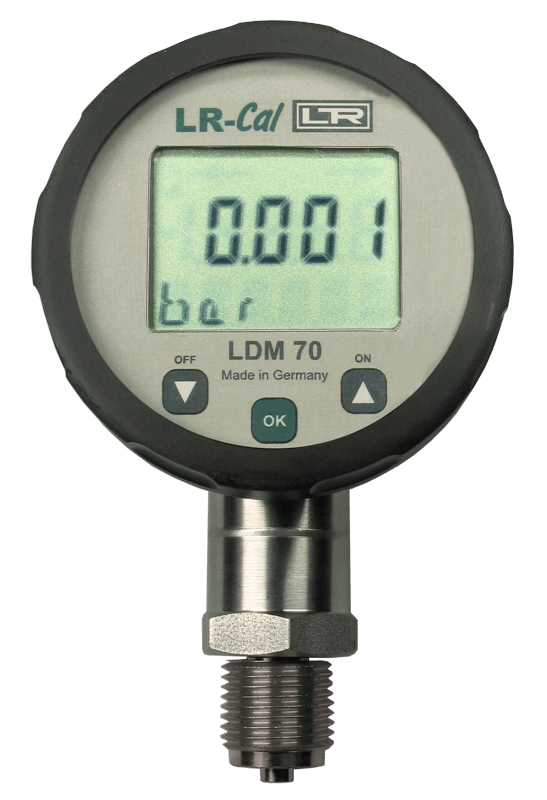

The display is via a clearly visible 4½-digit LCD display. The front cover with the display can be rotated, which ensures good readability even under unusual connection conditions. Operation is menu-driven via three membrane keys. In addition to displaying information on the measuring range, various pressure units and the number of decimal places can be set, as well as min. and max. values. Zero and span can be recalibrated, and the instrument can be reset to factory settings at any time.

The LR-Cal LDM 70-E25 digital fine-measurement manometer is ideally suited for on-site use together with our LR-Cal pressure test pumps. In conjunction with our LR-Cal pressure comparison test pumps (spindle pumps), it is also very suitable for operation in the laboratory and in the workshop.

Features:

  • Compact design (NG 70)
  • Battery operated
  • Accuracy ±0.125% BFSL (corresponds to ±0.25% FS according to IEC 60770)
    (Measuring ranges <400 mbar: ±0.25% BFSL, corresponds to ±0.5% FS according to IEC 60770)
  • 4½-digit LCD display (digit height 11 mm)
  • 6-digit additional display to show the pressure unit
  • Pressure unit selectable: bar/mbar, psi, mWC, inHg, cmHg/mmHg, kPa/MPa
  • Good vibration and shock resistance
  • Protection class IP 65
  • Rotatable display, thus good readability in all positions
  • Pressure ranges from 0…100 mbar to 0…600 bar, as well as vacuum and absolute pressure
  • Integrated minimum and maximum value memory

Technical specifications of LR-Cal LDM 70-E25

Nominal case diameter DS 70
Accuracy *) ±0.125% BFSL (ranges ≤0.4 bar ±0.25% BFSL)
(equal to ±0.25% FS (ranges ≤0.4 bar ±0.5% FS) according to IEC 60770)
Pressure port 1/2″ BSP male or 1/4″ BSP male or 1/2″ NPT male or 1/4″ NPT male
Measuring rate 5 per second
Thermal effects
(Offset and Span)		 Range -1…0 bar: Tolerance band ≤±0.75 FS in compensated range -20…+85°C
Range ≤0.4 bar: Tolerance band ≤±1% FS in compensated range 0…70°C
Range >0.4 bar: Tolerance band ≤±0.75% FS in compensated range -20…+85°C
Permissible temperatures Medium: -20…+85°C; Ambient: -20…+70°C; Storage: -30…+80°C
Housing material PA 6.6 Polycarbonate
Pressure port material Stainless steel 1.4404
Diaphragm material Stainless steel 1.4571
Gasket material FKM
Display LCD, visible size 40×30 mm, 4 1/2 digit 7 segment main display, digit height 11 mm, range ±19999; 6-digit 14 segment additional display, digit height 7.5 mm
Electromagnetic compatibility Emission and immunity according to EN 61236
Mechanical stability Vibration: 5 g RMS (20…2000 Hz); Shock: 100 g / 11 ms
Power supply 2 x 3.6 V ½ AA lithium batteries
Data memory EEPROM (non-volatile)
Ingress protection IP 65
Installation position any (the instrument is calibrated in vertical position with pressure port down. If this position is changed on installation, there can be slight deviations in the zero-point.
Weight 300 g
A/D-converter resultion 10 bit
Operational life >100 x 106 pressure cycles
Battery life time approx. 5 years in standby mode
Expand Table

Prices for

Model Description Availability Price Qty Buy
LDM70-E25-8100-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,1 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8160-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,16 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8250-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,25 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8400-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,4 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0000-6-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,6 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0001-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0001-6-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1,6 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0002-5-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...2,5 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0004-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...4 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0006-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...6 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0010-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...10 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0016-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...16 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0025-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...25 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0040-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...40 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0060-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...60 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0100-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...100 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0160-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...160 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0250-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...250 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0400-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...400 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0600-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...600 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0000-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...0 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-9000-6-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+0,6 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0001-5-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+1,5 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0003-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+3 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0005-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+5 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0009-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+9 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0015-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+15 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0024-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+24 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0039-0-G12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+39 bar. conn. 1/2" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8100-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,1 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8160-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,16 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8250-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,25 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8400-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,4 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0000-6-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,6 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0001-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0001-6-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1,6 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0002-5-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...2,5 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0004-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...4 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0006-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...6 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0010-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...10 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0016-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...16 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0025-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...25 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0040-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...40 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0060-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...60 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0250-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...100 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0160-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...160 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0250-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...250 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0400-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...400 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0600-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...600 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0000-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...0 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-9000-6-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+0,6 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0001-5-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+1,5 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0003-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+3 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0005-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+5 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0009-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+9 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0015-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+15 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0024-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+24 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-0039-0-G14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+39 bar. conn. 1/4" BSP male Delivery time from 12 weeks from 368$
-
+
LDM70-E25-8100-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,1 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-8160-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,16 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-8250-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,25 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-8400-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,4 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0000-6-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,6 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0001-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0001-6-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1,6 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0002-5-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...2,5 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0004-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...4 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0006-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...6 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0010-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...10 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0016-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...16 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0025-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...25 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0040-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...40 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0060-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...60 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0100-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...100 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0160-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...160 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0250-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...250 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0400-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...400 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0600-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...600 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0000-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...0 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-9000-6-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+0,6 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0001-5-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+1,5 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0003-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+3 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0005-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+5 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0009-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+9 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0015-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+15 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0024-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+24 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0039-0-N12 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+39 bar. conn. 1/2" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-8100-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,1 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-8160-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,16 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-8250-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,25 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-8400-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,4 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0000-6-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...0,6 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0001-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0001-6-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...1,6 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0002-5-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...2,5 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0004-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...4 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0006-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...6 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0010-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...10 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0016-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...16 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0025-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...25 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0040-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...40 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0060-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...60 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0100-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...100 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0160-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...160 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0250-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...250 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0400-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...400 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0600-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: 0...600 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0000-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...0 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-9000-6-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+0,6 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0001-5-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+1,5 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0003-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+3 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0005-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+5 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0009-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+9 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0015-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+15 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0024-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+24 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
LDM70-E25-0039-0-N14 Digital Test Pressure Gauge Accuracy ±0.125% BFSL, with 4 1/2-digit LCD. Case diameter DS 70. Range: -1...+39 bar. conn. 1/4" NPT male Delivery time from 12 weeks from 376$
-
+
Expand Table

User Guide and Instruction manual for Leitenberger LDM 70-E25

You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LDM 70-E25 using the special form.

You can buy Leitenberger LDM 70-E25 in UAE at a price starting from 368 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . Leitenberger LDM 70-E25 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.

See also: Digital pressure gauges,  Pressure Calibrators,  Pressure Gauges

Generate an article by selecting the parameters below
Article:
Quantity:
-
+
Clear
I know the article / Need help
Get Offer
The article is not fully generated. Please double-check the selected values.
