LR-Cal LDM 80 Precision pressure reference instrument

Precision digital pressure gauge
Accuracy ±0.1% FS or ±0.2% FS
0…100 mbar to 0…3,000 bar
Measurement and indication of the medium temperature
-10…+70°C ±1°C
USB interface
Chargeable Li-Ion battery

			int(26293)
NULL

Made in Germany. brand Leitenberger, model LDM 80

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $790

Available

Download the questionnaire

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

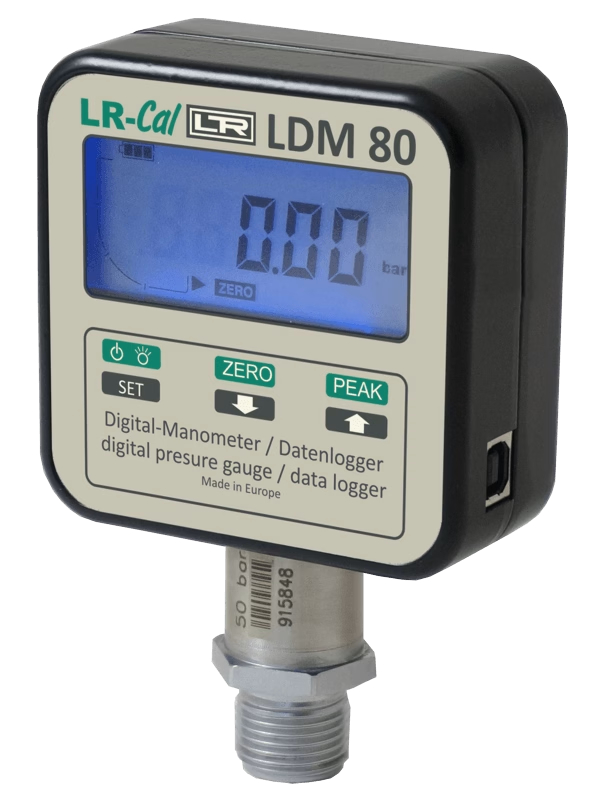

Description of LR-Cal LDM 80

The LR-Cal LDM 80 digital reference pressure gauge and data logger features outstanding long-term stability, a 16-bit A/D converter and advanced microprocessor control. It is ideal for reference pressure measurements, as well as testing and calibration tasks.

Features

Accurate pressure measurements from 0…100 mbar to 0…3,000 bar
Accuracy ±0.2% FS or ±0.1% FS
Data recording (data logger) up to 60,000 values
Measurement and display of the medium temperature range -10…+70°C, accuracy ±1°C, resolution 0.1°C
Large, excellent readable LCD display, incl. bargraph display, background illumination
USB interface as standard
10 different pressure units selectable
Programmable digital filter
Zeroing at the touch of a button (“Zero function”)
Min. and max. value storage (“PEAK function”)
Pressure connection 1/2″ BSP bottom male thread (from 1,000 bar with 60° sealing cone)

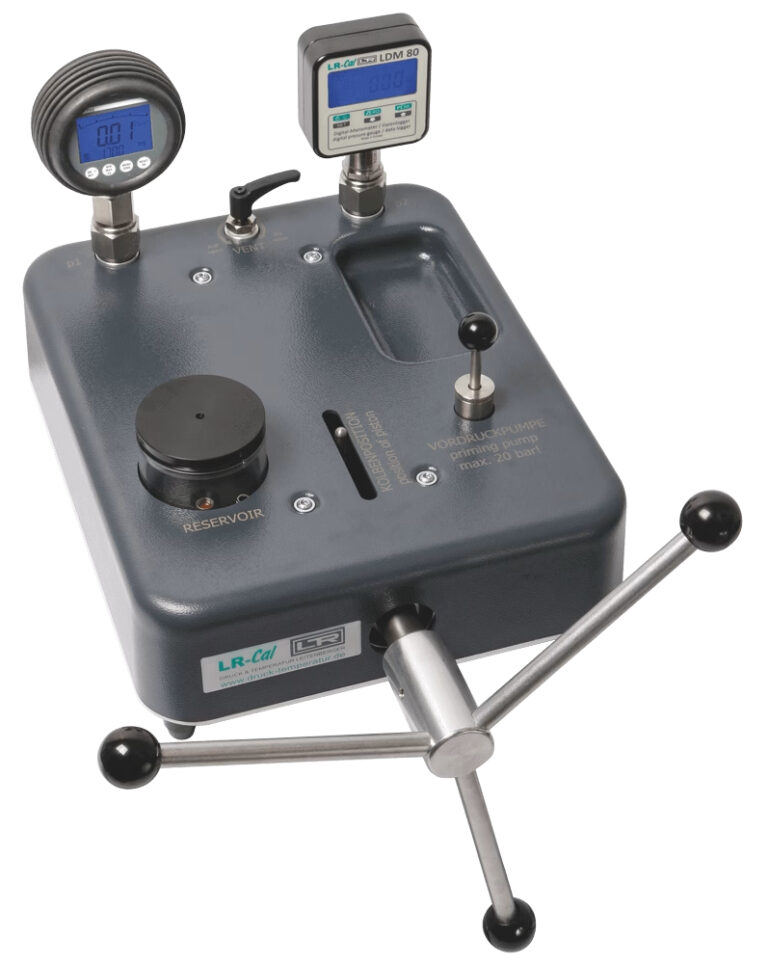

The LR-Cal LDM 80 precision digital manometer, together with the LR-Cal LPP 10, LR-Cal LPP 40 and LR-Cal LPP 60 (pneumatic) and LR-Cal LPP 700 and LR-Cal LPP 1000 (hydraulic) calibration hand test pumps, is ideally suited for on-site use. In conjunction with the LR-Cal LSP comparative test equipment (spindle pumps), it is also very well suited for operation in the
laboratory and in the workshop.

The device measures not only the pressure but also the medium temperature. The data logger function stores up to 60,000 measured values (either 60,000 pressure values or 30,000 pressure values plus 30,000 temperature values). The user can select or switch between ten pressure units, change the display resolution, and program a digital filter. This makes the LR-Cal LDM 80 digital fine-measurement manometer particularly well suited for measurement and calibration tasks of all kinds.

A practical carrying case, a USB connection cable, a plug-in charger for the built-in rechargeable battery and a traceable factory calibration certificate are included as standard.

As standard, the LR-Cal LDM 80 digital reference pressure gauge and data logger is equipped with a USB interface. Optionally, the data can be transmitted wirelessly, to a PC or laptop. An optional version with pressure switch test function and connection is also available.

Optionally, the LR-Cal LDM 80 precision digital manometer can be featured with

with connection socket and connection cable for pressure switch tests

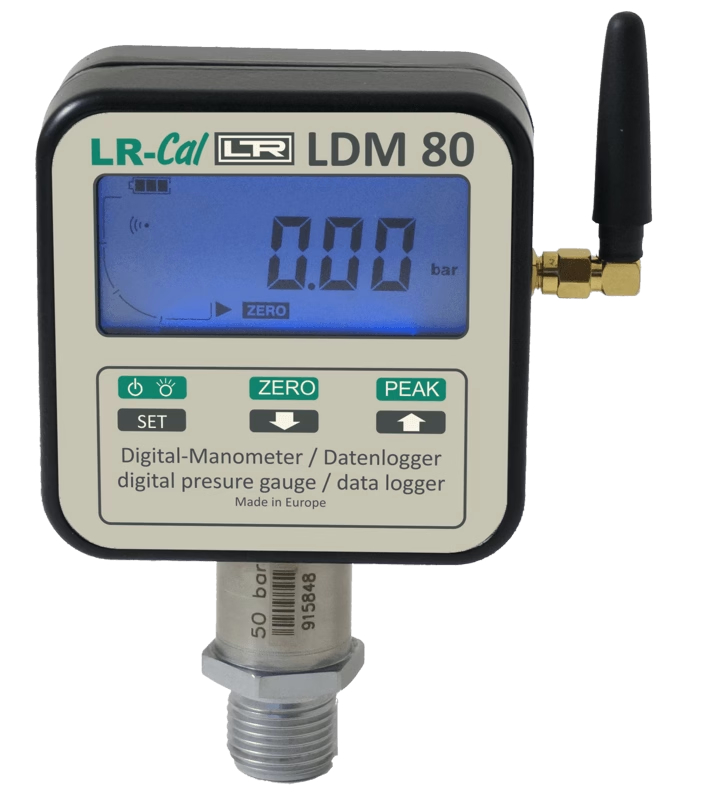

with antenna for wireless data transmission

For gentle application, we recommend the rubber protective cap, code LDM80-GK, which is available as an accessory.

Technical specifications of LR-Cal LDM 80

Accuracy	±0.1% FS with option LDM80-KL01; ±0.2% without this option
Internal resolution	65,000 digits
Measuring rate (if digital filter is set to zero)	10 per second (every 100 ms a measurement)
Filter	Programmable digital filter (for stabilisation of displayed values also at fluctuating pressure values etc.)
Temperature measurement	Resolution 0.1°C, Accuracy ±1°C (Range -10…+70°C, ambient temp. 0…50°C, temperature units °C + °F)
Reference temperature	+23°C
Working temperature	-10…+70°C
Storage temperature	-10…+80°C
Temperature influence	≤±0.002°C / 1°C
Display	LCD, figures height 13 mm, programmable backlight
Programmable resolution	1, 2, 5, 10
Interface	USB 2.0 (on PC side virtual COM port, adjustable baud rate 19200, 9600 or 4800) OPTIONAL: WIRELESS 433 MHz, RF transmission 200 m in free air, max. 10 transmissions per sec.
ZEROing	Via key press, up to 50% FS
Maximal/minimal values	PEAK-functions, active for positive or negative pressure, 10 measurements per sec.
Pressure units (selectable)	bar, mbar, psi, kPa, kg/cm², mHg, mmHg, mmH2O, mH2O
Temperature units (selectable)	°C, °F
Data logger	max. storage frequency 1 value per second; Capacity max. 60,000 values (60,000 pressure values or 30,000 pressure values plus 30,000 temperature values)
Supply	Built-in Lithium-Ion battery 3.7 V (size 14500, up to about 3 months autonomy without charging, if backlight is set to zero and without data transmissions. Charging time apporox. 8 hours (via PC/Laptop or supplied USB charger)).
Pressure port	1/2″ BSP male thread, recommended seal: USIT A 63-18 Pressure ranges ≥ 1,000 bar: with one of the supplied sealing cones 60° Optional: 1/2″ NPT male, or for pressure ranges up to 700 bar also 1/4″ BSP male or 1/4″ NPT male
Pressure limits	Static pressure 100% FS, max. permissible pressure up to 150% FS, burst pressure >300% FS; at highly dynamic pressure max. 75% v.E.
Pressure port mounting	Tightening wrench 27 mm, tightening torque 28 Nm
Protection degree	IP 40
Materials	Indicator housing: black coated aluminium, pressure sensor and port: stainless steel

Expand Table

Accessories for

Photo	Model	Description

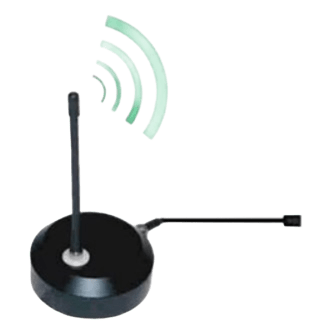

	PC-WIRELESS	WIRELESS receiving antenna for connection to PC/laptop via USB. The device option art.no. LDM80-WF is required.

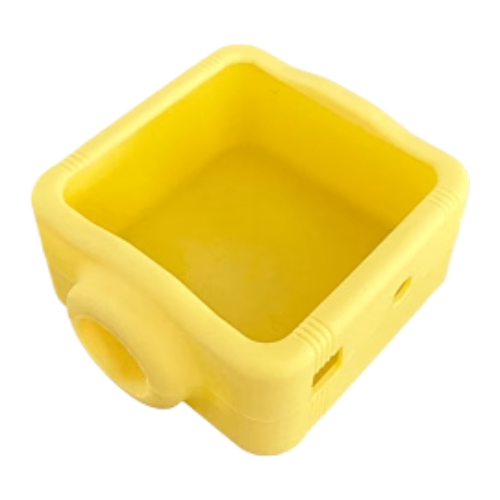

	LDM80-GK	Protective rubber cap (yellow)

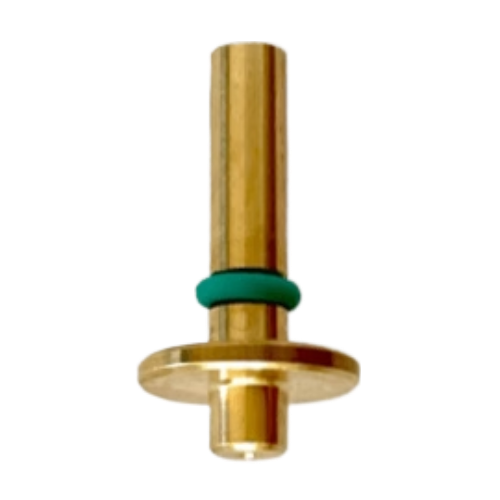

	VRS-G12	Reduces the internal volume of the pressure port, only required when used with LR-Cal pneumatic pressure test pumps
	LHM-LDM80-LADEGERAET	Plug-in charger 110...240 VAC Connection to USB socket of the device (Note: 1 charger is already included in the scope of delivery of the device).
	TLDMM-DK	Sealing cone 60° for insertion into the 1/2" BSP pressure connection for pressure ranges of 1,000 bar and above (2 pieces already included in the standard scope of delivery)

Prices for

Model	Description	Availability	Price	Qty
LDM80-8010	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…100 mbar	Delivery time from 12 weeks	from 852$	- +
LDM80-8025	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…250 mbar	Delivery time from 12 weeks	from 852$	- +
LDM80-8050	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…500 mbar	Delivery time from 12 weeks	from 852$	- +
LDM80-0001	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0002	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…2,5 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0005	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…5 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0010	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…10 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0020	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…20 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0050	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…50 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0100	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…100 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0250	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…250 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0350	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…350 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0500	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…500 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-0700	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…700 bar	Delivery time from 12 weeks	from 786$	- +
LDM80-1000	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1000 bar	Delivery time from 12 weeks	from 836$	- +
LDM80-1500	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1500 bar	Delivery time from 12 weeks	from 836$	- +
LDM80-2000	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…2000 bar	Delivery time from 12 weeks	from 836$	- +
LDM80-2500	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0...2500 bar	Delivery time from 12 weeks	from 990$	- +
LDM80-3000	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0...3000 bar	Delivery time from 12 weeks	from 1 356$	- +
LDM80-1010	Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+1 bar	Delivery time from 12 weeks	from 877$	- +
LDM80-1025	Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+2,5 bar	Delivery time from 12 weeks	from 877$	- +
LDM80-1050	Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+5 bar	Delivery time from 12 weeks	from 877$	- +
LDM80-1020	Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+20 bar	Delivery time from 12 weeks	from 877$	- +
LDM80-1040	Digital Test Pressure Gauges LR-Cal LDM 80, range: -1...+40 bar	Delivery time from 12 weeks	from 962$	- +
LDM80-1060	Digital Test Pressure Gauges LR-Cal LDM 80, range: -1…+60 bar	Delivery time from 12 weeks	from 962$	- +
LDM80-8050-ABS	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…0,5 bar abs.	Delivery time from 12 weeks	from 1 067$	- +
LDM80-0001-ABS	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…1 bar abs.	Delivery time from 12 weeks	from 1 067$	- +
LDM80-0002-ABS	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…2,5 bar abs.	Delivery time from 12 weeks	from 1 067$	- +
LDM80-0005-ABS	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…5 bar abs.	Delivery time from 12 weeks	from 1 067$	- +
LDM80-0010-ABS	Digital Test Pressure Gauges LR-Cal LDM 80, range: 0…10 bar abs.	Delivery time from 12 weeks	from 1 067$	- +
PC-WIRELESS	Wireless receiver for PC/Laptop (via USB), for up to 5 LR-Cal WIRELESS devices	Delivery time from 12 weeks	from 377$	- +
TLDMM-DK	SPARE PART: Sealing cone 60°, for the pressure port, for ranges from 1000 bar	Delivery time from 12 weeks	from 31$	- +
VRS-G12	Volume reducer, to be used with test pump LR-Cal LPP 40	Delivery time from 12 weeks	from 40$	- +
LDM80-GK	ACCESSORY: Rubber cup, yellow, for LR-Cal LDM 80	Delivery time from 12 weeks	from 22$	- +
LHM-LDM80-LADEGERÄT	SPARE PART: battery charger (battery charger)	Delivery time from 12 weeks	from 132$	- +

Expand Table

User Guide and Instruction manual for Leitenberger LDM 80

You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LDM 80 using the special form.
