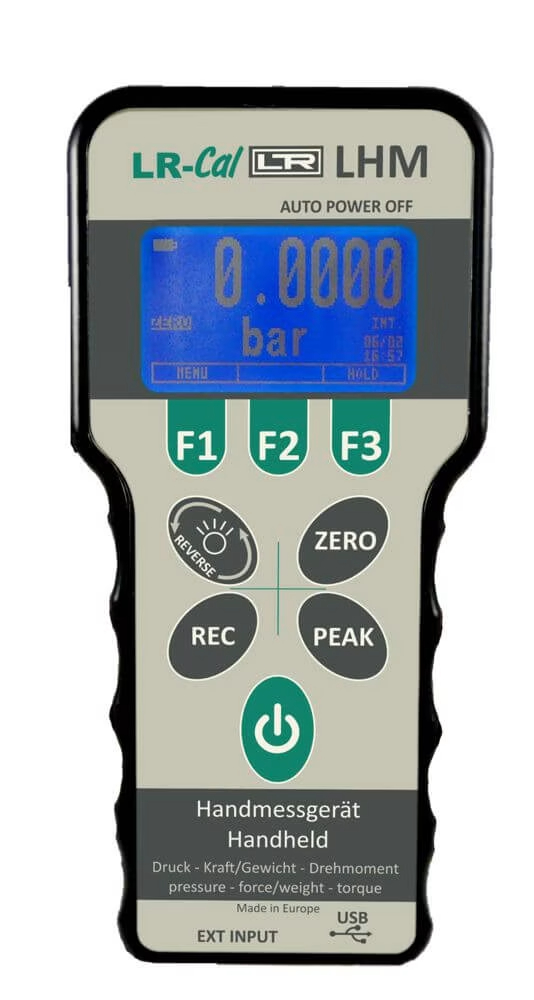

LR-Cal LHM Handheld measuring device for force, torque and pressure

Internal sensors for force or pressure
External sensors for torque and pressure
Programmable filter and average value functions
Up to 7 external sensors (automatic detection), also mixed (torque, force/weight, pressure)
Can be calibrated, adjusted and linearized

			int(26301)
NULL

Made in Germany. brand Leitenberger, model LHM

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $762

Available

Download the questionnaire

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of LR-Cal LHM

The particularly versatile and high-precision handheld LR-Cal LHM is not only suitable for highly accurate measurements of pressures, forces, weights and torques on site, but above all for calibration and adjustment tasks – mobile and in the laboratory.

The analog/digital converter processes 50,000 digits, the internal sensors and the available external sensors (2mv/V) can be calibrated and linearized menu-driven.

Features

Accuracy torque: ±0.1% FS or ±0.2% FS
Accuracy force: ±0.05% FS
Accuracy pressure: ±0.05% FS or ±0.1% FS
Sturdy and handy aluminum housing
Programmable measurement rate, up to 4,800 measurements per second
Peak value memory, programmable “First PEAK” detection
Data logger (130,000 measured values)
15 pressure units, 9 force/weight units, 8 torque units
Free software LR-Cal LDM-COM

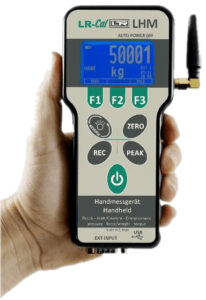

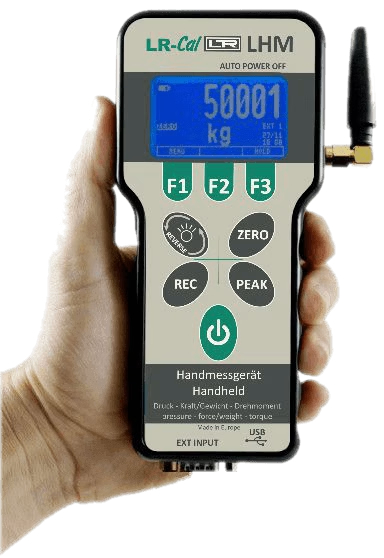

Optional WIRELESS data transmission

Model chart of LR-Cal LHM

Pressure measurement

LR-Cal LHM with internal pressure sensor

Accuracy ±0.05% FS (with option LHM-KL005) or ±0.1% FS incl. factory certificate of calibration
Option LHM-AZERT: DAkkS-approved ACCREDIA certificate (instead of factory certificate)
Accessory LPP-10-PN-STECK: Push&Pull Plug connector connection for pneumatic hose 4 x 2.5 mm

Code	Measuring range	Code	Measuring range
LHM-0100-GP	0…100 mbar gauge pressure
LHM-0500-GP	0…500 mbar gauge pressure	LHM-0500-AP	0…500 mbar absolute pressure
LHM-1000-GP	0…1 bar gauge pressure	LHM-1000-AP	0…1 bar absolute pressure
LHM-2500-GP	0…2,5 bar gauge pressure	LHM-2500-AP	0…2,5 bar absolute pressure
LHM-5000-GP	0…5 bar gauge pressure	LHM-5000-AP	0…5 bar absolute pressure
LHM-0100-VA	-100…+100 mbar	LHM-0100-DP	0…100 mbar differential pressure
LHM-0500-VA	-500…+500 mbar	LHM-0500-DP	0…500 mbar differential pressure
LHM-1000-VA	-1…+1 bar	LHM-1000-DP	0…1 bar differential pressure
LHM-2500-VA	-1…+2,5 bar	LHM-2500-DP	0…2,5 bar differential pressure
LHM-5000-VA	-1…+5 bar	LHM-5000-DP	0…5 bar differential pressure

Expand Table

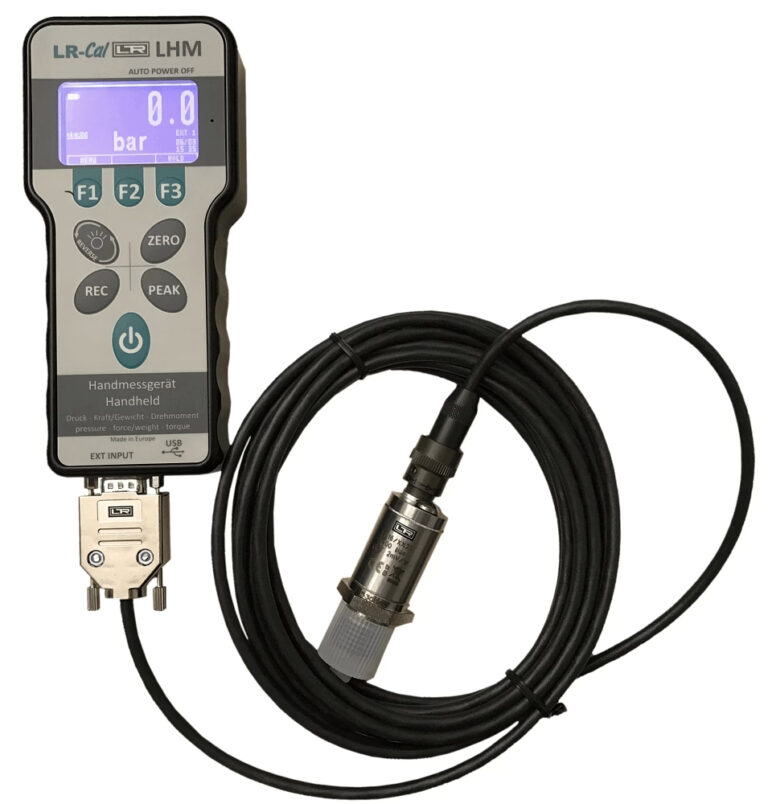

External pressure sensors LR-Cal LHM-TP16

Accuracy ±0.05% FS (with option LHM-P-KL005) or ±0.1% FS
Pressure port 1/2″ BSP male (from 1,500 bar double sealing-cone TLDMM-DK recommended)
Option LHM-P-AZERT: DAkkS-approved ACCREDIA certificate (instead of factory certificate)

Code	Measuring range	Code	Measuring range
LHM-P-0010	0…10 bar	LHM-P-0350	0…350 bar
LHM-P-0020	0…20 bar	LHM-P-0700	0…700 bar
LHM-P-0050	0…50 bar	LHM-P-1000	0…1,000 bar
LHM-P-0100	0…100 bar	LHM-P-1500	0…1,500 bar
LHM-P-0250	0…250 bar	LHM-P-2000	0…2,000 bar

Expand Table

Torque measurement

External torque sensors LR-Cal LHM-TRS

Accuracy ±0.1% FS (with option LHM-TRS-KL01) or ±0.2% FS incl. DAkkS-approved ACCREDIA certificate for clockwise rotation for ranges from 5 Nm (smaller ranges with factory calibration certificate)
Option LHM-TRS-AZERT: DAkkS-approved ACCREDIA for anticlockwise rotation for ranges from 5 Nm

Code	Measuring range	Code	Measuring range
LHM-TRS-8005	0…0.5 Nm	LHM-TRS-0050	0…50 Nm
LHM-TRS-0002	0…2.5 Nm	LHM-TRS-0100	0…100 Nm
LHM-TRS-0005	0…5 Nm	LHM-TRS-0250	0…250 Nm
LHM-TRS-0010	0…10 Nm	LHM-TRS-0500	0…500 Nm
LHM-TRS-0025	0…25 Nm	LHM-TRS-1000	0…1,000 Nm

Expand Table

Force+weight measurement

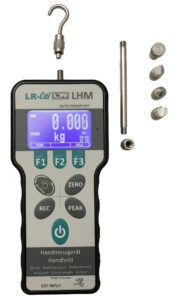

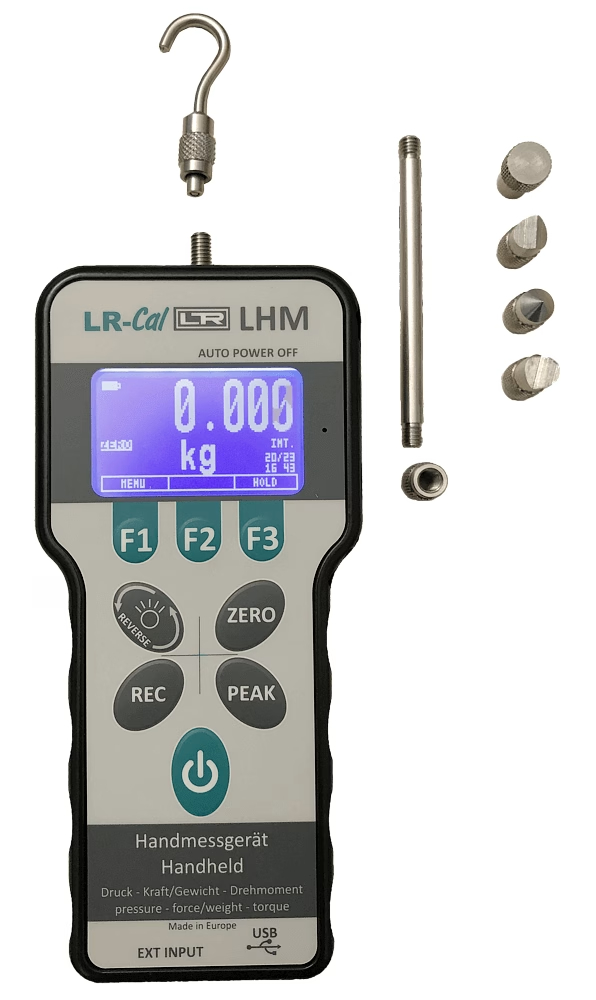

LR-Cal LHM with internal force sensor

Accuracy ±0.05% FS., incl. ACCREDIA (DAkkS) certificate for tensile load
Instrument housing made from aluminum, black coated (instead of fiberglass-reinforced technopolymer)
Incl. 1 toolkit LHM-N-KIT (hook + pushers) for tensile and compressive load
Option LHM-N-A-D: ACCREDIA (DAkkS) certificate for compressive load

Code	Measuring range	Code	Measuring range
LHM-0010-N	0…10 N	LHM-0500-N	0…500 N
LHM-0025-N	0…25 N	LHM-1000-N	0…1,000 N
LHM-0050-N	0…50 N	LHM-3000-N	0…3,000 N
LHM-0100-N	0…100 N	LHM-5000-N	0…5,000 N
LHM-0250-N	0…250 N

Expand Table

Technical specifications of LR-Cal LHM

Supply:	Built-in chargeable Li-Ion battery Akku, 3.7 V, 750 mA, type 14500
Operating time with fully charged battery:	approx. 24 h (if backlight is switched off and no data logging)
Graphic display:	LCD 128 x 64 dots with 3 level of back lightning, 180° rotatable on key press
Selectable pressure units:	bar, mbar, psi, Mpa, kPa, Pa, mH2O, kg/cm², mmHg, cmHg, inHg, atm, mHg, mmH2O
Selectable force/weight units:	kg, g, t, N, daN, kN, MN, lb, klb
Selectable torque units:	Nm, Nmm, kgm, kNm, in/lbf, ft/lbf, gcm, kgmm
Selectable displacement units:	mm, inch
Internal resolution:	24 bit
Readings per second (programmable):	5, 10, 20, 50, 100, 300, 600, 1200, 2400 or 4800
Max. USB transmission rate:	50 ms (in continuous mode)
Digital filter (moving average):	1, 2, 4, 8, 16 or 32 points; programmable time value
Programmable resolution:	1, 2, 5, 10, 20, 50 or 100
ZERO function:	100% FS, via key press
PEAK function:	Positive and negative, with programmable “First PEAK” detection
Data logger:	130,000 values, programmable (1 s to 24 h) or key press
Reference temperature:	23°C
Working temperature:	10…50°C
Storage temperature:	10…60°C
Protection degree:	IP 40
Housing material:	Glassfiber-reinforced technopolymer (Version with integrated force sensor: black coated aluminum)
Dimensions:	176 x 79 x 32 mm
Max. number of external sensors:	7 (automatic recognition)
Interface:	USB 2.0 (optional: WIRELESS, if ordered together with option code LHM-WF)

Expand Table

Accessories for

Photo	Model	Description

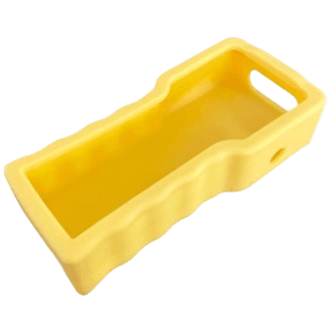

	LHM-GK	Rubber protective cap for the LR-Cal LHM hand-held meter. This protects the device from scratches and shocks.

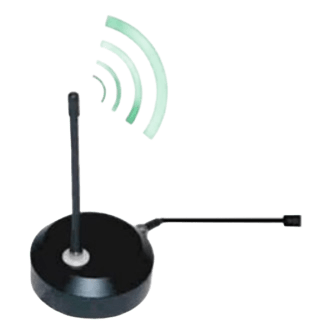

	PC-WIRELESS	WIRELESS receiver (antenna) with USB connector for connection to PC or laptop.

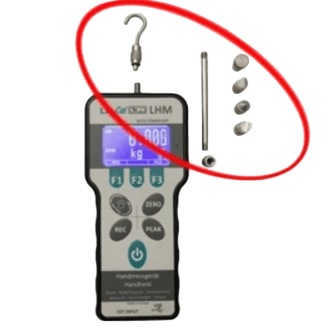

	LHM-N-KIT	Tool kit with hooks, plungers, etc., for tensile and compressive loads

Prices for

Model	Description	Availability	Price	Qty
LHM	Professional handheld indicator LR-Cal LHM acc. to datasheet "LHM" without internal sensor, incl. Transit case, USB cable and USB charger	Delivery time from 12 weeks	from 762$	- +
LHM-0100-GP	LR-Cal LHM with internal gauge pressure sensor ±0.1% FS. Range: 0…100 mbar	Delivery time from 12 weeks	from 1 167$	- +
LHM-0500-GP	LR-Cal LHM with internal gauge pressure sensor ±0.1% FS. Range: 0…500 mbar	Delivery time from 12 weeks	from 1 167$	- +
LHM-1000-GP	LR-Cal LHM with internal gauge pressure sensor ±0.1% FS. Range: 0…1 bar	Delivery time from 12 weeks	from 1 167$	- +
LHM-2500-GP	LR-Cal LHM with internal gauge pressure sensor ±0.1% FS. Range: 0…2,5 bar	Delivery time from 12 weeks	from 1 167$	- +
LHM-5000-GP	LR-Cal LHM with internal gauge pressure sensor ±0.1% FS. Range: 0…5 bar	Delivery time from 12 weeks	from 1 167$	- +
LHM-0500-AP	LR-Cal LHM with internal absolute pressure sensor ±0.1% FS. Range: 0…500 mbar	Delivery time from 12 weeks	from 1 358$	- +
LHM-1000-AP	LR-Cal LHM with internal absolute pressure sensor ±0.1% FS. Range: 0…1 bar	Delivery time from 12 weeks	from 1 358$	- +
LHM-2500-AP	LR-Cal LHM with internal absolute pressure sensor ±0.1% FS. Range: 0…2,5 bar	Delivery time from 12 weeks	from 1 358$	- +
LHM-5000-AP	LR-Cal LHM with internal absolute pressure sensor ±0.1% FS. Range: 0…5 bar	Delivery time from 12 weeks	from 1 358$	- +
LHM-0100-VA	LR-Ca l LHM with internal pressure/vacuum sensor ±0.1% FS. Range: -100…+100 mbar	Delivery time from 12 weeks	from 1 234$	- +
LHM-0500-VA	LR-Ca l LHM with internal pressure/vacuum sensor ±0.1% FS. Range: -500…+500 mbar	Delivery time from 12 weeks	from 1 234$	- +
LHM-1000-VA	LR-Ca l LHM with internal pressure/vacuum sensor ±0.1% FS. Range: -1…+1 bar	Delivery time from 12 weeks	from 1 234$	- +
LHM-2500-VA	LR-Ca l LHM with internal pressure/vacuum sensor ±0.1% FS. Range: -1…+2,5 bar	Delivery time from 12 weeks	from 1 234$	- +
LHM-5000-VA	LR-Ca l LHM with internal pressure/vacuum sensor ±0.1% FS. Range: -1…+5 bar	Delivery time from 12 weeks	from 1 234$	- +
LHM-0100-DP	LR-Cal LHM with internal differential pressure sensor ±0.1% FS. Range: 0…100 mbar	Delivery time from 12 weeks	from 1 234$	- +
LHM-0500-DP	LR-Cal LHM with internal differential pressure sensor ±0.1% FS. Range: 0…500 mbar	Delivery time from 12 weeks	from 1 234$	- +
LHM-1000-DP	LR-Cal LHM with internal differential pressure sensor ±0.1% FS. Range: 0…1 bar	Delivery time from 12 weeks	from 1 234$	- +
LHM-2500-DP	LR-Cal LHM with internal differential pressure sensor ±0.1% FS. Range: 0…2,5 bar	Delivery time from 12 weeks	from 1 234$	- +
LHM-5000-DP	LR-Cal LHM with internal differential pressure sensor ±0.1% FS. Range: 0…5 bar	Delivery time from 12 weeks	from 1 234$	- +
LHM-P-0010	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…10 bar rel.	Delivery time from 12 weeks	from 541$	- +
LHM-P-0020	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…20 bar rel.	Delivery time from 12 weeks	from 541$	- +
LHM-P-0050	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…50 bar abs.	Delivery time from 12 weeks	from 541$	- +
LHM-P-0100	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…100 bar abs.	Delivery time from 12 weeks	from 541$	- +
LHM-P-0250	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…250 bar abs.	Delivery time from 12 weeks	from 541$	- +
LHM-P-0350	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…350 bar abs.	Delivery time from 12 weeks	from 541$	- +
LHM-P-0500	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…500 bar abs.	Delivery time from 12 weeks	from 541$	- +
LHM-P-0700	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…700 bar abs.	Delivery time from 12 weeks	from 541$	- +
LHM-P-1000	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…1000 bar abs.	Delivery time from 12 weeks	from 569$	- +
LHM-P-1500	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…1500 bar abs.	Delivery time from 12 weeks	from 569$	- +
LHM-P-2000	External pressure sensor LHM-TP16 ±0.1% FS. Range: 0…2000 bar abs.	Delivery time from 12 weeks	from 569$	- +
LHM-0010-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…10 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-0025-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…25 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-0050-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…50 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-0100-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…100 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-0250-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…250 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-0500-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…500 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-1000-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…1000 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-3000-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…3000 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-5000-N	Professional handheld indicator LR-Cal LHM with internal force sensor ±0.05% FS, range: 0…5000 N	Delivery time from 12 weeks	from 1 781$	- +
LHM-TRS-8005	External torque sensor LHM-TRS ±0.2% FS, range: 0…0,5 Nm	Delivery time from 12 weeks	from 1 373$	- +
LHM-TRS-0002	External torque sensor LHM-TRS ±0.2% FS, range: 0…2,5 Nm	Delivery time from 12 weeks	from 1 373$	- +
LHM-TRS-0005	External torque sensor LHM-TRS ±0.2% FS, range: 0…5 Nm	Delivery time from 12 weeks	from 1 205$	- +
LHM-TRS-0010	External torque sensor LHM-TRS ±0.2% FS, range: 0…10 Nm	Delivery time from 12 weeks	from 1 205$	- +
LHM-TRS-0025	External torque sensor LHM-TRS ±0.2% FS, range: 0…25 Nm	Delivery time from 12 weeks	from 1 205$	- +
LHM-TRS-0050	External torque sensor LHM-TRS ±0.2% FS, range: 0…50 Nm	Delivery time from 12 weeks	from 1 166$	- +
LHM-TRS-0100	External torque sensor LHM-TRS ±0.2% FS, range: 0…100 Nm	Delivery time from 12 weeks	from 1 166$	- +
LHM-TRS-0250	External torque sensor LHM-TRS ±0.2% FS, range: 0…250 Nm	Delivery time from 12 weeks	from 1 166$	- +
LHM-TRS-0500	External torque sensor LHM-TRS ±0.2% FS, range: 0…500 Nm	Delivery time from 12 weeks	from 1 166$	- +
LHM-TRS-1000	External torque sensor LHM-TRS ±0.2% FS, range: 0…1000 Nm	Delivery time from 12 weeks	from 1 196$	- +
LHM-GK	Rubber cup, yellow, for LR-Cal LHM	Delivery time from 12 weeks	from 16$	- +
PC-WIRELESS	WIRELESS receiver for PC/Laptop, with USB connection	Delivery time from 12 weeks	from 377$	- +

Expand Table

User Guide and Instruction manual for Leitenberger LHM

You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LHM using the special form.
