Test pressure generation up to 10 bar (145 psi), switchable to Vacuum generation up to -0.85 bar (-25 inHg)
Made in Germany. brand Leitenberger, model LPP 10
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $470
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The LR-Cal LPP 10 pressure test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement. These low-pressure tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.

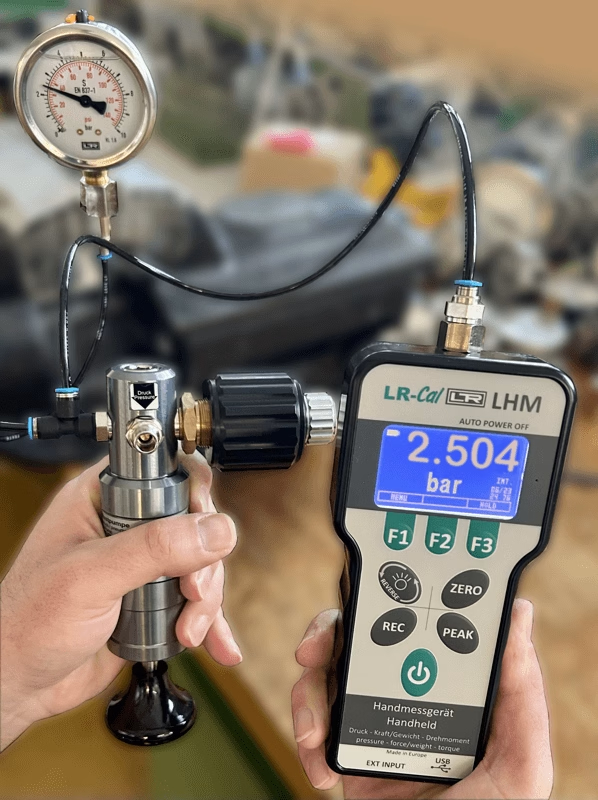

If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 10 pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, a check of the accuracy or an adjustment of the pressure gauge to be tested can be made.
Despite its very compact dimensions, the LR-Cal LPP 10 pressure test pump enables simple and accurate test pressure generation with the option of switching to vacuum generation. The LR-Cal LPP 10 has a fine adjustment valve for precise setting for accurate comparative testing. The maximum achievable pressure or vacuum depends on the connected test volume.
Due to the particularly smooth pressure generation and the integrated (internal) fine adjustment valve, very small positive or negative pressures in the mbar range can be set safely and precisely. The reference gauge and test specimen can be easily connected via a T-connector with hose connections.
| Pressure generation: | 0 to 10 bar = 0 to 145 psi, switchable to |
| Vacuum generation: | 0 to -0.85 bar = 0 to -25 inHg |
| Pressure ports (standard version): |
For reference measuring instrument: 1/2″ BSM female, with o-ring, via hose and t-piece For unit under test: 1/4″ female, with o-ring, via hose and t-piece |
| Medium: | Ambient air |
| Priming pressure: | Ram |
| High pressure: | Volume adjustment valve |
| Fine pressure adjustment: | Volume adjustment valve (very sensitive) |
| Volume per stroke: | approx. 0.038 cm³ |
| Dimensions: | 172 x 100 x 58 mm (without connection pieces and hoses) |
| Weight: | approx. 697 g (without connection pieces and hoses) |
| Order-Code: | LPP-10 |
Volume per stroke at the hand knob: approx. 0.038 cm³.
OEM version without any accessories: Order-code LPP-10-PUMPE
| Photo | Model | Description |
|---|---|---|
|
LPP-KOFFER | Transport and storage case |
|
SCHLACH-025ID-04AD | Pneumatic hose 4 x 2,5 mm by the meter |
|
LPP-ADAPTER-BSP | Set of BSP thread adapter and set of O-ring seals for test piece connection 1/4" BSP m x 1/8" BSP female 1/4" BSP m x 3/8" BSP female 1/4" BSP m x 1/2" BSP female 1/4" BSP m x 1/2" BSP male |
|
LPP-O-RING-BSP | Spare part for BSP thread adapter set order-code LPP-ADAPTER-BSP: Set of O-rings |
|
LPP-ADAPTER-NPT | Set of thread adapters NPT thread and set of O-ring seals for test item connection 1/4" BSP m, x 1/8" NPT female 1/4" BSP m x 1/4" NPT female 1/4" BSP m x 3/8" NPT female 1/4" BSP m x 1/2" NPT female |
|
LPP-ADAPTER-M | Thread adapter set metric, set of O-ring seals and "Minimess® 1620" for test piece connection 1/4" BSP m x M 12 x 1,5 female 1/4" BSP m x M 20 x 1,5 female 1/4" BSP m x Minimess® 1620 female |
|
SCHLAUCH-ADAPT-6-4 | Pneumatic hose adapter from 6 mm outer diameter to 4 mm outer diameter |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|

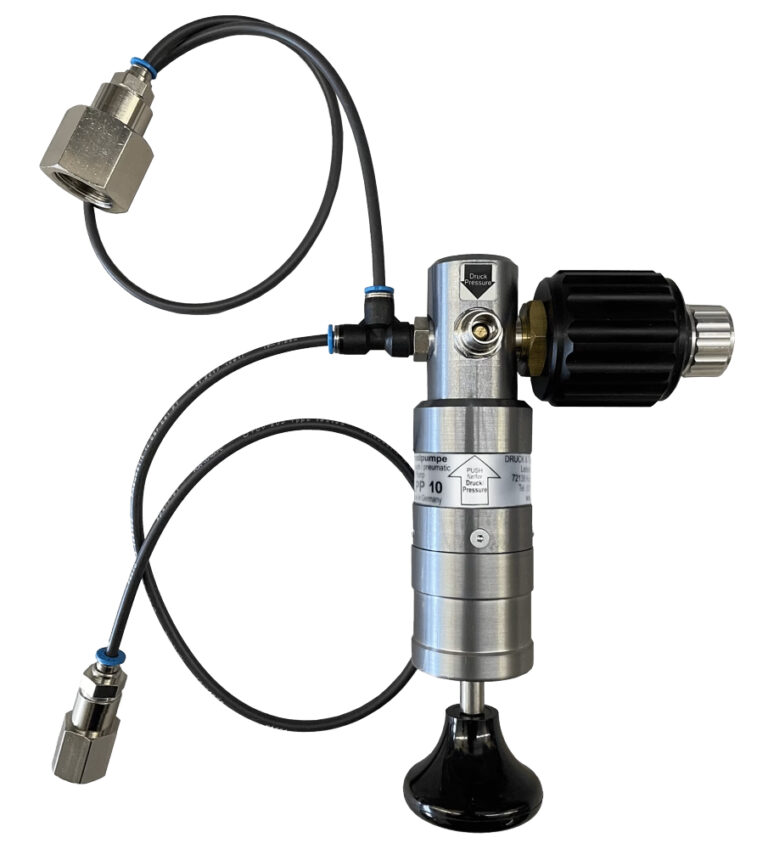

| LPP-10 | Pneumatic hand test pump for generating pressure up to +10 bar, switchable for generating vacuum up to -0.85 bar, without case and acc. Incl. T-piece, 2 x hose each 0.5 m, quick connectors and 1 adapter for reference (1/2" BSP female) and 1 adapter for unit under test ( 1/4" BSP female) | Delivery time from 12 weeks | from 499$ |
-
+
|
|

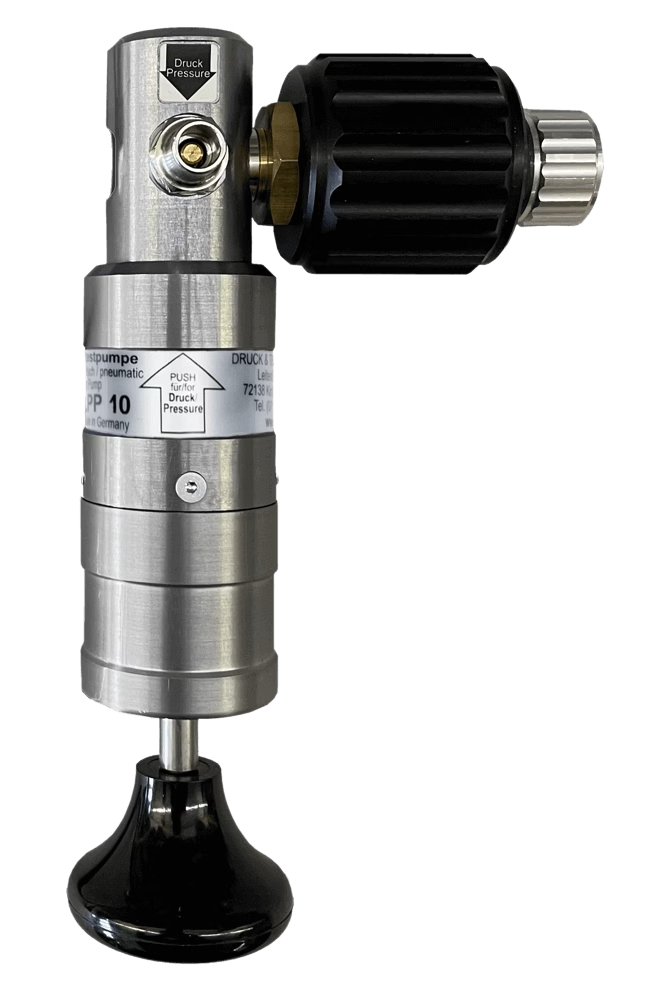

| LPP-10-PUMPE | Pneumatic hand test pump for generating pressure up to +10 bar, switchable for generating vacuum up to -0.85 bar. OEM version without any accessories, just the pump | Delivery time from 12 weeks | from 469$ |
-
+
|
|

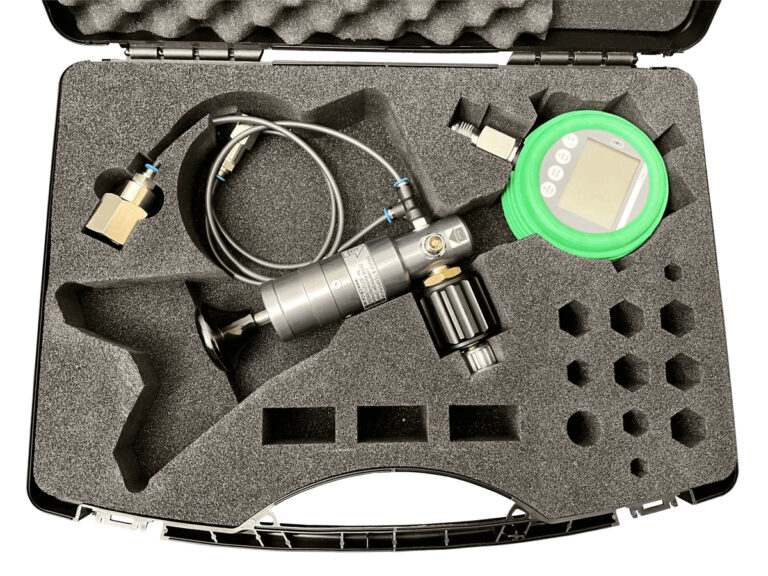

| LPP-KOFFER | Transit case with foams, suitable for LR-Cal LPP 10 and for accessories and reference measuring instruments | Delivery time from 12 weeks | from 120$ |
-
+
|
|
| SCHLAUCH-025ID-04AD | Pneumatic hose 4 x 2.5 mm per meter | Delivery time from 12 weeks | from 6$ |
-
+
|
|
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8" BSP F, 3/8" BSP F, 1/2" BSP F and 1/2" BSP M | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® 1620 | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8" NPT F, 1/4" NPT F, 3/8" NPT F and 1/2" NPT F | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-10-T-STUECK | T-piece, 1/8" BSP male thread for direct mounting to LR-Cal LPP 10 and two quick-fit hose connectors for hose 4 x 2 mm | Delivery time from 12 weeks | from 18$ |
-
+
|
|
| LPP-10-PN-STECK | Pull & Push quick hose connectors for hose 4 x 2 mm | Delivery time from 12 weeks | from 7$ |
-
+
|
|

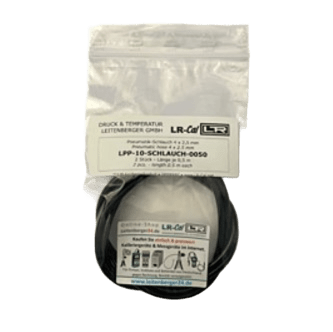

| LPP-10-SCHLAUCH-0050 | Set with 2 pcs. of pneumatic hose 4 x 2 mm, length 0.5 m | Delivery time from 12 weeks | from 7$ |
-
+
|
|

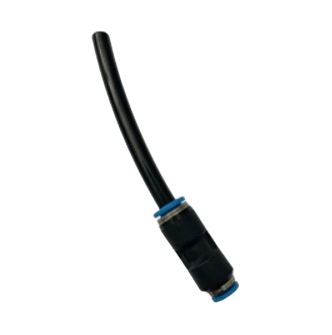

| SCHLAUCH-ADAPT-6-4 | Hose adapter from hose with 6 mm outer diam. To hose with 4 mm outer diam. | Delivery time from 12 weeks | from 5$ |
-
+
|
|
| 3000-ADAPT-I25 | Pressure port adapter to use the pump with LR-Cal Serie 3000 handheld | Delivery time from 12 weeks | from 36$ |
-
+
|
|
| LPP-10-ADAPT-G12 | Threaded adapter 1/2" BSP female for reference instrument to LPP-10-PN-STECK | Delivery time from 12 weeks | from 23$ |
-
+
|
|
| LPP-10-ADAPT-G14 | Threaded adapter 1/4" BSP female for test item to LPP-10-PN-STECK | Delivery time from 12 weeks | from 23$ |
-
+
|
|
| SET-O-RING-14X3.5 | 10 spare o-rings for LPP-10-ADAPT-G12 (14 x 3.5 NBR 70 shore) | Delivery time from 12 weeks | from 11$ |
-
+
|
|
| SET-O-RING-8X2.5 | 10 spare o-rings for LPP-10-ADAPT-G14 (8 x 2.5 NBR 70 shore) | Delivery time from 12 weeks | from 11$ |
-
+
|
|
| LPP-O-RING-BSP | Set of spare o-rings for adapter set code LPP-ADAPTER-BSP | Delivery time from 12 weeks | from 15$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 10 using the special form.
You can buy Leitenberger LPP 10 in UAE at a price starting from 470 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LPP 10 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
