Made in Germany. brand Leitenberger, model LPP 140-P
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $4 600
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

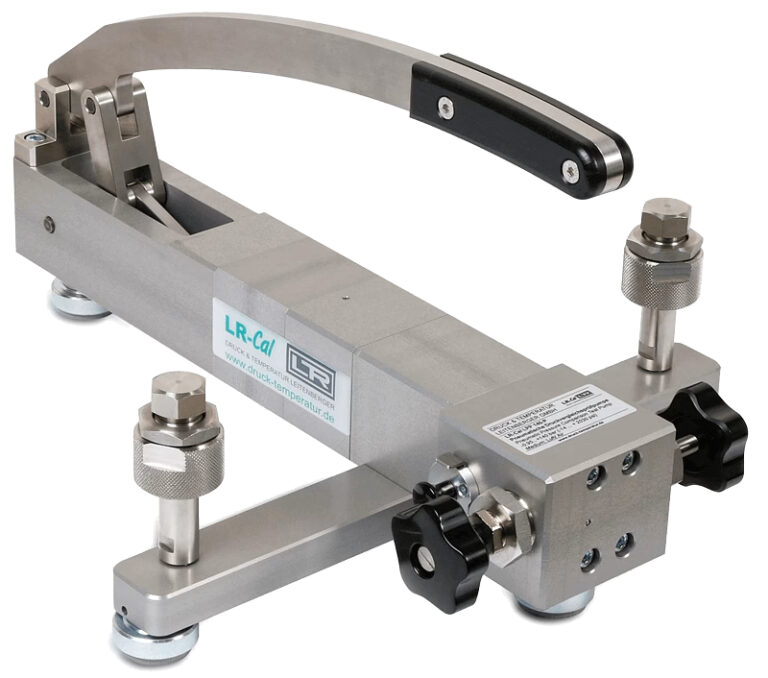

This pneumatic pressure comparison test pump is used to generate test pressure for checking, adjusting and calibrating all types of mechanical and electronic pressure measuring devices by means of comparative measurements. The LR-Cal LPP 140-P pressure comparison test pump requires a solid base (e.g. a workbench).

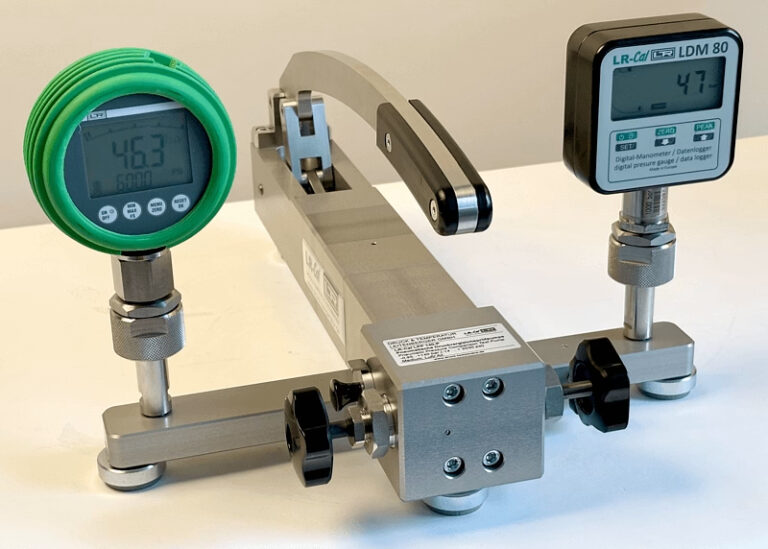

If the pressure measuring device to be tested and a suffciently accurate reference pressure measuring device are connected to the pressure comparison test pump, the same pressure acts on both measuring devices when the pump is actuated. By comparing the two measured values at any pressure value, the accuracy or adjustment of the unit under test can be checked.

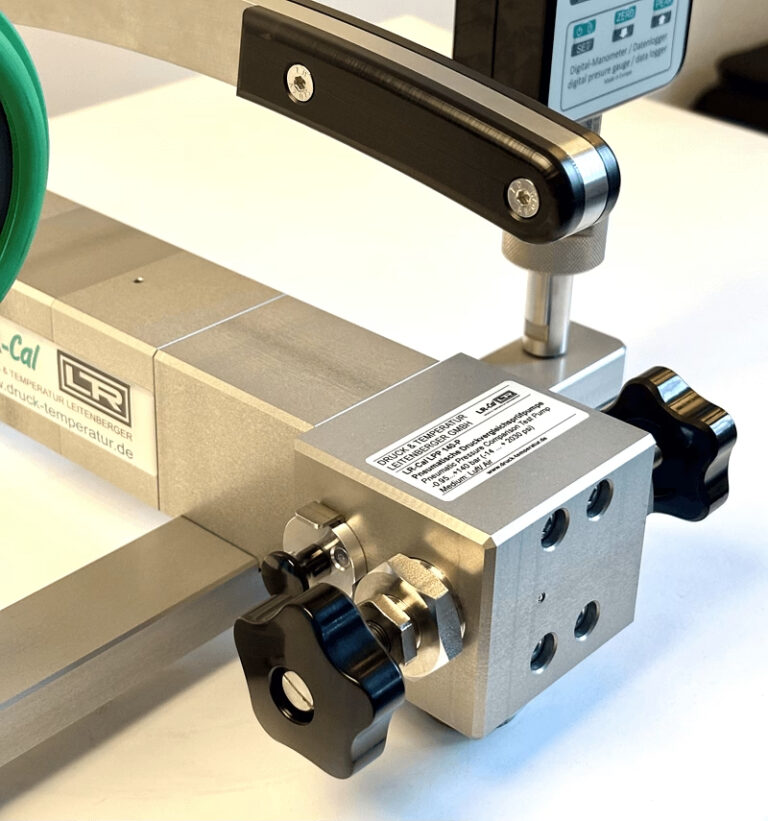

The LR-Cal LPP 140-P pressure comparison test pump is equipped with a fne adjustment valve for precise approach of the measuring points. The test pump uses ambient air as the test medium. It is characterized by its simple and effective handling and works independently, so no external pressure source is required.
Note:
The performance of the pressure comparison test pump LR-Cal LPP 140-P depends on the total volume of the calibration circuit. The lower the volume, the higher the performance. The larger the volume, the more sensitively the test pressure can be adjusted.
| Description: | Data: |
|---|---|
| Pressure generation area: | -0.85…+140 bar / -12…+2,030 psi |

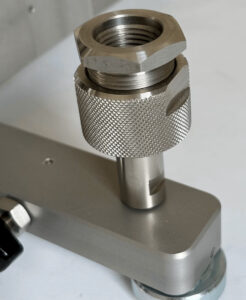

| Pressure ports: | 2 x M28 x 1.5 female rotating (quick release) with 2 thread inserts 1/2″ BSP female |
| Pressure transmission medium: | Ambient air |
| Test pressure generation: | Lever pump |
| Test pressure fine adjustment: | Fine adjustment valve |
| Resolution: | Better than 1 mbar |
| Materials: | Aluminum alloy, copper and stainless steel |
| Dimensions: | W 288 x H 175 x D 405 mm |
| Weight: | approx. 6.5 kg |
| Operating temperature: | 18…28°C / 64…82°F |
| Storage temperature: | -10…+50°C / 14…122°F |
| Permissible medium: | Air |
| Order-Code: | LPP-140-P |
| Photo | Model | Description |
|---|---|---|
|
LPP-140-P-AS-G14 | Thread insert in st.st. for pressure ports 1/4" BSP female |
|
|
LPP-140-P-AS-N12 | Thread insert in st.st. for pressure ports 1/2" NPT female |
|
|
LPP-140-P-AS-N14 | Thread insert in st.st. for pressure ports 1/4" NPT female |
|
LPP-140-P-KOFFER | Rigid storage and transport case with foam insert |
|
LPP-140-P-WARTUNG | Maintenance set O-rings in NBR (2 x 8.0 x 2.0 + 1 x 3.0 x 1.5 + 2 x 7.0 x 1.5 + 1 x 13.0 x 2.0 + 1 x 8.0 x 2.0) |
|
KDV-P-03 | Calibration pressure manifold with 3 test item connections. Test up to 3 test specimens simultaneously. |
|
|
LPP-140-P-AS-G12 | Thread insert in st.st. for pressure ports 1/2" BSP female |
|
BLINDSTOPFEN-G12-VA | Blind plug 1/2" BSP male in st.st. For shutting off pressure port |
|
LPP-140-P-ET-DAVT | Assembly pressure release valve incl. 1 O-ring 3 x 1.5 mm |
|
LPP-140-P-ET-DFRV | Assembly pressure fine adjustment valve incl. 1 O-ring 13 x 2 mm + 1 O-ring 8 x 2 mm |
|
LPP-140-P-ET-DABV | Assembly pressure maintaining valve (shut-off valve) |
|
LPP-140-P-ET-DVUS | Assembly pressure maintaining/shut-off valve Incl. 2 O-rings 7 x 1.5 mm |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| LPP-140-P | Bench type pneumatic pressure comparison test pump LR-Cal LPP 140-P 2 pressure ports 1/2" BSP female, inkl. blind plugs | Delivery time from 12 weeks | from 4 600$ |
-
+
|
|
| LPP-140-P-AS-G14 | Thread insert in st.st. for pressure ports, with 1/4" BSP female conn. | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-140-P-AS-N12 | Thread insert in st.st. for pressure ports, with 1/2" NPT female conn. | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-140-P-AS-N14 | Thread insert in st.st. for pressure ports, with 1/4" NPT female conn. | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-140-P-KOFFER | Storage and carrying case with foam insert | Delivery time from 12 weeks | from 180$ |
-
+
|
|
| LPP-140-P-WARTUNG | Maintenance kit with o-rings in NBR 2 x 8x2 + 1 x 3x1, 5 + 2 x 7x1,5 + 1 x 13x2 + 1 x 8x2 mm | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-140-P-AS-G12 | Thread insert in st.st. for pressure ports, with 1/2" BSP female conn. | Delivery time from 12 weeks | On request |
-
+
|
|
| BLINDSTOPFEN-G12-VA | Blind plug in st.st. for pressure ports, 1/2" BSP male | Delivery time from 12 weeks | from 87$ |
-
+
|
|
| LPP-140-P-ET-DAVT | Assembly: Pressure release valve (incl. o-ring) | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-140-P-ET-DFRV | Assembly: Pressure fine adjustment valve (incl. o-rings) | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-140-P-ET-DABV | Assembly: Pressure mantaining/shut-off valve | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-140-P-ET-DVUS | Assembly: Pressure/vacuum switch (incl. o-rings) | Delivery time from 12 weeks | On request |
-
+
|
|
| KDV-P-03 | Calibration pressure manifold LR-Cal KDV-P-03 with 3 shut-off valves and 3 pressure ports 1/4" BSP female | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 140-P using the special form.
You can buy Leitenberger LPP 140-P in UAE at a price starting from 4600 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LPP 140-P price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
