Test pressure generation up to 40 bar (580 psi), switchable to Vacuum generation up to -0.95 bar (-28 inHg).
Made in Germany. brand Leitenberger, model LPP 40
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $570
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

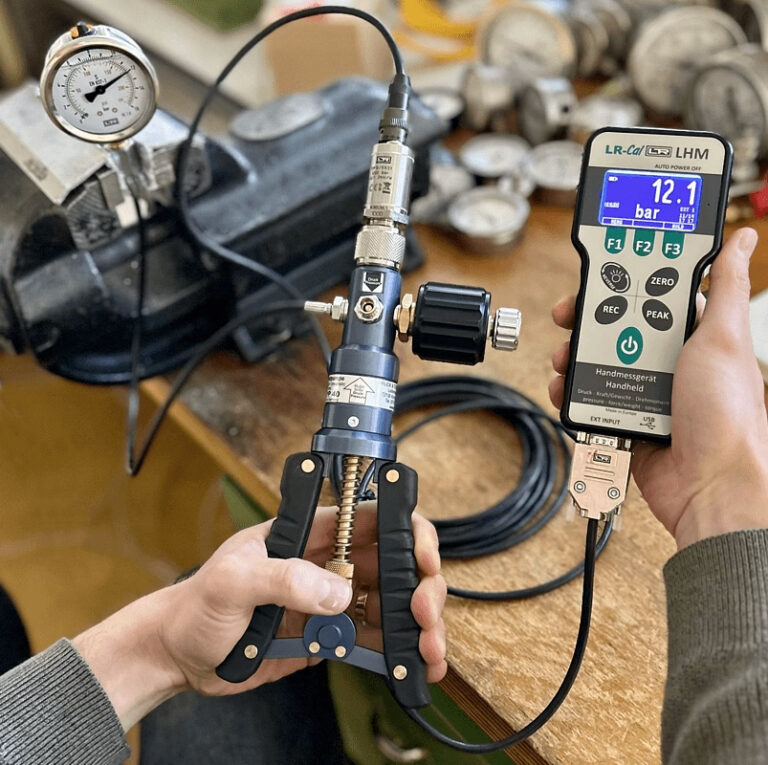

The LR-Cal LPP 40 pressure test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement. These pressure tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 40 pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, a check of the accuracy or an adjustment of the pressure gauge to be tested can be made.

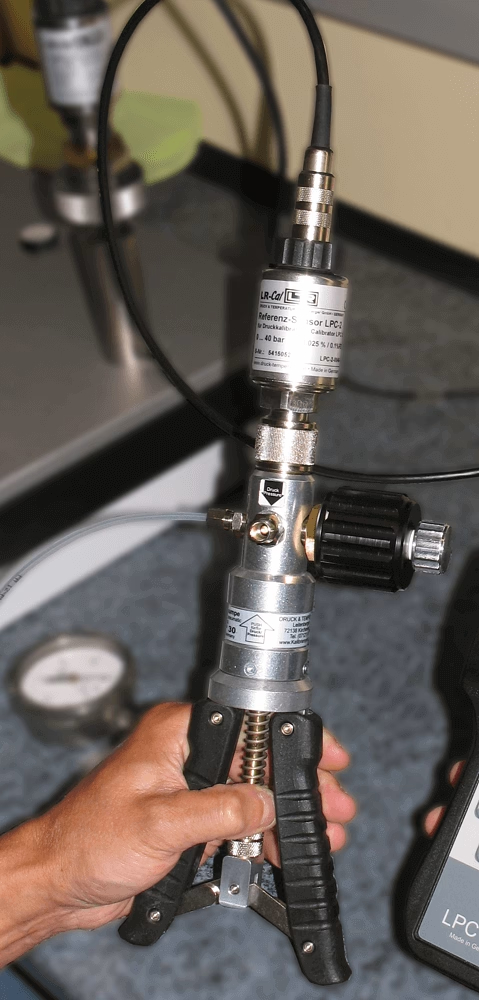

Despite its very compact dimensions, the LR-Cal LPP 40 pressure test pump enables simple and accurate test pressure generation with the option of switching to vacuum generation. For precise adjustment for accurate comparative testing, the LR-Cal LPP 40 has a fine adjustment valve. The reference gauge is screwed directly onto the top of the pump and the test specimen is connected via the connection hose with free-running 1/4″ BSP female thread included in the scope of delivery, if necessary using suitable thread adapters (see accessories).
| Pressure generation: | 0 to 40 bar = 0 to 580 psi, switchable to |
| Vacuum generation: | 0 to -0,95 bar = 0 to -28 inHg |
| Pressure ports (standard version): |
For reference instrument: 1/2″ BSP female, freely rotating, with integr. O-ring, on the top of the pump For test item: 1/4″ BSP female, freely rotating, with integr. O-ring, at the pressure test hose of the pump |
| Materials: | Aluminium, brass, ABS, NBR |
| Priming pressure: | Hand lever |
| High pressure: | Volume adjustment valve |
| Fine adjustment: | Volume adjustment valve (fine adjustment, large volume) |
| Dimension: | approx. 220 x 105 x 63 mm |
| Weight: | approx. 510 g |
| Order-Code: | LPP-40 |
Special version with reference pressure port 1/4″ BSP female rotating: Order-Code LPP-40-G14
Special version with reference and test item pressure ports 1/4″ NPT female: Order-Code LPP-40-N14
| Photo | Model | Description |
|---|---|---|
| LPP-VOLUMEN-TOOL | Tool (made of aluminum) for attaching to the fine adjustment valve. It increases the diameter and makes high pressure generation and fine pressure adjustment even easier. | |
|

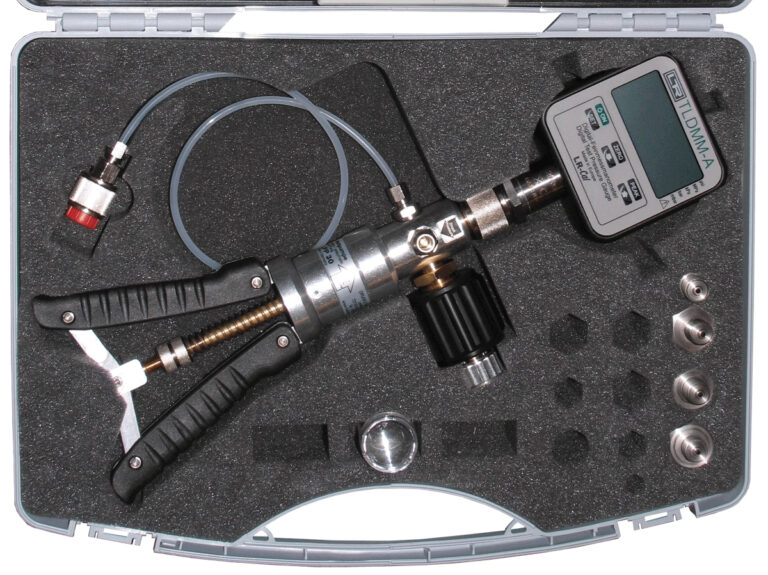

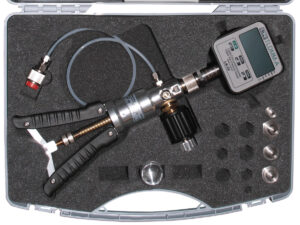

LPP-KOFFER | Rigid transport and storage case with molded foam insert |
|
LPP-ADAPTER-BSP | Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump 1/4" BSP m x 1/8" BSP female 1/4" BSP m x 3/8" BSP female 1/4" BSP m x 1/2" BSP female 1/4" BSP m x 1/2" BSP male |
|
LPP-O-RING-BSP | Spare part for thread adapter set code LPP-ADAPTER-BSP: Set of O-rings |
|
LPP-ADAPTER-NPT | Set of NPT adapter including suitable O-ring seals for test item port of the pump 1/4" BSP m x 1/8" NPT female 1/4" BSP m x 1/4" NPT female 1/4" BSP m x 3/8" NPT female 1/4" BSP m x 1/2" NPT female |
|
LPP-ADAPTER-M | Set of metric adapter and "Minimess® 1620", including suitabel O-ring seals for test item port of the pump 1/4" BSP m x M 12 x 1,5 female 1/4" BSP m x M 20 x 1,5 female 1/4" BSP m x Minimess® 1620 female |
|

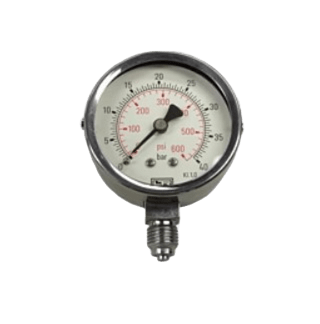

LPP-MANO-... | Analog reference pressure gauge DS 63, accuracy ±1.0% FS LPP-MANO-0002: 0...2 bar/psi LPP-MANO-0011: 0...11 bar/psi LPP-MANO-0025: 0...25 bar/psi LPP-MANO-0040: 0...40 bar/psi LPP-MANO-0000: -1...0 bar/inHg LPP-MANO-0039: -1...+39 bar/psi |
|

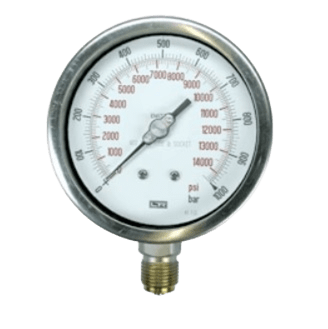

LPP-MANO-K06 | Analog reference pressure gauge DS 100, accuracy ±0.6% FS LPP-MANO-0004-K06: 0...4 bar LPP-MANO-0025-K06: 0...25 bar LPP-MANO-0040-K06: 0...40 bar LPP-MANO-0000-K06: -1...0 bar LPP-MANO-0039-K06: -1...+39 bar |
| LPP-WARTUNG | Maintenance set with circlip, sealing washers, countersunk screws, quad ring and O-rings | |
| LPP-SCHLAUCH-S | Assembly Test item connection hose with test item connection 1/4" BSP female free-running internal thread. | |
|
LPP30-ASS-G12 | Assembly reference device connection with 1/2" BSP free-running female thread |
|
LPP30-ASS-G14 | Assembly reference device connection with 1/4" BSP free-running female thread |
| LPP-VENTIL | Fine adjustment and pressure relief valve |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| LPP-40 | Pneumatic hand test pump for generating pressure up to +40 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Pressure port for reference pressure instrument: 1/2" BSP female rotating incl. 1 hose to fit unit under test, with 1/4" BSP F pressure port | Delivery time from 12 weeks | from 566$ |
-
+
|
|
| LPP-40-G14 | Pneumatic hand test pump for generating pressure up to +40 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Reference port 1/4" BSP female, rotating | Delivery time from 12 weeks | from 566$ |
-
+
|
|
| LPP-40-G38I | Pneumatic hand test pump for generating pressure up to +40 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Reference port 3/8" BSP female | Delivery time from 12 weeks | from 566$ |
-
+
|
|
| LPP-40-N14 | Pneumatic hand test pump for generating pressure up to +40 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Both ports 1/4" NPT | Delivery time from 12 weeks | from 617$ |
-
+
|
|
| LPP-40-OXY | Pneumatic hand test pump for generating pressure up to +40 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Oxygen vers | Delivery time from 12 weeks | On request |
-
+
|
|
| LPP-VOLUMEN-TOOL | Tool for volume adjustment valve (volume control extender) of LR-Cal LPP 40 to make operation quite more simply and faster | Delivery time from 12 weeks | from 58$ |
-
+
|
|
| LPP-KOFFER | Transit case with foams, suitable for LR-Cal LPP 40 and for accessories (adapters, seals) and reference instrument | Delivery time from 12 weeks | from 120$ |
-
+
|
|
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8" BSP F, 3/8" BSP F, 1/2" BSP F and 1/2" BSP M | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8" NPT F, 1/4" NPT F, 3/8" NPT F and 1/2" NPT F | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-MANO-0002 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2" BSP M. 0 - 2 bar / 0 - 30 PSI | Delivery time from 12 weeks | from 85$ |
-
+
|
|
| LPP-MANO-0011 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2" BSP M. 0 - 11 bar / 0 - 160 PSI | Delivery time from 12 weeks | from 85$ |
-
+
|
|
| LPP-MANO-0025 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2" BSP M. 0 - 25 bar / 0 - 365 PSI | Delivery time from 12 weeks | from 85$ |
-
+
|
|
| LPP-MANO-0040 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2" BSP M. 0 - 40 bar / 0 - 600 PSI | Delivery time from 12 weeks | from 85$ |
-
+
|
|
| LPP-MANO-0000 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2" BSP M. -1 / 0 bar / -30/0 inHG Vakuum / vacuum | Delivery time from 12 weeks | from 85$ |
-
+
|
|
| LPP-MANO-0039 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2" BSP M. -1 / +39 bar / -30 inHg / +580 PSI | Delivery time from 12 weeks | from 85$ |
-
+
|
|
| LPP-MANO-0004-K06 | Analogue reference pressure gauges DS 100 (4"), with fine graduated dial, knife pointer, 1/2" BSP male st.st.0 - 4 bar / 0 - 60 PSI | Delivery time from 12 weeks | from 183$ |
-
+
|
|
| LPP-MANO-0025-K06 | Analogue reference pressure gauges DS 100 (4"), with fine graduated dial, knife pointer, 1/2" BSP male st.st.0 - 25 bar / 0 - 365 PSI | Delivery time from 12 weeks | from 183$ |
-
+
|
|
| LPP-MANO-0040-K06 | Analogue reference pressure gauges DS 100 (4"), with fine graduated dial, knife pointer, 1/2" BSP male st.st.0 - 40 bar / 0 - 600 PSI | Delivery time from 12 weeks | from 183$ |
-
+
|
|
| LPP-MANO-0000-K06 | Analogue reference pressure gauges DS 100 (4"), with fine graduated dial, knife pointer, 1/2" BSP male st.st.-1…0 bar / -30 inHg…0 | Delivery time from 12 weeks | from 183$ |
-
+
|
|
| LPP-MANO-0039-K06 | Analogue reference pressure gauges DS 100 (4"), with fine graduated dial, knife pointer, 1/2" BSP male st.st.-1 / +39 bar / -30 inHG / +580 PSI | Delivery time from 12 weeks | from 335$ |
-
+
|
|
| LPP-WARTUNG | Service kit for LPP 40 (gaskets, o-rings, etc.) | Delivery time from 12 weeks | from 72$ |
-
+
|
|
| LPP30-ASS-G12 | For LPP-40-G38I: Reference device connection G 1/2 internal, free-floating | Delivery time from 12 weeks | from 34$ |
-
+
|
|
| LPP30-ASS-G14 | For LPP-40-G38I: Reference device connection G 1/4 internal, free-floating | Delivery time from 12 weeks | from 34$ |
-
+
|
|
| LPP-VENTIL | SPARE PART for LR-Cal LPP 40: Fine adjustment valve with relief valve | Delivery time from 12 weeks | from 167$ |
-
+
|
|
| LPP-VENTIL-DICHT | SPARE PART for Art. No. LPP-VENTIL (kit of spare gaskets for adjustment valve | Delivery time from 12 weeks | from 26$ |
-
+
|
|
| LPP-O-RING-BSP | Set of spare o-rings for adapter set code LPP-ADAPTER-BSP | Delivery time from 12 weeks | from 15$ |
-
+
|
|
| LPP-SCHLAUCH-S-0050 | Pressure test hose, length 0.5 meters | Delivery time from 12 weeks | from 52$ |
-
+
|
|
| LPP-SCHLAUCH-S-0075 | Pressure test hose, length 0.75 meters | Delivery time from 12 weeks | from 58$ |
-
+
|
|
| LPP-SCHLAUCH-S-0100 | Pressure test hose, length 1.0 meters | Delivery time from 12 weeks | from 60$ |
-
+
|
|
| LPP-SCHLAUCH-S-0150 | Pressure test hose, length 1.5 meters | Delivery time from 12 weeks | from 63$ |
-
+
|
|
| LPP-SCHLAUCH-S-0180 | Pressure test hose, length 1.8 meters | Delivery time from 12 weeks | from 90$ |
-
+
|
|
| LPP-SCHLAUCH-S-0200 | Pressure test hose, length 2.0 meters | Delivery time from 12 weeks | from 72$ |
-
+
|
|
| LPP-SCHLAUCH-S-0250 | Pressure test hose, length 2.5 meters | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| LPP-SCHLAUCH-S-0300 | Pressure test hose, length 3.0 meters | Delivery time from 12 weeks | from 107$ |
-
+
|
|
| LPP-SCHLAUCH-S-0500 | Pressure test hose, length 5.0 meters | Delivery time from 12 weeks | from 136$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 40 using the special form.
You can buy Leitenberger LPP 40 in UAE at a price starting from 570 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LPP 40 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
