Made in Germany. brand Leitenberger, model LPP 60-T
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $790
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

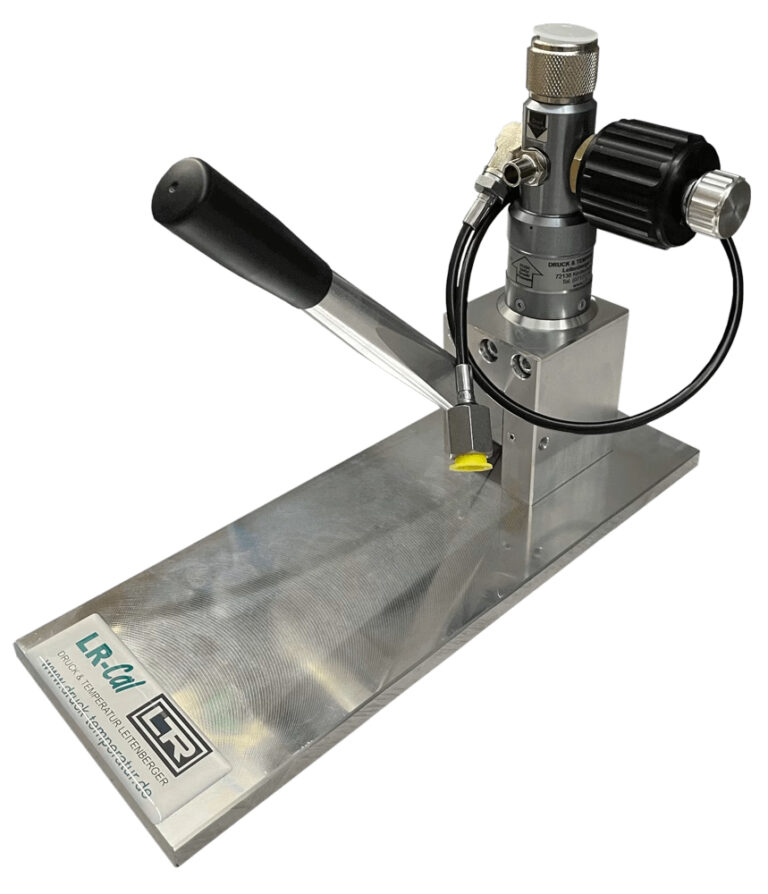

The LR-Cal LPP 60-T pneumatic pressure comparison test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by means of comparison measurement. These pressure tests can be carried out stationary in the laboratory or workshop or on site at the measuring point.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 60-T pressure comparison test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the accuracy or adjust the pressure gauge to be tested.

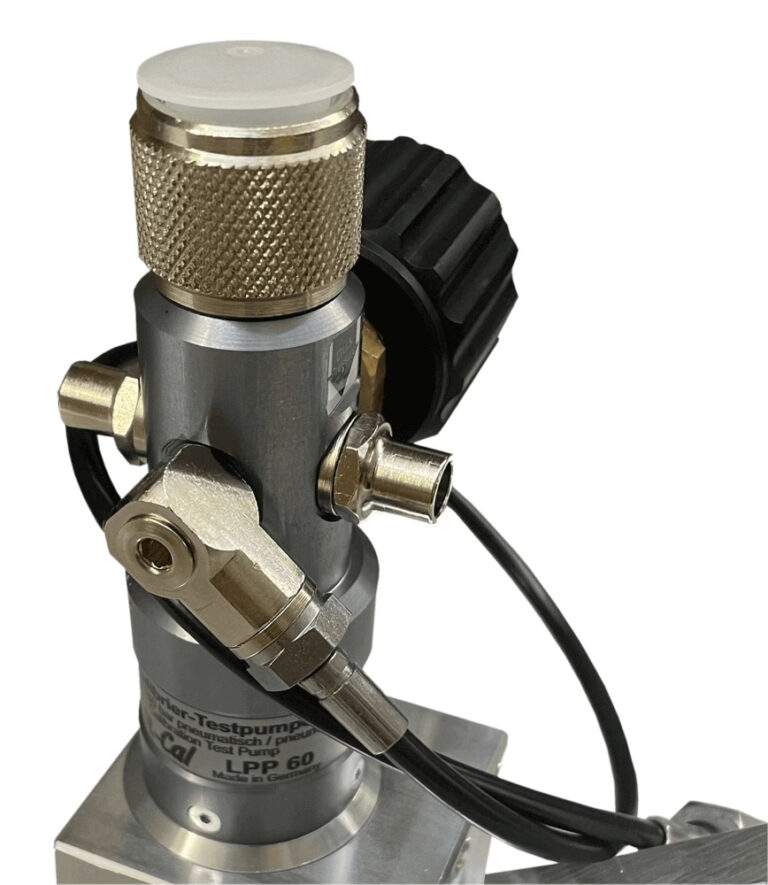

Despite its very compact dimensions, the LR-Cal LPP 60-T pressure comparison test pump enables simple and accurate test pressure generation with the option of switching to vacuum generation. For precise adjustment for accurate comparison testing, the LR-Cal LPP 60-T has a fine adjustment valve. The reference gauge is screwed directly onto the top of the pump and the test specimen is connected via the connection hose with free-running 1/4″ BSP female thread included in the scope of delivery, if necessary using suitable thread adapters (see accessories).
| Pressure generation: | 0 to 60 bar = 0 to 870 psi, switchable to |
| Vacuum generation: | 0 to -0.95 bar = 0 to -28 inHg |
| Pressure ports (standard version): |
For reference instrument: 1/2″ BSP female, rotating, with integr. O-ring sealing, on the top of the pump. For test item: 1/4″ BSP female, rotating, with integr. O-ring sealing, at the included pressure test hose |
| Materials: | Aluminium, Brass, NBR |
| Priming pressure: | hand lever |
| High pressure: | Volume variator |
| Pressure fine adjustment: | Volume variator (fine graduated pressure adjustment with large volume) |
| Dimension: | approx. 150 x 300 x 215 mm |
| Weight: | approx. 2.55 kg |
| Order-Code: | LPP-60-T |
| Photo | Model | Description |
|---|---|---|
|
LPP-VOLUMEN-TOOL | Tool (made of aluminum) for attaching to the fine adjustment valve. It increases the diameter and makes high pressure generation and fine pressure adjustment even easier. |
|
LPP-60-T-KOFFER | Rigid transport and storage case with molded foam insert |
|
LPP-ADAPTER-BSP | Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump |
|
LPP-O-RING-BSP | Spare part for thread adapter set code LPP-ADAPTER-BSP: Set of O-rings |
|
LPP-ADAPTER-NPT | Set of NPT adapter including suitable O-ring seals for test item port of the pump |
|
LPP-ADAPTER-M | Set of metric adapter and "Minimess® 1620", including suitabel O-ring seals for test item port of the pump |
|
LPP-MANO-... | Analog reference pressure gauge DS 63, accuracy ±1.0% FS |
|
LPP-MANO-K06 | Analog reference pressure gauge DS 100, accuracy ±0.6% FS |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| LPP-60-T | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. | Delivery time from 12 weeks | from 790$ |
-
+
|
|
| LPP-60-T-G14 | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Reference port 1/4" BSP female, rotating | Delivery time from 12 weeks | from 790$ |
-
+
|
|
| LPP-60-T-G38I | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Reference port 3/8" BSP female | Delivery time from 12 weeks | from 790$ |
-
+
|
|
| LPP-60-T-N14 | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. both ports 1/4" NPT | Delivery time from 12 weeks | from 850$ |
-
+
|
|
| LPP-60-T-OXY | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. oxygen vers. | Delivery time from 12 weeks | from 1 730$ |
-
+
|
|
| LPP-VOLUMEN-TOOL | Tool for volume adjustment valve (volume control extender) to make operation quite more simply and faster | Delivery time from 12 weeks | from 58$ |
-
+
|
|
| LPP-60-T-KOFFER | Transit case with foams, suitable for LR-Cal LPP 60-T and for accessories (adapters, seals) and reference instrument | Delivery time from 12 weeks | from 162$ |
-
+
|
|
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8" BSP F, 3/8" BSP F, 1/2" BSP F and 1/2" BSP M | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® | Delivery time from 12 weeks | from 131$ |
-
+
|
|
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8" NPT F, 1/4" NPT F, 3/8" NPT F and 1/2" NPT F | Delivery time from 12 weeks | from 131$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 60-T using the special form.
You can buy Leitenberger LPP 60-T in UAE at a price starting from 790 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LPP 60-T price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
