Made in Germany. brand Leitenberger, model LSP 1600-H
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $4 200
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

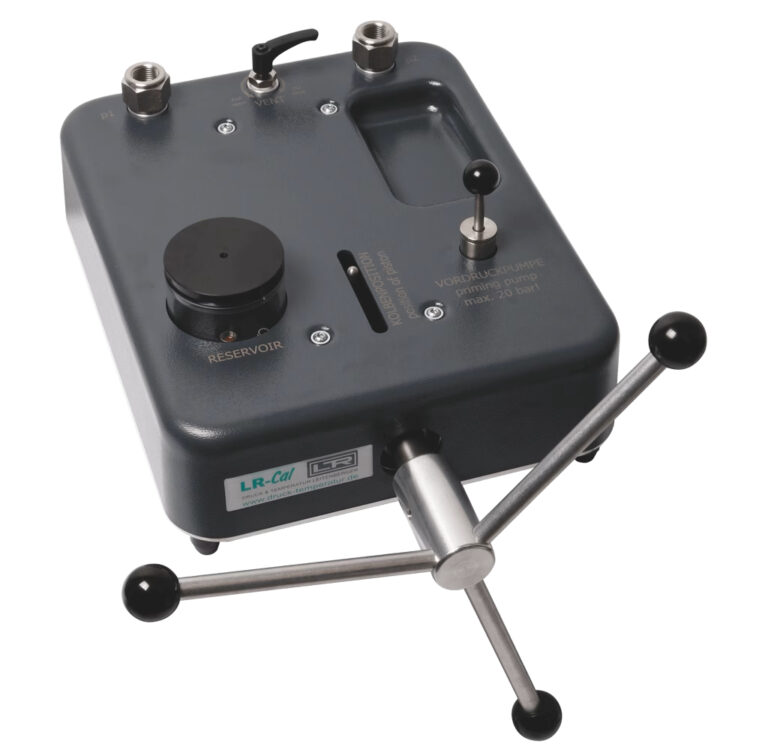

The LR-Cal LSP 1600-H pressure comparison test device is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments of all types by means of comparison measurements. These pressure tests can take place stationary in the laboratory or workshop, but also on site at the measuring point.

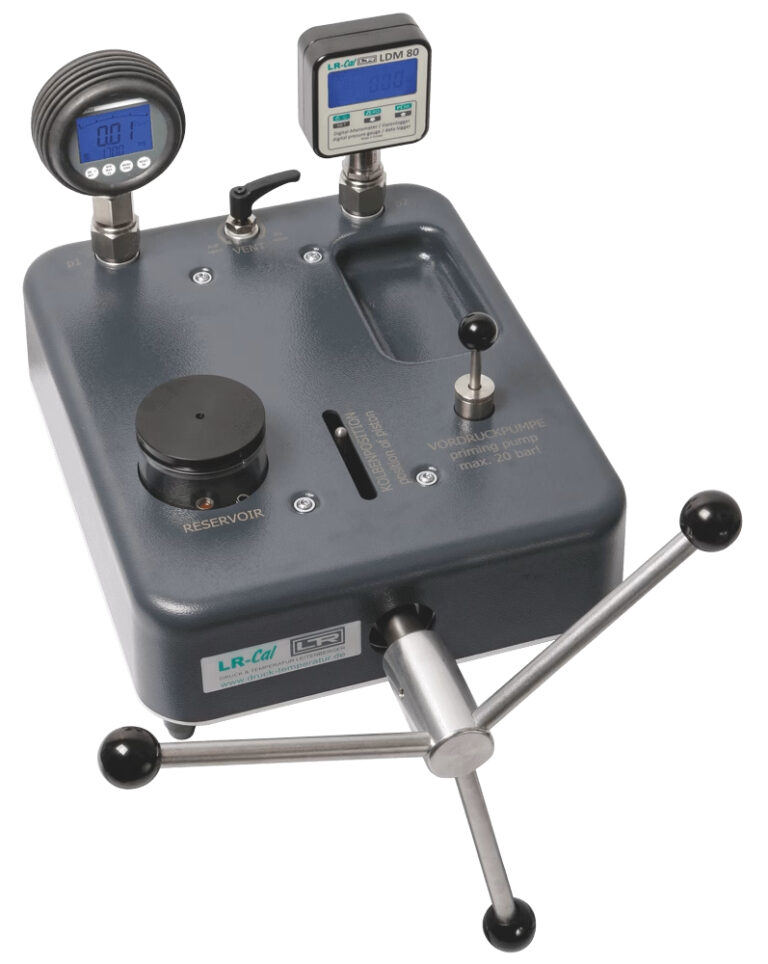

If the pressure gauge to be tested and a sufficiently accurate reference pressure gauge are connected to the LR-Cal LSP 1600-H pressure comparison test pump, the same pressure acts on both gauges when the pump is actuated. By comparing the two measured values at any pressure values, the measuring accuracy can be checked or the pressure gauge to be tested can be adjusted.
For exact approaching of the measuring points, the pressure comparison test device (spindle pump) LR-Cal LSP 1600-H is equipped with a finely actuated spindle wheel. The device is characterized by a rotating spindle running only inside the pump body, thus eliminating a disadvantageous bending moment on a spindle that has been turned out. Especially for mobile use, there is also the advantage that the dimension of the pressure comparison test pump does not change during operation by turning the spindle. The LR-Cal LSP 1600-H pressure comparison test device requires only a very small amount of force.
To considerably reduce the risk of contamination of the operating medium, the pump is equipped with protective filters at the pressure connections and in the reservoir bottom. (Note: when operating with oil, the dirt strainer in the reservoir must be removed).
| Pressure generation | [bar] | 0…1,600 (23,200 psi) |
| Medium | Mineral oil based hydraulic fluids or destilled water | |
| Pressure ports | 2 x 1/2″ BSP female, rotating (incl. strainers and gaskets) | |
| Fluid reservoir | cm³ | 200 (with strainer) |
| Piston diameter | [mm] | 8 |
| Spindle stroke | [cm³] | approx. 3.9 (per turn approx. 0.1) |
| Needed force | [Nm] | at 250 bar: 2.0; at 500 bar: 4.0; at 1,000 bar: 8.0 |
| Materials | Stainless steel, aluminium, brass, Plexiglass, ABS, Viton and NBR | |
| Distance of pressure ports | [mm] | 181 |
| Dimensions | [mm] | D 388 x W 322 x H 167 (without star-handles) |
| Weight | [kg] | 10.5 |
| Design | Base plate with feet and rigid housing | |
| Order-Code | LSP-1600-H |
When operating with oil instead of water, remove the dirt sieves.
| Photo | Model | Description |
|---|---|---|
|
CPB5000-FLUID | Hydraulic fluid based on mineral oil Bottle with 1 liter content |
|
HAP-02 | Hand suction pump, significantly facilitates the removal of the operating liquid from the pressure comparison test pump. |
|
BLINDSTOPFEN-G12-VA | Blanking plug 1/2" BSP male, made of stainless steel, for shutting off a pressure connection |
|
LSP-ADAPTER-SET | Stainless steel thread adapter set for pressure connection 1/2" BSP M x 1/4" BSP female 1/2" BSP M x 1/4" NPT female 1/2" BSP M x 1/2" NPT female 1/2" BSP M x M20 x 1,5 female |
|
CPB5000-WA90 | Angled connection (90°) for test specimens or references with axial pressure connection at the back 1/2" BSP M. With integrated seal and knurled nut for toolless pressure gauge change |
|

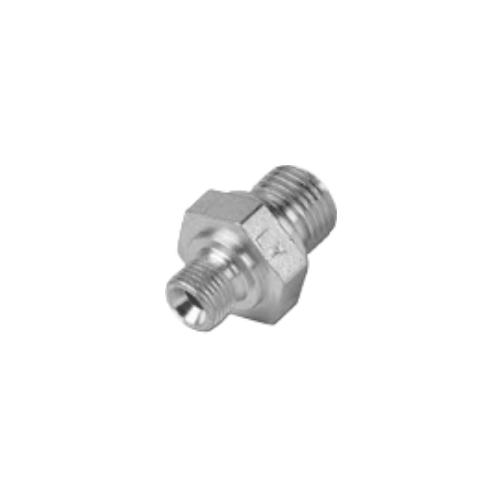

LSP-ADAPT-G12A-M16A | High pressure adapter for pressure port 1/2" BSP male x M 16 x 1 male with sealing cone Made of hardened stainless steel |
|

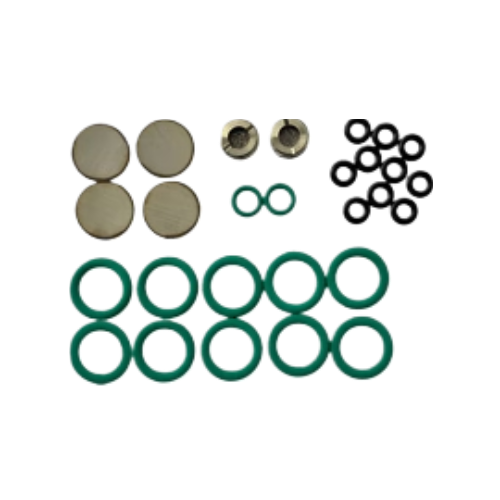

LSP-H-WARTUNG | Maintenance kitwith dirt sieves, O-rings, etc. The instructions for this maintenance kit are included in the equipment manual. |
|
LSP-VERSCHLUSS | Assembly Locking lever (incl. sealing rings) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| LSP-1600-H | Pressure comparator LR-Cal LSP 1600-H for water or hydraulic oil hydraulic operated (spindle pump) max. 1600 bar, incl. priming pump | Delivery time from 12 weeks | from 4 200$ |
-
+
|
|
| BLINDSTOPFEN-G12-VA | Blind plug 1/2" BSP, st.st., for pressure ports (PN max. 3600 bar) | Delivery time from 12 weeks | from 87$ |
-
+
|
|
| LSP-ADAPTER-SET | STAINLESS STEEL adapter set for pressure ports, PN max. 1600 bar, each 1 x 1/4" BSP F, M20x1.5 F, 1/4" NPT F and 1/2" NPT F, set of gaskets | Delivery time from 12 weeks | from 114$ |
-
+
|
|
| LSP-ADAPT-G12A-M16A | Adapter for LSP test port(s) to M 16 x 1 male, PN 1600 | Delivery time from 12 weeks | from 440$ |
-
+
|
|
| LSP-H-WARTUNG | Maintenance kit for all LR-Cal LSP-H models Dirt traps, gaskets, seals, o-rings, etc. | Delivery time from 12 weeks | from 180$ |
-
+
|
|
| LSP-H-WARTUNG-S | Maintenance kit for all LR-Cal LSP-H models, for SKYDROL | Delivery time from 12 weeks | On request |
-
+
|
|
| CPB5000-FLUID | Special oil for all LSP-H types: 1 Liter | Delivery time from 12 weeks | from 68$ |
-
+
|
|
| LSP-VERSCHLUSS | SPARE PART: Locking lever (kit) | Delivery time from 12 weeks | from 123$ |
-
+
|
|
| VA-M16X2-G12A | MINIMESS 1620 coupling 1/2" BSP male | Delivery time from 12 weeks | from 100$ |
-
+
|
|
| MMS-M16X2-1-0 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 1.0 m | Delivery time from 12 weeks | from 25$ |
-
+
|
|
| MMS-M16X2-2-0 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 2.0 m | Delivery time from 12 weeks | from 30$ |
-
+
|
|
| MMS-M16X2-3-2 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 3,2 m | Delivery time from 12 weeks | from 36$ |
-
+
|
|
| MMS-M16X2-4-0 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 4,0 m | Delivery time from 12 weeks | from 49$ |
-
+
|
|
| MSV-G12-M16X2 | MINIMESS 1620 coupling for LSP comparison pumps (test port) | Delivery time from 12 weeks | from 22$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LSP 1600-H using the special form.
You can buy Leitenberger LSP 1600-H in UAE at a price starting from 4200 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LSP 1600-H price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
