Made in Germany. brand Leitenberger, model LSP 7000
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $15 600
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

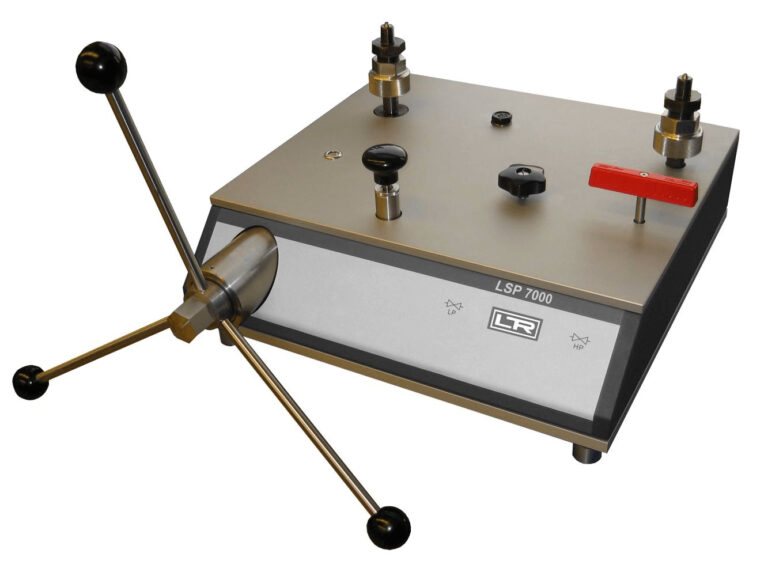

The LR-Cal LSP 7000 pressure comparison test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments of all types by means of comparison measurements. These pressure tests can take place stationary in the laboratory or workshop, but also on site at the measuring point.
If the pressure gauge to be tested and a sufficiently accurate reference pressure gauge are connected to the LR-Cal LSP 7000 pressure comparison test pump, the same pressure acts on both gauges when the pump is actuated. By comparing the two measured values at any pressure values, a check of the measuring accuracy or an adjustment of the pressure gauge to be tested can be carried out.
For exact approach of the measuring points, the LR-Cal LSP 7000 pressure comparison test devices (spindle pumps) are equipped with a finely actuated spindle wheel. The devices are characterized by a rotating spindle running only inside the pump body, thus eliminating a disadvantageous bending moment on a turned-out spindle and, especially for mobile use, there is also the advantage that the dimension of the pressure comparison test device does not change during operation by turning the spindle. The LR-Cal LSP 7000 pressure comparison test devices require only a very small amount of force, you can also reach 7,000 bar without a pressure converter, i.e. simply by turning the spindle in directly.
| Generation of pressure | [bar] | 0…7000 |
| Medium | Special oil for high pressure, see accessories | |
| Pressure ports | 2 x M16x1,5 male with sealing cone | |
| Fluid reservoir | cm³ | 250 |
| Piston diameter | [mm] | 7.5 |
| Swept volume per revolution | [cm³] | approx. 2.5 (each turn about 0.08) |
| Needed force | [Nm] | at 250 bar: 1.5 at 500 bar: 3.0 at 1000 bar: 6.0 at 3000 bar: 18.0 at 5000 bar: 30.0 at 7000 bar: 42.0 |
| Materials | Stainless steel, hardened stainless steel, PTFE | |
| Distance between pressure ports | [mm] | 346 |
| Dimension | [mm] | 460 x 445 x 265 (without spindle handles) |
| Weight | [kg] | 32.5 |
| Housing | Robust metal housing with adjustable feet | |
| Order-Code | LSP-7000-HP |
| Photo | Model | Description |
|---|---|---|
|
LSP-HP-FLUID | Mineral oil based hydraulic fluid bottle with 0.5 liter content suitable for high pressure |
|
HAP-02 | Hand suction pump, significantly facilitates the removal of the operating liquid from the pressure comparison test pump |
| LSP-HP-A-M20 | Adapter for connection column M20 x 1,5 external thread with sealing cone made of hardened stainless steel | |
| LSP-HP-A-916 | Adapter for connection column 7/16-18 UNF male thread with sealing cone made of hardened stainless steel | |
| LSP-HP-A-M16 | Adapter for connection column M16 x 1,5 external thread with sealing cone made of hardened stainless steel | |
| LSP-HP-A-G12 | Adapter for connection column 1/2" BSP female (PN max. 1,600 bar!) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| LSP-7000-HP | Hydraulic operated bench type pressure comparator LR-Cal LSP 7000 | Delivery time from 12 weeks | from 15 600$ |
-
+
|
|
| LSP-HP-FLUID | Operating fluid for LSP 7000 (0.5 l in plastic bottle) | Delivery time from 12 weeks | from 160$ |
-
+
|
|
| LSP-HP-A-M16 | Threaded adapter M16 x 1.5 male with sealing cone, hardened st.st. | Delivery time from 12 weeks | from 260$ |
-
+
|
|
| LSP-HP-A-M20 | Threaded adapter M20 x 1.5 male with sealing cone, hardened st.st. | Delivery time from 12 weeks | from 260$ |
-
+
|
|
| LSP-HP-A-916 | Threaded adapter 9/16-18 UNF male with sealing cone, hardened st.st. | Delivery time from 12 weeks | from 260$ |
-
+
|
|
| LSP-HP-A-G12 | Threaded adapter 1/2" BSP female with O-Ring, max. 1600 bar (max. 23200 psi), material: stainless steel 1.4571 | Delivery time from 12 weeks | from 280$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LSP 7000 using the special form.
You can buy Leitenberger LSP 7000 in UAE at a price starting from 15600 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger LSP 7000 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
