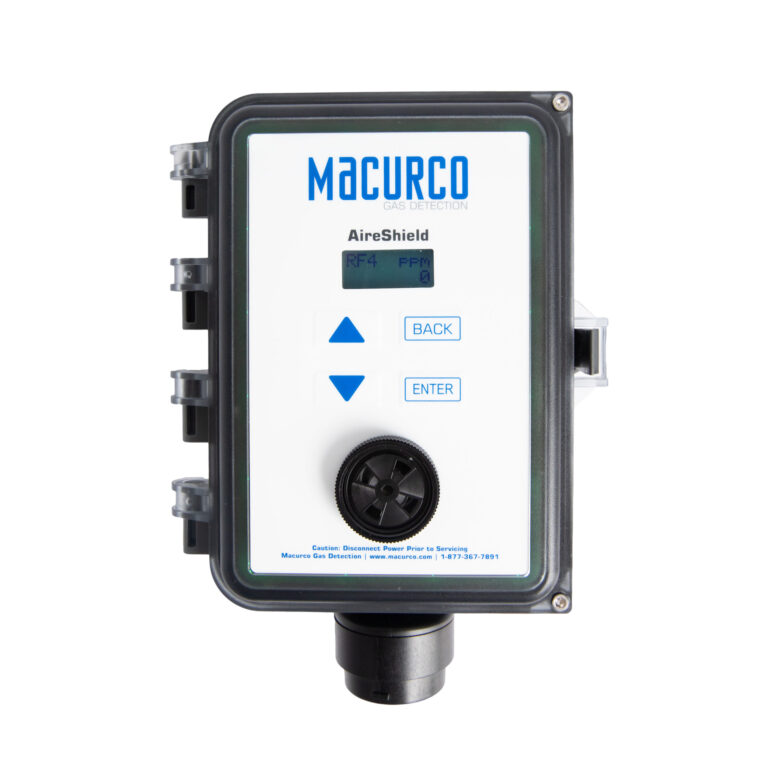

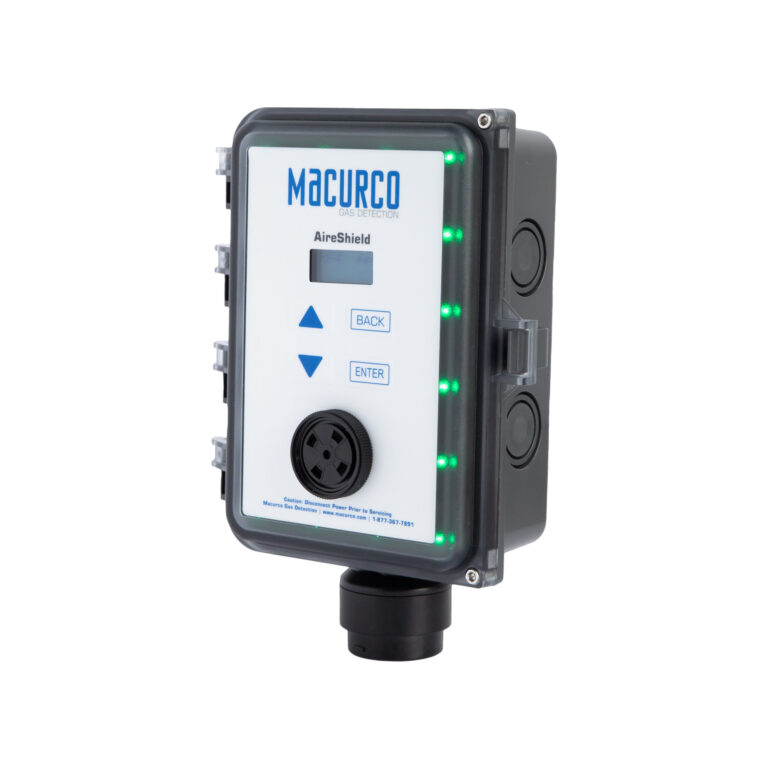

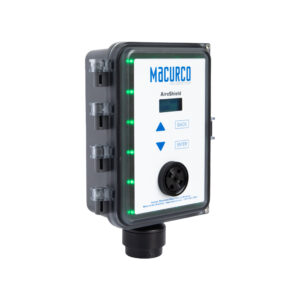

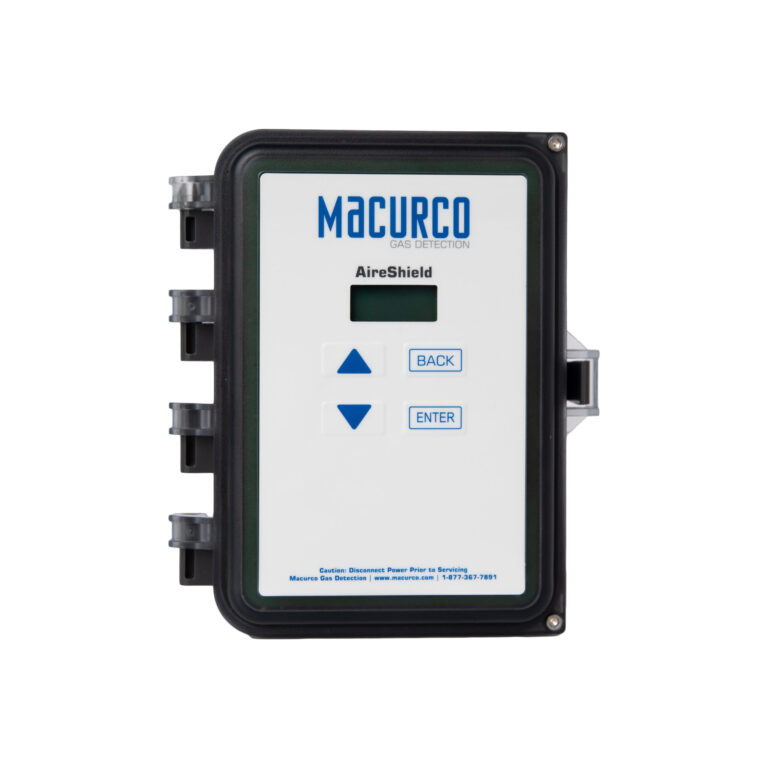

The Macurco AireShield is your all-in-one solution for advanced refrigerant detection, offering unmatched flexibility across a wide range of applications. Powered by cutting-edge NDIR sensor technology with built-in temperature compensation, it delivers industry-leading accuracy while dramatically reducing false alarms – outperforming older technologies like MOS sensors known for high error rates and constant maintenance. With a long sensor lifespan and low cost of ownership, the AireShield is designed to go the distance without compromising performance. It not only meets but exceeds regulatory codes and compliance standards. Installation, commissioning, and maintenance are fast and effortless thanks to smart sensor integration, which delivers real-time diagnostics and a full suite of user alerts.
Key features
Applications
| Size | 8.25″ x 2 5/8″ x 5 3/4 |
| Weight | 1 lb |
| Voltage | 12-24VAC, 12-32VDC |
| Current draw | 4.08 W (max) from 12 to 24 VAC or 12 to 32 VDC (See Manual for Current Draw on Various Configurations) |
| Signal | Analog 4-20mA, 0-20mA Digital: Modbus RTU |
| Sensor Type | NDIR Smart |
| Resolution | Sensor Specific – Refer to AireShield How To Ordering and Sensor Options Guide |
| Sensor Range | Sensor Specific – Refer to AireShield How To Ordering and Sensor Options Guide |
| Alarm Levels | Industry Default / User Adjustable / Sensor Specific (See User Manual) |
| Relays | 5 A SPDT and 0.5A |
| Optional Buzzer | >90 dBA at 10ft |
| Visual Indicator | RGB LED’s |
| Operating Temperature | Sensor Specific – Refer to AireShield How To Ordering and Sensor Options Guide |
| Ambient Humidity | 0-95% RH non-condensing |
| Life Expectancy | Sensor Specific – Refer to AireShield How To Ordering and Sensor Options Guide |
| Warranty | Two year limited warranty |
Series = AireShield (AS)
Communication Type
A – Analog
D – Digital
Sensor Configurator
10 – 1 Integral Sensor
11 – 1 Remote Sensor
21 – 1 Integral / 1 Remote
22 – 2 Remote Sensors
Gas Type/Range
000 – NA (NA)
739 – R-22 (2,000 PPM)
740 – R-32 (2,000 PPM)
742 – R-123 (3,000 PPM)
742 – R-134a (2,000 PPM)
743 – R-143 (2,000 PPM)
741 – R-277 (3,000 PPM)
741 – R-404A (3,000 PPM)
745 – R-407A (5,000 PPM)
744 – R-407C (2,000 PPM)
745 – R-407F (2,000 PPM)
745 – R-410A (2,000 PPM)
744 – R-449A (3,000 PPM)
742 – R-452B (3,000 PPM)
723 – R-454A (100 % LEL)
749 – R-454B (2,000 PPM)
725 – R-454C (100 % LEL)
726 – R-455A (100 % LEL)
743 – R-507 (2,000 PPM)
742 – R-513A (2,000 PPM)
745 – R-1233zd (2,000 PPM)
744 – R-1234yf (2,000 PPM)
745 – R-1234ze (2,000 PPM)
*All sensors listed above are 32mm and do not work in dual integral housing.
**Profile 000 is utilized in Sensor 2 box if only one sensor is needed.
Board Buzzer
B – Buzzer
N – No Buzzer
Example: AireShield, Analog, 1 Integral Sensor, R-410A 2,000PPM, No Buzzer
AS-A10-745-000-N
| Photo | Model | Description |
|---|---|---|
|

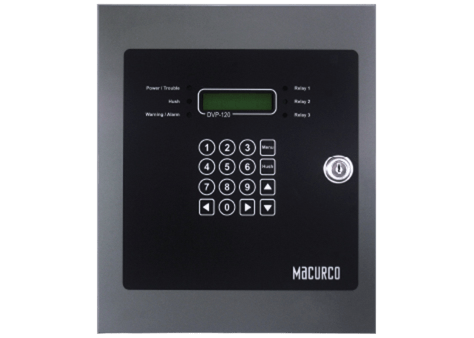

DVP-120M, DVP-120B, DVP-1200 | Control Panels |
|

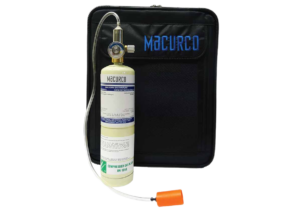

Calibration Kits | Based on Gas Type |
|
HS-X | Horn and Strobe (X = color) Amber (A), Blue (B), Clear (C), Green (G), Red (R) |
| MSG-X | Strobe Only (X = color) Amber (A), Blue (B), Clear (C), Green (G), Red (R) | |
| MHG | Horn Only | |
| PS-24, PS-24-H, MAC6AMP, MAC10AMP | Step-down Transformers | |
| Replacement Sensor | Based on Gas Type | |

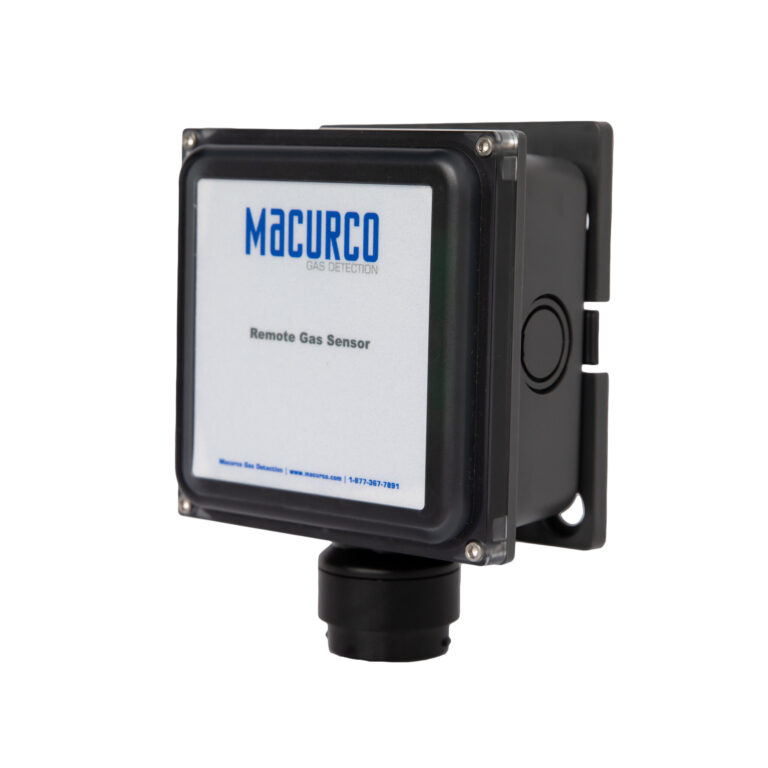

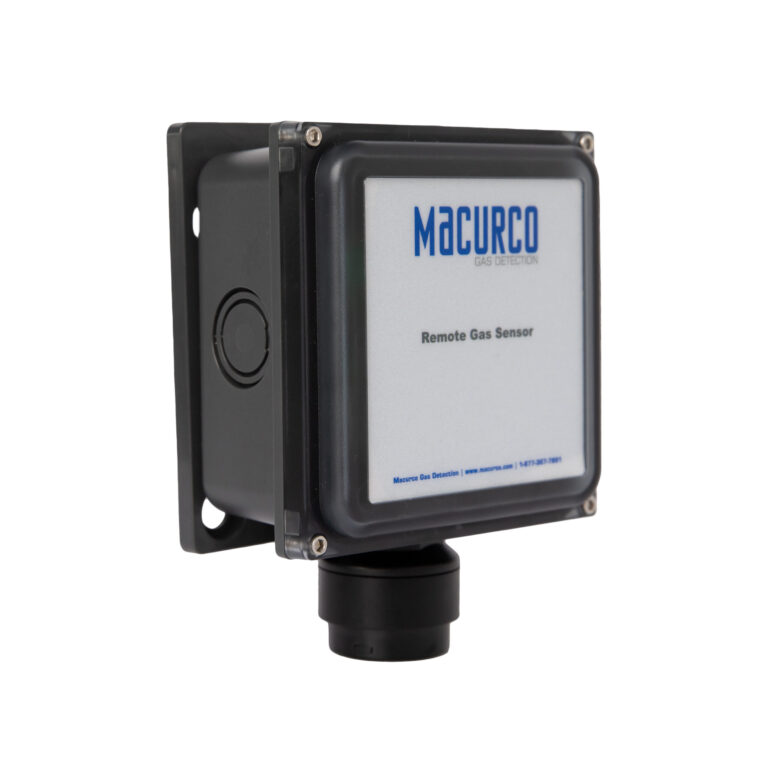

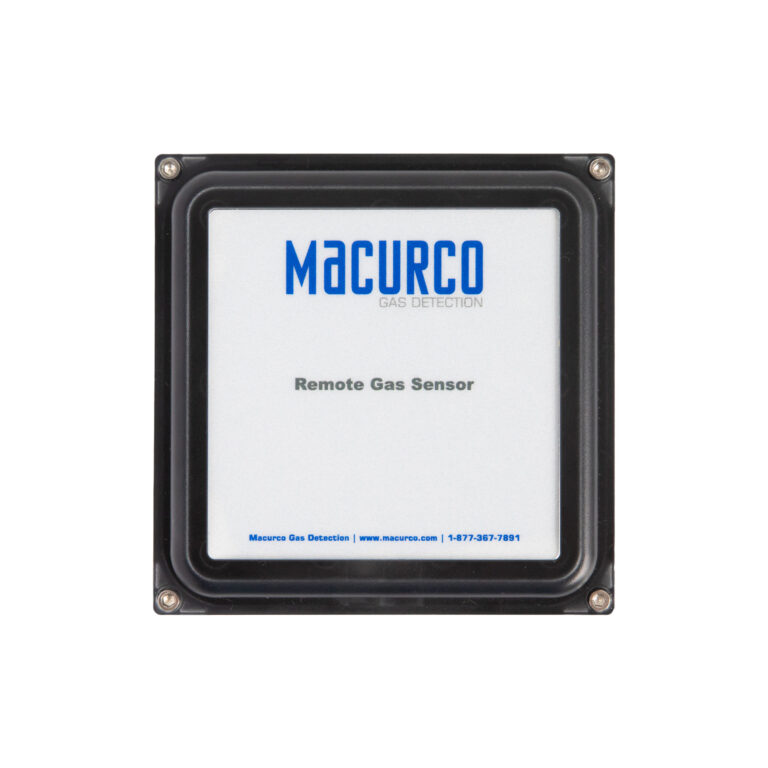

| Remote Sensor | AireShield Remote |
