Made in USA. brand MACURCO, model CD-6B
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

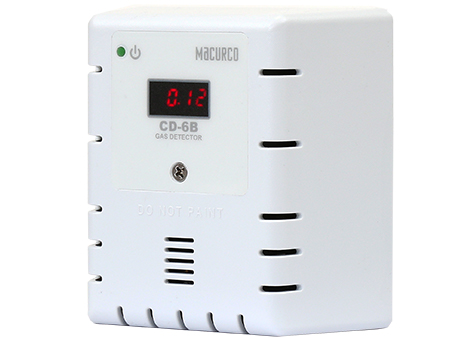

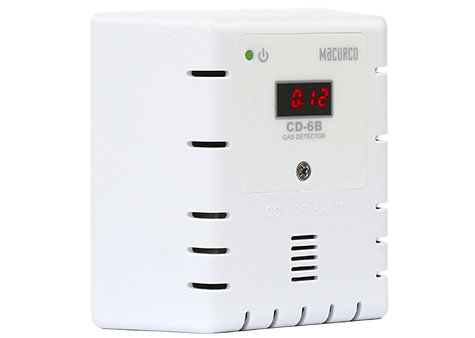

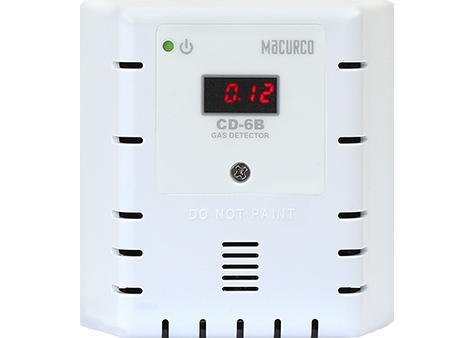

The CD-6B is a low voltage (12-24 VAC/VDC) monitor that provides three alarm levels using three separate relays for controlling external devices. This helps to maintain acceptable levels f Carbon Dioxide in the beverage and food industries, greenhouses, pharmaceutical, and other chemical processing or other commercial applications.
The CD-6B can be used as a stand-alone unit or connected to a burglar/fire panel. The monitor has a high range of 0-5% by vol. (0-50,000PPM) with a recommended coverage area of 900 – 5000 sq. ft.
Applications
| Size | 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm) |
| Weight | 1 pound (0.45 kg) |
| Range | 0-5% by vol. (0-50,000PPM) |
| Low Level Alarm Adjustable (Default) | “dis”, 0.25, 0.50 (default), 1.00, 1.50, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00% |
| Medium Level Alarm Adjustable (Default) | “dis”, 0.25, 0.50, 1.00, 1.50 (default), 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00% |
| High Level Alarm Adjustable (Default) | “dis”, 0.25, 0.50, 1.00, 1.50, 2.00, 2.50, 3.00 (default), 3.50, 4.00, 4.50, 5.00% |
| Sensor Life | 15 Years |
| Recommended Coverage Area | 900 – 5,000 sq. ft. (Application dependent) |
| Voltage/Current | Power: 3 W (max) from 12 to 24 VAC or 12 to 32 VDC: Current (max) @ 24 VDC: 50 mA in alarm (three relays), 40 mA in alarm (two relays), 30 mA (1 relay only), and 25 mA (standby) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Ambient Humidity | 10-90% RH NonCondensing |
| Display | LED (can turn on/off) |
| Mounting | 4″ x 4″ electrical box |
| Relays | 3 SPDT to switch 2.0A load, up to 240 VAC or 30 VDC User adjustable settings |
| Certifications | ETL Listed |
| Warranty | Two Year Limited Warranty |
| Photo | Model | Description |
|---|---|---|
|
HS-C, HS-A, HS-B, HS-C | Horn and Strobe (4 color options) |

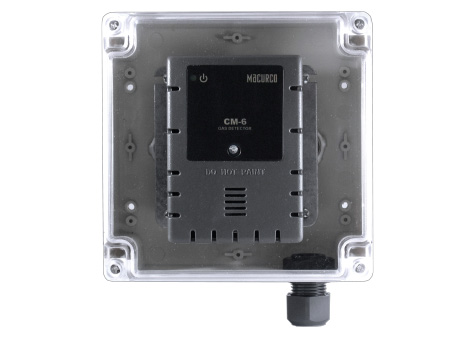

| DMK-1 | Duct Mount Kit | |
|
WHK-1 | Weatherproof Housing Kit |
| PS-24 | Plug in 24VDC Transformer | |
|
Macurco Cal-Kit 4 | Calibration Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO CD-6B using the special form.
You can buy MACURCO CD-6B in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO CD-6B price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
