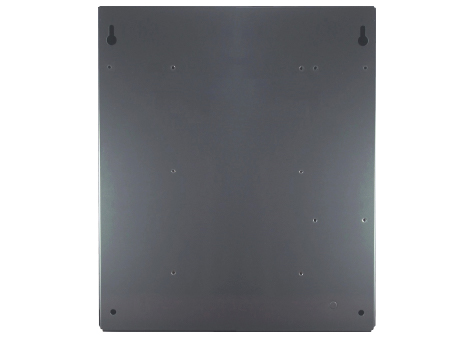

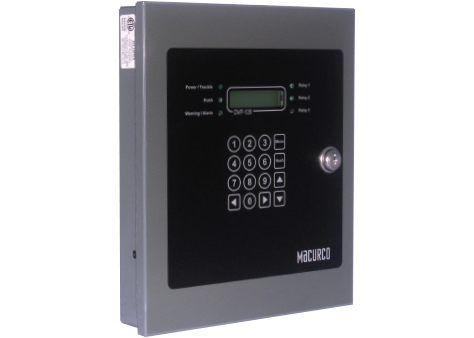

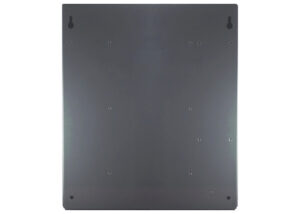

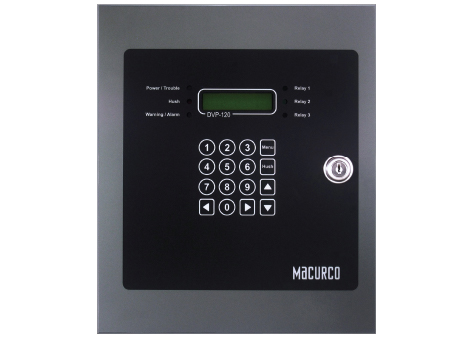

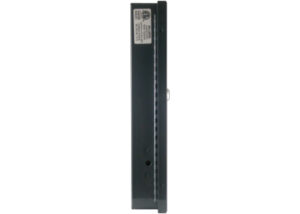

MACURCO DVP-120 Control Panel

The DVP-120 control family is an exhaust fan controller, in conjunction with Macurco gas transducers, provides automatic controls to help maintain an acceptable environment in a variety of applications

			int(26083)
NULL


Made in USA. brand MACURCO, model DVP-120

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price По запросу

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of MACURCO DVP-120

The Macurco controller family has various options to meet your facility’s needs. In conjunction with Macurco gas detectors, these controllers provide automatic control to help maintain an acceptable environment in parking garages or other applications. These systems easily configure, making installation hassle-free. The control panel series are designed to meet specifications for safety in enclosed parking garages, including the Uniform Building Code and OSHA 50ppm CO requirements. With multiple control panel options Macurco will help you find the suitable controller for your specific application.
Applications

  • Parking garages
  • Car dealerships
  • Ambulance/fire house bays
  • Warehouses
  • Manufacturing
  • Loading docks
  • Mechanical rooms
  • Distribution centers
  • Vehicle repair facilities
  • Bus depots

Key features

  • Coverage Area: Up to 60,000 sq. ft.
  • External display shows system and sensor status
  • Compatible with Macurco 6-Series and 12-Series detectors
    DVP-120C is only compatible with Macurco CM-6 Carbon Monoxide (CO), TX-6-ND Nitrogen Dioxide (NO2) and CX-6 Dual Carbon Monoxide Nitrogen Dioxide Monitor.

Technical specifications of MACURCO DVP-120

Size 10.5” x 12.5” x 2.” (26.67 X 37.75 X 5.08 cm)
Weight 6.5 lbs (2.9 kg)
Voltage/Current Power Input: 90 – 250 VAC, 1 Amp, 47 – 63 Hz, single phase
Operating Temperature 32°F to 120°F (0°C to 49°C)
Ambient Humidity 0% to 90% RH non-condensing
Display LCD display: 2 rows of 16 characters with backlight
Mounting Mounting holes in each corner
Relays Three 10A, 240 VAC SPDT fan/alarm relays
Settings External keypad for user selection of the transducer/alarm display and setting the configuration
Status Indicators (LED): Power, ALARM/warning, hush, Relay 1, Relay 2 & Relay 3
Alarms Drivers for external Horn and Strobe, externally visible system, alarm and relay status indicators
Enclosure Lockable NEMA 1 type enclosure
Certifications ETL Listed to UL 2017 CAN/CSA-C22.2 No. 14-13, LADBS Approved (DVR-120C)
Warranty Two Year Limited Warranty
Expand Table

How to buy MACURCO DVP-120

DVP-120M DVP-120B DVP-120C DVP-1200
Analog Connections 12 0 0 0
Digital Connections 87 99 99 192
Zones 3 3 3 8
10 AMP Relays 3 3 3 4
24VDC Output (Horn/Strobes) 2 2 2 4
BACnet Output N/A ✔ (MS/TP) ✔ (MS/TP) ✔ (IP)
4-20mA Outputs (VFD Control) 0 0 0 3
Remote Relays (w/ RD-24’s) 0 0 0 32
Remote Analog Outputs (w/ RD-24’s) 0 0 0 16
Remote Analog Inputs 0 0 0 48
NEMA 4X Enclosure N/A N/A N/A
Title 24 N/A N/A
Expand Table

The DVP-1200 supports up to 8 onboard relays, and an additional 32 remote relays when utilizing RD-24 devices.

Accessories for

Photo Model Description
MRS-485 Addressable Adapter (6 series only)
HS-A, HS-B, HS-R, HS-C, HS-G Horn and Strobe (5 color options)
MAC6AMP-4, MAC10AMP-4 Power Supply

Prices for

Model Description Availability Price Qty Buy
DVP-120B BACnet - 99 Addressable Connections Delivery time from 12 weeks On request
-
+
DVP-120C (CO & NO2 detectors only) BACnet - 99 Addressable Connections Delivery time from 12 weeks On request
-
+
DVP-120M 87 Addressable Connections 12 Analog Connections Delivery time from 12 weeks On request
-
+

User Guide and Instruction manual for MACURCO DVP-120

You can request the necessary certificates, documentation, instructions and user guide for MACURCO DVP-120 using the special form.

You can buy MACURCO DVP-120 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . MACURCO DVP-120 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
