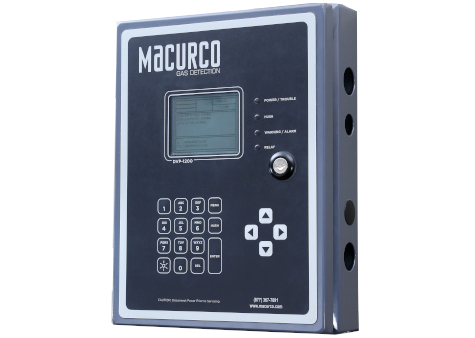

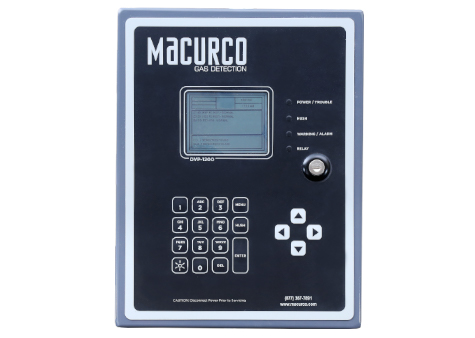

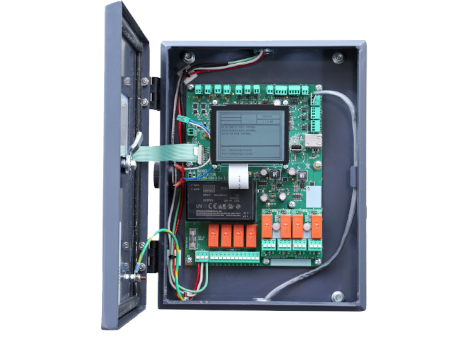

The DVP-1200 controller, in conjunction with Macurco gas detectors, provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays and expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to four remote drivers, each containing a combination of inputs/outputs. With the expandability of this panel, the DVP-1200 will fit into any gas detection application.
Applications
Key features
| Size | 13” x 10” x 2.75” (33 x 25.4 x 6.9 cm) |
| Weight | 12.4 lbs (5.6 kg) |
| Voltage/Current | Power Input: 100 – 240 VAC 1 Amp, 50/60 Hz, single phase |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Ambient Humidity | 0% to 95% RH non-condensing |
| Display | LCD display: 320 x 240 Pixels Graphic with backlight |
| Mounting | Mounting holes in each corner |
| Onboard Relays | 4 SPDT, 120/240 VAC, 10 A Max (resistive) Optional additional relay boards (+2 or +4) |
| Expansion Inputs/Outputs | Using up to 4 RD-24 drivers – Optional remote relays (up to 32) – Optional analog output (up to 32) – Optional analog input (up to 48) |
| Settings | External keypad for user selection of the transducer/alarm display and setting the configuration |
| Status Indicators | Power / trouble, hush, warning / alarm, and relay |
| Alarms | Internal buzzer, 90 dBA at 10ft |
| Enclosure | NEMA4X rated |
| Certifications | ETL Listed to UL 2017 |
| Warranty | Two year limited warranty |
| Photo | Model | Description |
|---|---|---|
|
RD-24 / RR-24 | Remote Driver / Remote Relay |
|
MRS-485 | Addressable Adapter |
|
Horn/Strobe, Strobe Only, Horn Only | Notification Series |
| MAC6AMP-4, MAC10AMP-4 | Power Supply |
