Made in USA. brand MACURCO, model GBC
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

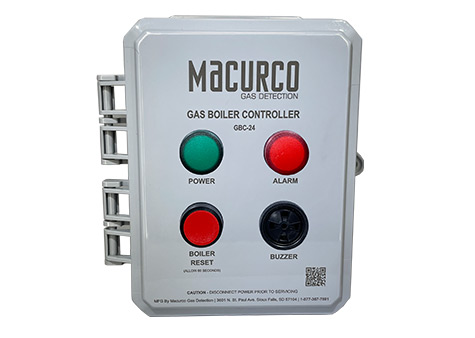

The Gas Boiler Controller used in conjunction with Macurco Gas detectors is used to shut down boilers in the presence of gas. Using a single detector or up to four gas detectors the controller can control up to 8 dry contact outputs. These outputs are designed to shut down the boiler system upon the detection of carbon monoxide and/or combustible gases such as natural gas or propane. If the detectors are programmed in latching mode then utilizing the Gas Boiler Controller you can reset the power to disengage the latched relay. The Gas Boiler Controller has a green power light, a red alarm light, a boiler reset button, and an audible buzzer.
Applications – Boiler Rooms
| Size | 9.8″ x 8″ x 4.5″ (24.9 X 20.3 X 11.4 cm) |
| Weight | 3 lbs. |
| Voltage/Current | 24 VAC/VDC or 120VAC |
| Operating Temperature | 32°F to 125°F (0°C to 52°C) |
| Ambient Humidity | 0% to 95% RH non-condensing |
| Mounting | 6 mounting holes |
| Buzzer | 90 dBA at 1 ft |
| Status Indicators | Green Light – Powered Up Red Light – Alarm Condition |
| Outputs | Relay Expansion Board – 2 SPDT, 250VAC, 10 A Max (resistive) 4 expansion board capacity (8 total relays) |
| Settings | Jumpers |
| Enclosure | NEMA 4X (IP66) |
| Warranty | Two year limited warranty |
| Description | Model Number |
| 24 Volts – 2 Relays | GBC-24-2 |
| 24 Volts – 4 Relays | GBC-24-4 |
| 24 Volts – 6 Relays | GBC-24-6 |
| 24 Volts – 8 Relays | GBC-24-8 |
| 120 Volts – 2 Relays | GBC-120-2 |
| 120 Volts – 4 Relays | GBC-120-4 |
| 120 Volts – 6 Relays | GBC-120-6 |
| 120 Volts – 8 Relays | GBC-120-8 |

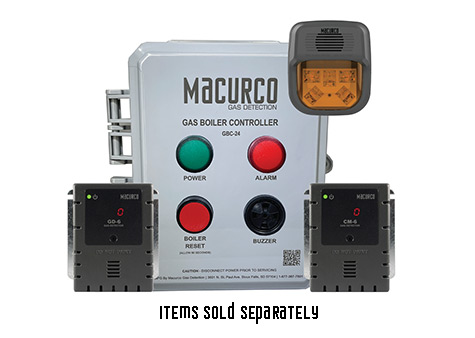

| Photo | Model | Description |
|---|---|---|
| CM-6 | CO Detector | |
| GD-6 | LEL Detector | |
| HS-A, HS-B, HS-C, HS-R | Horn and Strobe | |
| E Stop | Emergency Power Off |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO GBC using the special form.
You can buy MACURCO GBC in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO GBC price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Gas Control Panels, Gas detectors & analysers
