PM500-CSK Confined Space Kit
CO, H2S, O2, and LEL

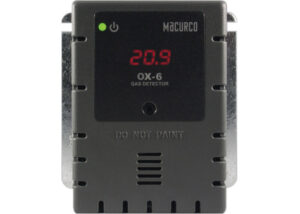

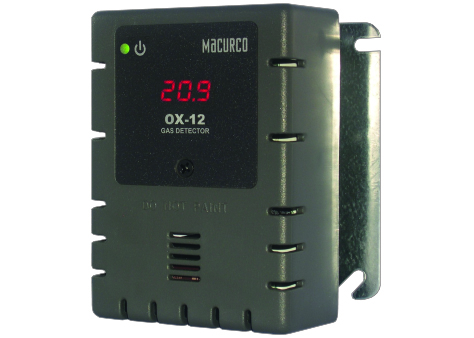

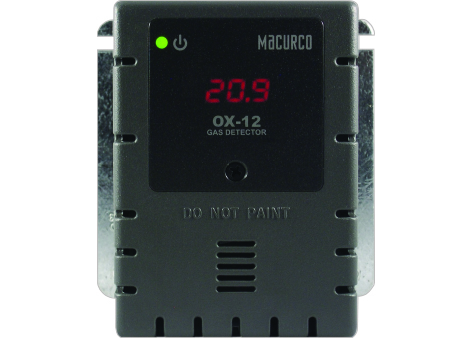

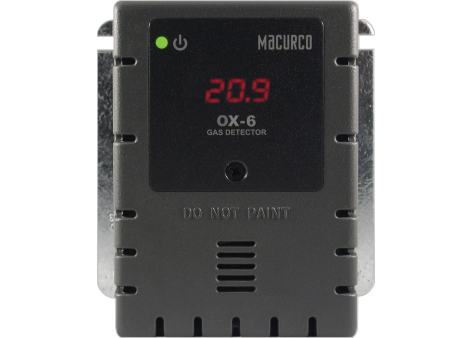

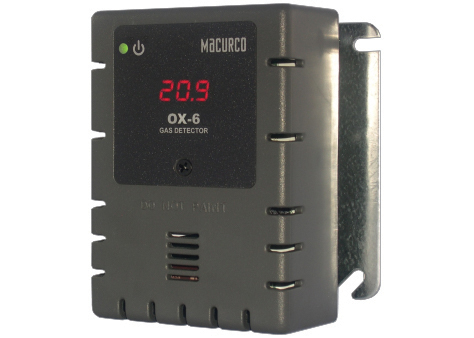

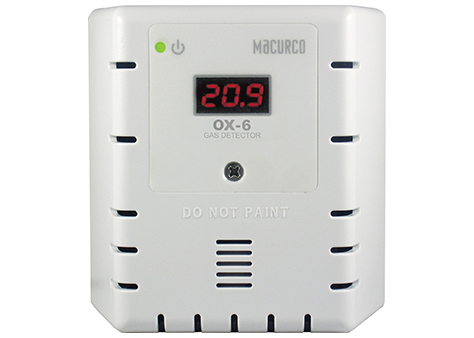

Made in USA. brand MACURCO, model OX-6/OX-12
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The Macurco 6 & 12 Series fixed gas detectors provide life-saving solutions to protect people and property. These fixed gas detectors are designed for low-level detection, mitigation, and notification. Let these detectors do the work for you by shutting off valves, turning on fans, engaging horns and strobes, and providing notification to fire panels and building automation systems when gases reach vital limits.
Key features
Applications
| Size | 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm) |
| Weight | 1 pound (0.45 kg) |
| Voltage/Current | 6-Series Power: 3 W (max) from 12 to 24 VAC or 12 to 32 VDC : Current @ 24 VDC: 75 mA in alarm, 50 mA fan relay on and 23 mA stand by 12-Series Power: 100-240 VAC (50 to 60 HZ) Current: 1.0 A MAX |
| Operating Temperature | 0°F to 125°F (-17.8°C to 51.7°C) CO₂ Detectors: 32°F to 122°F (0°C to 50°C) |
| Ambient Humidity | 10-90% RH non-condensing |
| Display | LED (can turn on/off) |
| Current Loop | Analog: 4-20mA MRS-485: Digital Modbus adapter BRS-485: BMS communication |
| Mounting | 4″ x 4″ electrical box |
| Relays | 5A Fan relay & 0.5A alarm relay User adjustable settings |
| Certifications | ETL Listed |
| Warranty | Two year limited warranty |
| Model Number | Gas Type | Range (Units) | Low Level Alarm Adjustable (Default) | High Level Alarm Adjustable (Default) | Expected Sensor Life | Recommended Coverage Area |
| OX-6 | OX-12 | Oxygen (O₂) | 0-25 % V/V | 0,15,18,1…202,203,204 & 20.5% v/v & high 23.5 % v/v (press) | 0,185,19,195,20,205 and high 23.5 % v/v (press) | 2 Years** | Up to 1,257 sq. ft.* |
| Photo | Model | Description |
|---|---|---|
| DVP-120, DVP-120M, DVP-120B, DVP-1200 | Control Panels | |
| PS-24, PS-24-H | Step-down Transformers | |
| DMK-1 | Duct Mount Kit | |
|
HS-A, HS-B, HS-R, HS-C | Horn and Strobe (4 color options) |
|
MRS-485, BRS-485 | Adapter Options |
|
Calibration Kits | Based on Gas Type |
|
WHK-1 | Weatherproof Housing Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO OX-6/OX-12 using the special form.
You can buy MACURCO OX-6/OX-12 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO OX-6/OX-12 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
