Two-year disposable portable single-gas monitors for CO, H2S, O2, NH3, SO2, NO2, or H2.
Made in USA. brand MACURCO, model PM100
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

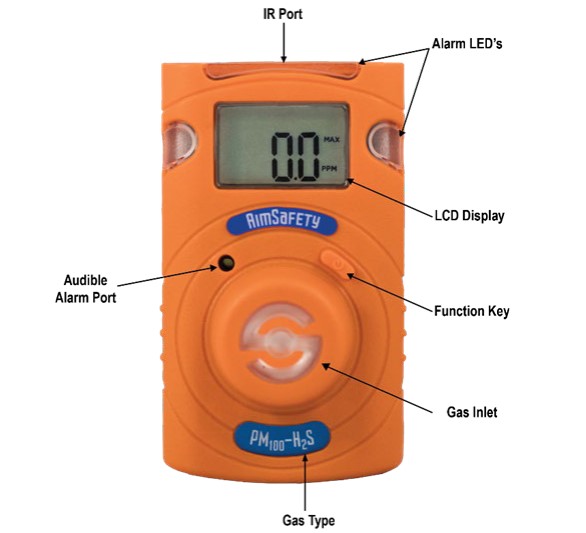

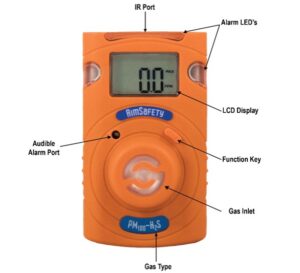

The PM100 is a maintenance-free, disposable portable single-gas monitor that protects workers by providing exposure detection for specific gases in hazardous environments. The PM100 continuously monitors ambient air conditions and provides real-time gas concentration readings on an easy-to-read LCD display. A three-tier alarm system warns the user of the presence of unsafe gas levels with audible, visual, and vibrating alarms. The PM100 has sensor options for Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Oxygen (O2), Ammonia (NH3), Sulfur Dioxide (SO2), Nitrogen Dioxide (NO2), or Hydrogen (H2).
Key features
Applications
| Size | 3.34″(L) x 1.92″(W) x 1.56″(H) with clip 8.48 cm x 4.87 cm x 3.96 cm |
| Weight | 3.3 oz. (93 g.) Toxic models 3.8 oz. (107 g.) O₂ model (Battery, clip included) |
| Battery | Lithium (Non-replaceable) |
| Operating Period | Two years* |
| Event Logging | 30 events (Alarms / bumps) |
| IP Rating | IP67 |
| Display | LCD display |
| Alarms | Audible buzzer – 90 dB (at 4 in. typical) Vibration alarm Flashing red LEDs On-screen indication Differentiating audible & visual high and low alarms indication |
| Temperature | Toxics: -40°F to 122°F (-40°C to 50°C) O₂: -31°F to 122°F (-35°C to 50°C) |
| Humidity | 5% to 95% RH (Non-condensing) |
| Warranty | Two year limited warranty |
| Sensor Life Notification | – Sensor life indication screen (Month(s), days or hours) – 30-Day end-of-life display warning (Days or hours) |
| Policy Enforcement (Configurable) | – End-of-life notification – Alarm test due – Bump test due – Calibration due |
*Normal alarm use: Based on two minutes of alarm per day
Gas Options
| Gas | Range | Resolution |
| CO | 0 – 500 ppm | 1 ppm |
| H₂S | 0 – 100 ppm | 0.1 ppm |
| O₂ | 0 – 30% Vol | 0.1% Vol |
| NH₃ | 0 – 100 ppm | 1 ppm |
| SO₂ | 0 – 50 ppm | 0.1 ppm |
| NO₂ | 0 – 20 ppm | 0.1 ppm |
| H₂ | 0 – 1000 ppm | 1 ppm |
| Gas | Model Number | Low Alarm | High Alarm |
| CO | PM100-CO | 35 ppm | 100 ppm |
| H₂S | PM100-H₂S | 10 ppm | 15 ppm |
| O₂ | PM100-O₂ | 19.5% | 23.5% |

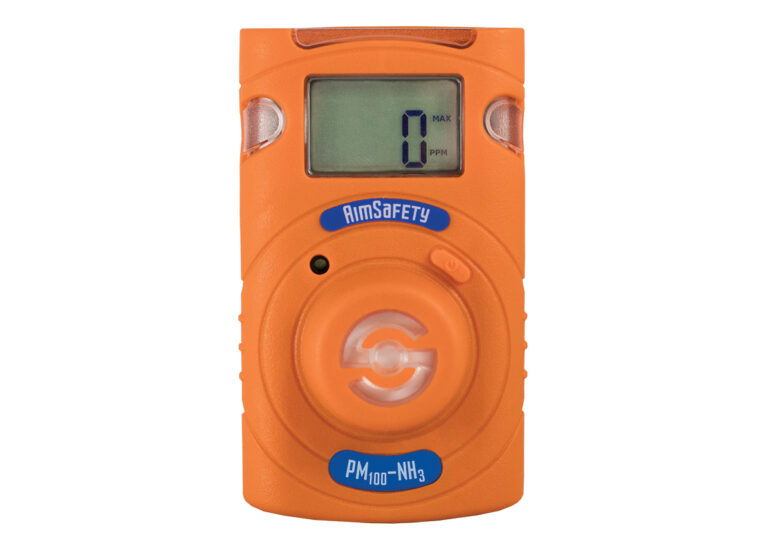

| NH₃ | PM100-NH₃ | 25 ppm | 50 ppm |
| SO₂ | PM100-SO₂ | 2 ppm | 5 ppm |
| NO₂ | PM100-NO₂ | 2.5 ppm | 5 ppm |
| H₂ | PM100-H₂ | 100 ppm | 500 ppm |
Accessories
| Name | Model Number | Photo |
| PM Link (PC Interface) | PM-Link |  |
| Bump/Cal Test Station | PM100-STN (Compatible with CO, H2S & O2) |  |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO PM100 using the special form.
