Advanced, easy-to-use, 4-gas monitor for worker protection in hazardous environments. The ergonomic PM400 diffusion gas monitor simultaneously detects up to four gases, including hydrogen sulfide (H 2 S), carbon monoxide (CO), oxygen (O2 ) and combustibles (LEL). AimSafety’s PM400 is easy to use and delivers continuous visibility of gas concentrations for faster, more informed decisions that help protect workers and operational assets which can increase revenue and productivity.
Made in USA. brand MACURCO, model PM400
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

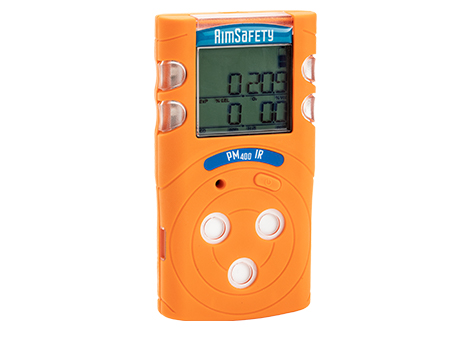

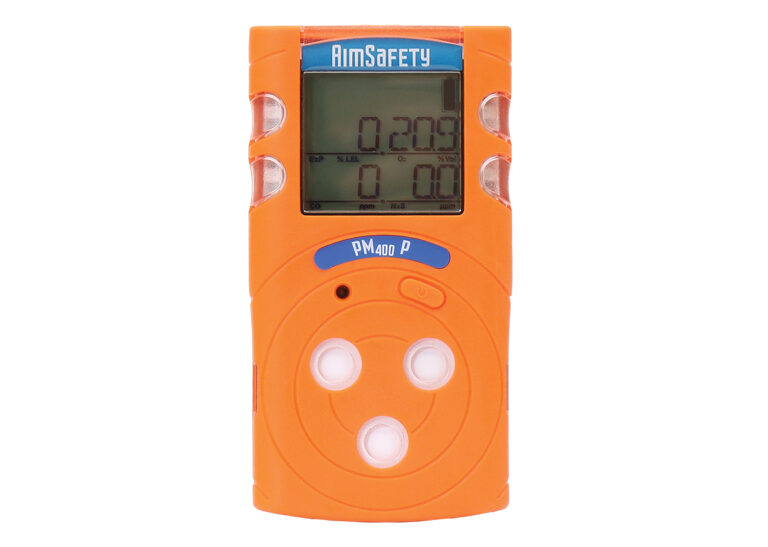

The innovative new AimSafety PM400 4-gas portable monitor brings enhanced convenience and flexibility to gas detection in hazardous environments. The ergonomic PM400 diffusion gas monitor simultaneously detects up to four gases, including hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2) and combustibles (LEL). AimSafety’s PM400 is easy to use and delivers continuous visibility of gas concentrations for faster, more informed decisions that help protect workers and operational assets which can increase revenue and productivity.
The PM400 LCD display provides real-time gas concentrations and allows plant managers or workers to set high and low alarm set-points for each sensor, and STEL, and TWA alarm set-points for toxic gases. The PM400’s audible, visual and vibrating alarms alert the user of unsafe gas concentrations. The PM400 IR will operate continuously for up to 60 days on a single battery charge. Standard sensors include: carbon monoxide, hydrogen sulfide, oxygen, and either catalytic bead or infrared for combustible gases (LEL).
Key features
Applications
| Size | 4.48″(L) x 2.39″(W) x 1.6″(H) *with clip 11.37 cm x 6 cm x 4 cm |
| Weight | 8.0 oz. (227 g.) PM400-IR 8.3 oz. (235 g.) PM400-P |
| Sensor Type | Field-replaceable sensors: LEL – Catalytic bead (Pellistor) LEL – Infrared O₂, CO, H₂S – Electrochemical |
| Battery | Rechargeable Li-ion |
| Runtime | 60 days continuous, IR (LEL) version 24 hours continuous, P (LEL) version |
| Event Logging | 30 Events, 30 calibrations, 30 bump tests |
| Data Logging | Two months – continuous at 1 – minute intervals, 24 hours a day, 7 – days a week |
| IP Rating | IP67 dust tight and water resistant |
| Display | Backlit digital LCD display Real-time readings of gas concentrations Battery status Alarm notifications |
| Alarms | LCD alarm icon display, LCD backlight Indicator LED Audible: 90 dB at 4 in. (10 cm) |
| Temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity | 10% to 95% RH (Non-condensing) |
| Certifications | UL & CSA Class I, Division 1, Groups A, B, C, D, T4 Class I, Zone 0, AEx ia IIC T4 Ga IECEx Ex ia IIC T4 Ga (PM400-IR) Ex da ia IIC T4 Ga (PM400-P) |
| Warranty | Two year limited warranty |
Gas Options
| Gas | Range | Resolution |
| CO | 0 – 500 ppm | 1 ppm |
| H₂S | 0 – 100 ppm | 0.1 ppm |
| O₂ | 0 – 30% Vol | 0.1% Vol |
| Combustible (IR & P) | 0 – 100 %LEL | 1% LEL |
Alarm Levels / Calibration Gas Defaults
| Gas | Low | High | STEL | TWA | CAL |
| CO | 35 | 100 | 200 | 35 | 100 PPM |
| H₂S | 10 | 15 | 15 | 10 | 25 PPM |
| O₂ | 19.5 | 23.5 | 18 %Vol | ||
| LEL | 10 | 20 | 50 %LEL |
| Photo | Model | Description |
|---|---|---|
|
PM-Link | PM Link (PC Interface) |
|
PM400-STN | Bump/Cal Test Station |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO PM400 using the special form.
You can buy MACURCO PM400 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO PM400 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
