Advanced, easy-to-use, multi-gas monitor with built-in pump for confined space entry and worker protection in hazardous environments
Made in USA. brand MACURCO, model PM500
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

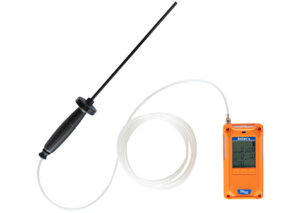

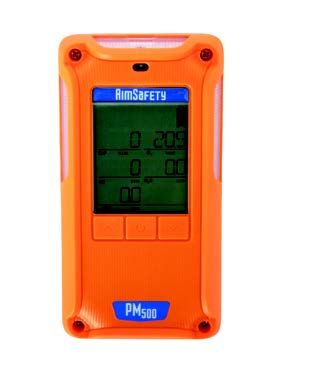

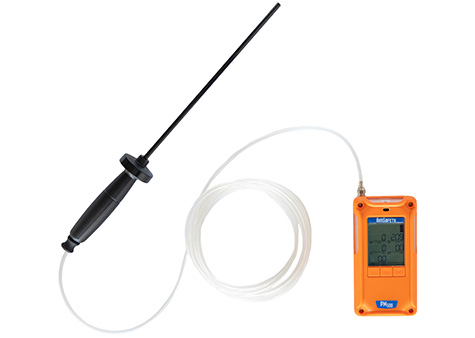

Macurco’s newest addition to the AimSafety portable gas solution lineup is the PM500 sampling type monitor. This rugged handheld, combined with a strong internal pump, can measure up to six gases simultaneously to allow for safe entry in confined spaces and hard-to-reach areas.
PM500 monitors are equipped with audible, visual and vibrating alarms to alert the user of unsafe gas concentrations. The large backlit LCD provides sampled gas concentrations in real-time along with configurable alarm setpoints (low, high, STEL and TWA). Standard target gases include carbon monoxide (CO), hydrogen sulfide (H2S), oxygen (O2) and combustible gases. Additional gas options include ammonia (NH3), sulfur dioxide (SO2), nitrogen dioxide (NO2), volatile organic compounds (VOCs) and others.
Key features
Applications
| Size | 5.7″(L) x 3.0″(W) x 1.7″(H) 14.6 cm x 7.7 cm x 4.3 cm |
| Weight | 17.3 oz. (490 g.) |
| Mounting Type | Clip |
| Battery | Rechargeable Lithium-Ion Nominal Voltage: 3.7V Nominal Capacity: 4000mAh Maximum Charging Voltage: 6.3V |
| Runtime | PM500-IR: 5 days PM500-P: 30 hours |
| Event Logging | 30 Events |
| Data Logging | Calibation Log: 30 EA Bump Log: 30 EA Data Log: Two months or longer |
| IP Rating | IP67 (IP ratings do not imply that the equipment will detect gas during and after exposure to those conditions) |
| Display | Segment LCD backlight display |
| Alarms | Backlight LCD alarm display / LED indicator Audible buzzer (90dB at 10cm) Vibrating alarm |
| Temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity | 10% to 90% RH (Non-condensing) |
| Certifications | UL/CSA Ex db ia IIC T4 Gb Class I, Division 1, Groups A, B, C, and/or D, T4 Class I, Zone 1, AEx db ia IIC T4 Gb IECEx Ex db ia IIC T4 Gb or Ex db ia IIB T4 Gb ATEX Ex db ia IIC T4 Gb or Ex db ia IIB T4 Gb INMETRO Ex d ia IIC T4 Gb or Ex d ia IIB T4 Gb EMC Directive 2014/30/EU Certifications are listed for PM500-IR and vary by model. Refer to manual for complete list. |
| Warranty | Two year limited warranty |
Gas Options
| Gas | Range | Resolution |
| CO | 0 – 500 PPM | 1 PPM |
| H₂S | 0 – 100 PPM | 0.1 PPM |
| O₂ | 0 – 30 %VOL | 0.1 %VOL |
| Combustible | 0 – 100 %LEL | 1 %LEL |
| NH₃ | 0 – 100 PPM | 0.1 PPM |
| SO₂ | 0 – 50 PPM | 0.1 PPM |
| NO₂ | 0 – 20 PPM | 0.1 PPM |
| VOCs | 0 – 4,000 PPM | 0.1 PPM |
Alarm Levels / Calibration Gas Defaults
| Gas | Low | High | STEL | TWA | CAL |
| CO | 35 | 100 | 200 | 35 | 100 PPM |
| H₂S | 10 | 15 | 15 | 10 | 25 PPM |
| O₂ | 19.5 | 23.5 | 18 %Vol | ||
| LEI | 10 | 20 | 50 %LEI | ||
| NH₃ | 25 | 50 | 35 | 50 | 50 PPM |
| SO₂ | 2 | 5 | 5 | 5 | 10 PPM |
| NO₂ | 2.5 | 5 | 1 | 1 | 10 PPM |
| VOCs | 10 | 20 | 100 PPM |
| Photo | Model | Description |
|---|---|---|
| 31-0006-4603-2 | Gas Regulator (Demand Flow) | |
| 37-0551-3344-2 | Cal-Gas Quad Mix (CO/H2S/O2/LEL) | |
| 70-2900-0572-0 | PM500-CSK Confined Space Kit | |
| 70-2900-0536-8 | PM Link PC Communicator | |
| 70-2900-0572-7 | PM500-SPK Sampling Probe Kit | |
| 70-2900-0534-1 | PM500 Vehicle Charger Kit | |
| 70-2900-0573-1 | PM500-STN Bump/Cal Station |
