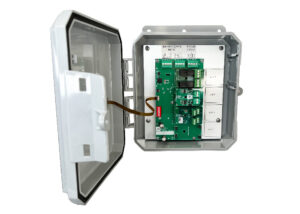

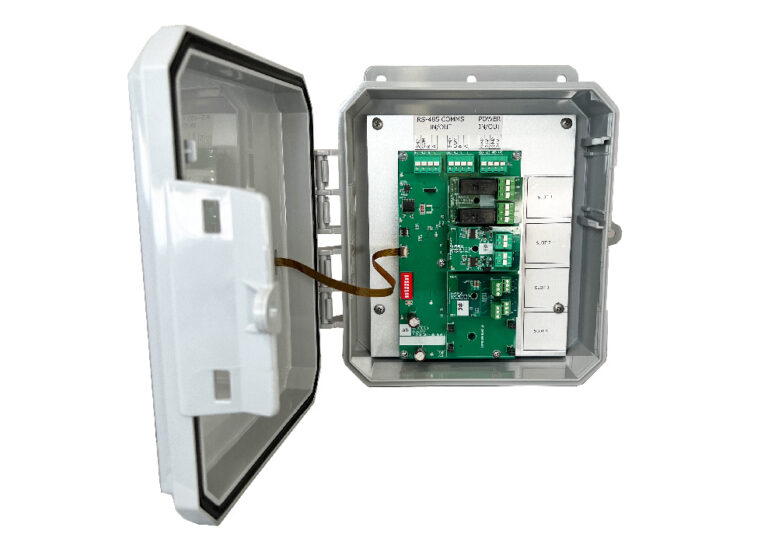

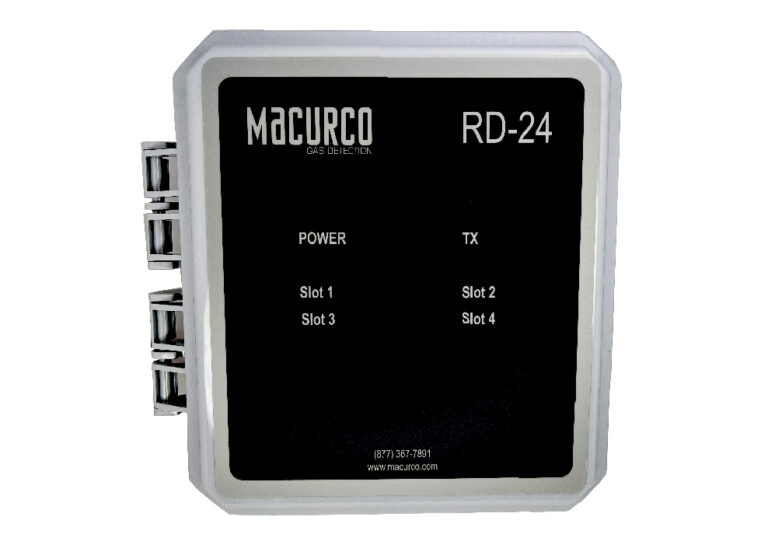

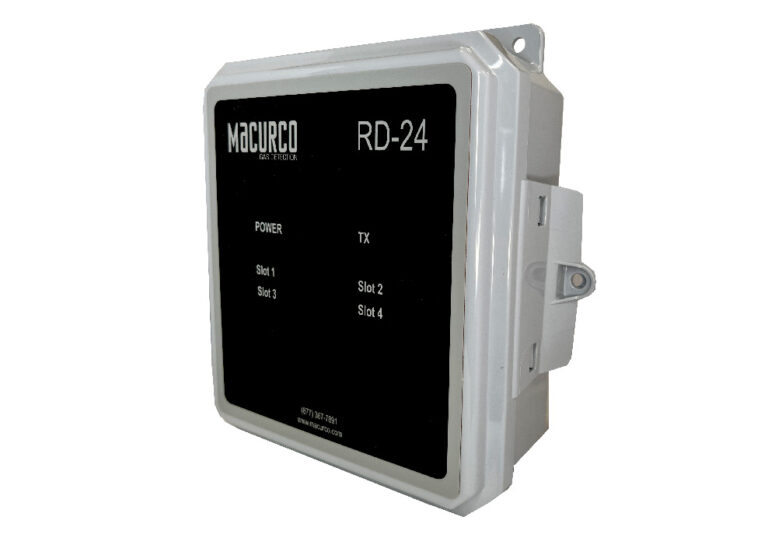

The RD-24 is a remote input/output device that allows flexibility for applications needing more relays, analog outputs, or analog inputs. Using Modbus communication, you can control multiple I/O based on the application.
Made in USA. brand MACURCO, model RD-24
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The RD-24 requires 24 VDC to operate and can be used to engage or disengage other equipment such as fans, louvers, horns, strobes, gas valves, etc. Using Modbus communication; you can control multiple I/O based on the application. The remote device can be wired in daisy-chain on the gas detector loop to save wire and allow for great mounting location flexibility.
Applications
Key features
| Size | 10.26″ x 11.06″ x 3.16″ (26.06 x 28.09 x 8.03 cm) |
| Weight | 2.8 lbs. (1.3 kg) |
| Voltage/Current | Power Input: 24VDC, 0.5A |
| Operating Temperature | 32 to 125°F (0 – 52°C) |
| Ambient Humidity | 0% – 95% RH non-condensing |
| Mounting | Mounting holes in each corner |
| Expansion Relay | 2 SDPT, 250VAC, 10A Max (resistive), max current draw 55mA |
| Expansion Analog Input | 4 Analog Inputs – max current draw 300mA |
| Expansion Analog Output | 2 Analog Outputs – max current draw 70mA |
| Settings | Dip Switch – 8 positions |
| Status Indicators | (LED): Power, communication, Slots 1-4 |
| Enclosure | NEMA4X rated |
| Warranty | Two year limited warranty |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO RD-24 using the special form.
You can buy MACURCO RD-24 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO RD-24 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
