The Alarm Notification Assembly is a flexible, cost-effective alarm status annunciator for general-purpose applications. The TXP-ANA offers optional strobe light configurations of one to four strobes, standard 99 dB or optional 120 dB horn, optional configurable Hush/Silence, and optional wireless functionality with the TXP Wireless System.
Made in USA. brand MACURCO, model TXP-ANA
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

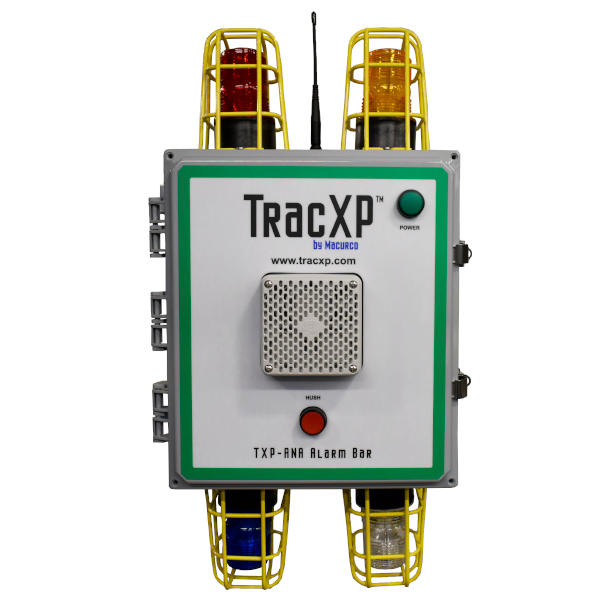

The TracXP-ANA (Alarm Notification Assembly) is a flexible, cost-effective alarm status annunciation for general purpose applications. The TXP-ANA offers optional strobe light configurations of one to four strobes, standard 99 dB or optional 120 dB horn, optional configurable Hush/Silence, and optional wireless functionality with the TXP Wireless System. The TXP-ANA wireless is available with 900MHz frequencies to meet your communication requirements. The TXP-ANA can be used simultaneously to serve as a repeater to extend the wireless communication range to a TXP- controller.
Key features
Applications
| Size | 13′(L) x 26.5″(W) x 9.25″(H) Enclosure 28′(L) x 26.5″(W) x 9.25″(H) With (4) strobes and 99 dB horn 28′(L) x 26.5″(W) x 13.5″(H) With (4) strobes and 120 dB horn |
| Weight | 17.6 lbs. With (4) strobes, wireless, and 99 dB Horn 18.2 lbs. With (4) strobes, wireless, and 120 dB Horn |
| Power Supply | 85-264 VAC input, 24 VDC output, 70W (3A) (Wireless option only) |
| Input Power | 10-30 VDC, 3 watts maximum (non-wireless) 85-264 VAC (wireless) |
| Strobe | Flash rate – 60 to 80 flashes per minute Light output – 50 effective candlepower Lamp type – Xenon Lamp life – 10,000 hour |
| Wireless Option | Wireless Input – 900 MHz Wireless Output – Frequency-Hopping Spread Spectrum (FHSS) Four Alarm Relays Independent Horn Relay |
| Temperature | -40°F to +140°F (-40°C to +60°C) |
| Environmental Rating | NEMA 4XIIP66 |
| Warranty | 2-year on enclosure and electronics 1-year on Xenon strobe lamp 10-year on strobe power supply |
Ordering Options
| Part Number | Description |
| 93-5724-0000-16 | TXP-ANA, Poly Endosure, 10-30 VDC, 99 dB Horn |
| 93-5724-0000-15 | TXP-ANA, Poly Endosure, 10-30 VDC, 99 dB Horn, Hush |
| 93-6754-0000-16 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 99 dB Horn, Wireless |
| 93-6754-0000-15 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 99 dB Horn, Wireless, Hush |
| 93-5324-0000-16 | TXP-ANA, Poly Endosure, 10-30 VDC, 120 dB Horn |
| 93-5324-0000-15 | TXP-ANA, Poly Endosure, 10-30 VDC, 120 dB Horn, Hush |
| 93-6354-0000-16 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 120 dB Horn, Wireless |
| 93-6354-0000-15 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 120 dB Horn, Wireless, Hush |
Strobes
| Part Number | Description |
| 95-2124-R112-00 | Red Strobe with Strobe Guard |
| 95-2124-B112-00 | Blue Strobe with Strobe Guard |
| 95-2124-C112-00 | Clear Strobe with Strobe Guard |
| 95-2124-G112-00 | Green Strobe with Strobe Guard |
| 95-2124-A112-00 | Amber Strobe with Strobe Guard |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-ANA using the special form.
